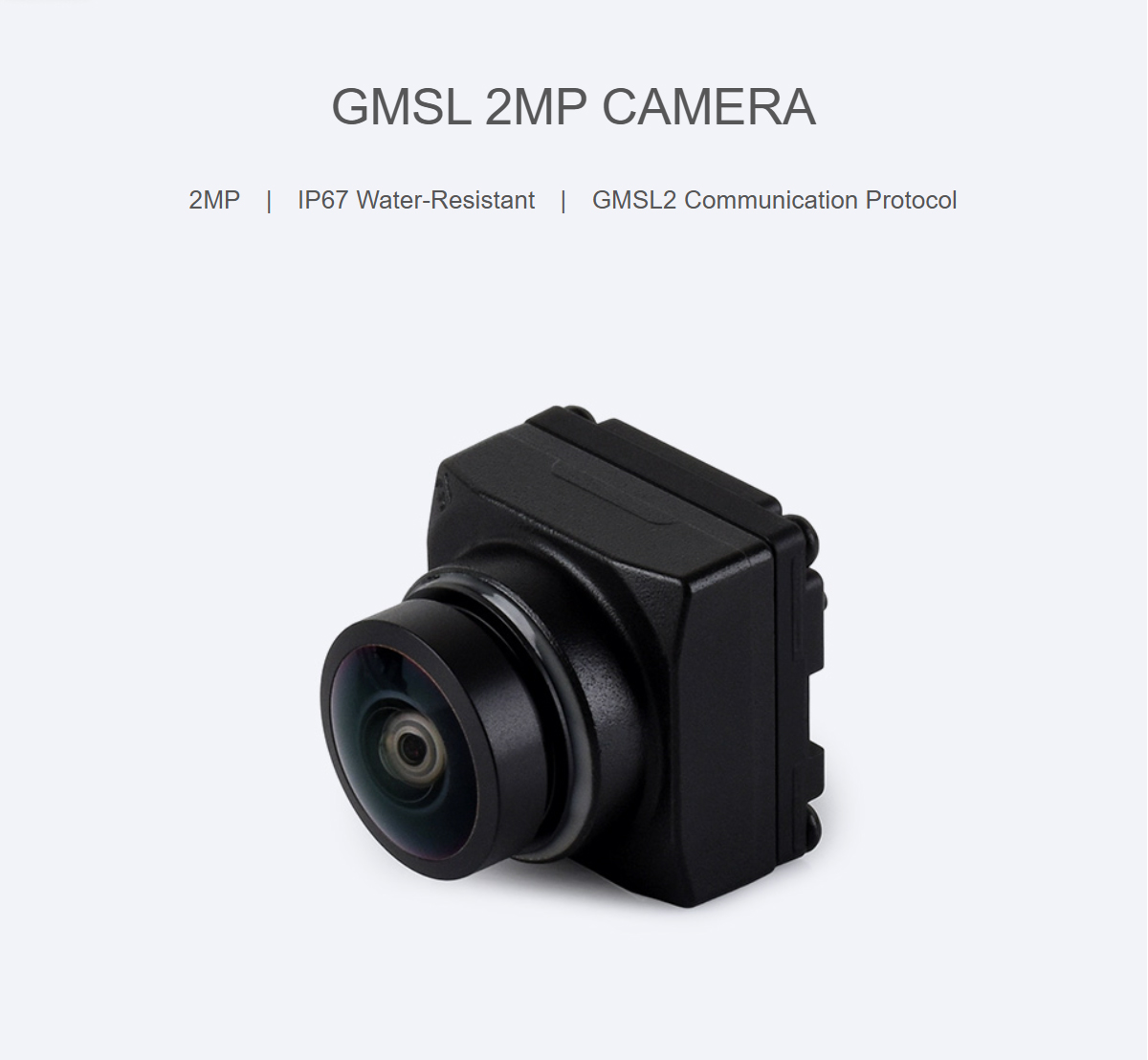

Waveshare GMSL-2MP-Camera-A 2MP GMSL Camera Module Built-in ISP AA Lens IP67 Automotive-grade Image Sensor
Waveshare GMSL-2MP-Camera-A 2MP GMSL Camera Module Built-in ISP AA Lens IP67 Automotive-grade Image Sensor

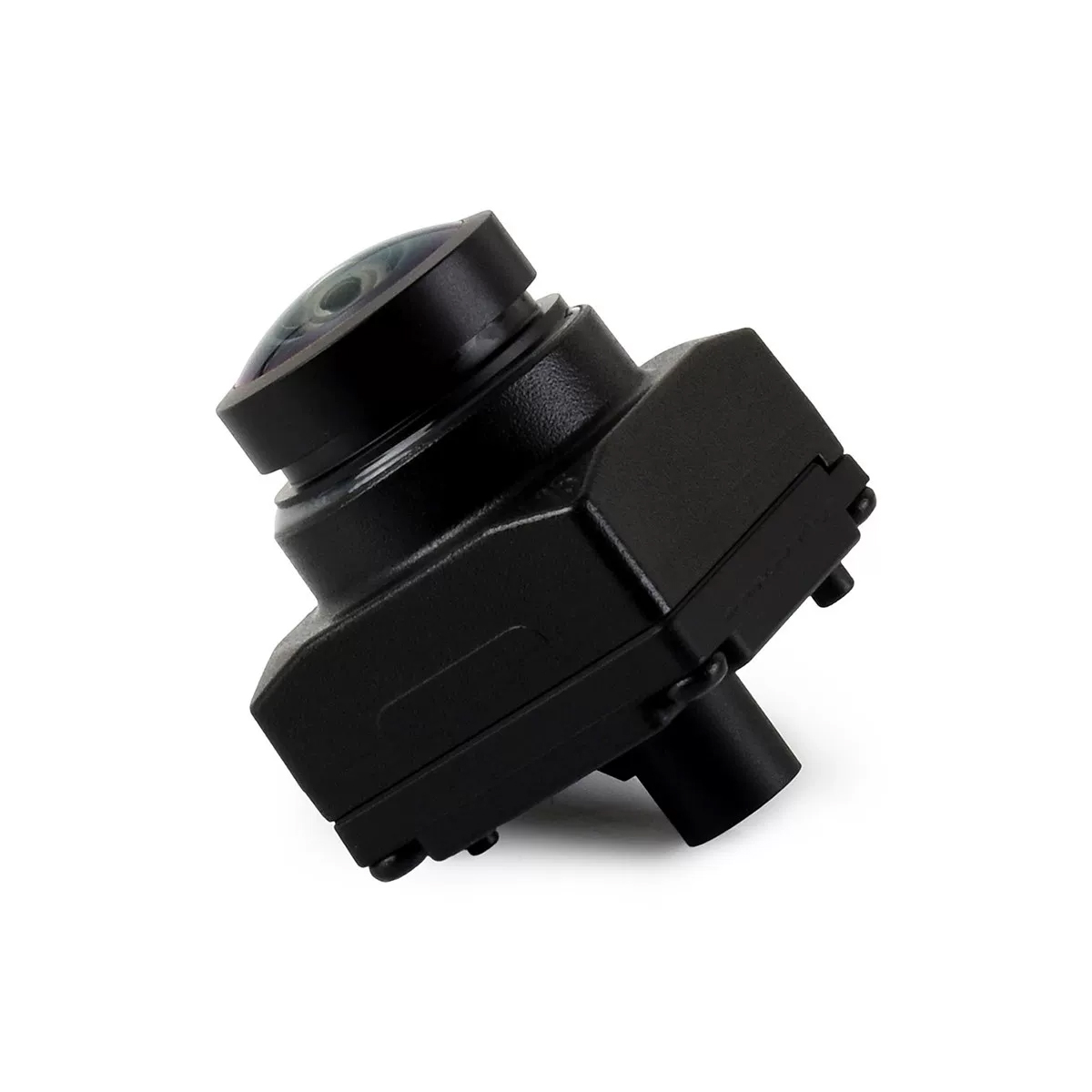

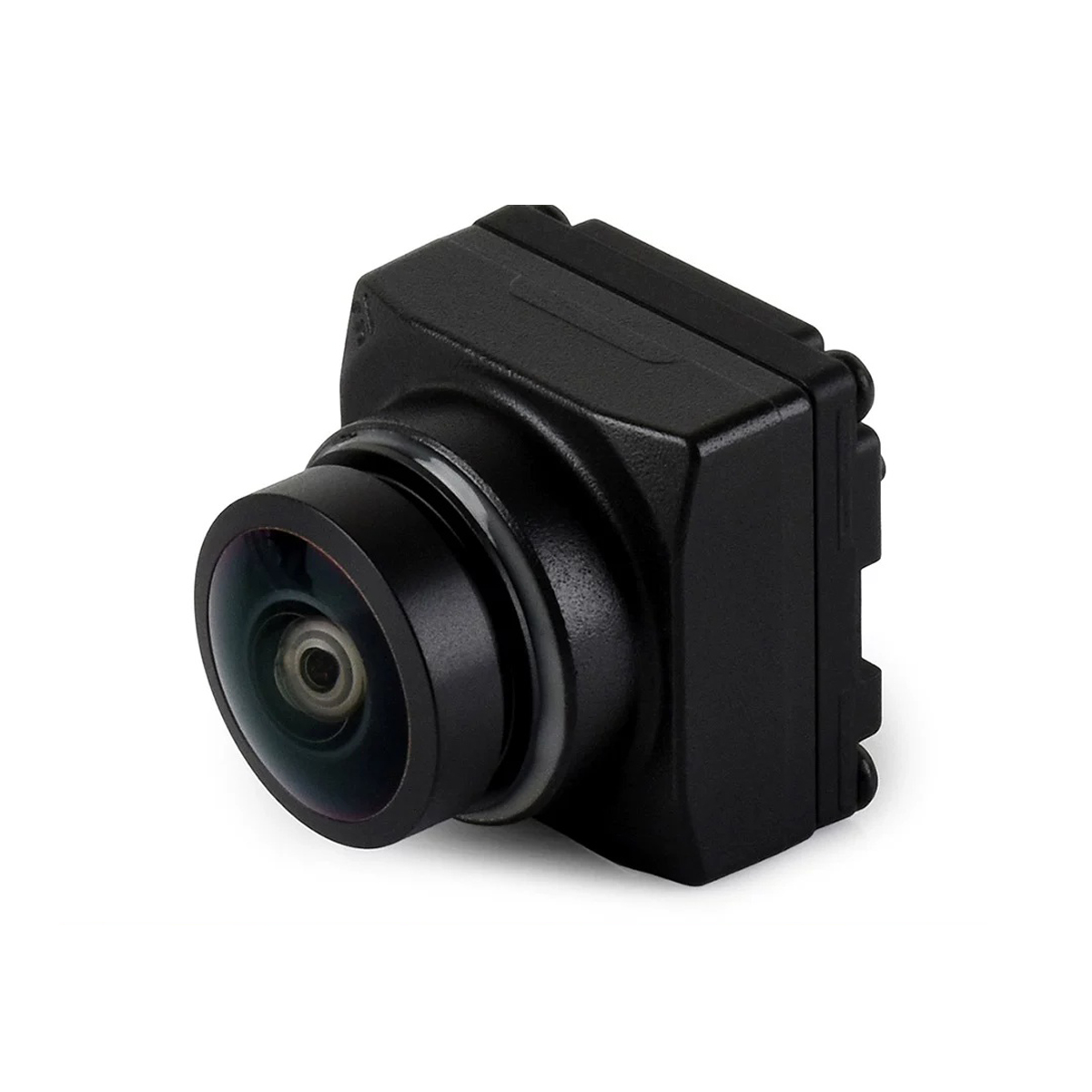

The GMSL-2MP-Camera-A camera module adopts a 2MP automotive-grade CMOS image sensor and integrates the MAXIM MAX96717F GMSL serializer. It includes a professionally calibrated image signal processor (ISP), delivering clear and stable image quality. The entire unit features an IP67-rated case and comes with an AA lens, and each unit is precisely focused and glue-secured before shipment, making it well-suited for automotive and other demanding applications.
Model: GMSL-2MP-Camera-A
SKU: 34019
Weight: 72g

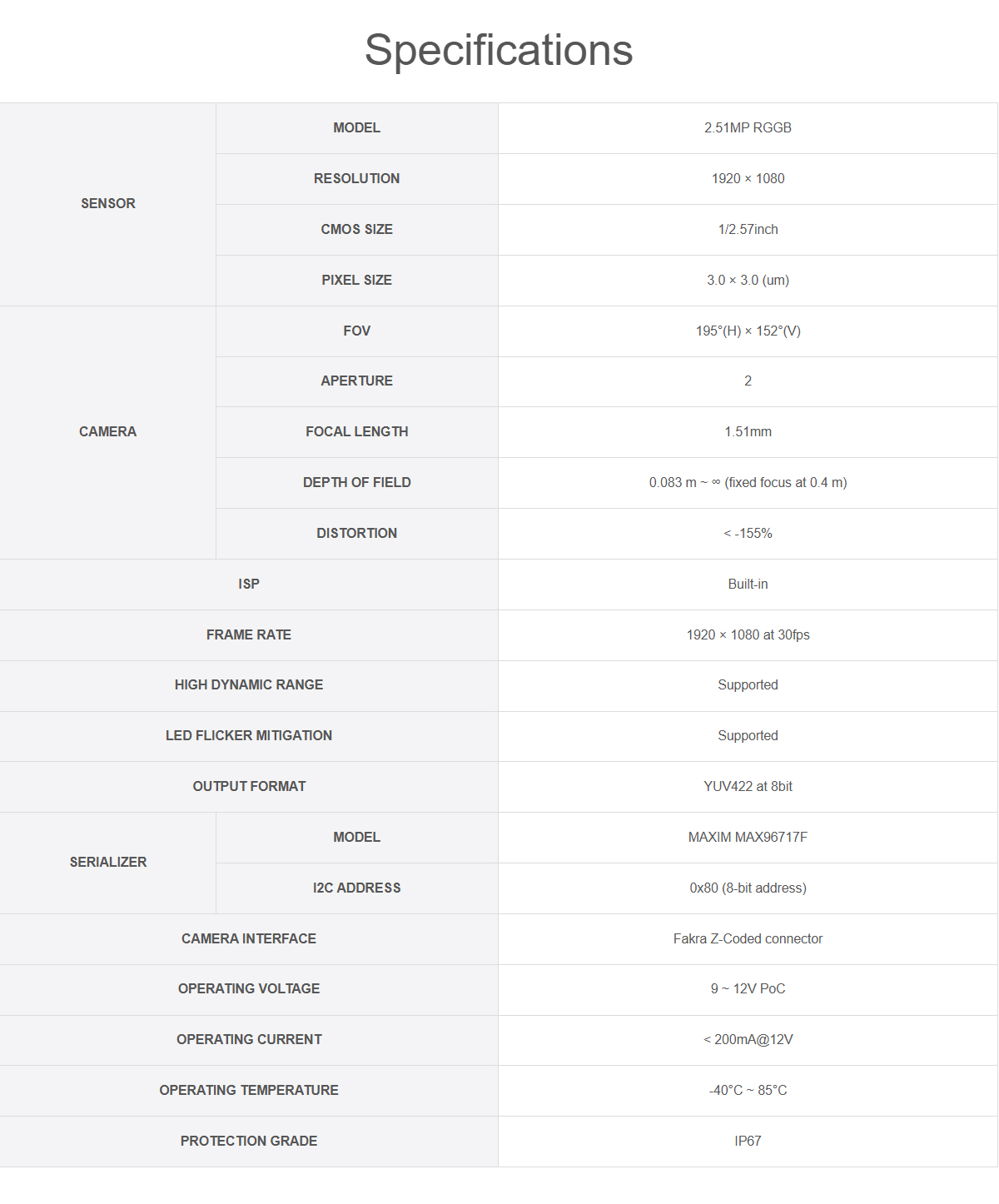

Sensor
Model: 2.51MP RGGB
Resolution: 1920 × 1080
CMOS Size: 1/2.57inch
Pixel Size: 3.0 × 3.0 (um)
Camera
FOV: 195°(H) × 152°(V)
Aperture: 2
Focal Length: 1.51mm
Depth of Field: 0.083 m ~ ∞ (fixed focus at 0.4 m)
Distortion: < -155%
ISP: Built-in
Frame Rate: 1920 × 1080 At 30fps
High Dynamic Range: Supported
LED Flicker Mitigation: Supported
Serializer: Model: MAXIM MAX96717F;I2C Address: 0x80 (8-bit Address)
Output Format: YUV422 At 8bit
Camera Interface: Fakra Z-Coded Connector
Operating Voltage: 9 ~ 12V PoC
Operating Current: < 200mA@12V
Operating Temperature: -40°C ~ 85°C
Protection Grade: IP67

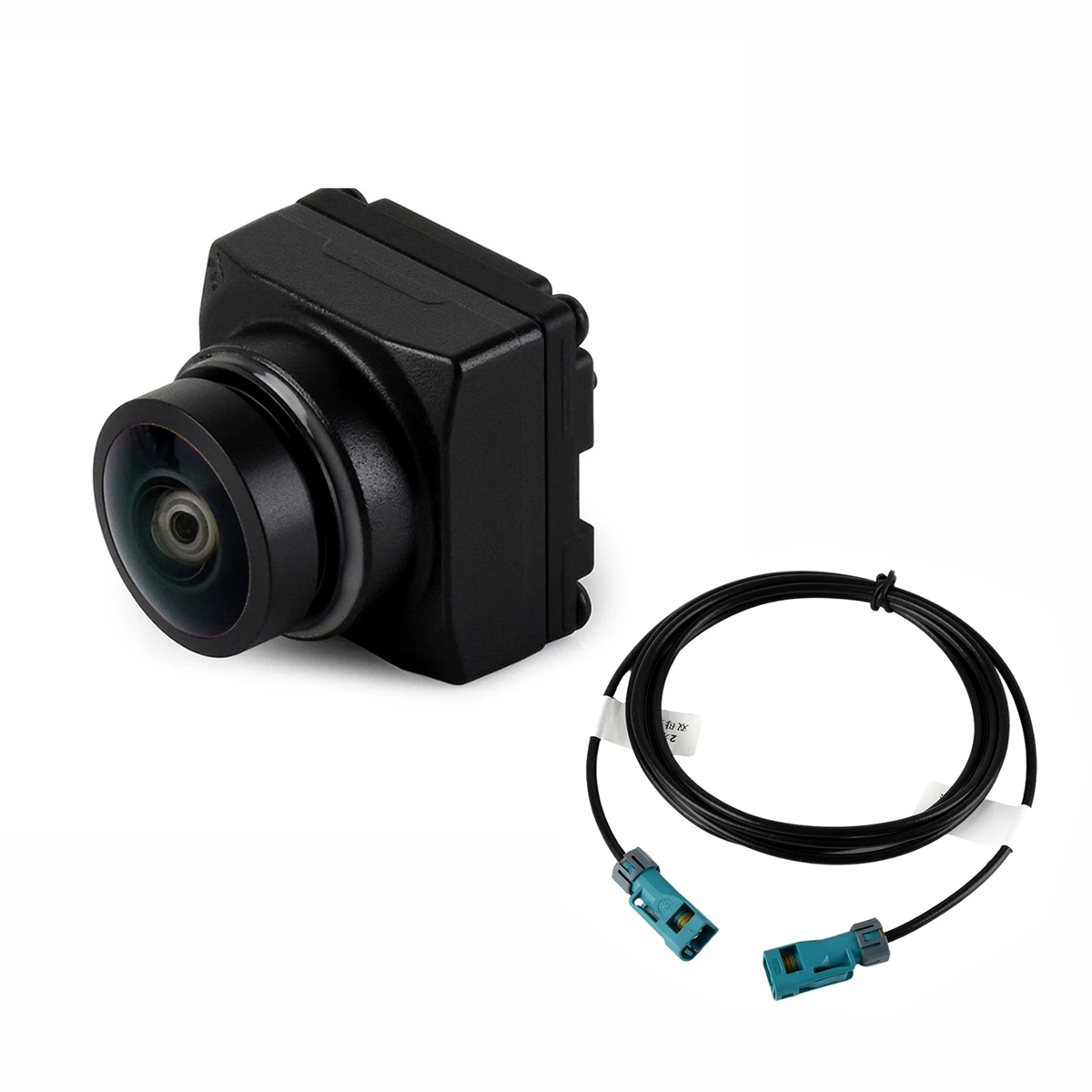

GMSL-2MP-Camera-A x1
GMSL camera cable ~2m (coaxial cable with dual female connectors) x1
