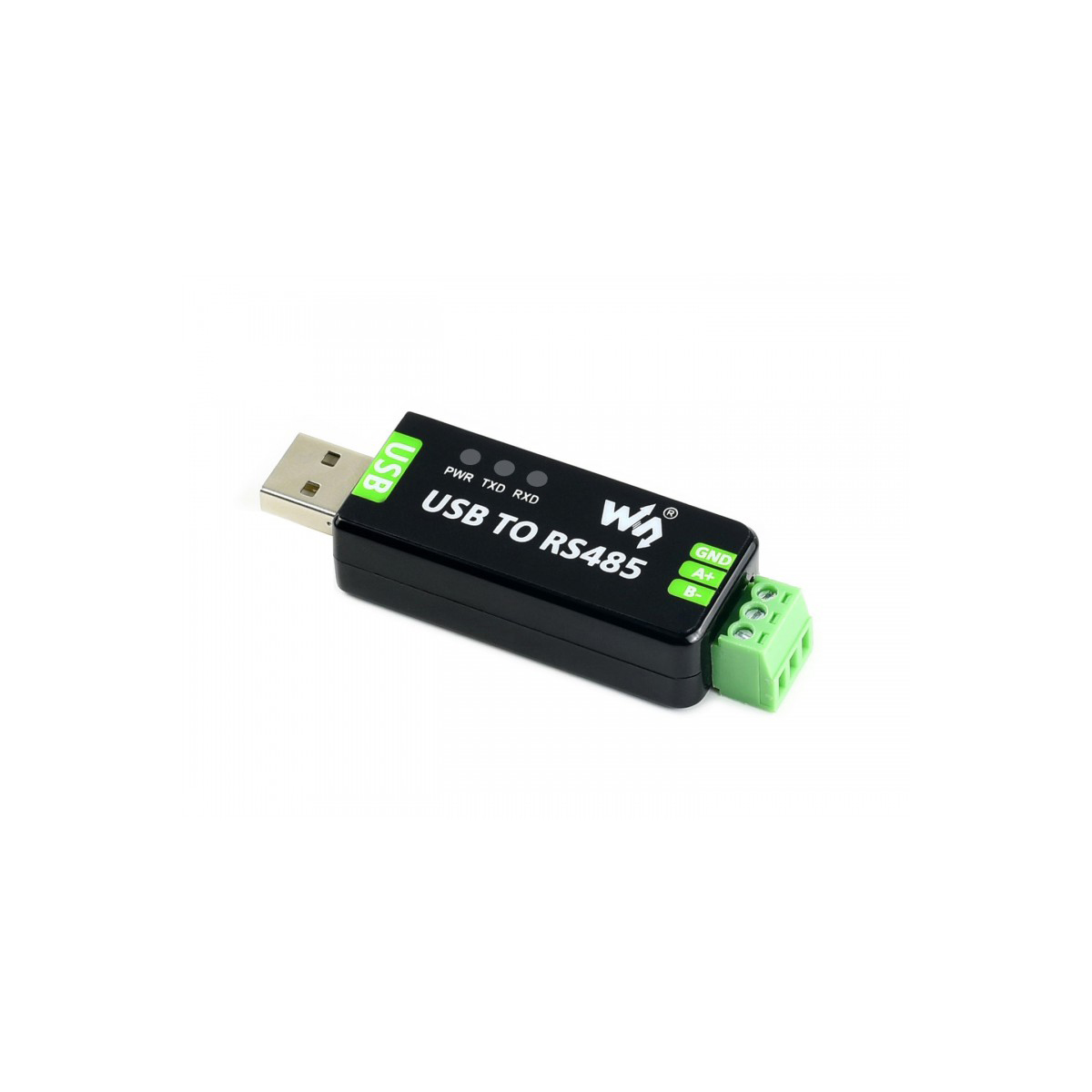

Model: USB TO RS485
SKU: 17286
Weight: 88g
Product Type: Industrial Grade USB to RS485 converter
Host Port: USB
Device Port: RS485
Baudrate: 300bps ~ 921600bps
USB
Operating voltage: 5V
Connector: USB-A
Protection: 200mA self-recovery fuse, ESD protection
Transmission distance: About 5m
RS485
Connector: Screw terminal
Pins: A+, B-, GND
Direction control: Hardware automatic control
Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)

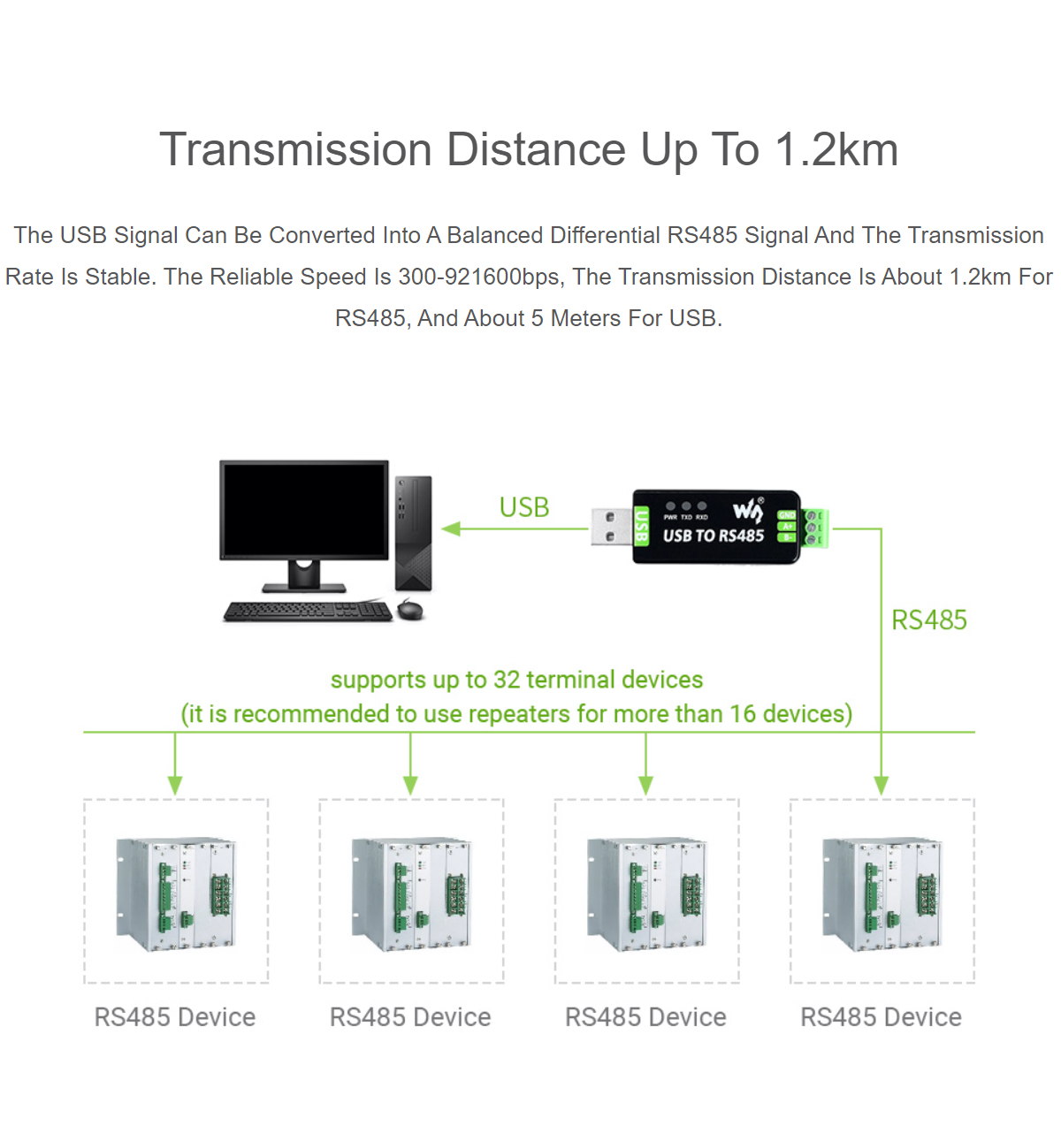

Transmission distance: About 1.2km(low rate)
Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

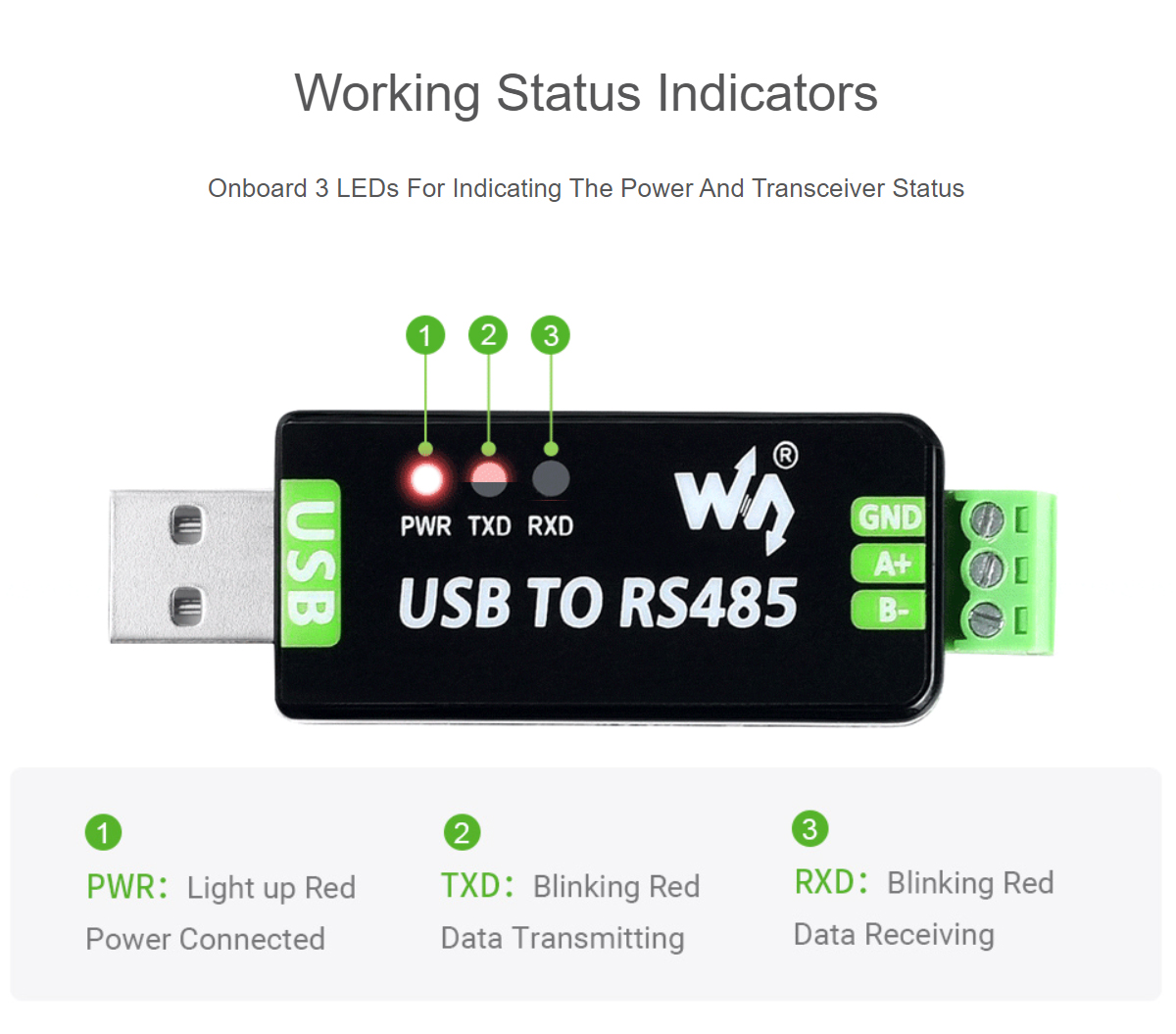

LED Indicators
PWR: Red power indicator, light up when there is USB connection and voltage is detected
TXD: Red TX indicator, light up when the USB port sends data
RXD: Red RX indicator, light up when the device ports send data back
Operating Environment
Temperature: -15℃ ~ 70℃
Humidity: 5%RH ~ 95%RH
Operating System: Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7
