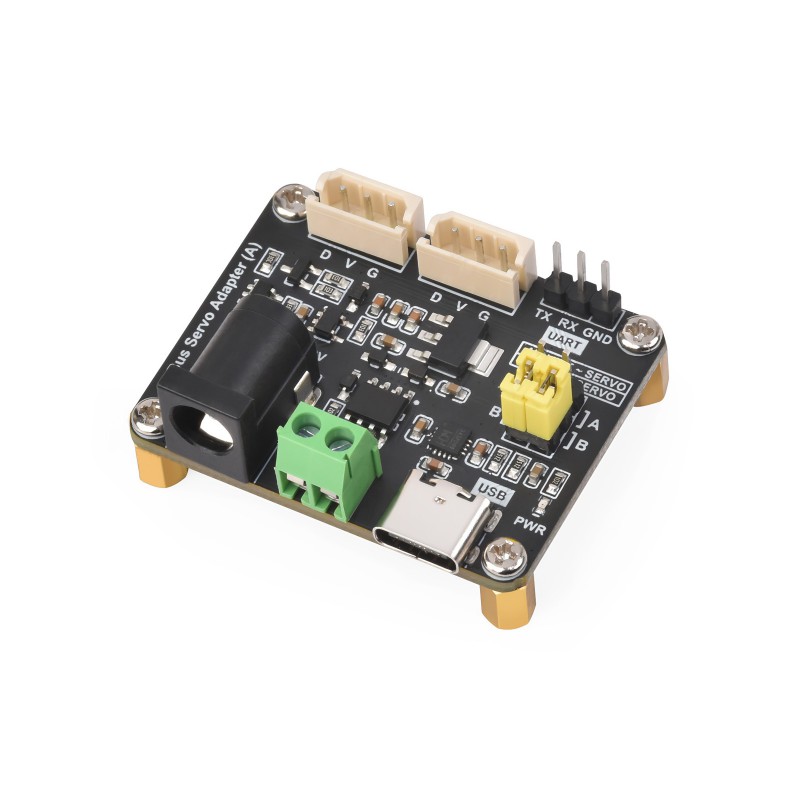

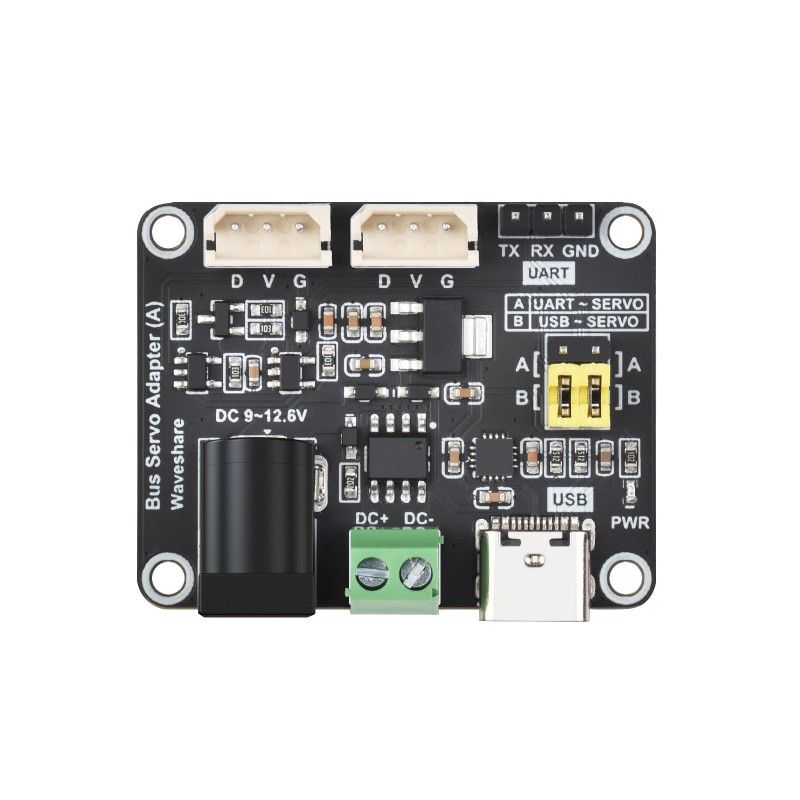

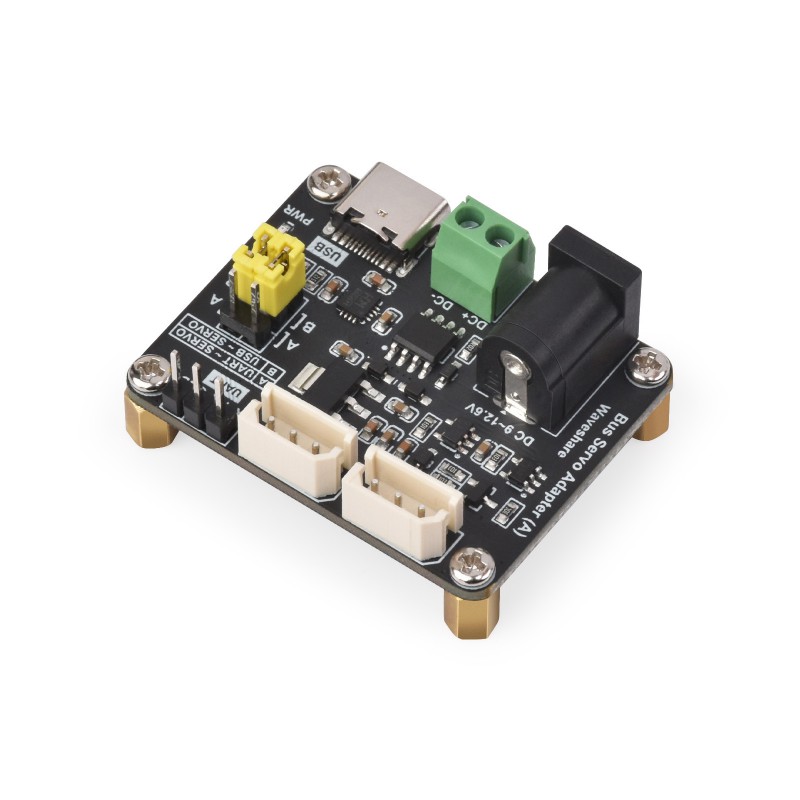

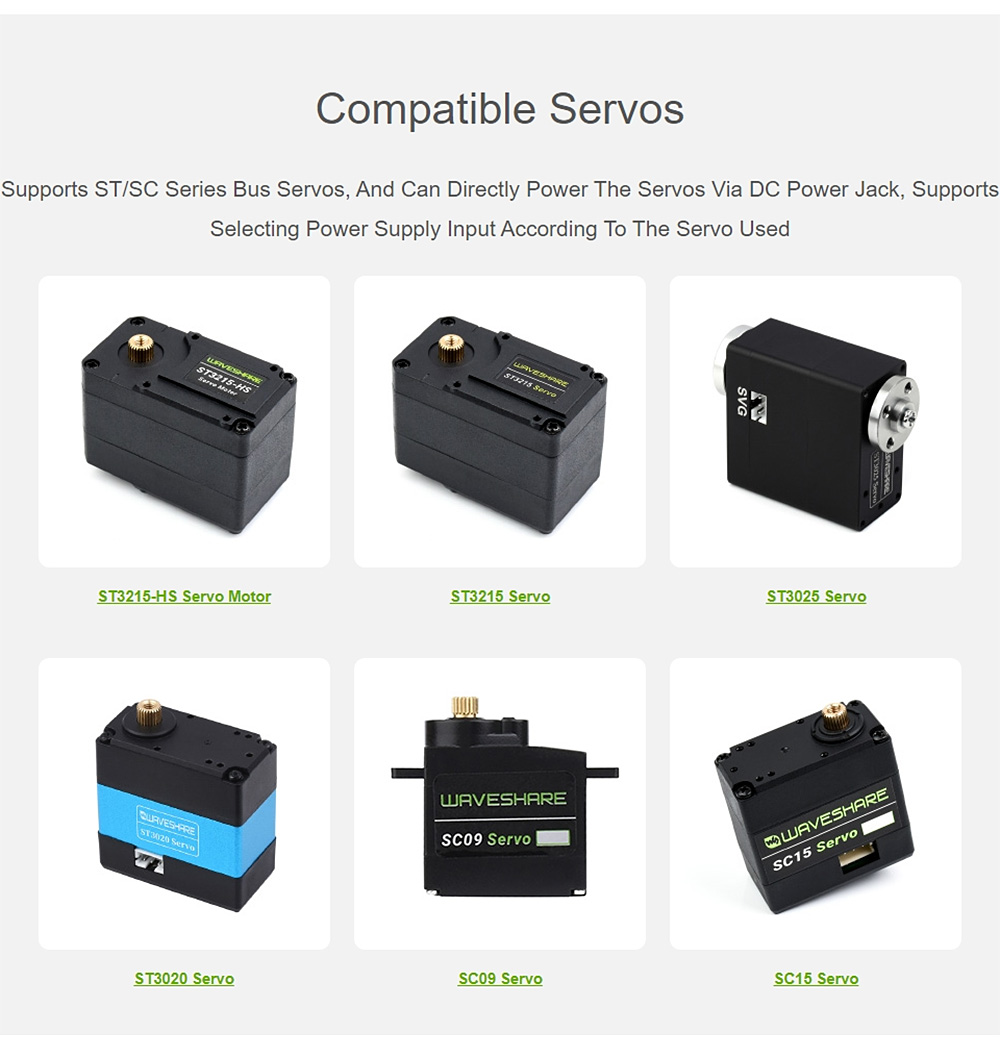

Waveshare Serial Bus Servo Driver Board Integrates Servo Power Supply And Control Circuit for ST/SC Series Serial Bus Servos

SKU WS-SDB-25514 Category Robot Servo Tag Servo Driver Board Brand: Waveshare

Waveshare Serial Bus Servo Driver Board Integrates Servo Power Supply And Control Circuit for ST/SC Series Serial Bus Servos

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

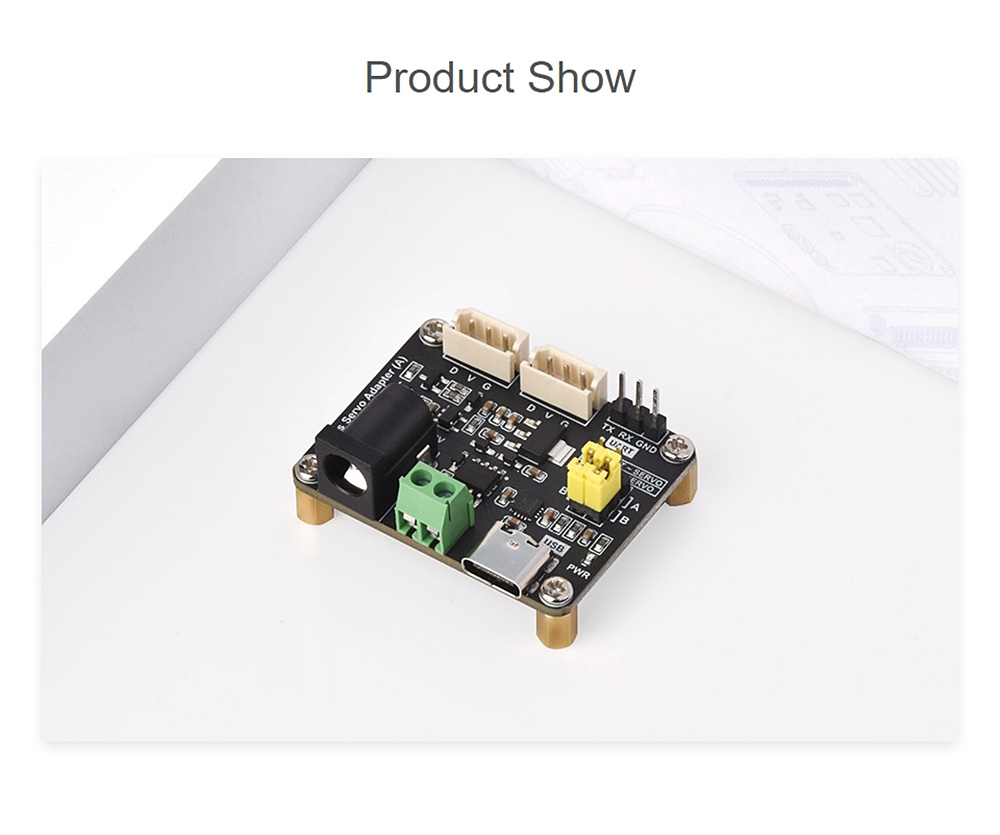

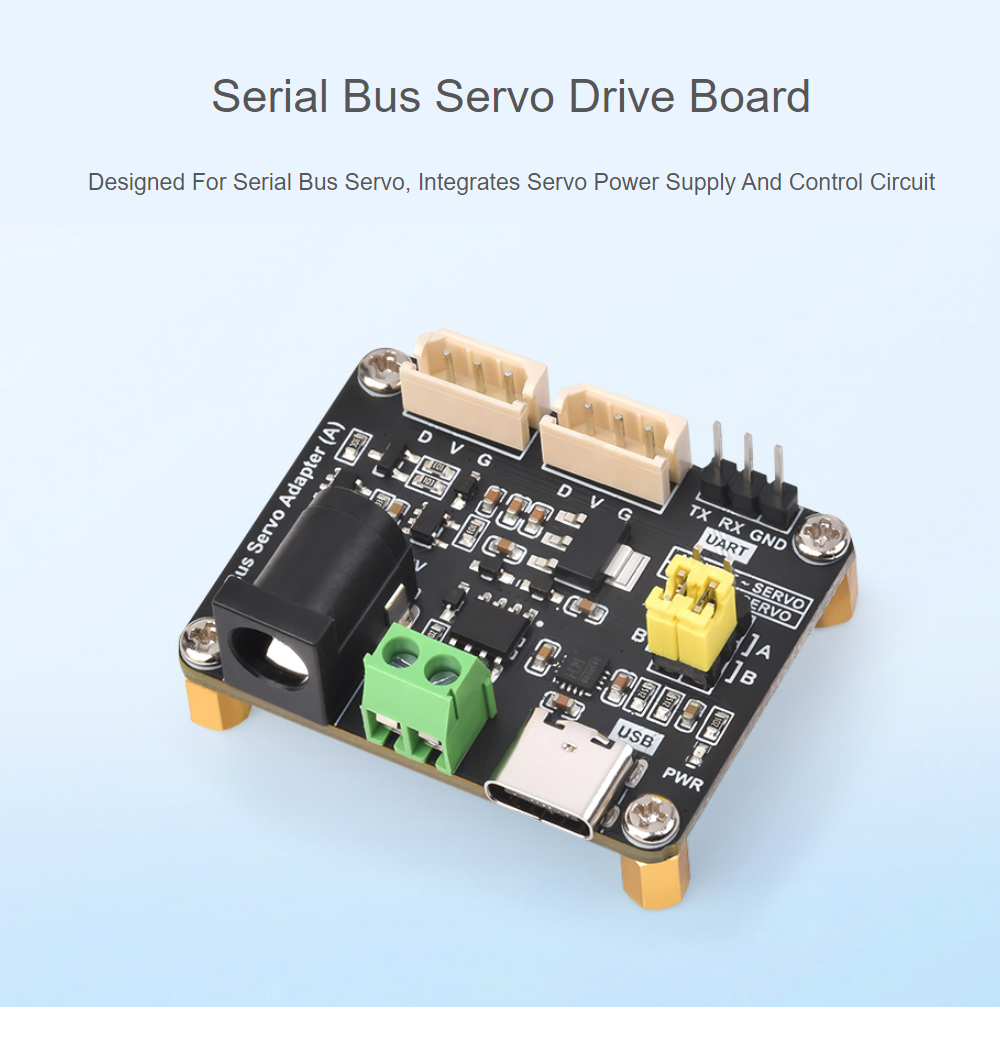

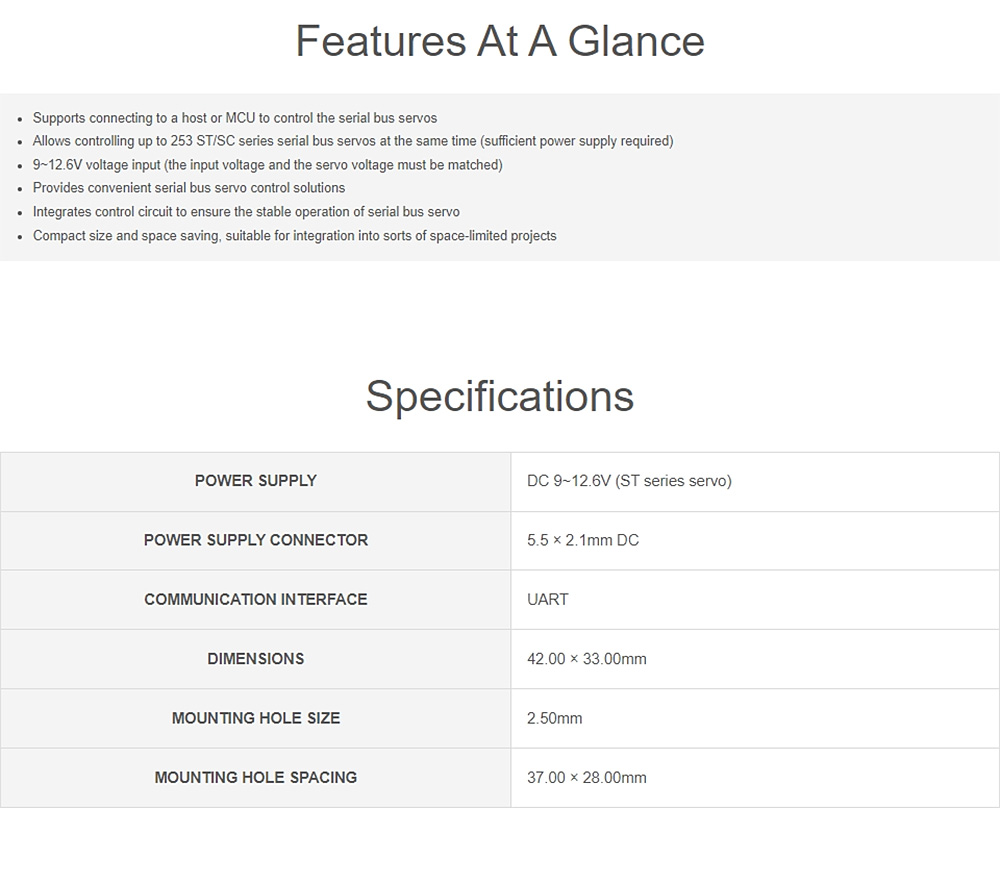

Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable For ST/SC Series Serial Bus Servos, Small In Size, Easy To Integrate

Model：Bus Servo Adapter (A)
SKU：25514
Weight：16g
Power supply：DC 9~12.6V (ST series servo)
Power supply connector：5.5×2.1mm DC

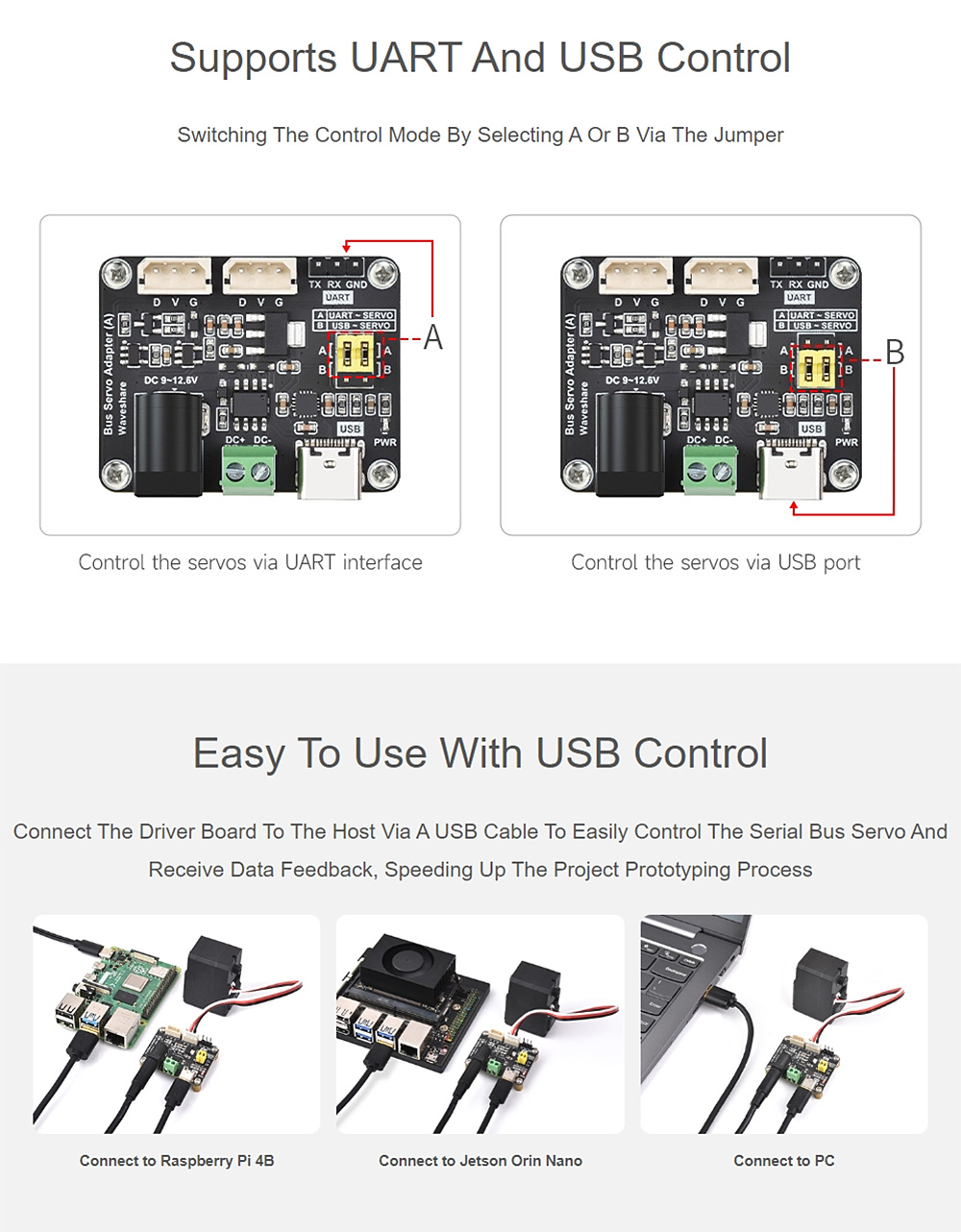

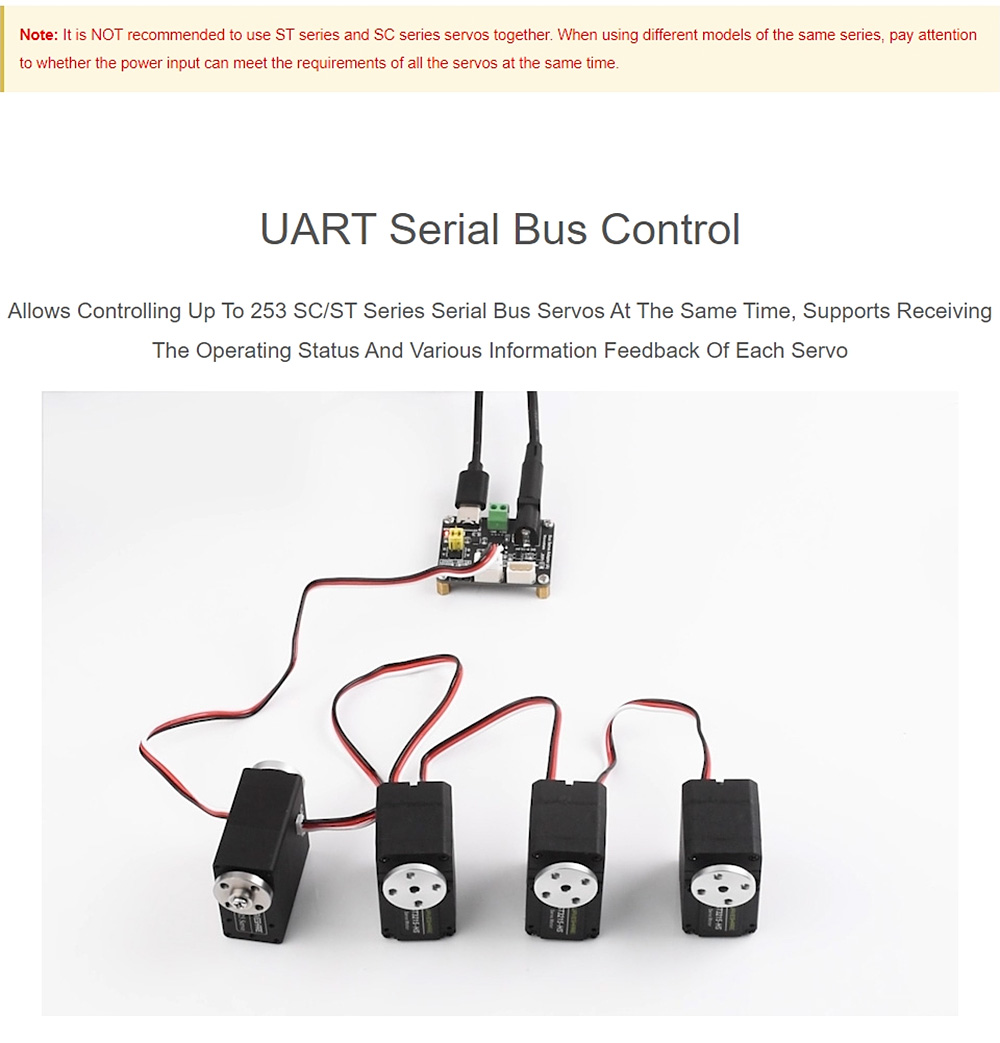

Communication interface：UART

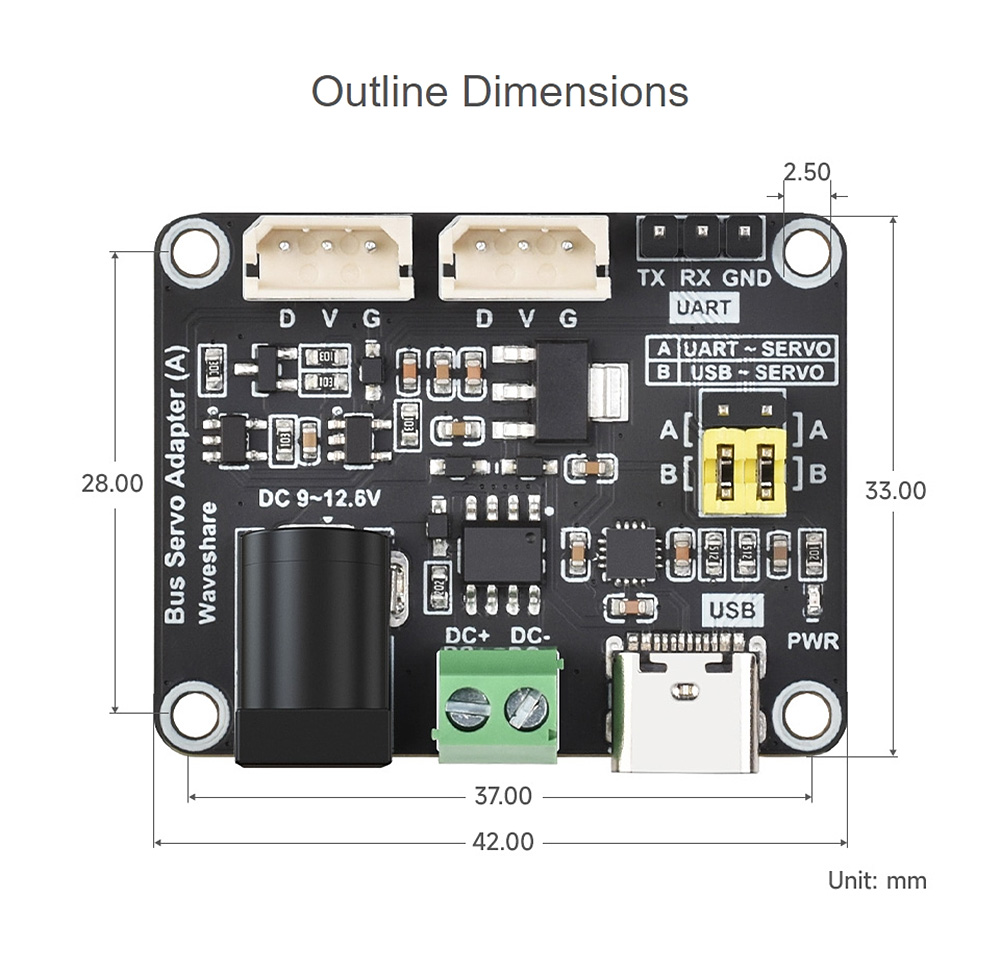

Dimensions：42.00×33.00mm
Mounting hole size：2.50mm
Mounting hole spacing：37.00×28.00mm
