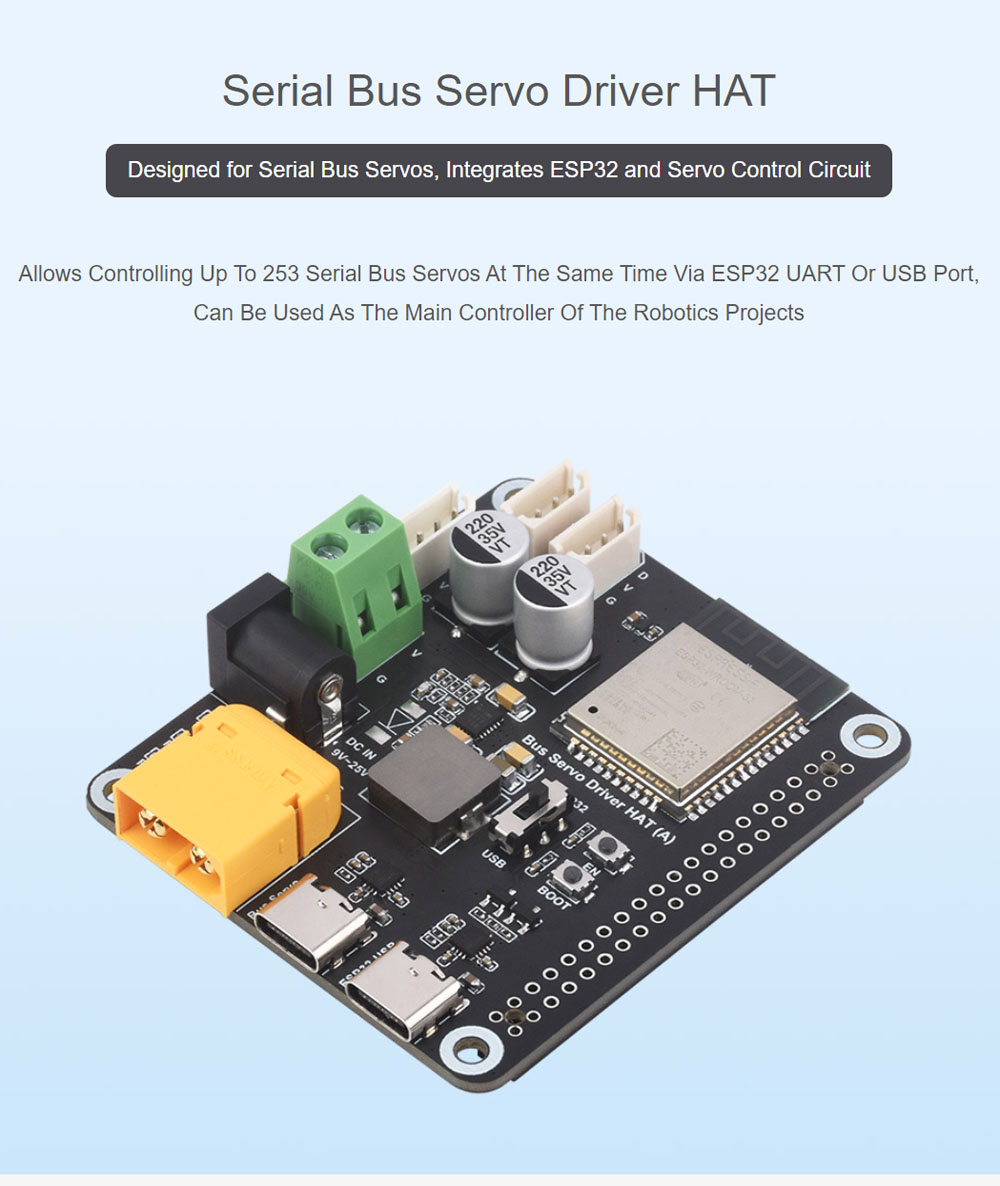

Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo Control Circuit for ST/RSBL Series Serial Bus Servos
Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo Control Circuit for ST/RSBL Series Serial Bus Servos

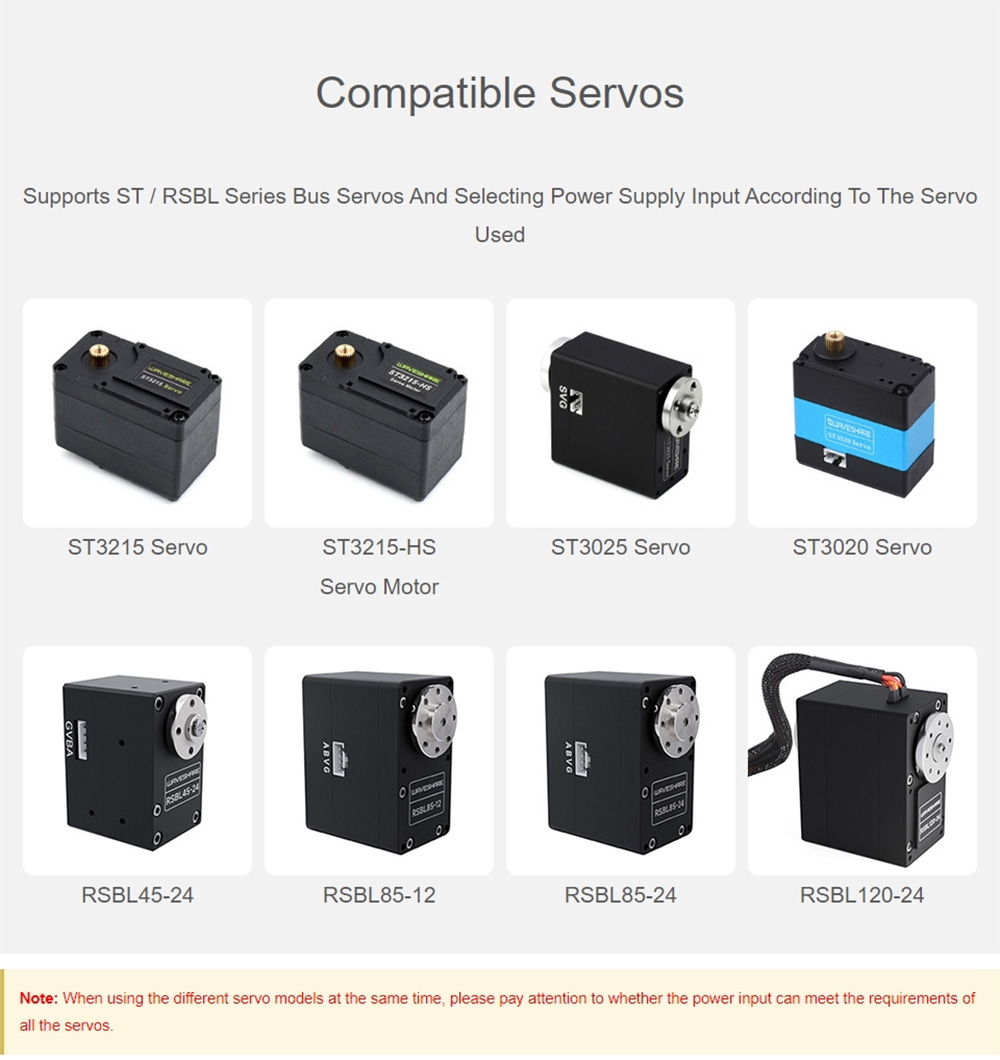

Serial Bus Servo Driver HAT, Integrates ESP32 And Servo Control Circuit, Suitable For ST / RSBL Series Serial Bus Servos

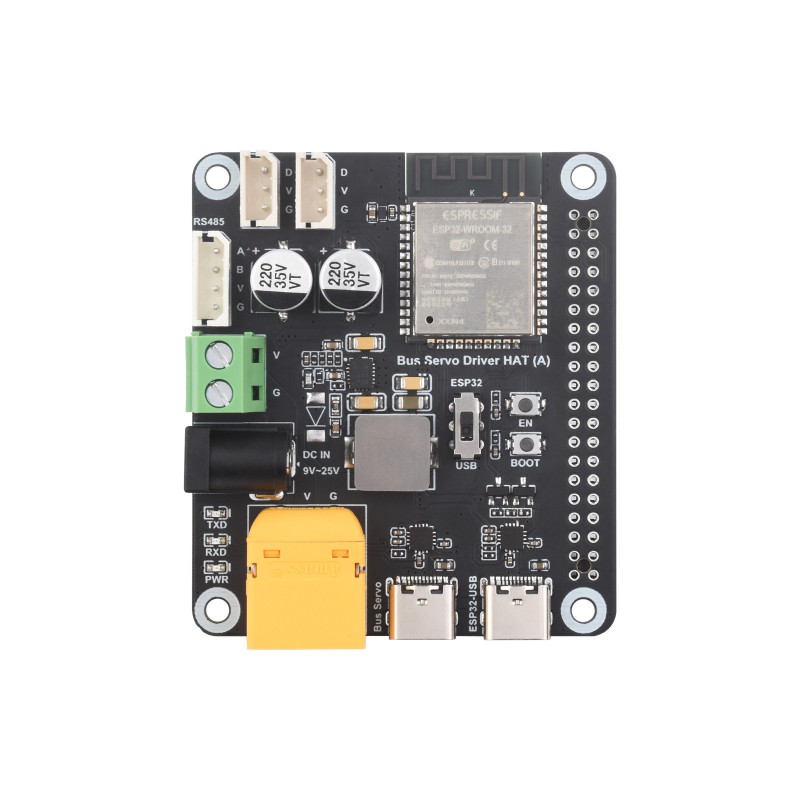

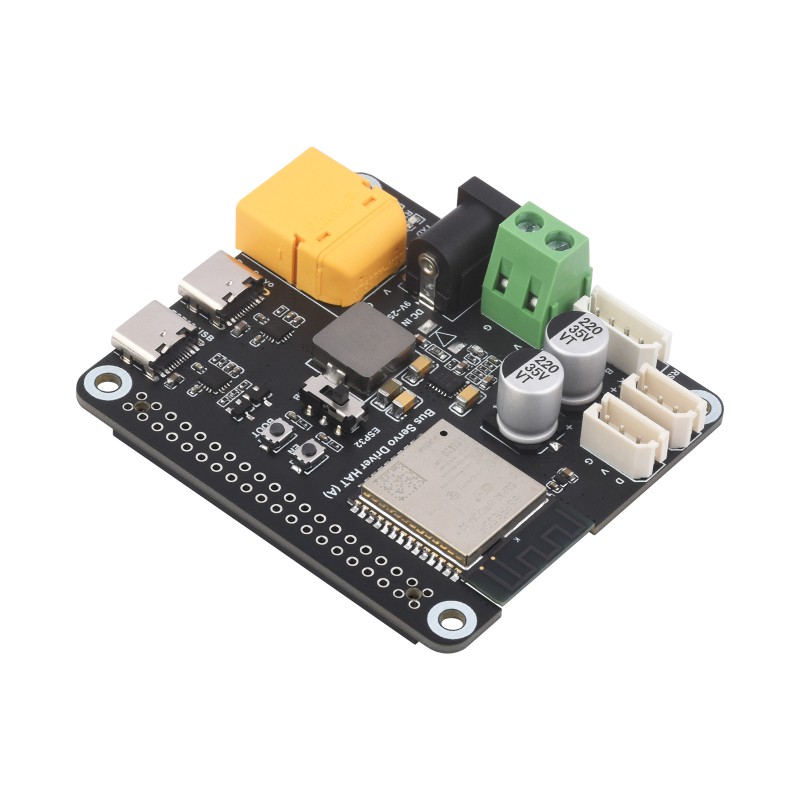

Model：Bus Servo Driver HAT (A)
SKU：27577
Weight：82g
Controller：ESP32-WROOM-32
Power supply port：XT60 connector, 5.5×2.5mm DC jack
Power supply：9~25V (the input voltage and the servo voltage must be matched)

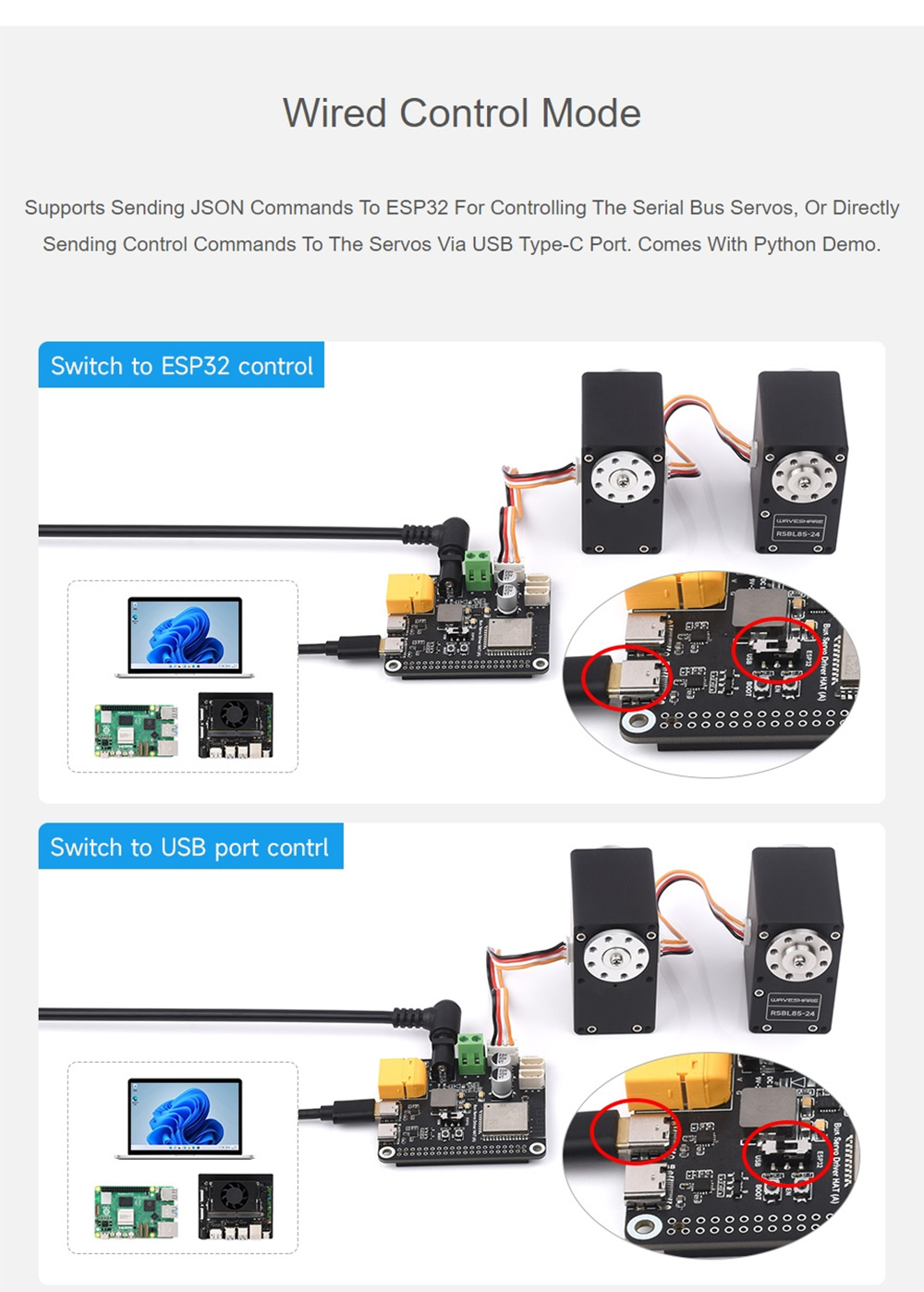

Communication interface：UART, USB Type-C port×2

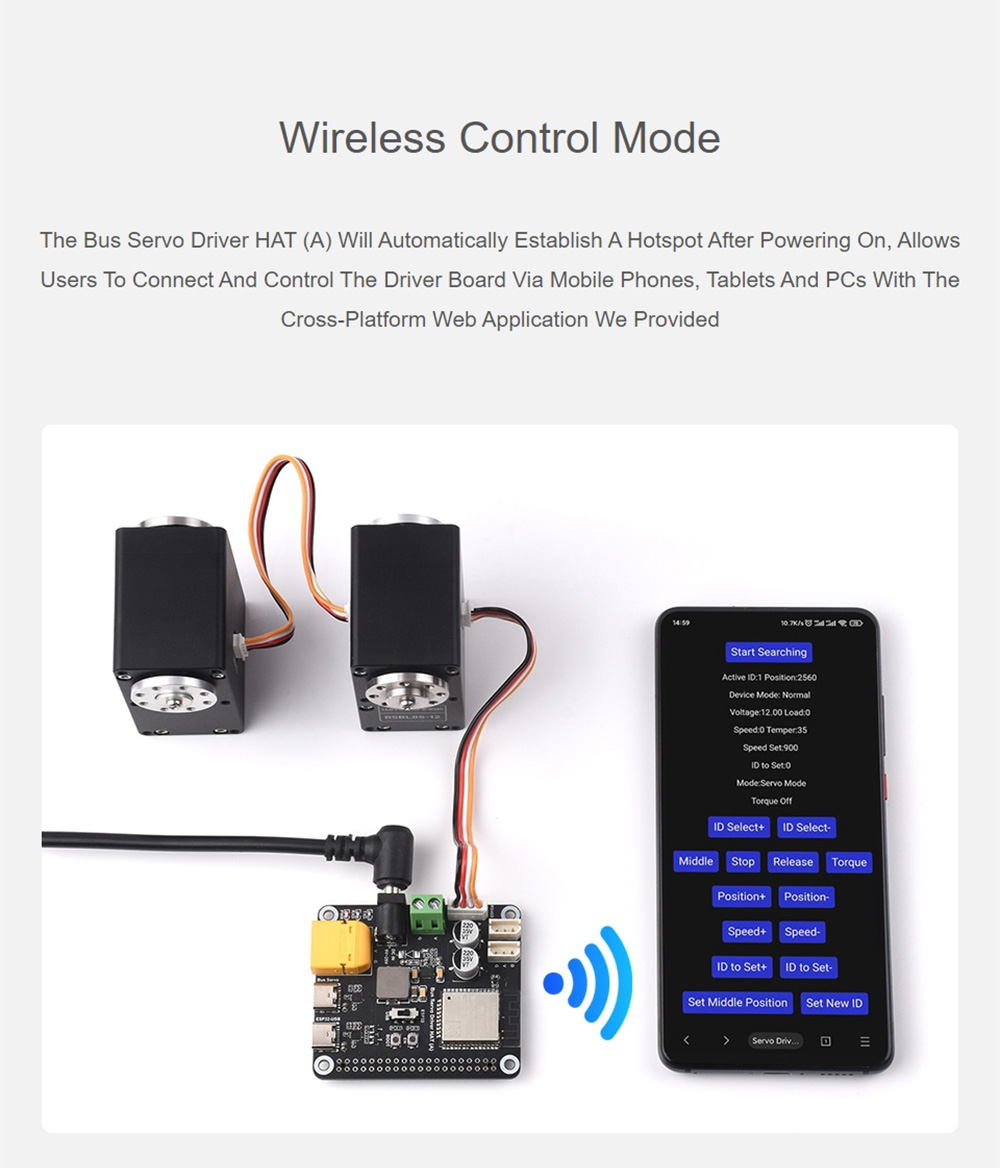

Wireless communication：2.4G WiFi

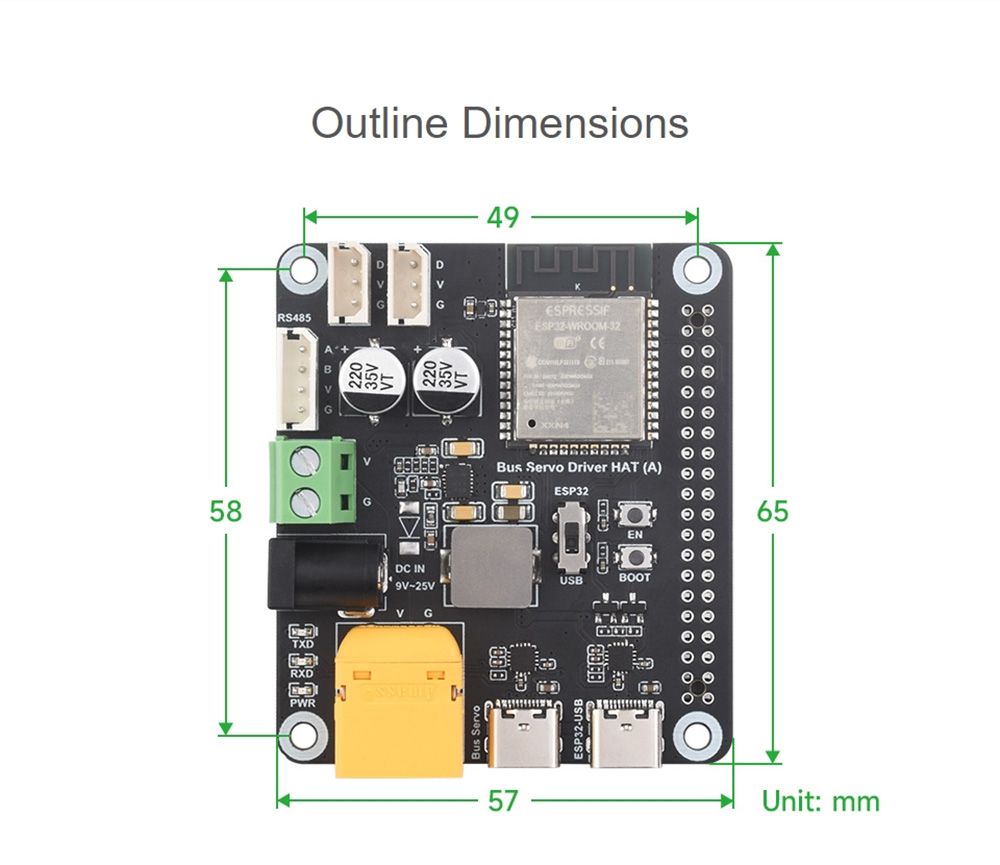

Mounting hole diameter：3mm
Mounting hole spacing：58×49mm
PCB size：65×57 mm

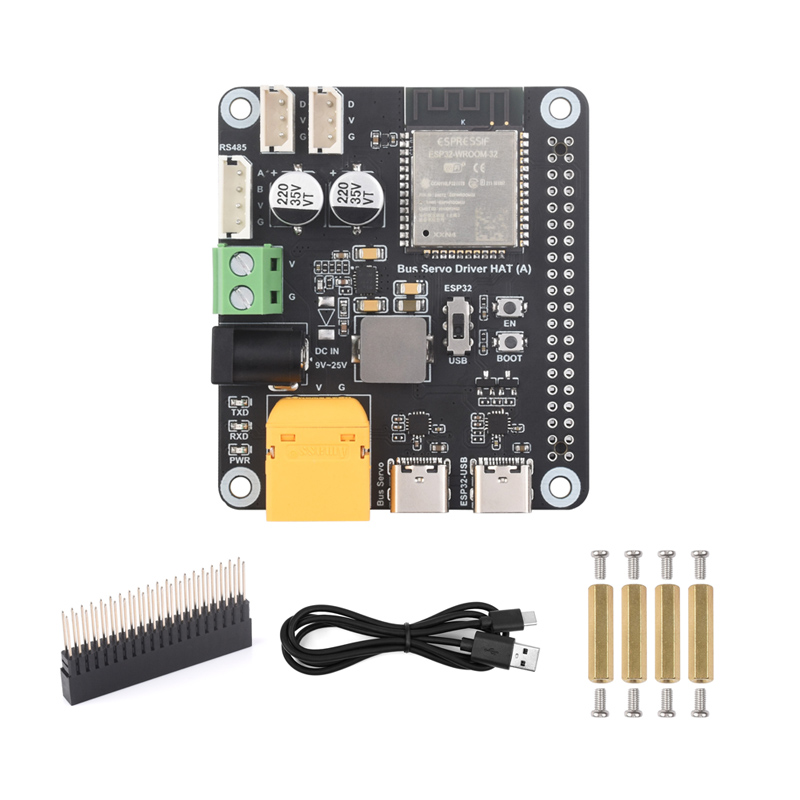

Bus Servo Driver HAT (A) x1
2×20 pin header x1
USB-A to USB-C cable x1
Screws pack x1
