Waveshare Servo Driver HAT (B) Right Angle Pinheader 16-Channel 12-bit Resolution I2C-Controlled for Raspberry Pi

SKU WS-SDB-17035 Category Tag Brand:

Waveshare Servo Driver HAT (B) Right Angle Pinheader 16-Channel 12-bit Resolution I2C-Controlled for Raspberry Pi

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

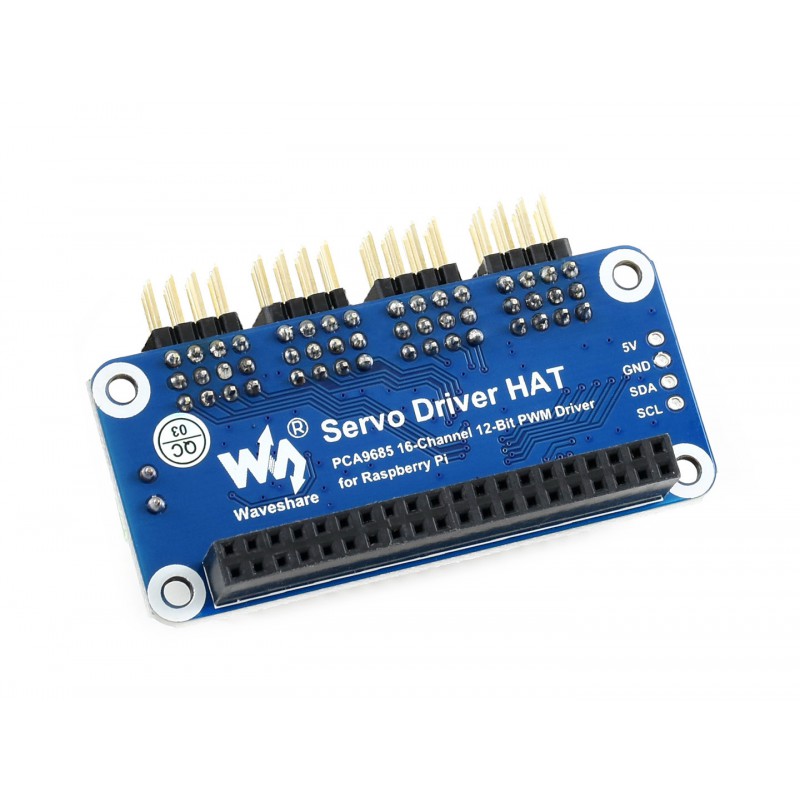

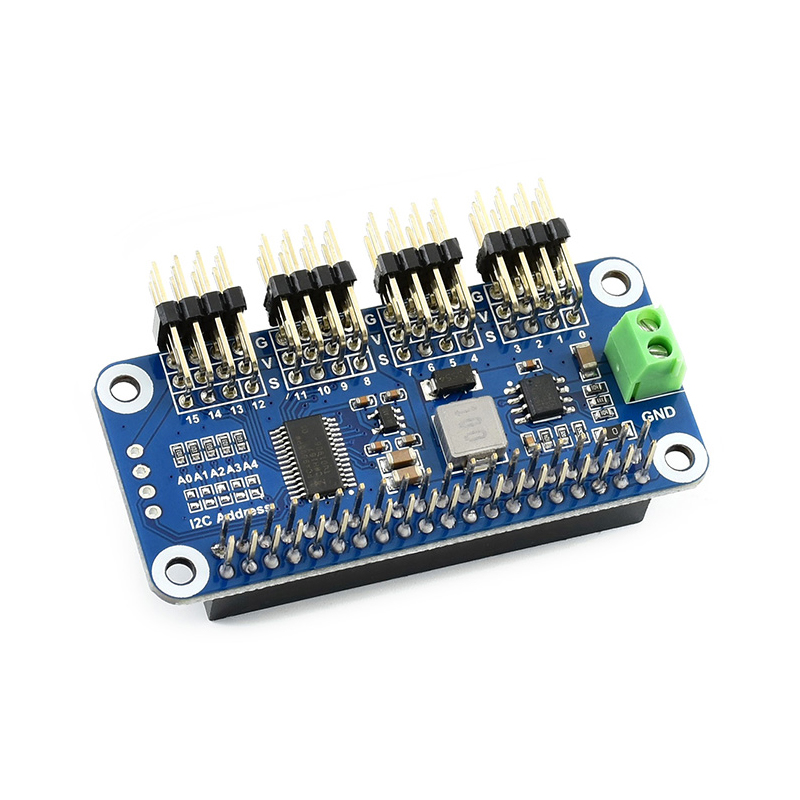

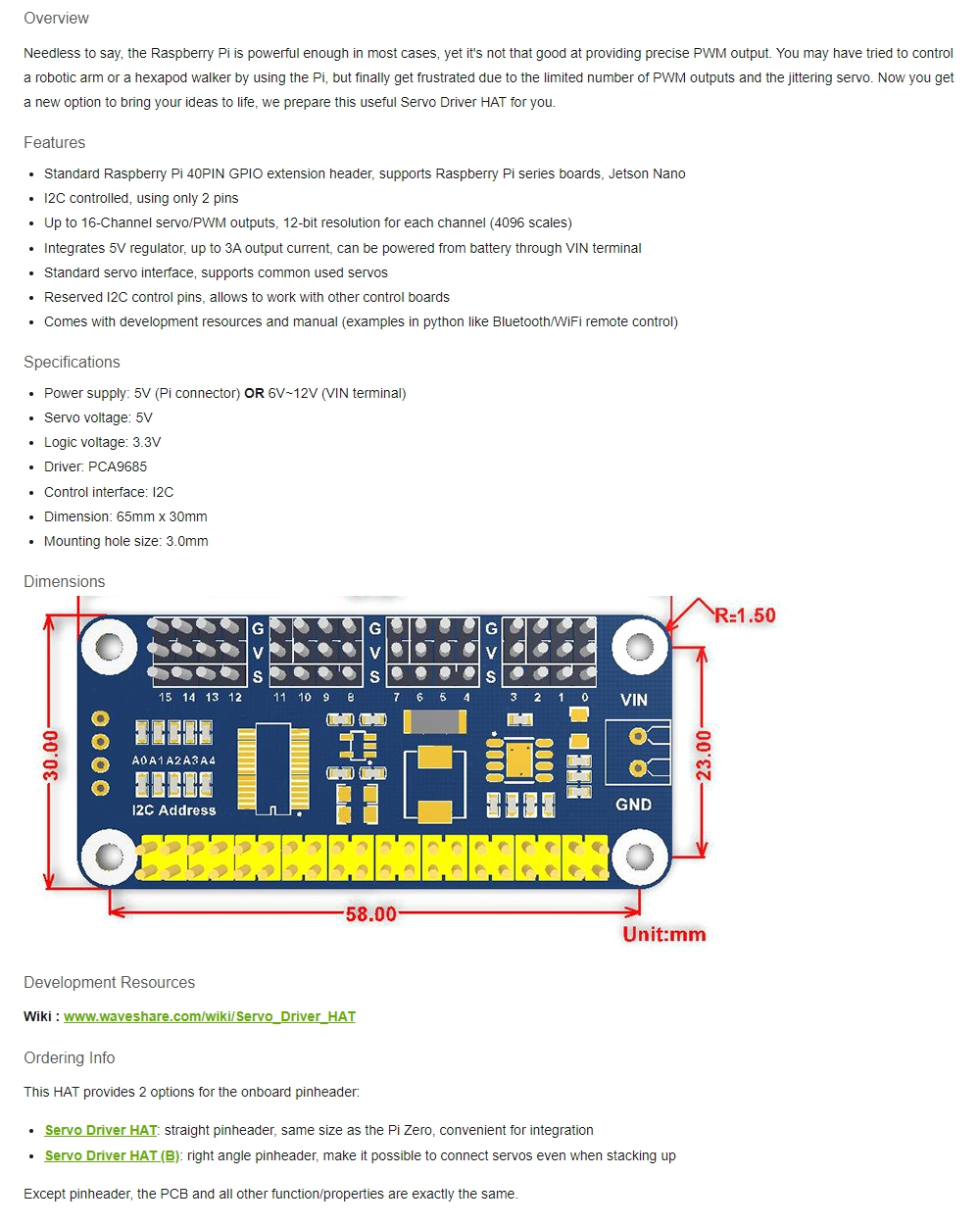

Servo Driver HAT (B) For Raspberry Pi, 16-Channel, 12-Bit, I2C Interface, Right Angle Pinheader

Model：Servo Driver HAT (B)
SKU：17035
Weight：21g
Power supply：5V (Pi connector) OR 6V~12V (VIN terminal)
Servo voltage：5V
Logic voltage：3.3V
Driver：PCA9685
Control interface：I2C
Dimension：65mm×30mm
Mounting hole size：3.0mm

Servo Driver HAT (B) x1
RPi screws pack (2pcs) x1
