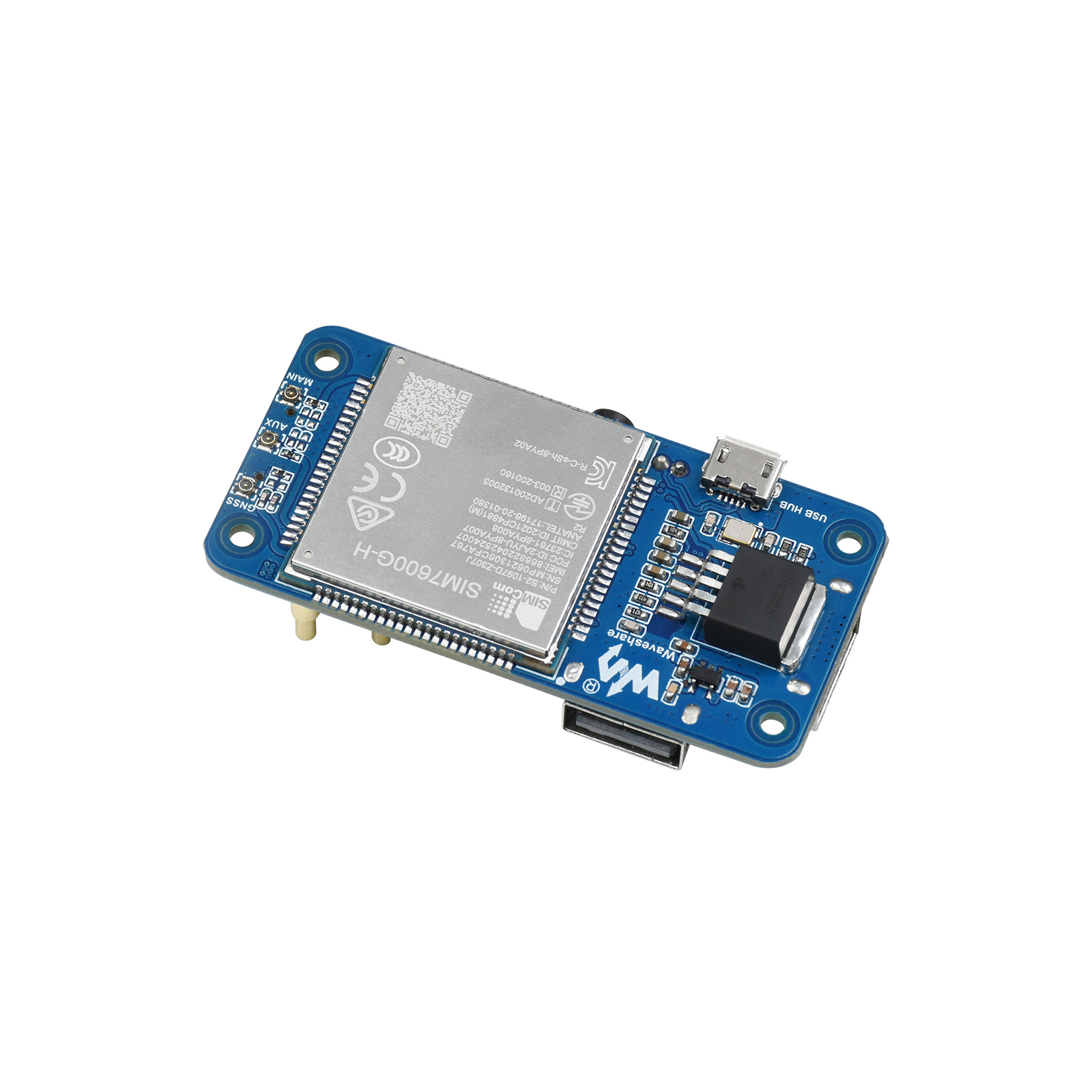

Waveshare SIM7600G-H 4G HAT (B) LTE Cat-4 4G/3G/2G Support GNSS Positioning for Raspberry Pi
Sim7600g-h 4g Hat|Waveshare Raspberry Pi 4g|LTE Cat-4 4G / 3G / 2G Support:Experience seamless connectivity with LTE Cat-4, supporting 4G, 3G, and 2G networks globally.
GNSS Positioning:Reliable GNSS support ensures accurate location tracking with GPS, BeiDou, Glonass, and LBS.
Global Band Coverage:Enjoy uninterrupted communication with a global band that spans 2G/3G/4G networks.
USB HUB Feature:Extend your Raspberry Pi’s capabilities with a built-in USB HUB, offering 2x USB-A ports and 1x solder pad.
Audio Decoder:Integrated NAU8810 audio decoder enables clear telephone calls and SMS audio playback.
Model: SIM7600G-H 4G HAT (B)
SKU: 19485
Weight: 162g
LTE Cat-4: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66;LTE-TDD: B34/B38/B39/B40/B41
3G: UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G: GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Satellite systems: GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type: 16-channel;C/A Code
Sensitivity: -159 dBm (GPS)/-158 dBm (GLONASS)/TBD (BeiDou);Cold starts: -148 dBm
Time-To-First-Fix (open air): Cold starts: <35s;Hot starts: <1s
SMS: Supported types: MT, MO, CB, Text, PDU
Audio feature: Supports echo cancellation;Supports noise reduction
Power supply : 5V
Operating temperature: -30°C ~ 80°C
Storage temperature: -45°C ~ 90°C
Dimensions: 65.00×32.00mm

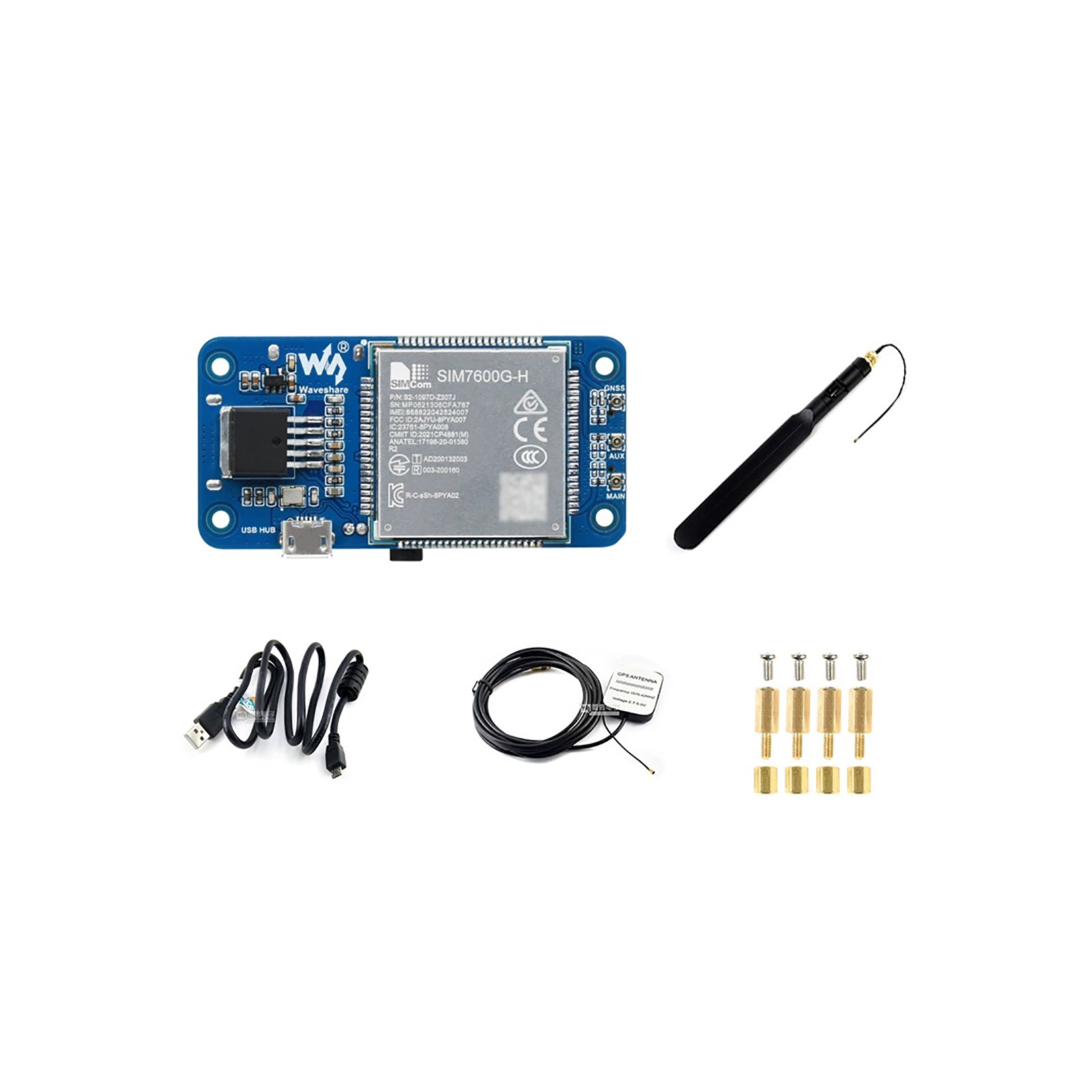

SIM7600G-H 4G HAT (B) x1
LTE Antenna x1
GPS Antenna x1
USB-A to micro-B cable x1
Screws pack x1
