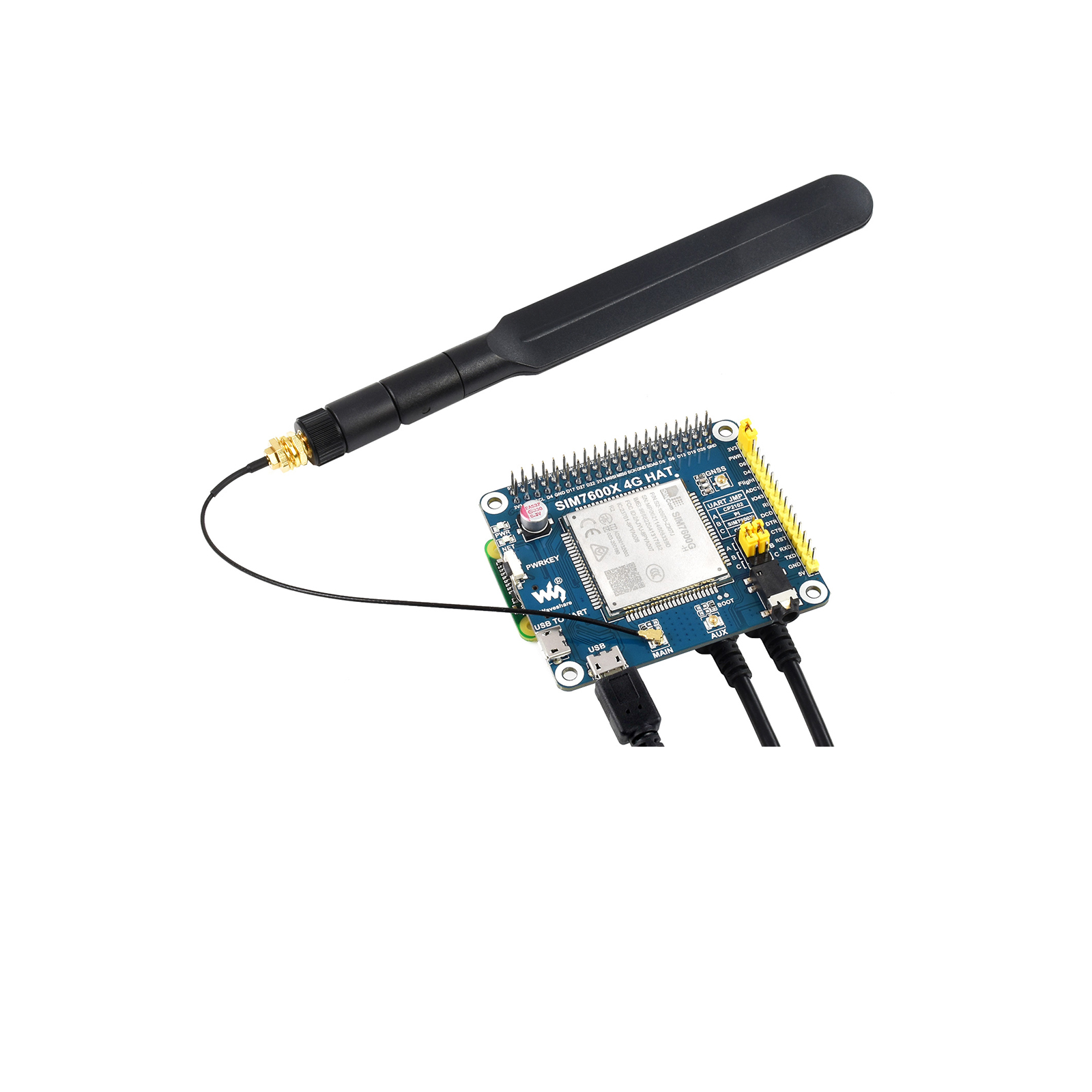

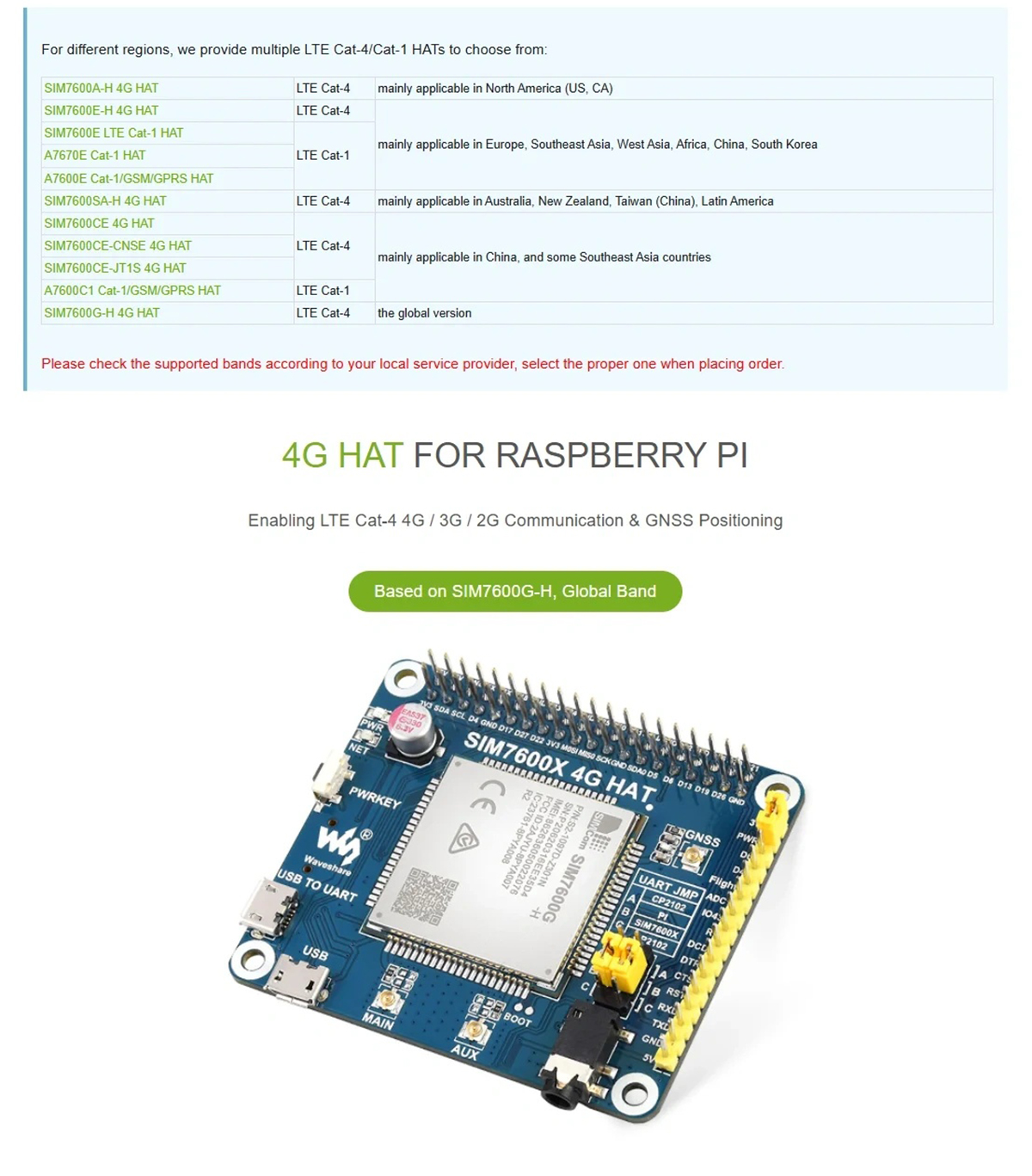

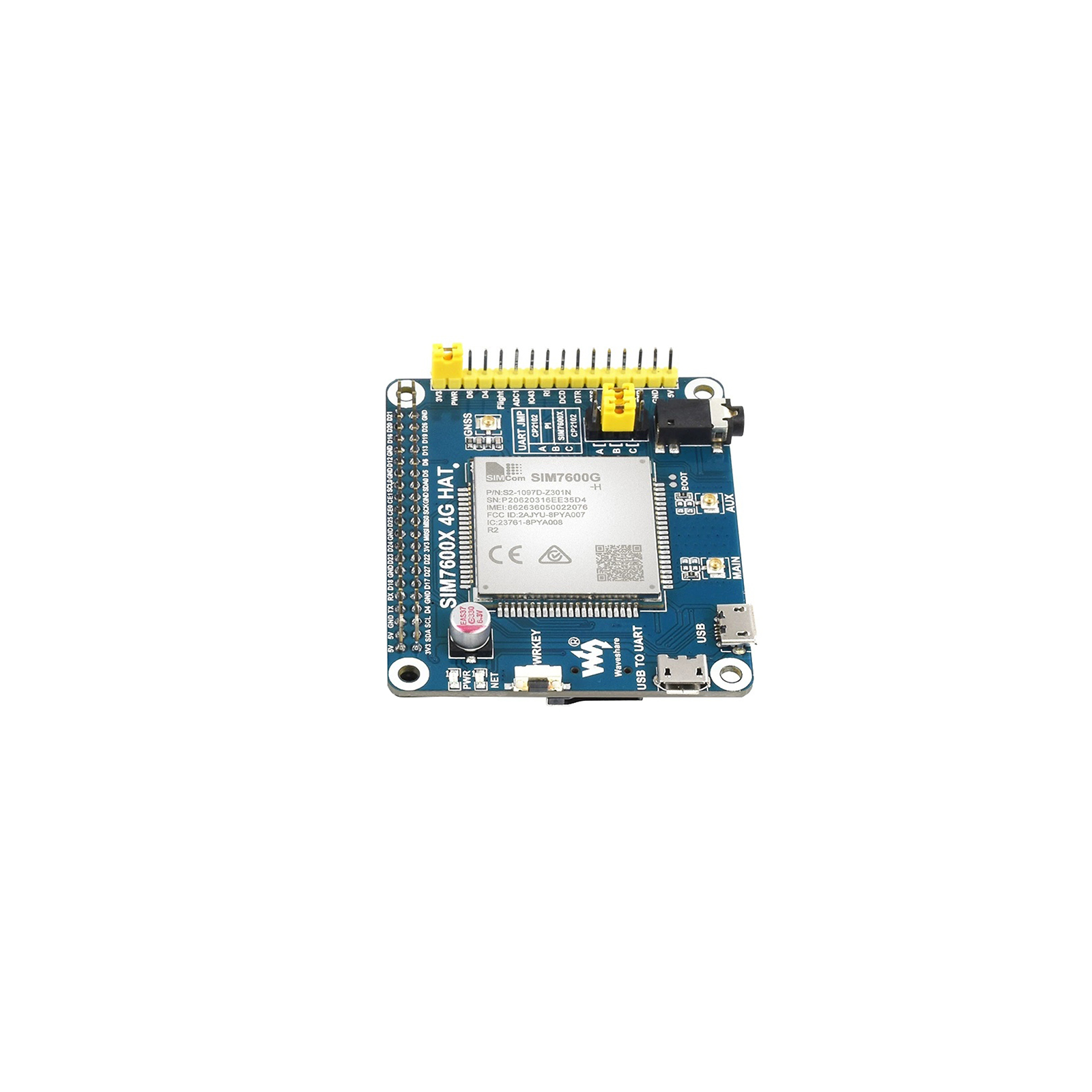

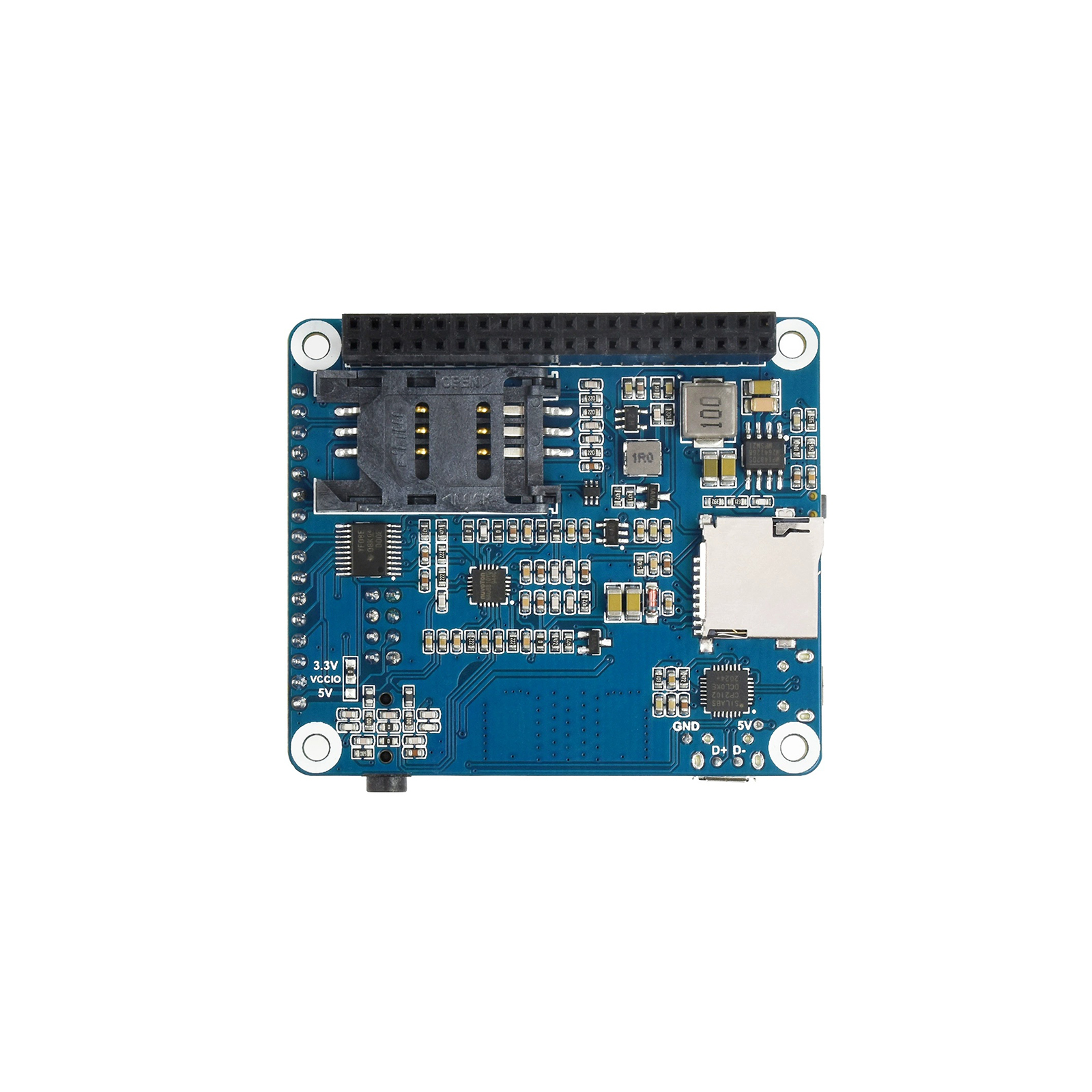

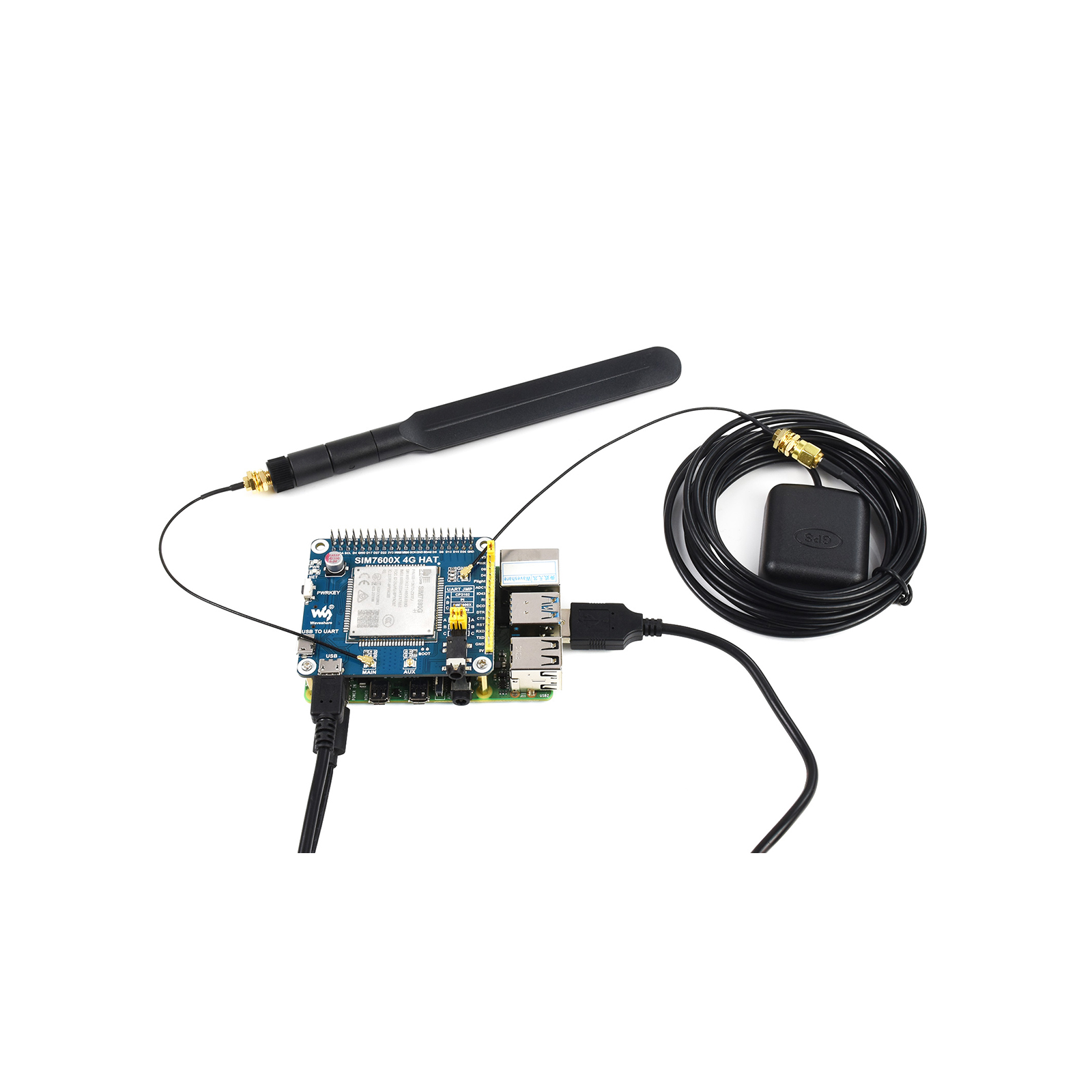

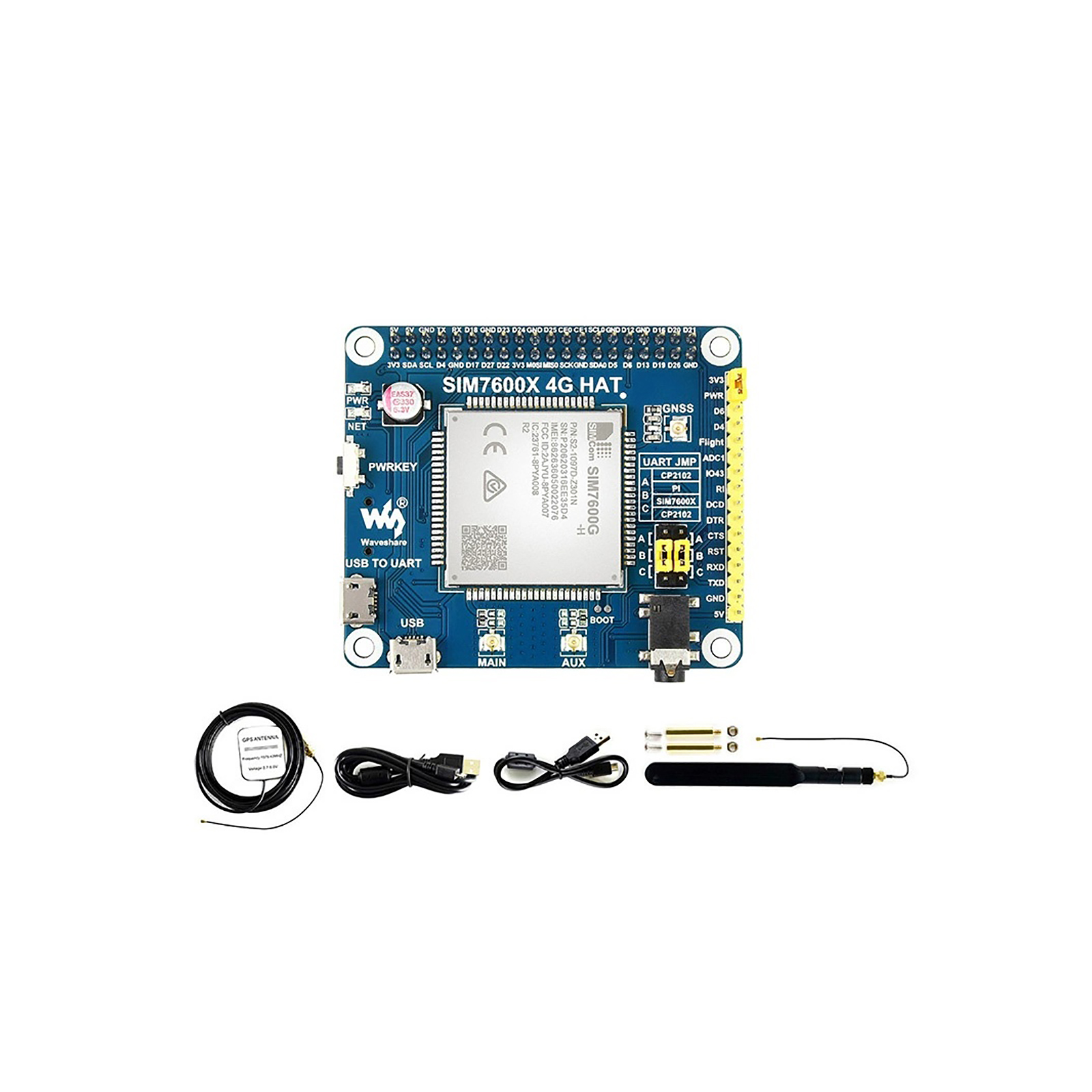

Model: SIM7600G-H 4G HAT
SKU: 17372
Weight: 250g

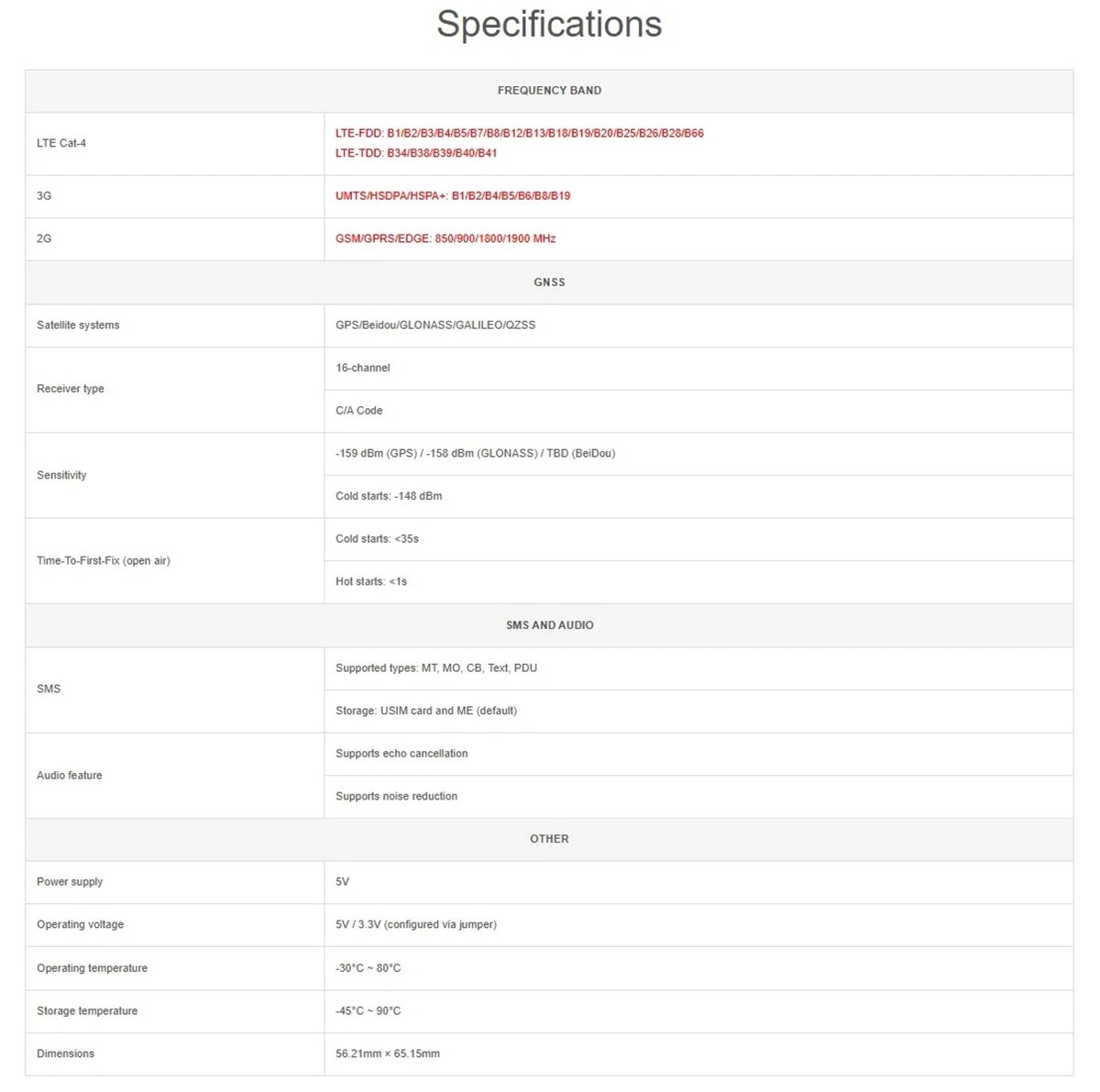

LTE Cat-4: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66;LTE-TDD: B34/B38/B39/B40/B41
3G: UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G: GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Satellite systems: GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type: 16-channel;C/A Code
Sensitivity: -159 dBm (GPS)/-158 dBm (GLONASS)/TBD (BeiDou);Cold starts: -148 dBm
Time-To-First-Fix (open air): Cold starts: <35s;Hot starts: <1s
SMS: Supported types: MT, MO, CB, Text, PDU;Storage: USIM card and ME (default)
Audio feature: Supports echo cancellation;Supports noise reduction
Power supply: 5V
Operating voltage: 5V/3.3V (configured via jumper)
Operating temperature: -30°C ~ 80°C
Storage temperature: -45°C ~ 90°C
Dimensions: 56.21mm×65.15mm
