Flexible And Expandable Off-Road Tracked UGV, Multiple Hosts Support, Optimized Climbing Capability, With External Rails And ESP32 Slave Computer

Model：UGV01
SKU：23810

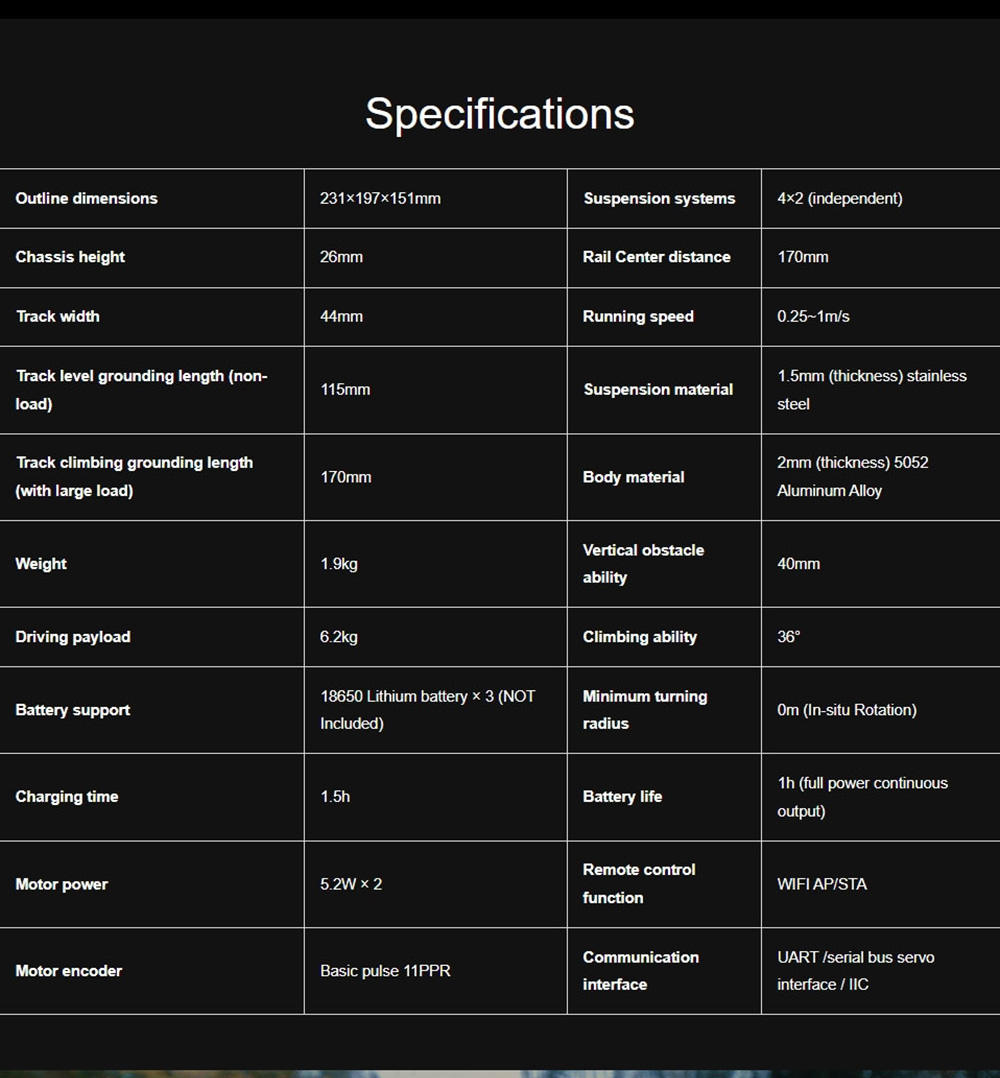

Outline dimensions：231×197×151mm
Suspension systems：4×2 (independent)
Chassis height：26mm
Rail Center distance：170mm
Track width：44mm
Running speed：0.25~1m/s
Track level grounding length (non-load)：115mm
Suspension material：1.5mm (thickness) stainless steel
Track climbing grounding length (with large load)：170mm
Body material：2mm (thickness) 5052 Aluminum Alloy
Weight：1.9kg
Vertical obstacle ability：40mm
Driving payload：6.2kg
Climbing ability：36°
Battery support：18650 Lithium battery×3 (NOT Included)
Minimum turning radius：0m (In-situ Rotation)
Charging time：1.5h
Battery life：1h (full power continuous output)
Motor power：5.2W×2
Remote control function：WIFI AP/STA
Motor encoder：Basic pulse 11PPR
Communication interface：UART/serial bus servo interface/IIC
