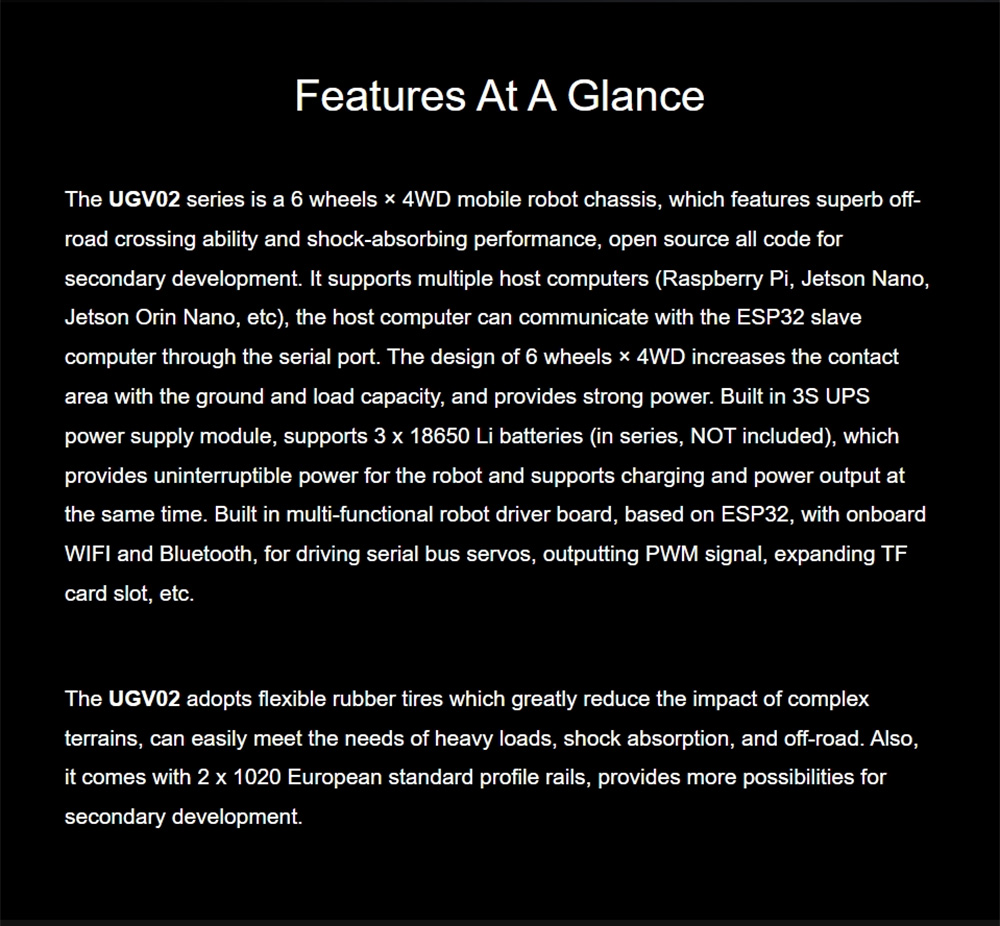

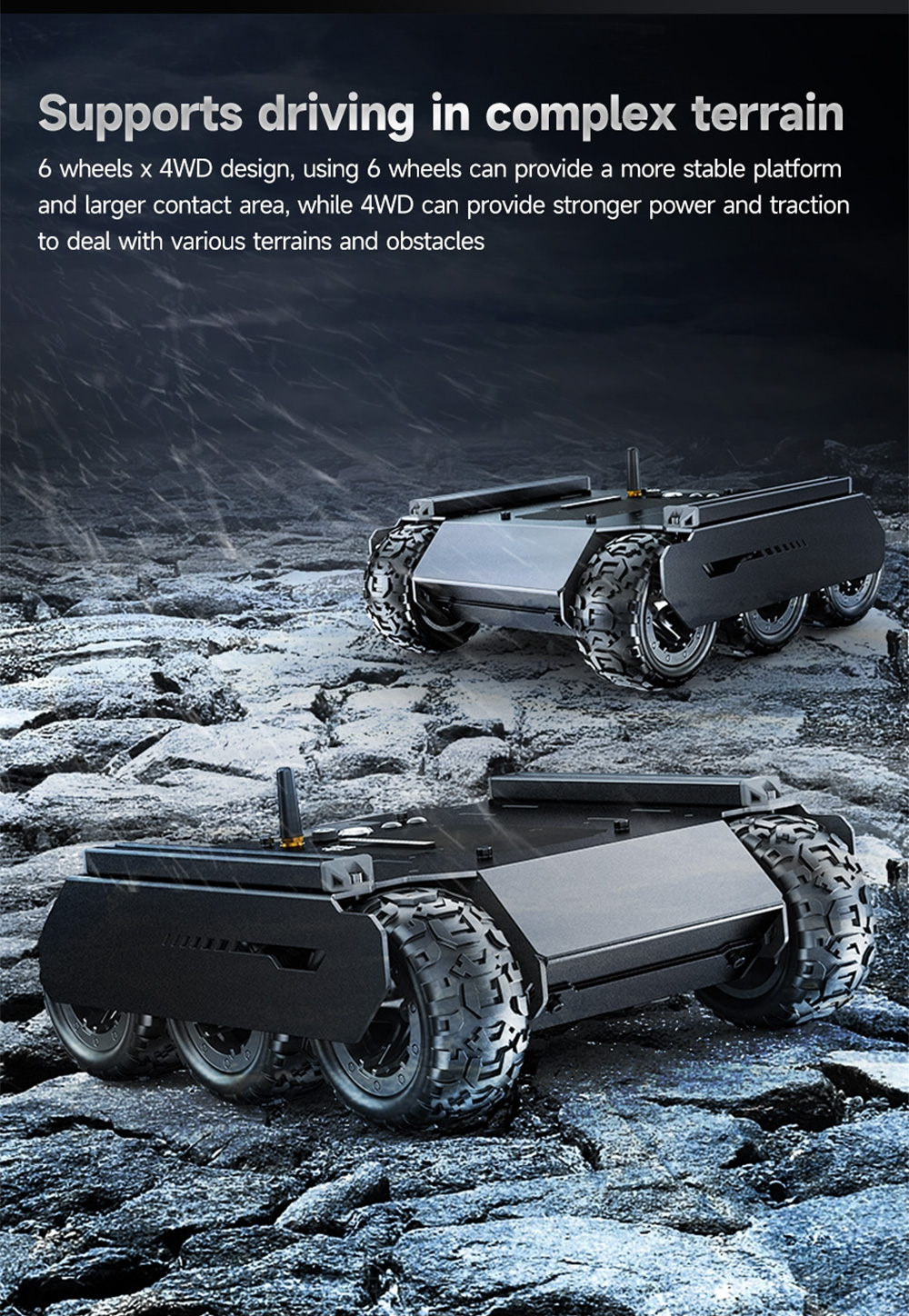

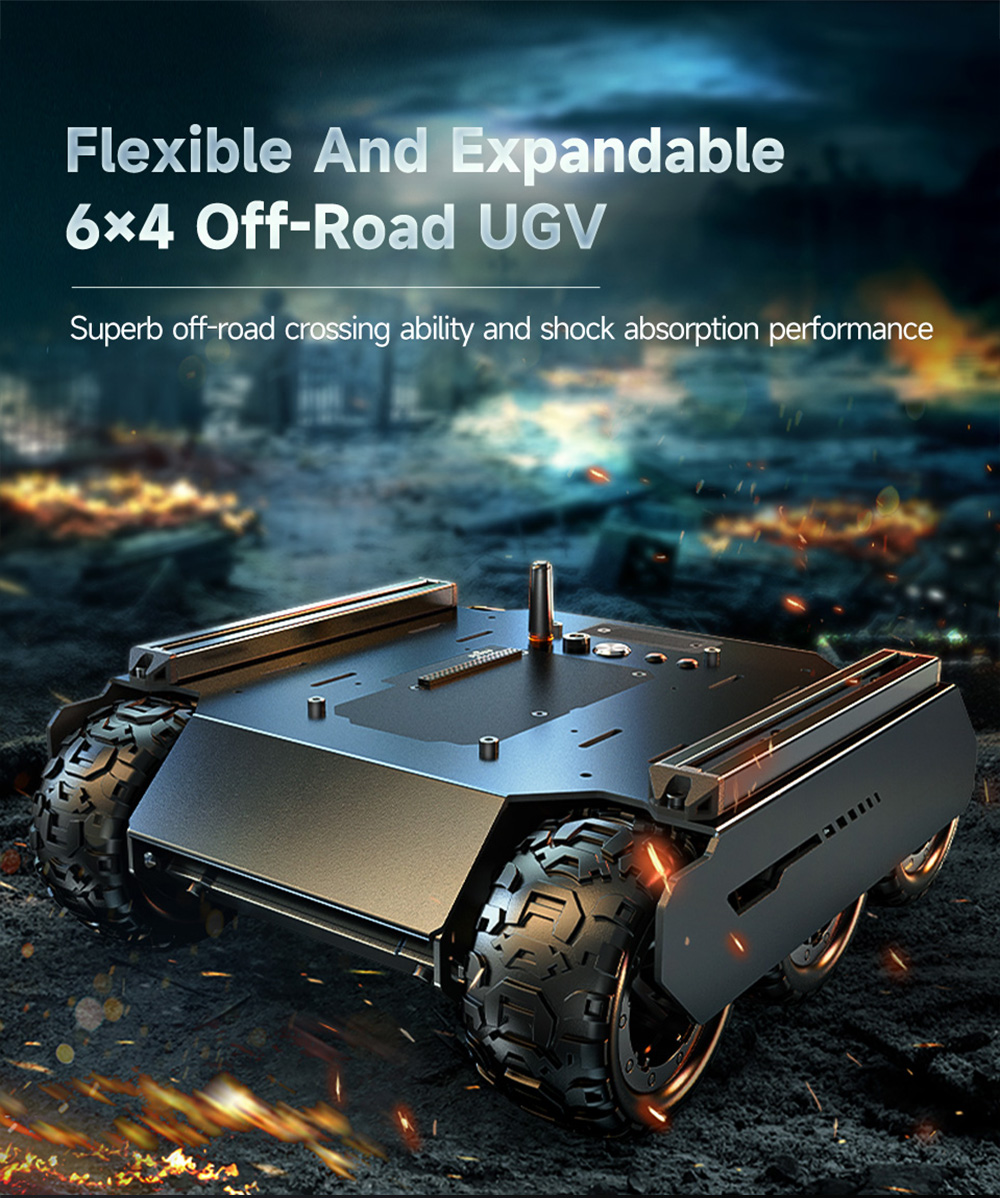

Flexible And Expandable 6×4 Off-Road UGV, Multiple Hosts Support, With Extension Rails And ESP32 Slave Computer, 6 Wheels 4WD Mobile Robot Chassis
Model：UGV02
SKU：24687

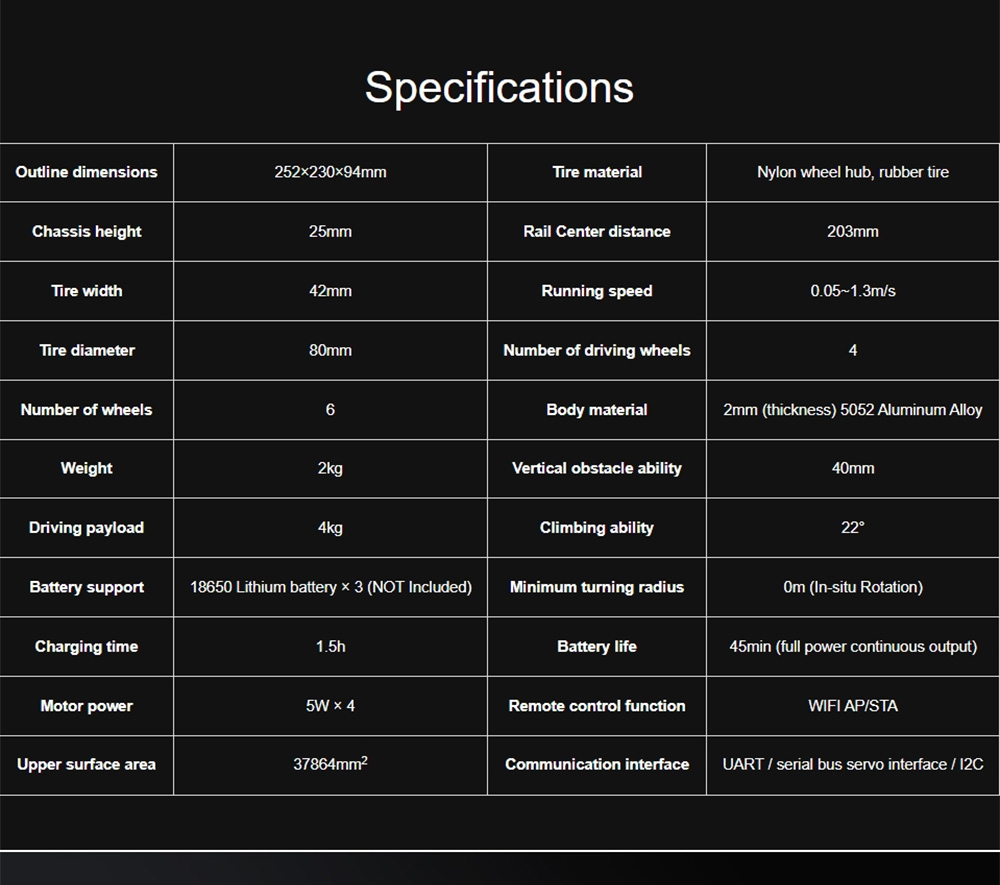

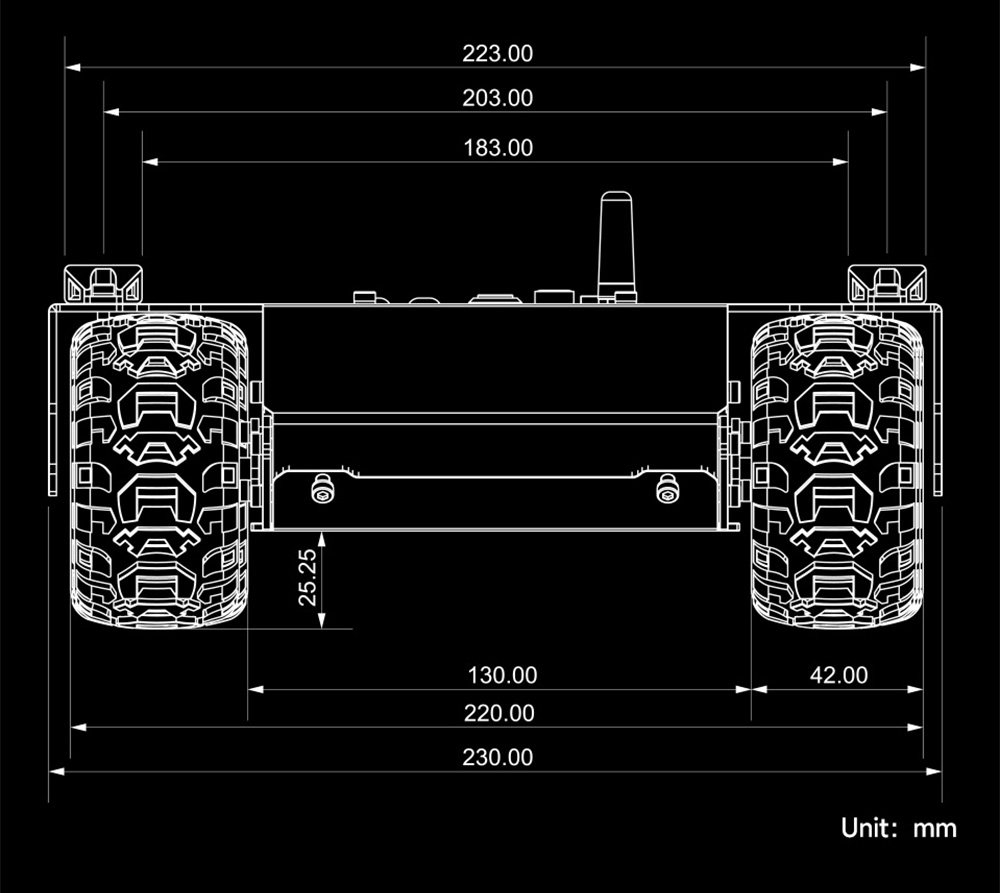

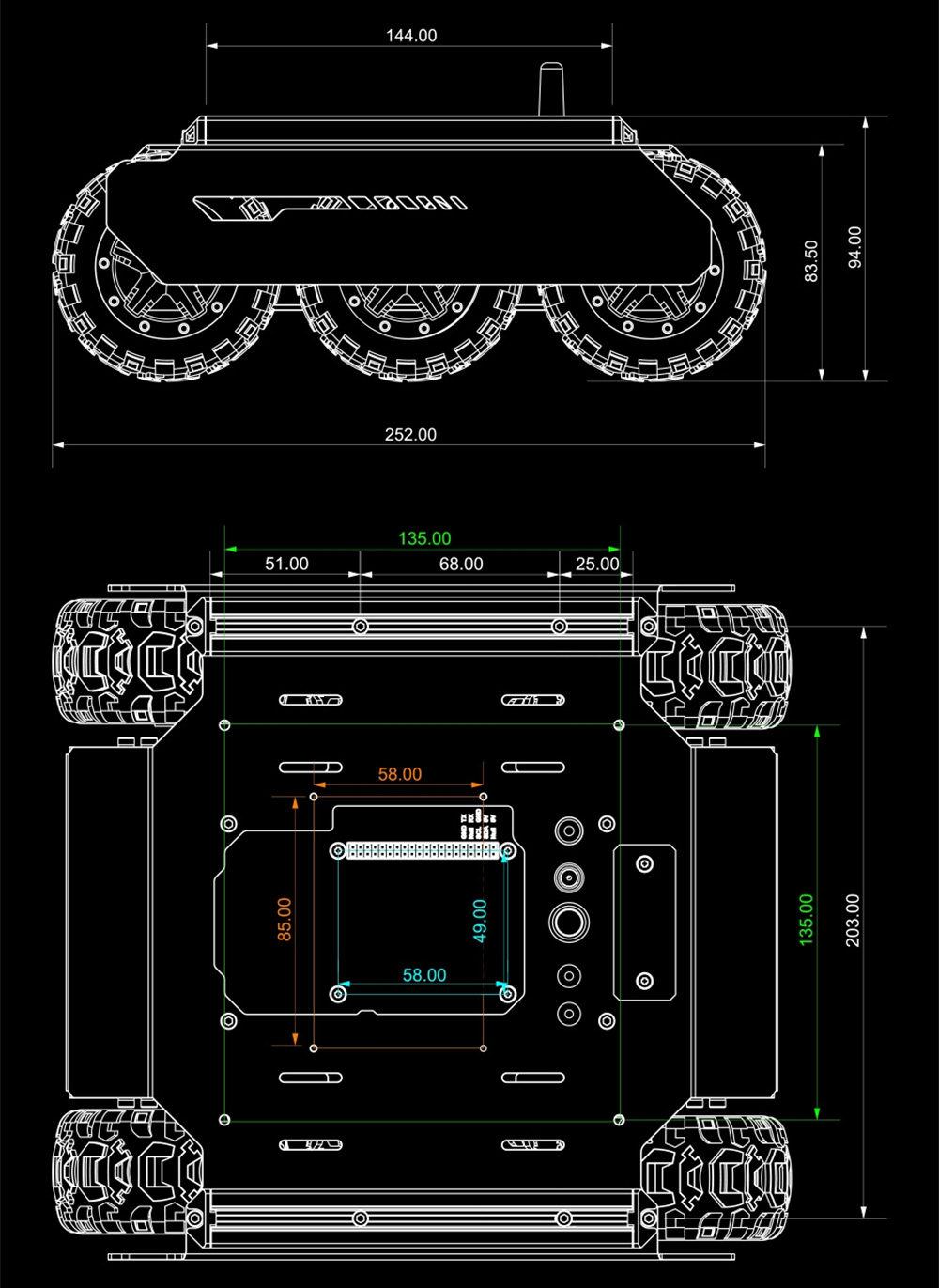

Outline dimensions：252×230×94mm

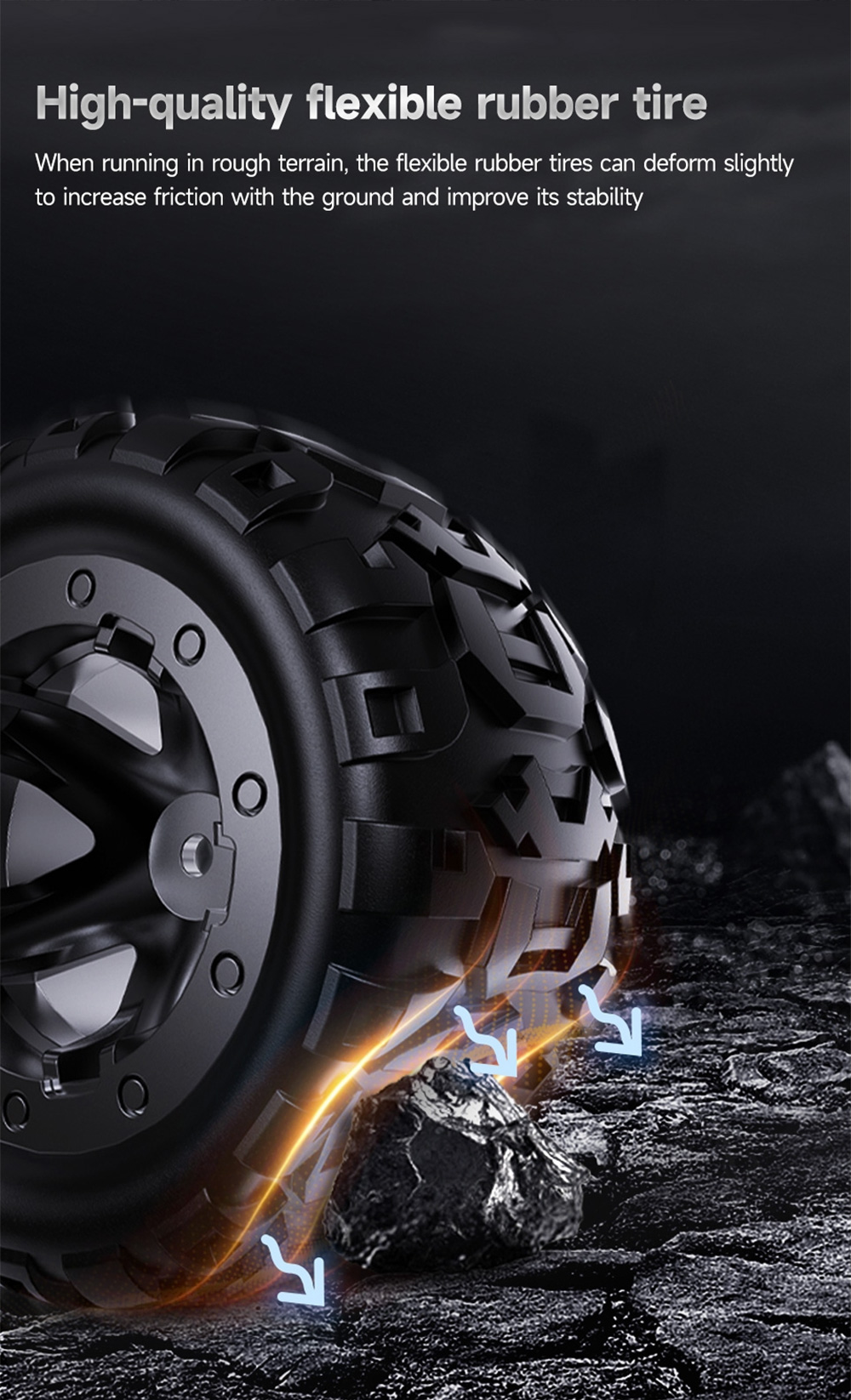

Tire material：Nylon wheel hub, rubber tire
Chassis height：25mm

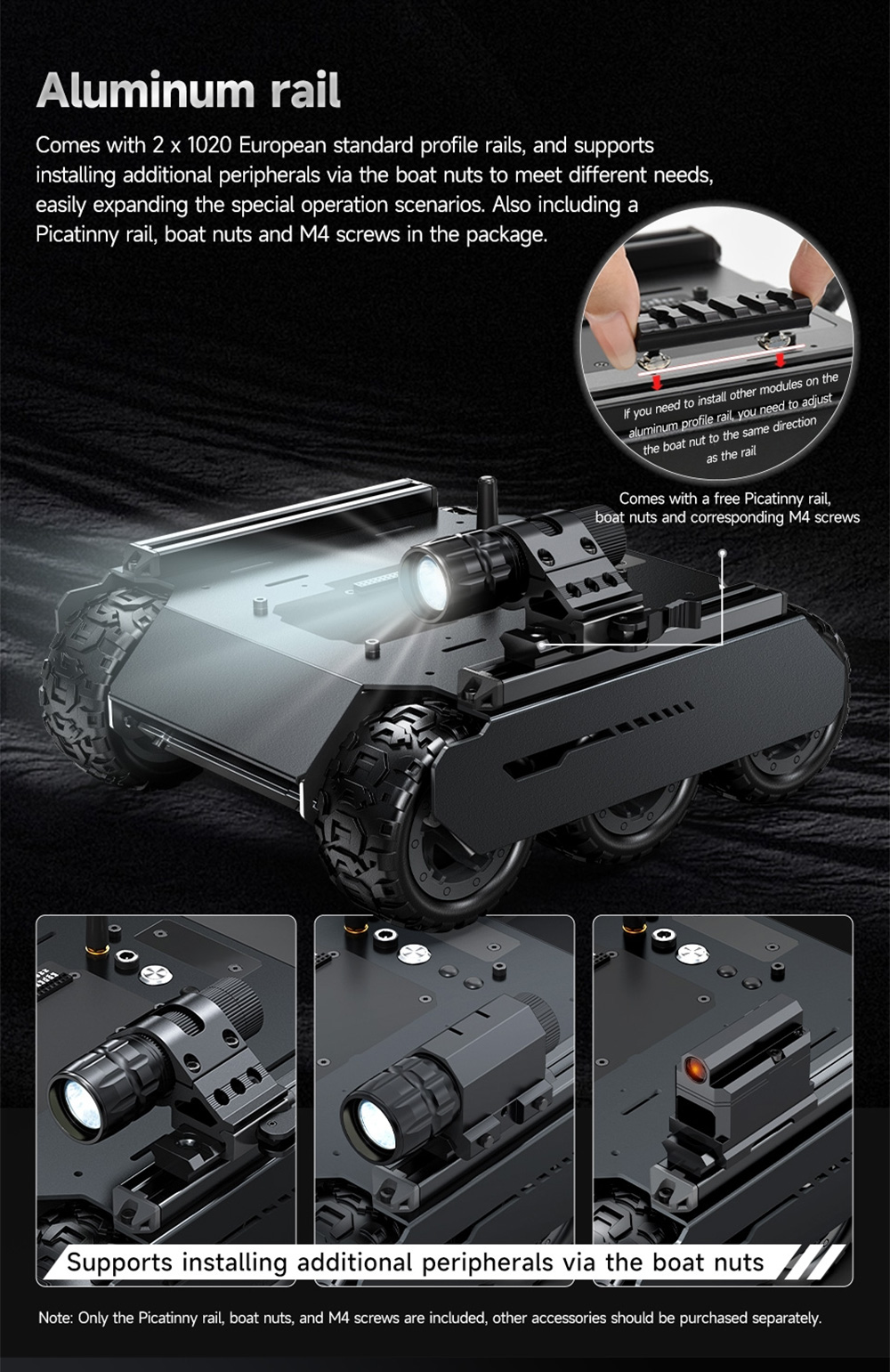

Rail Center distance：203mm
Tire width：42mm
Running speed：0.05~1.3m/s
Tire diameter：80mm
Number of driving wheels：4
Number of wheels：6
Body material：2mm (thickness) 5052 Aluminum Alloy
Weight：2kg
Vertical obstacle ability：40mm
Driving payload：4kg
Climbing ability：22°

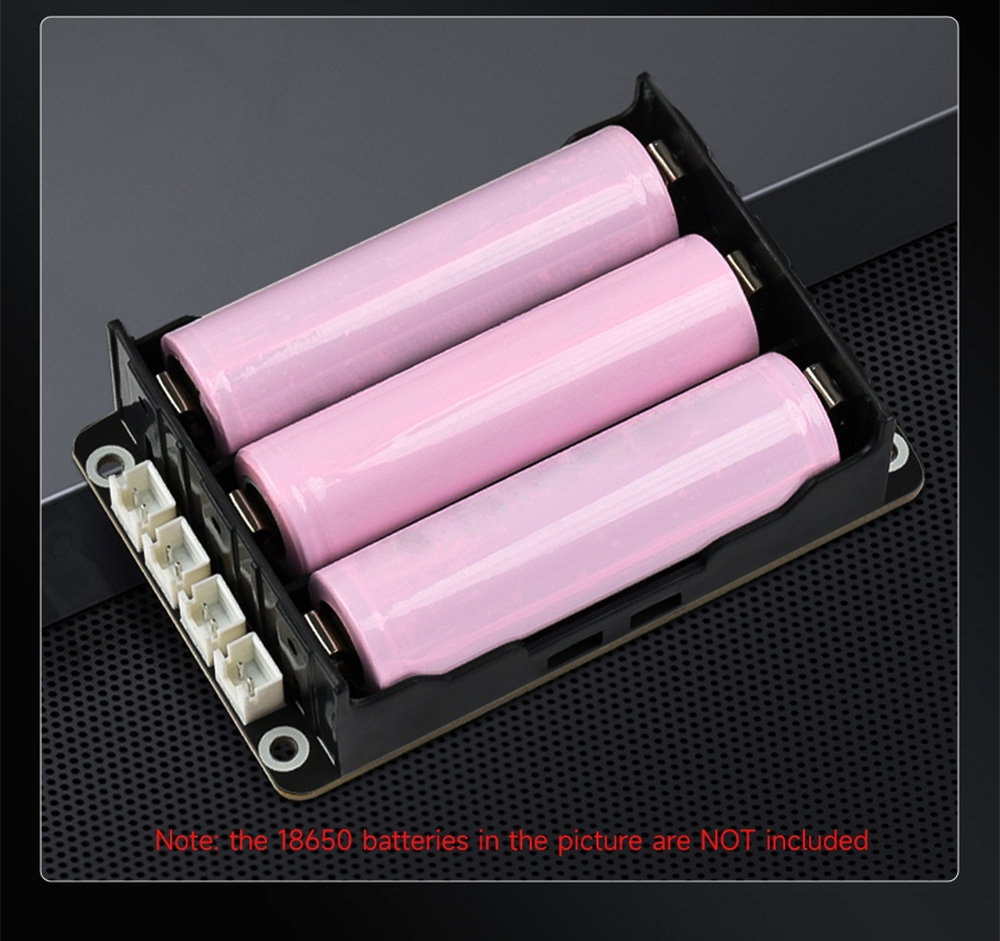

Battery support：18650 Lithium battery×3 (NOT Included)
Minimum turning radius：0m (In-situ Rotation)
Charging time：1.5h
Battery life：45min (full power continuous output)
Motor power：5W×4

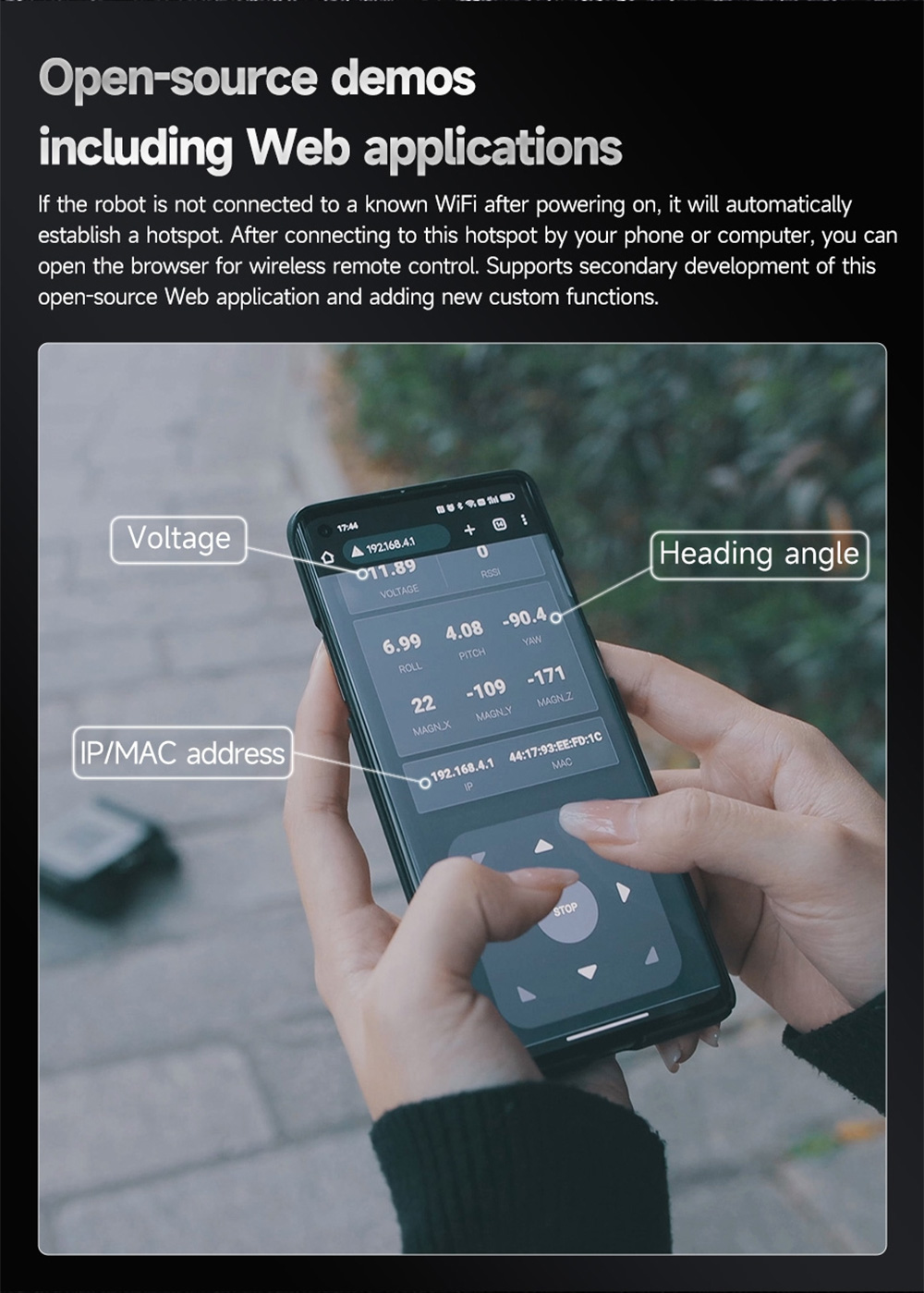

Remote control function：WIFI AP/STA
Upper surface area：37864mm²

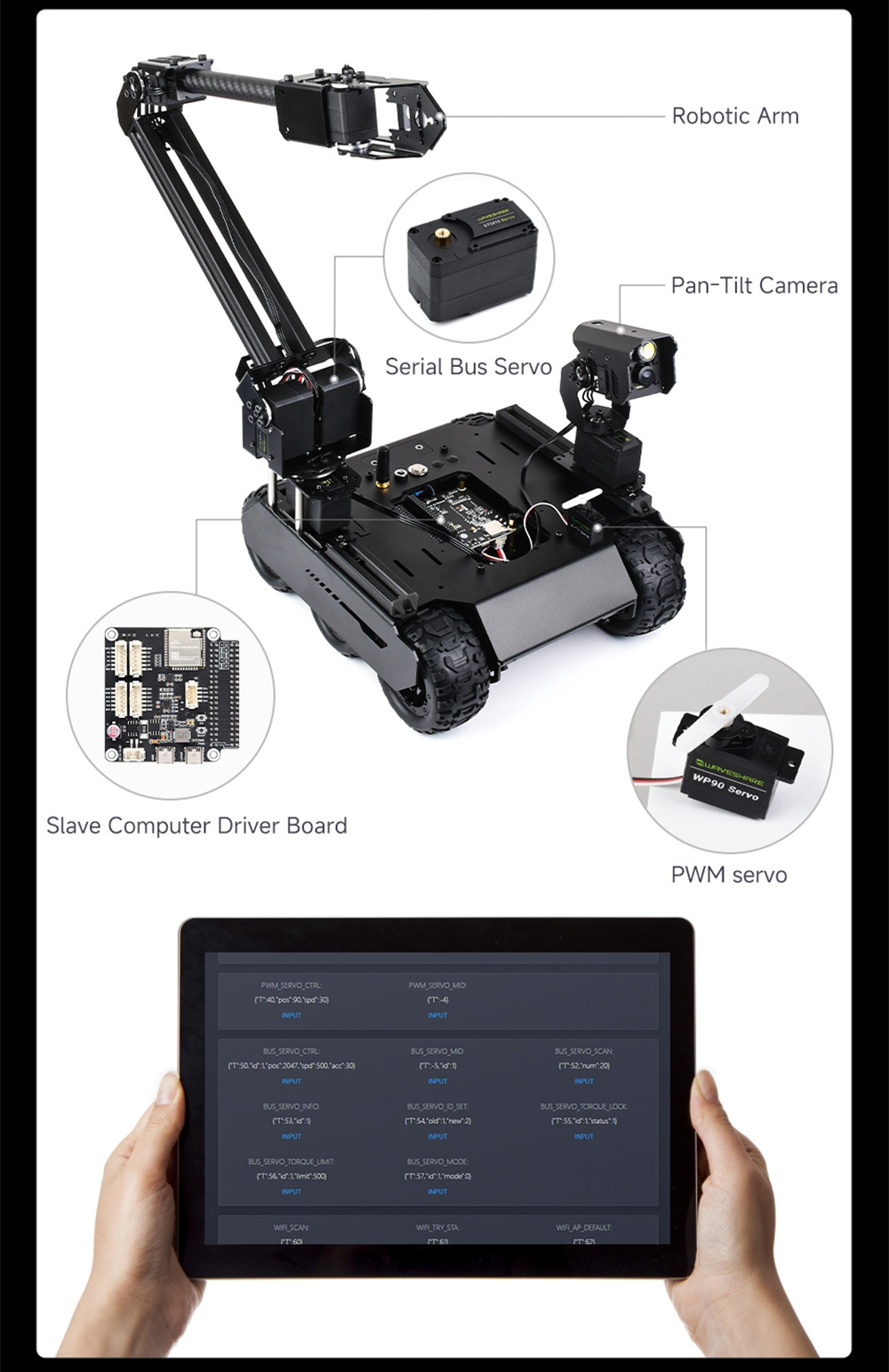

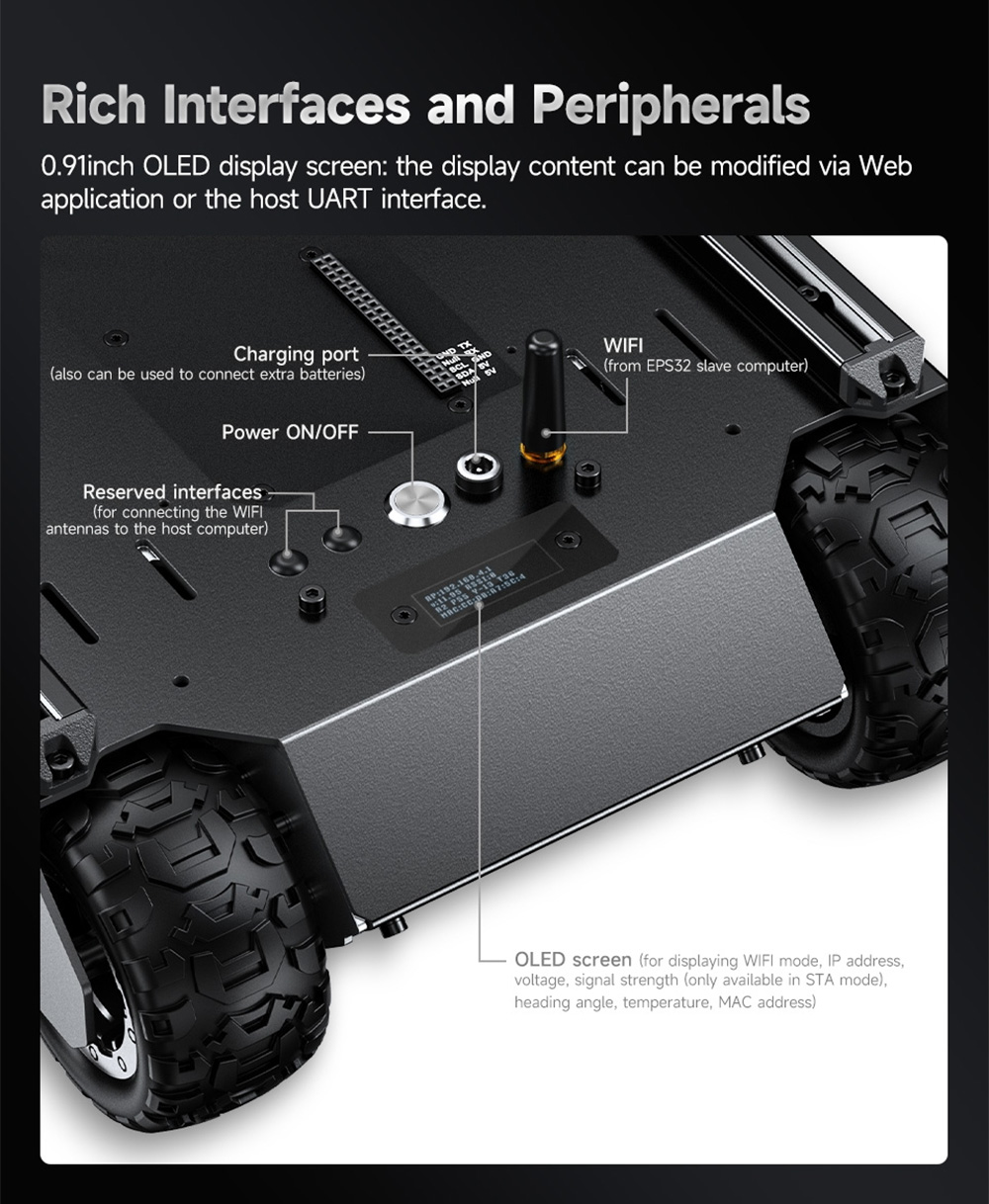

Communication interface：UART/serial bus servo interface/I2C

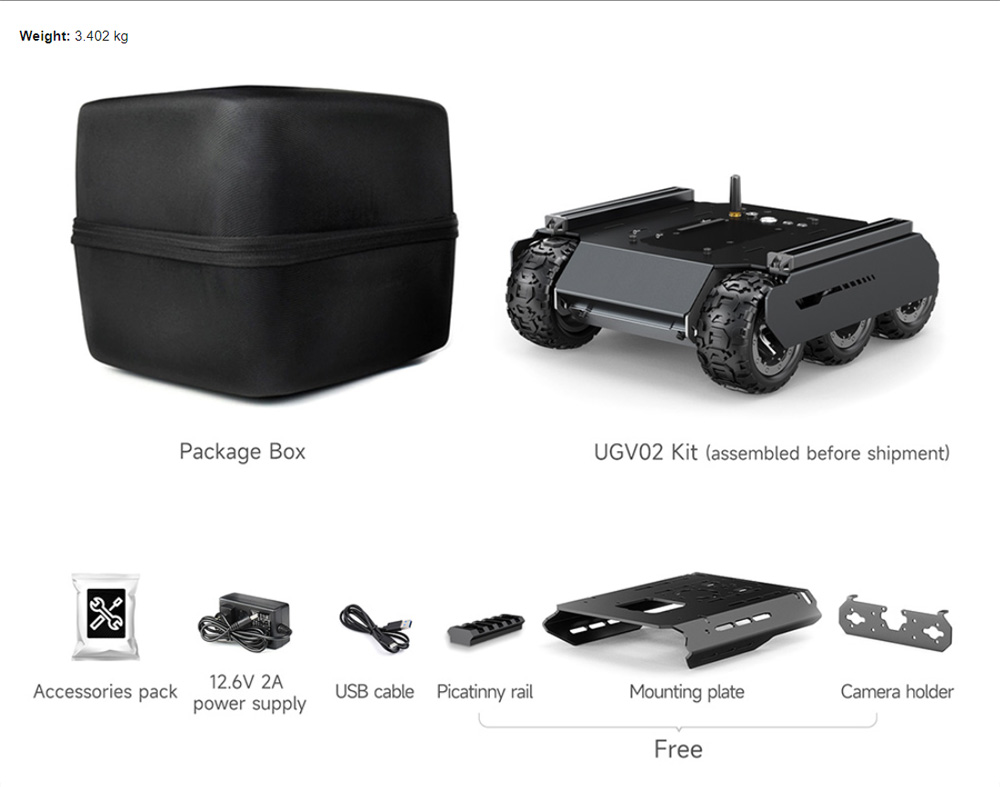

UGV02 Kit (assembled before shipment) x1
Accessories pack x1
12.6V 2A power supply x1
USB cable x1
Package Box x1
