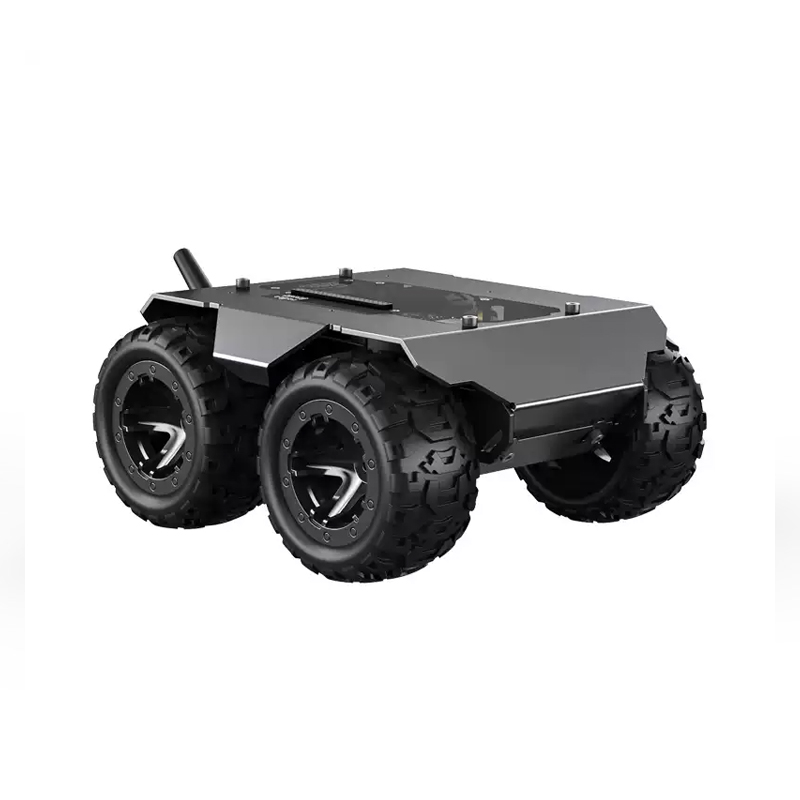

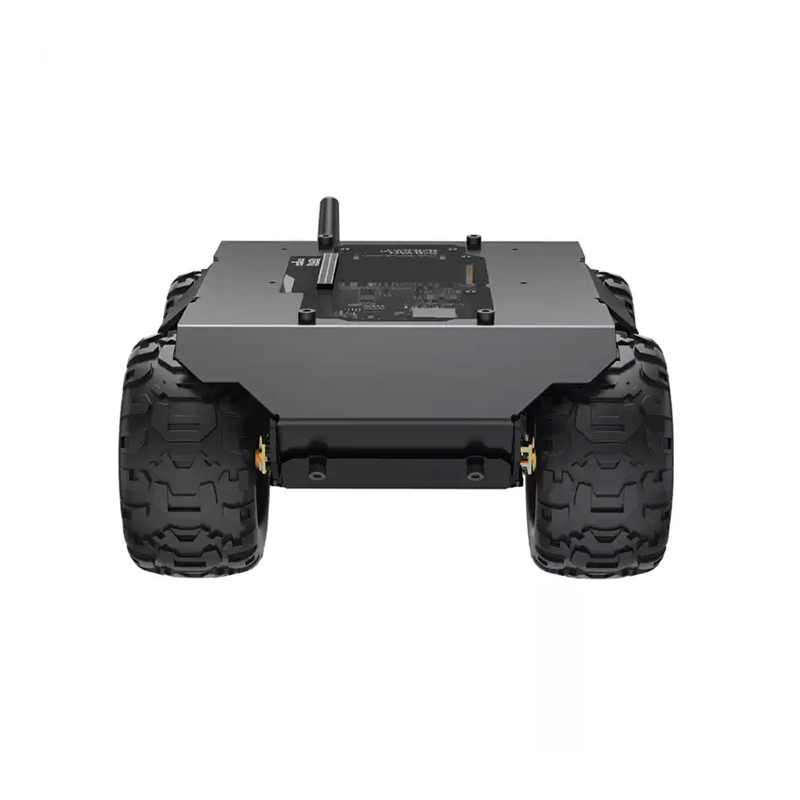

Waveshare WAVE ROVER Flexible And Expandable 4WD Mobile Robot Chassis Full Metal Body












Waveshare WAVE ROVER Flexible And Expandable 4WD Mobile Robot Chassis Full Metal Body

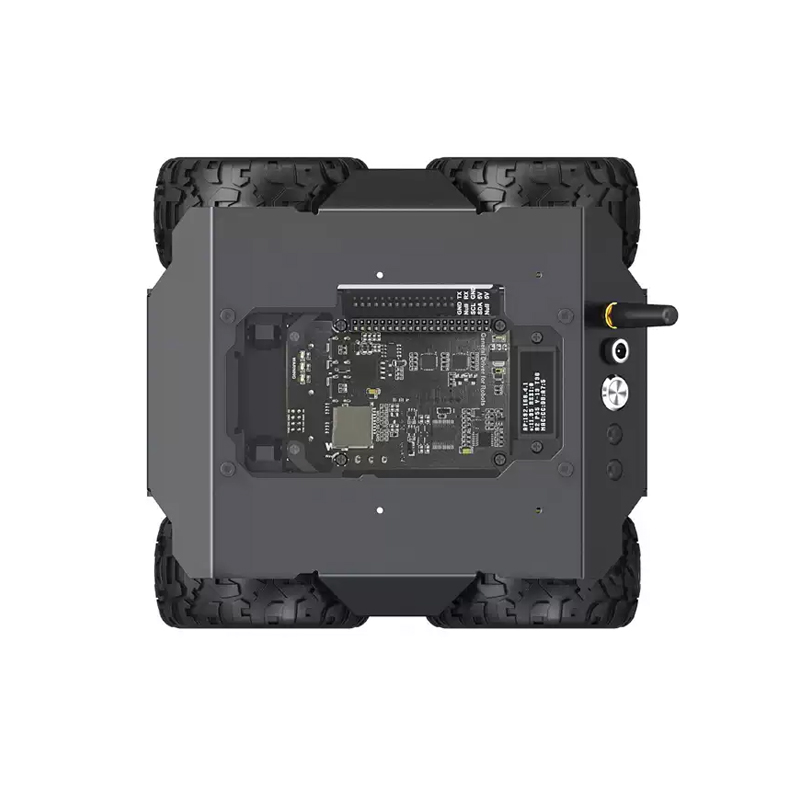

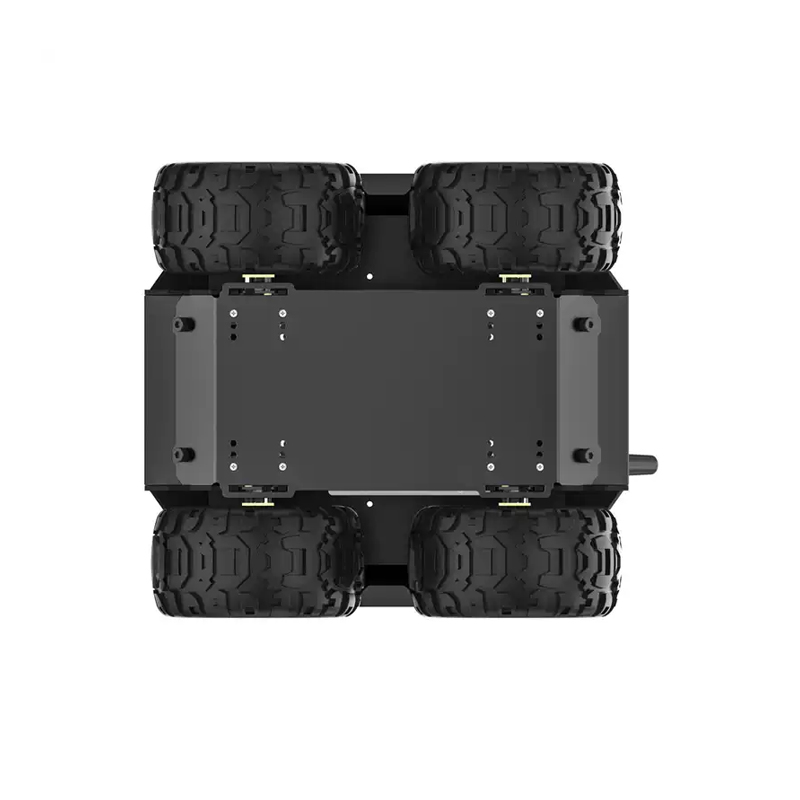

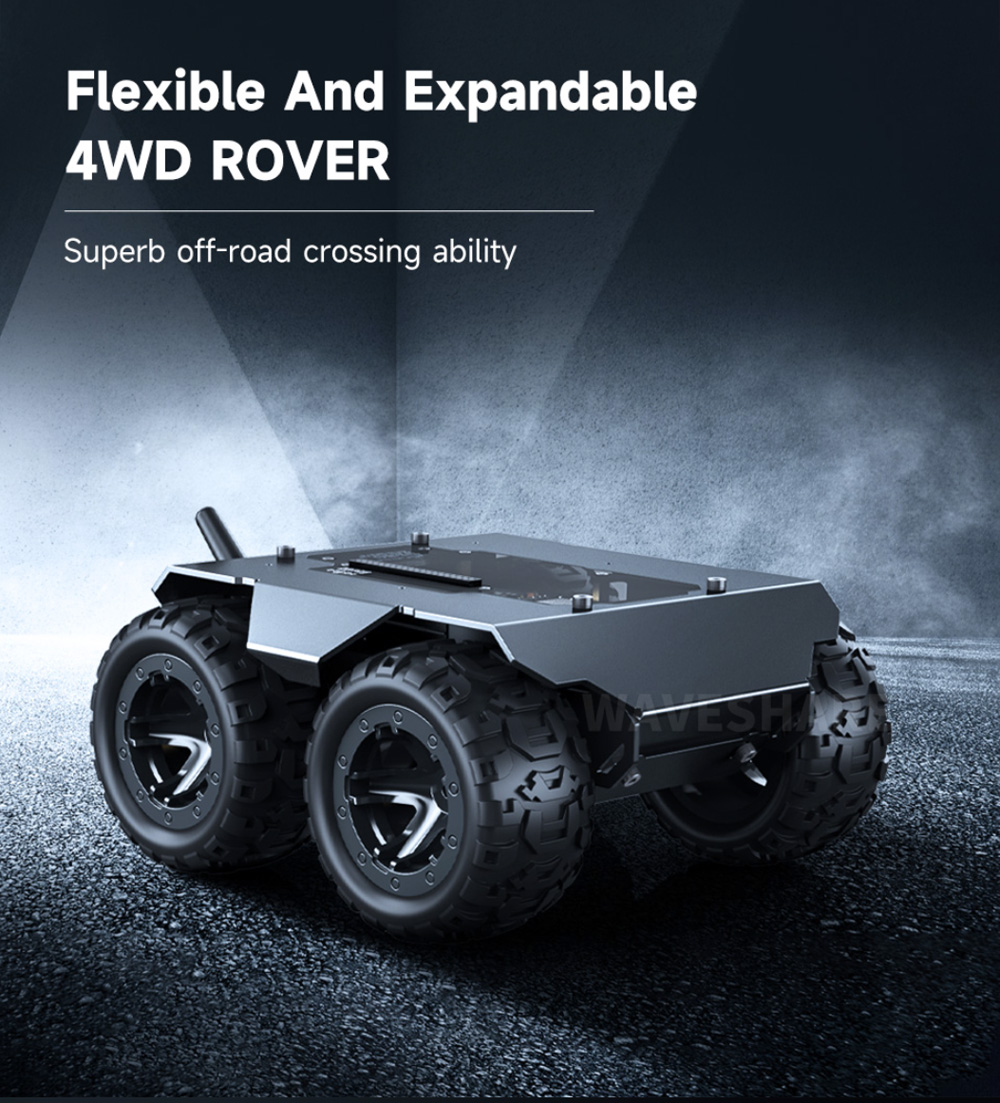

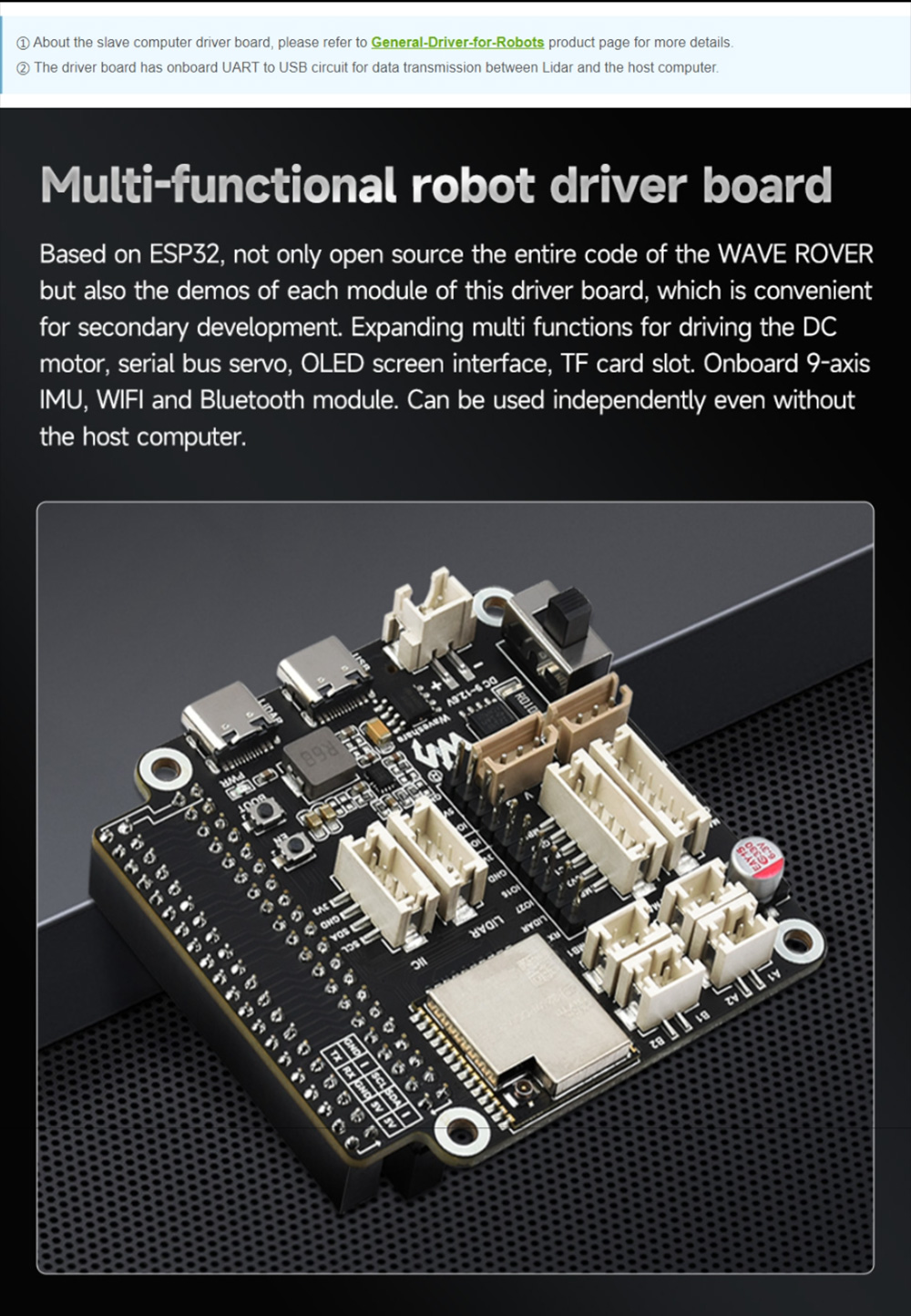

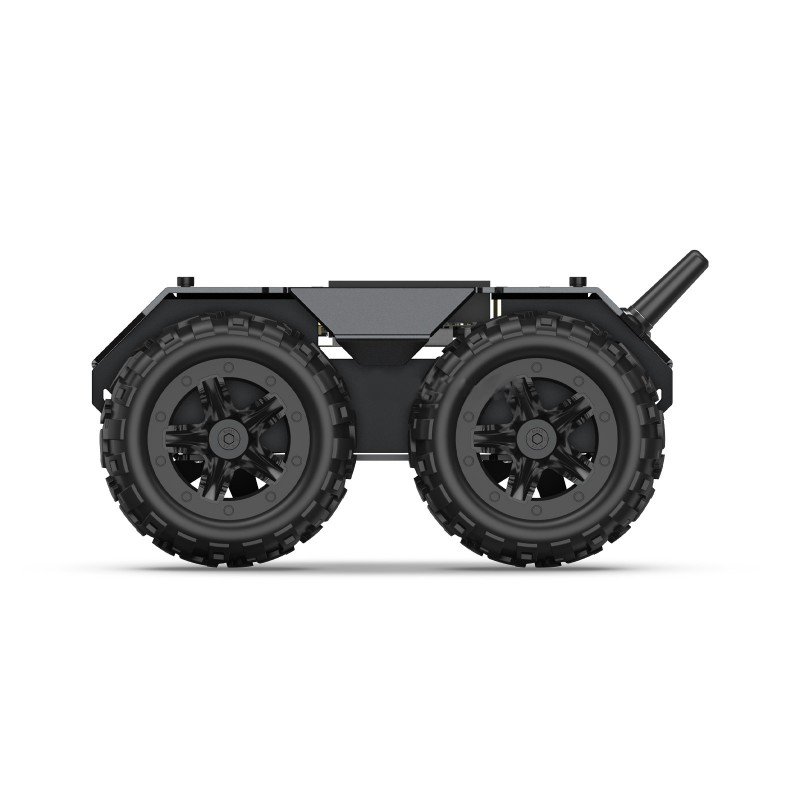

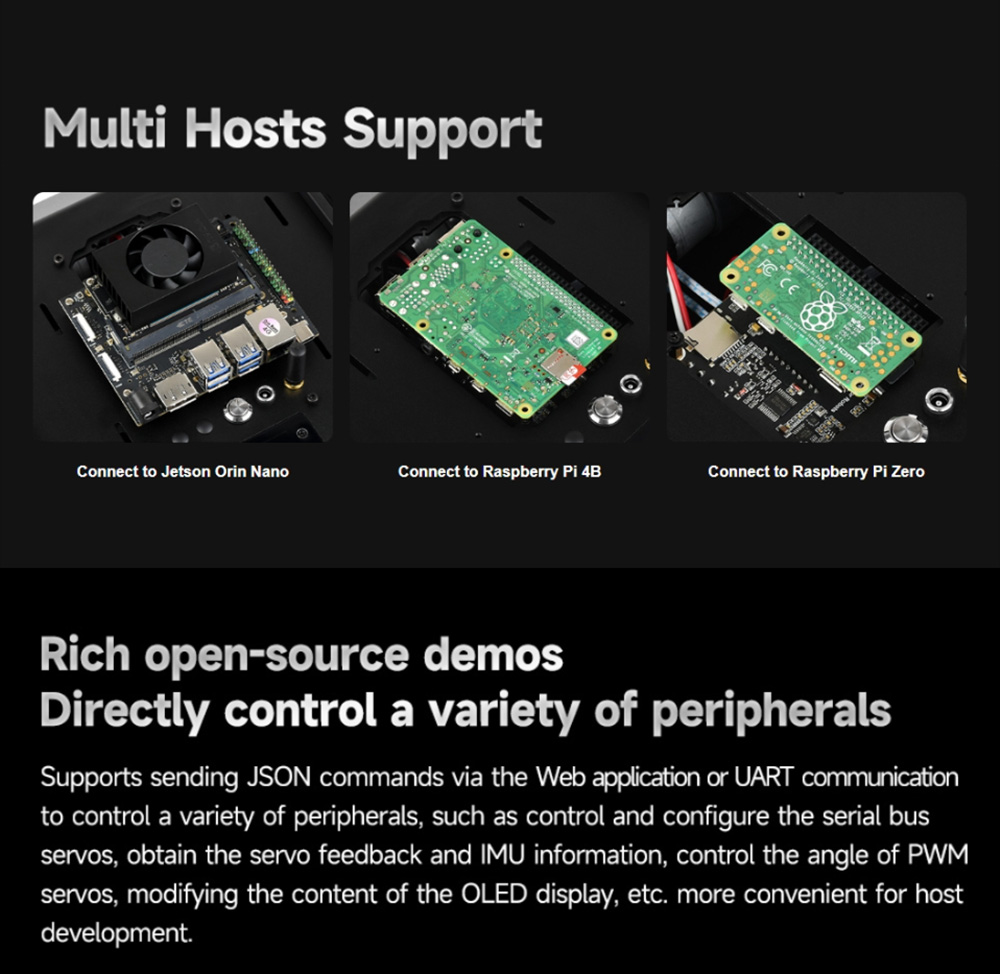

WAVE ROVER Flexible And Expandable 4WD Mobile Robot Chassis, Full Metal Body, Multiple Hosts Support, With Onboard ESP32 Module
Model:WAVE ROVER
SKU:25114

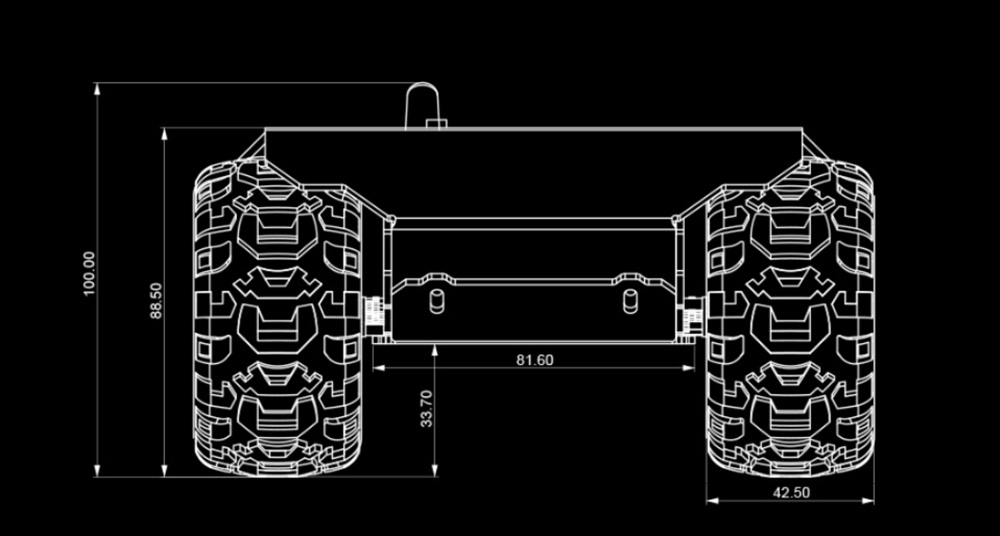

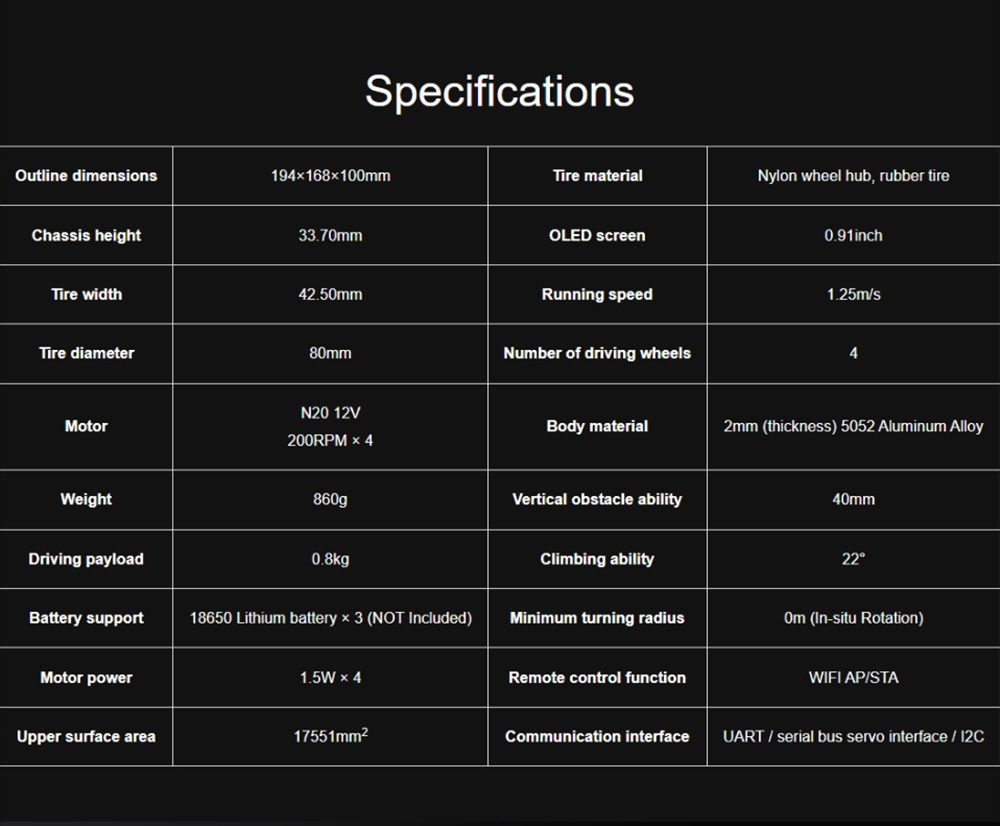

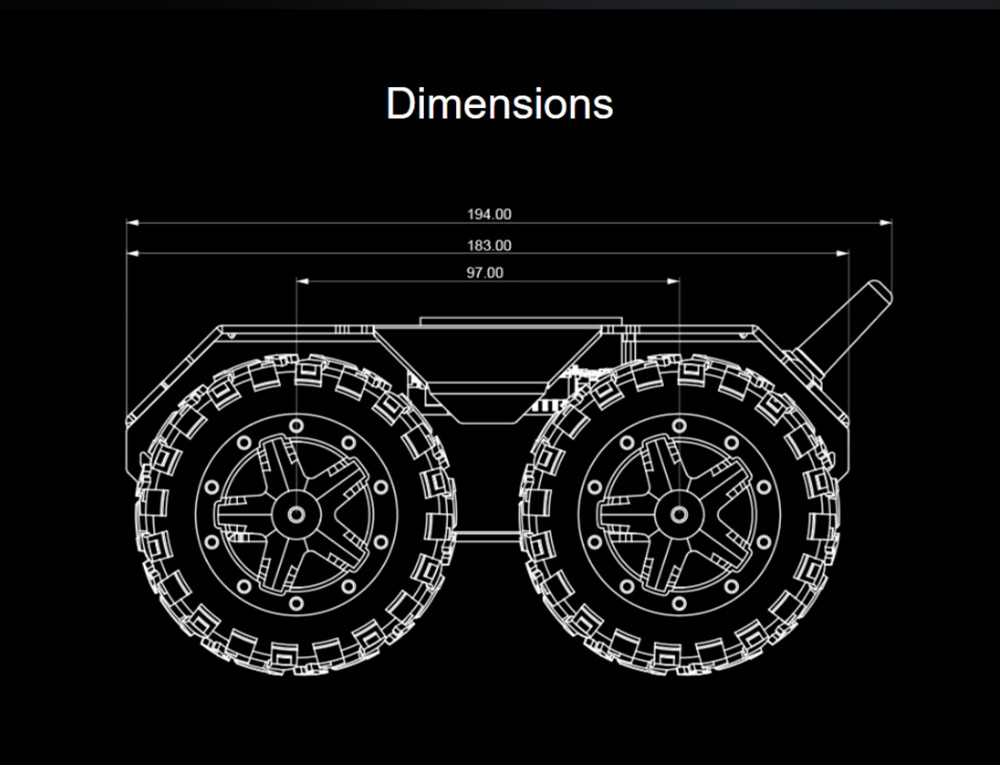

Outline dimensions:194×168×100mm

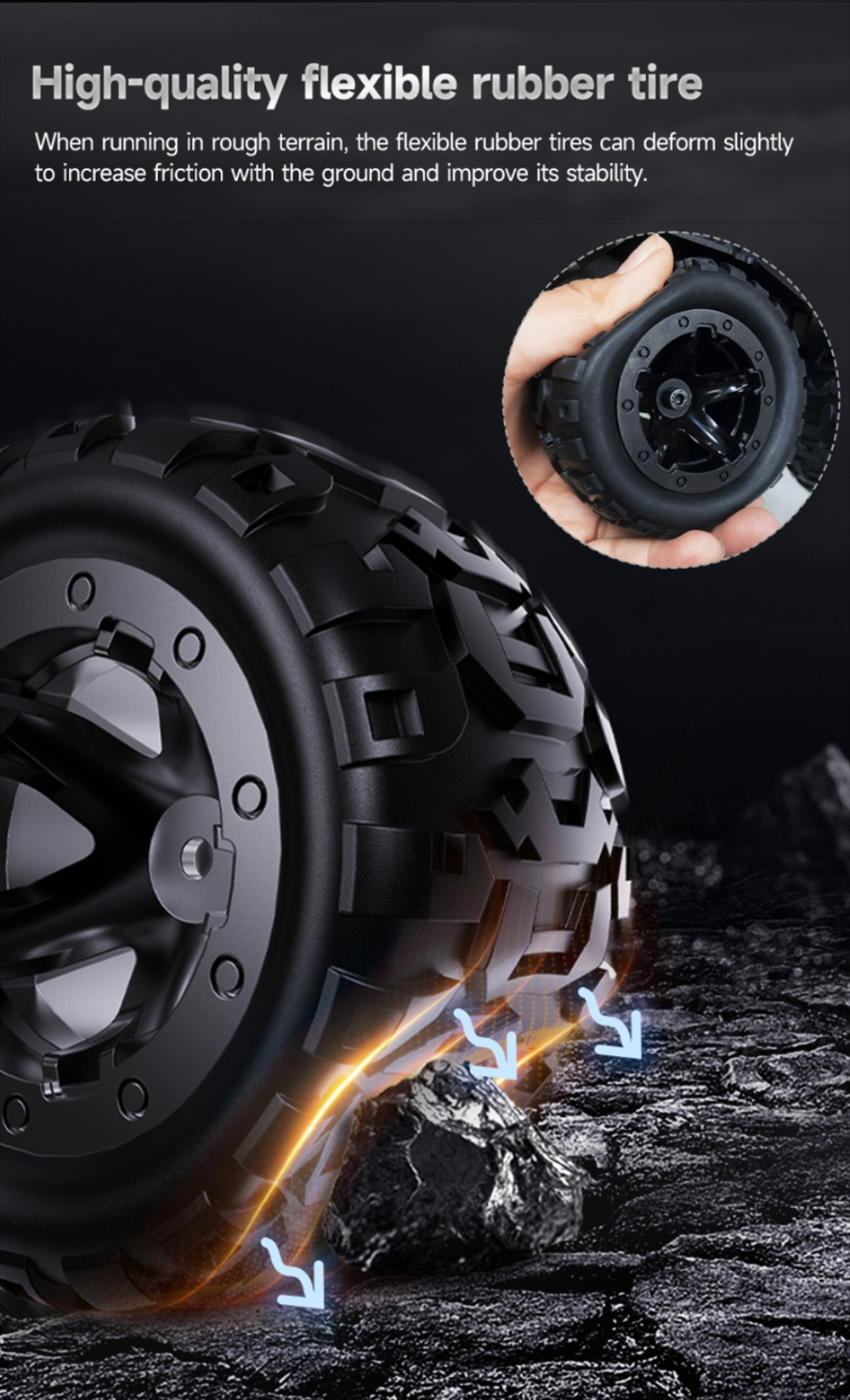

Tire material:Nylon wheel hub, rubber tire
Chassis height:33.70mm

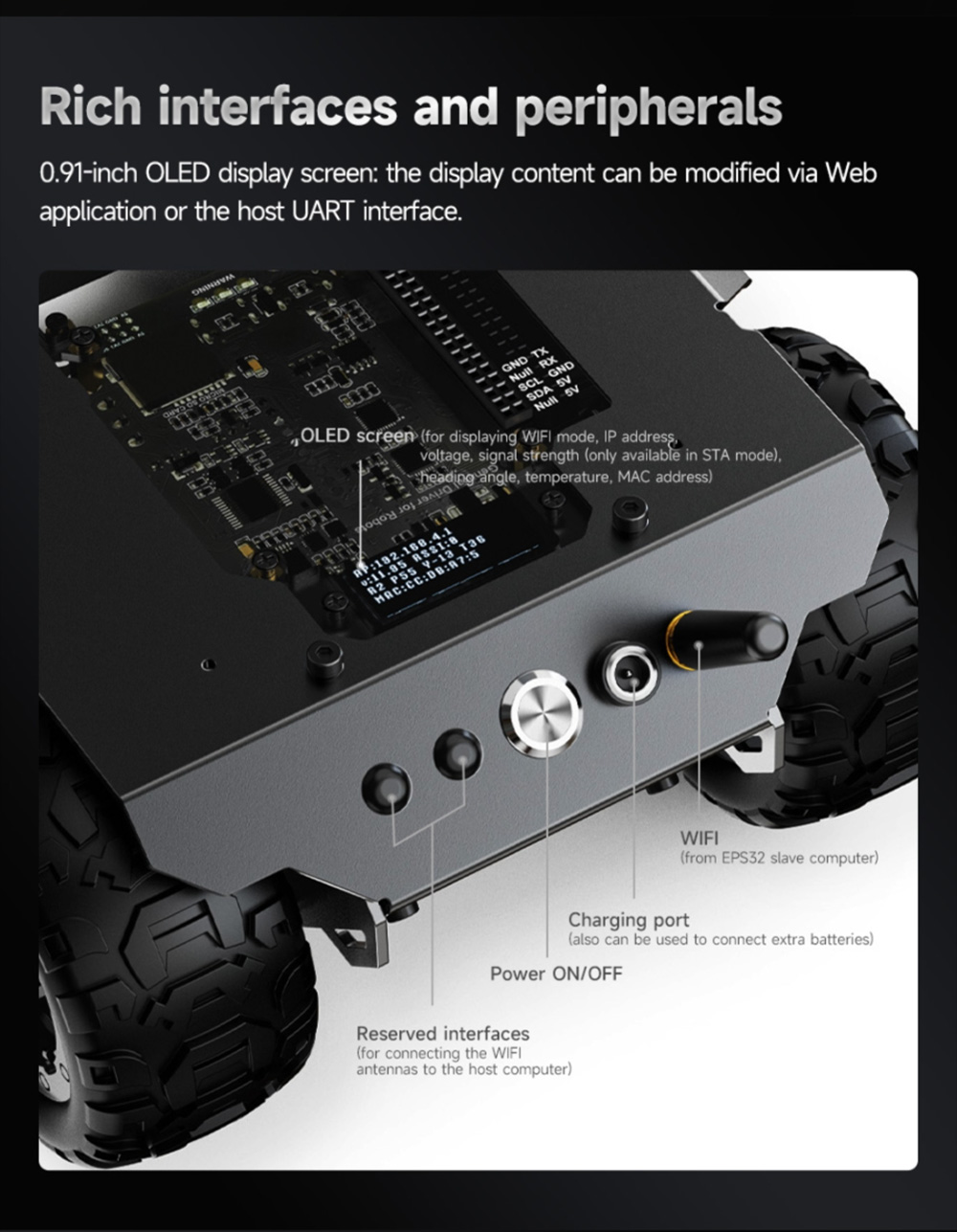

OLED screen:0.91inch
Tire width:42.50mm
Running speed:1.25m/s
Tire diameter:80mm
Number of driving wheels:4
Motor:N20 12V,200RPM × 4
Body material:2mm (thickness) 5052 Aluminum Alloy
Weight:860g
Vertical obstacle ability:40mm
Driving payload:0.8kg
Climbing ability:22°

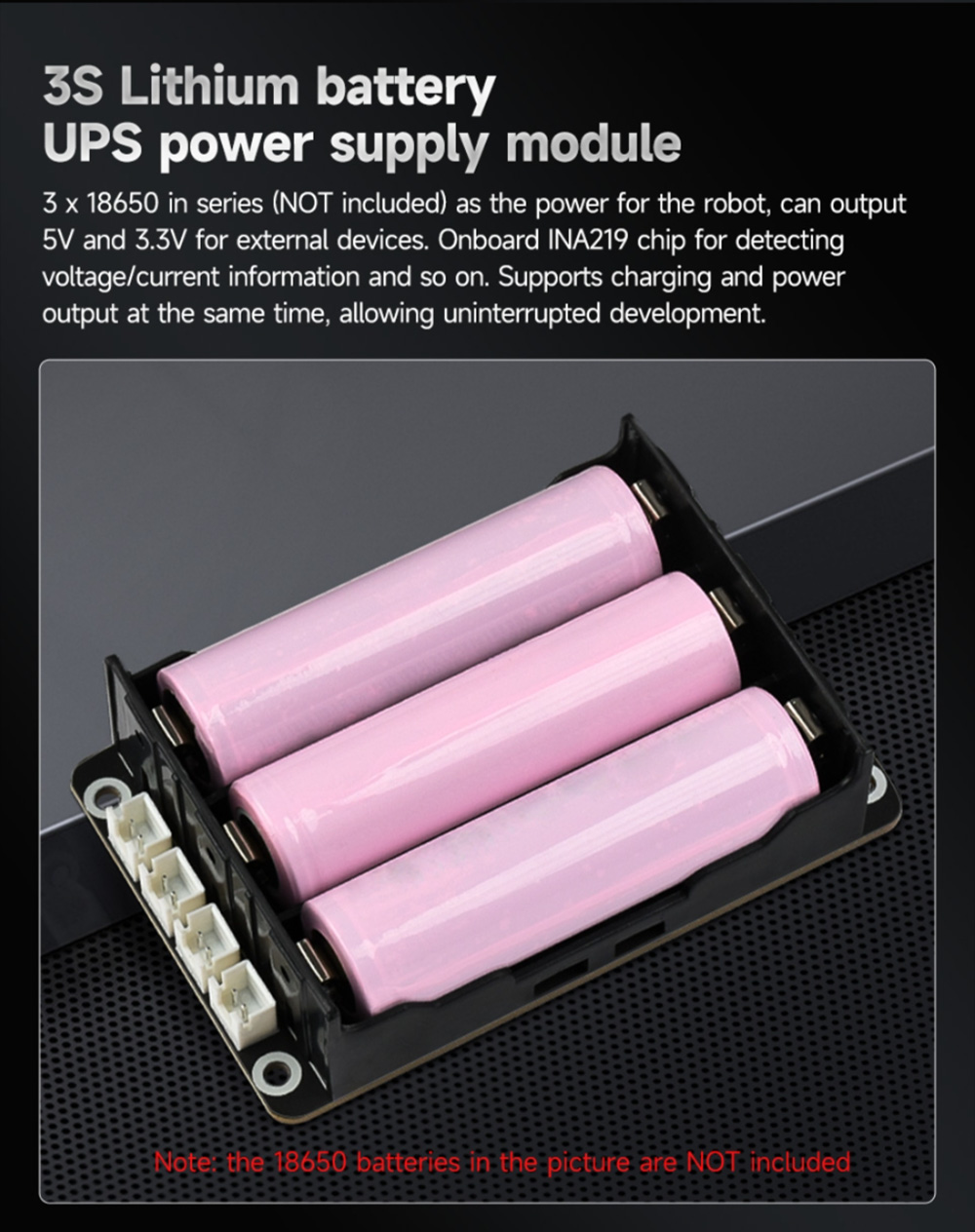

Battery support:18650 Lithium battery×3 (NOT Included)
Minimum turning radius:0m (In-situ Rotation)
Motor power:1.5W×4

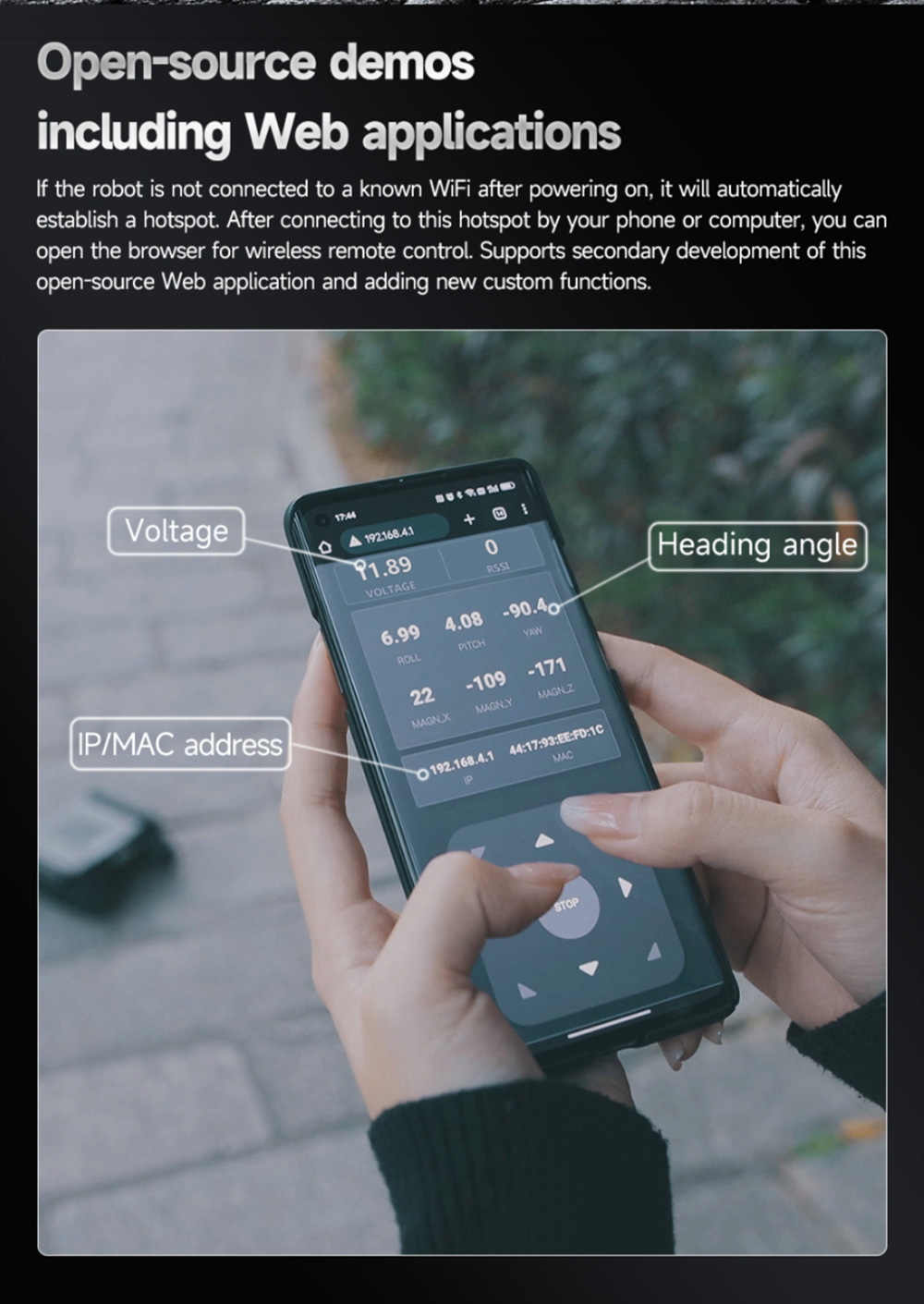

Remote control function:WIFI AP/STA

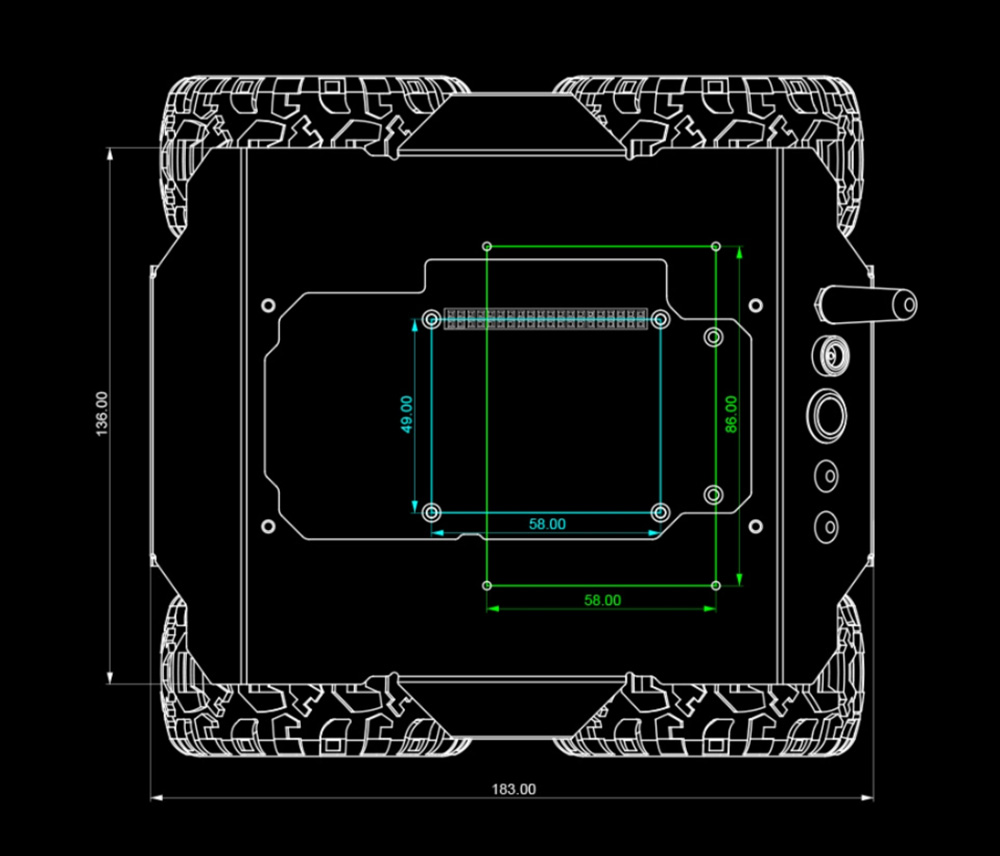

Upper surface area:17551mm²

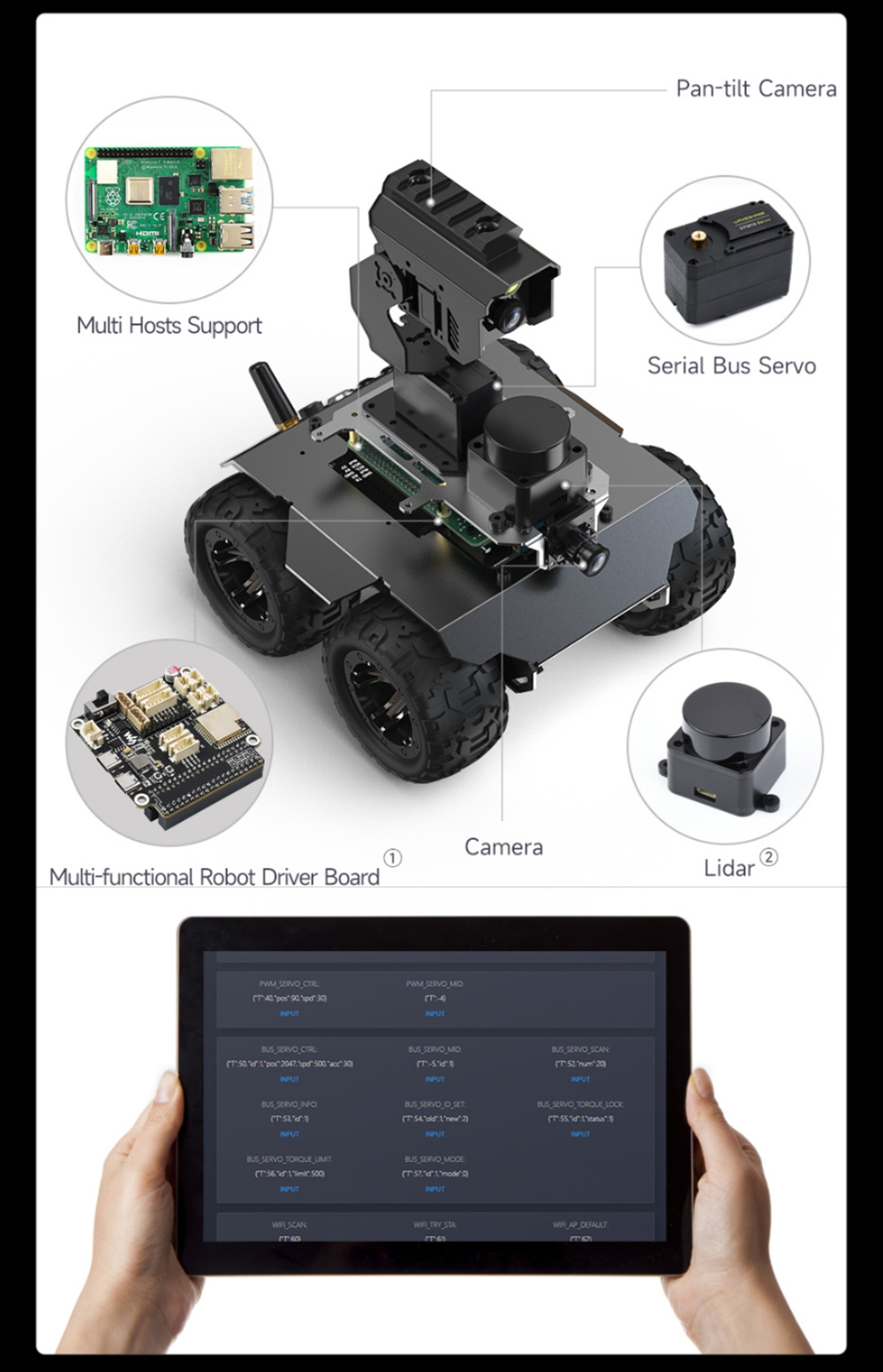

Communication interface:UART / serial bus servo interface / I2C

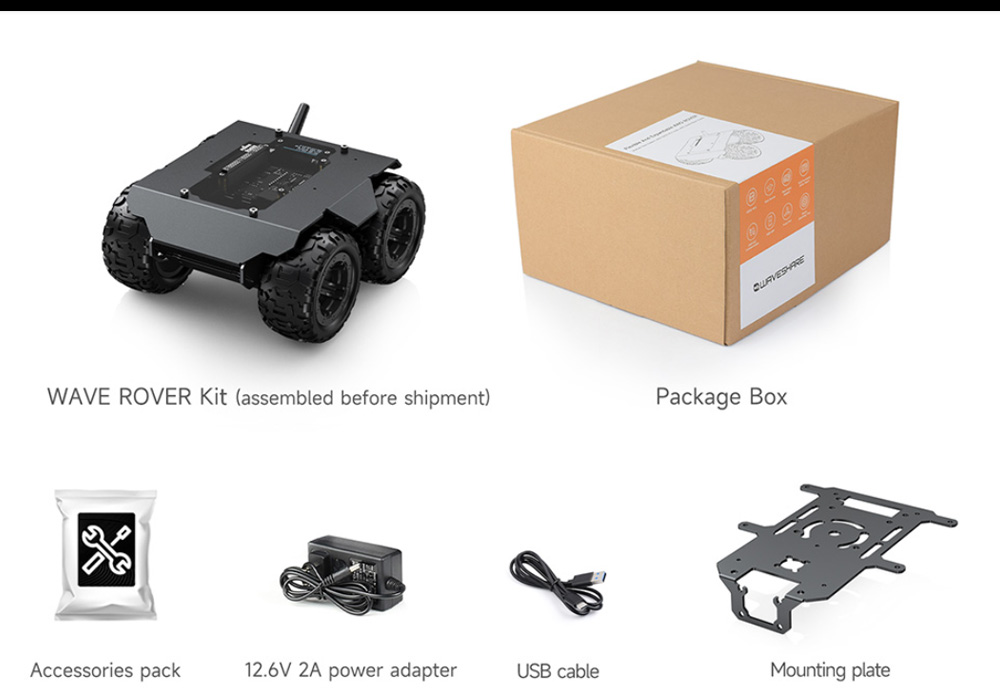

WAVE ROVER Kit (assembled before shipment) x1
Accessories pack x1
12.6V 2A power adapter x1
USB cable x1

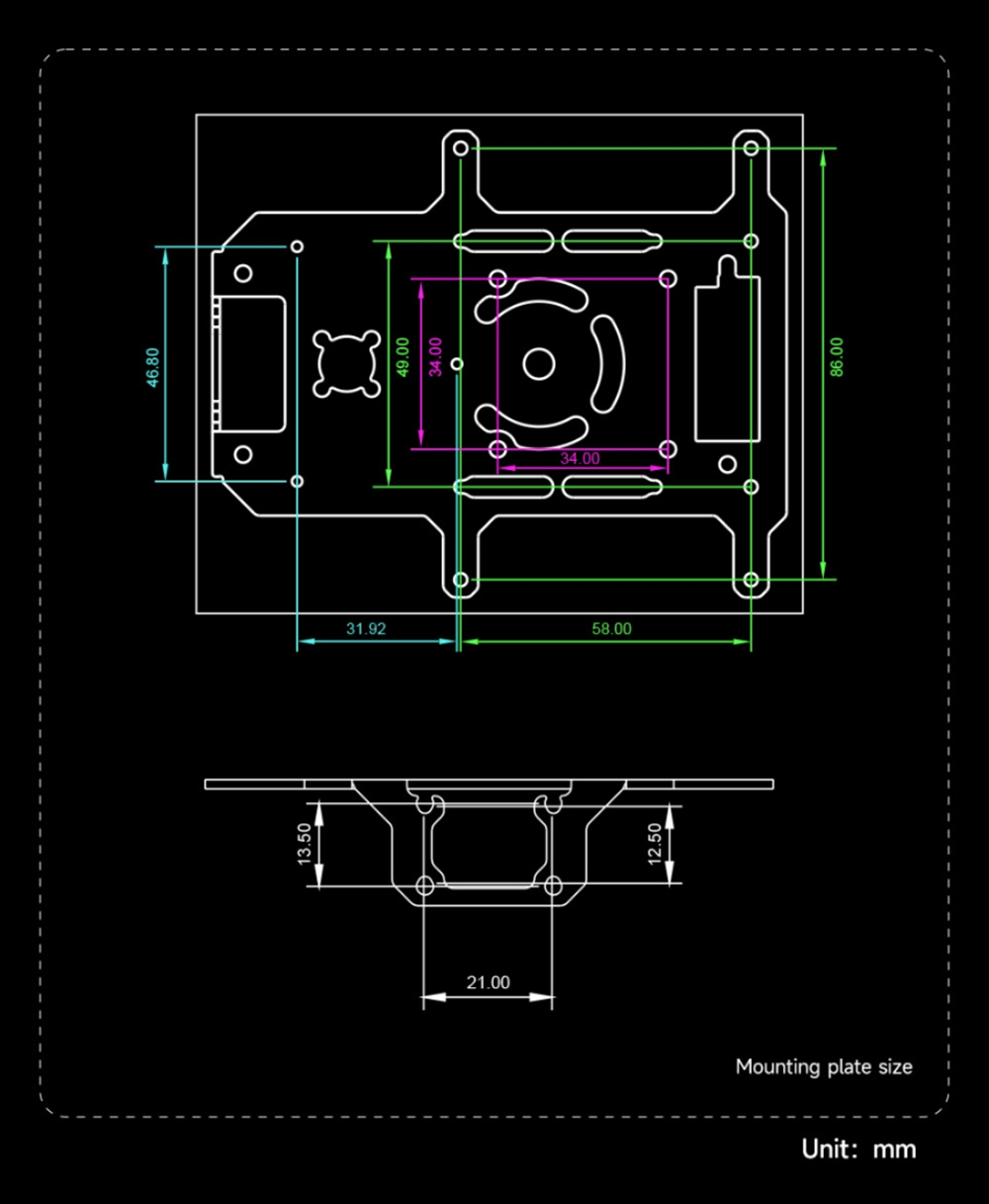

Mounting plate x1
Package Box x1
