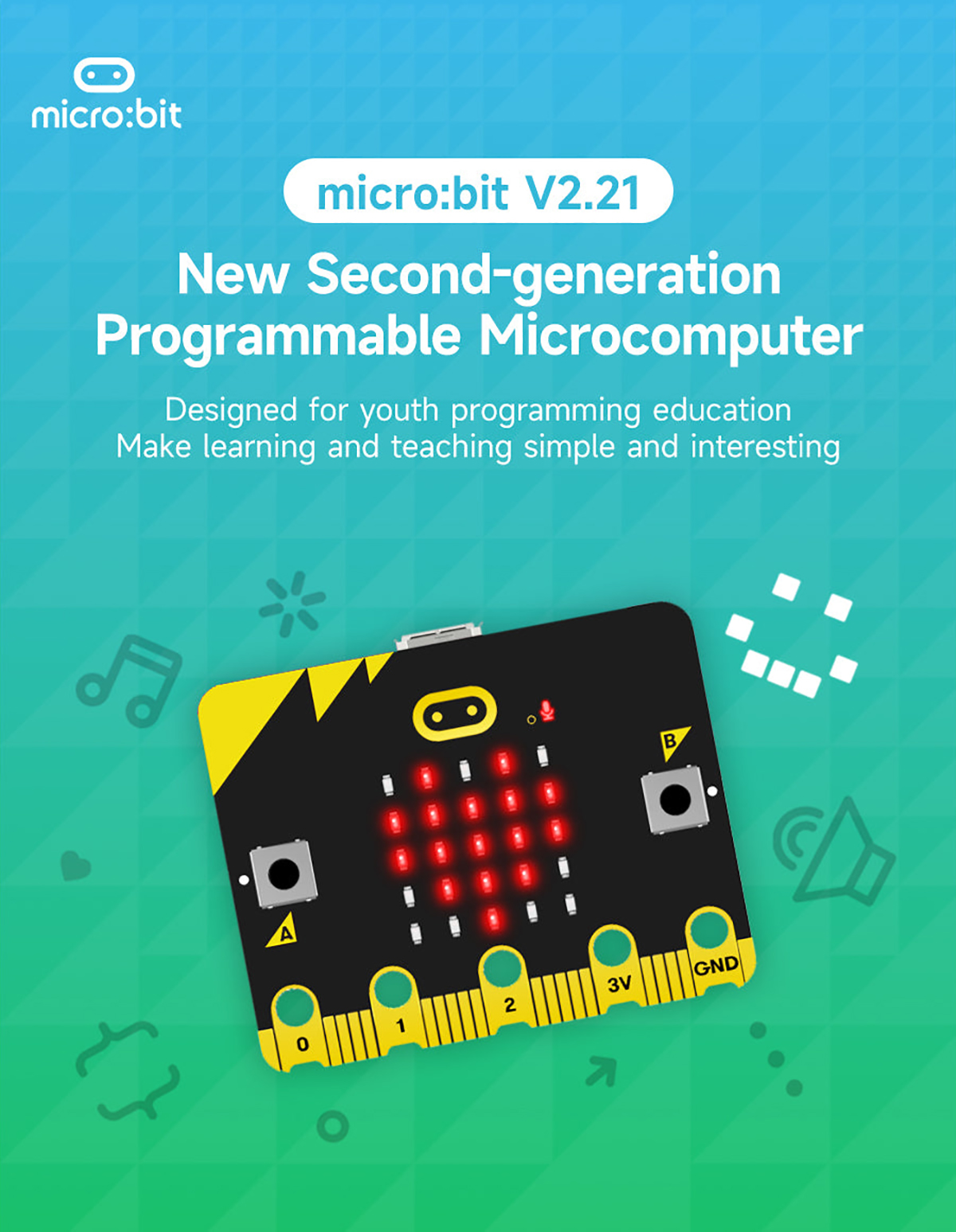

Yahboom BBC Micro:bit V2.21 Edge Development Board Built-in Speake Microphone for STEM Education














Yahboom BBC Micro:bit V2.21 Edge Development Board Built-in Speake Microphone for STEM Education

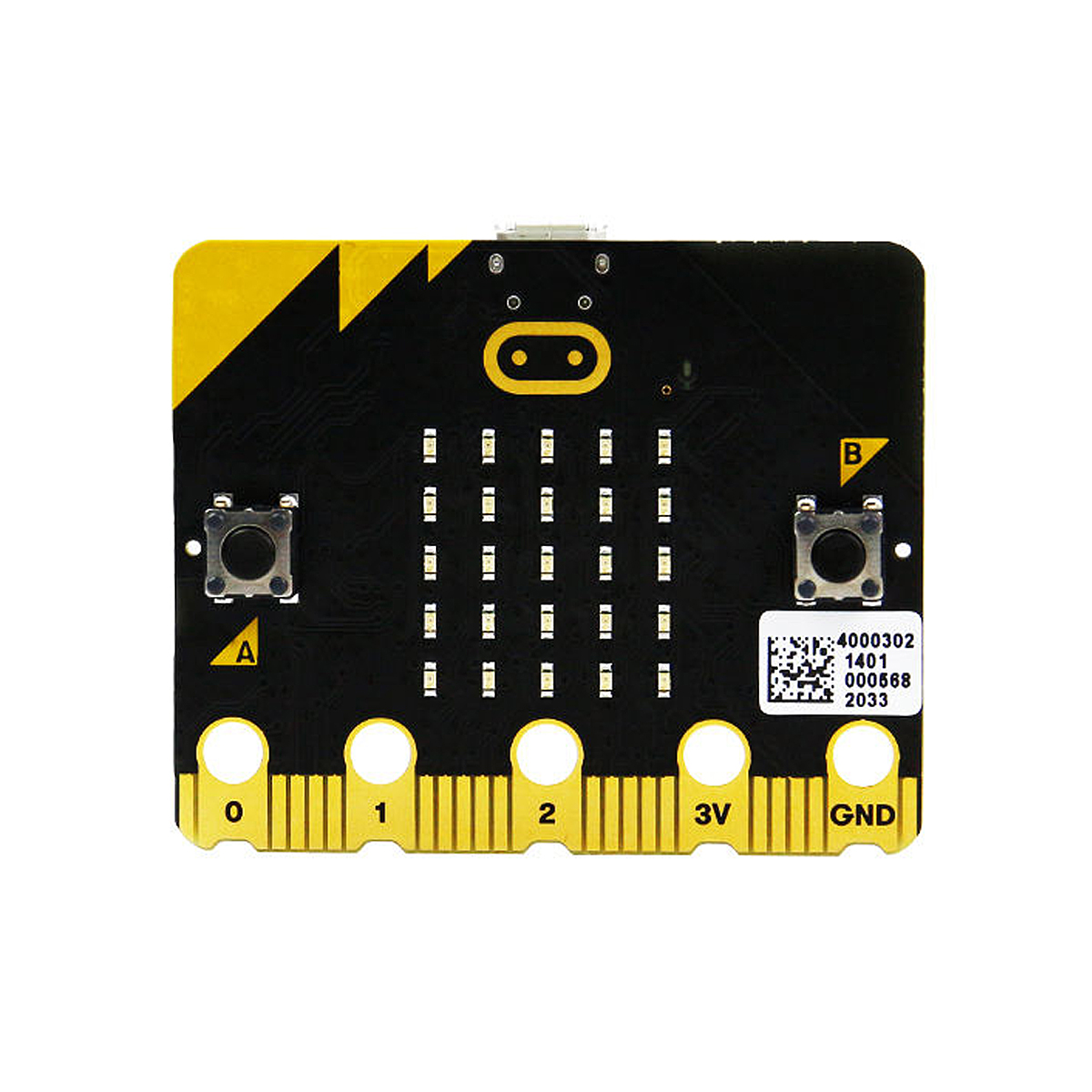

Micro:bit board is designed by BBC which aims to help children at or above 7 grade to learn programming better. Micro:bit board has abundant board resources, including a 5*5 LED metric dot array, 2 programmable buttons, Compass, USB ports, Bluetooth module etc.. It is only pocket size but very powerful. You can programming, customize or control it as well.

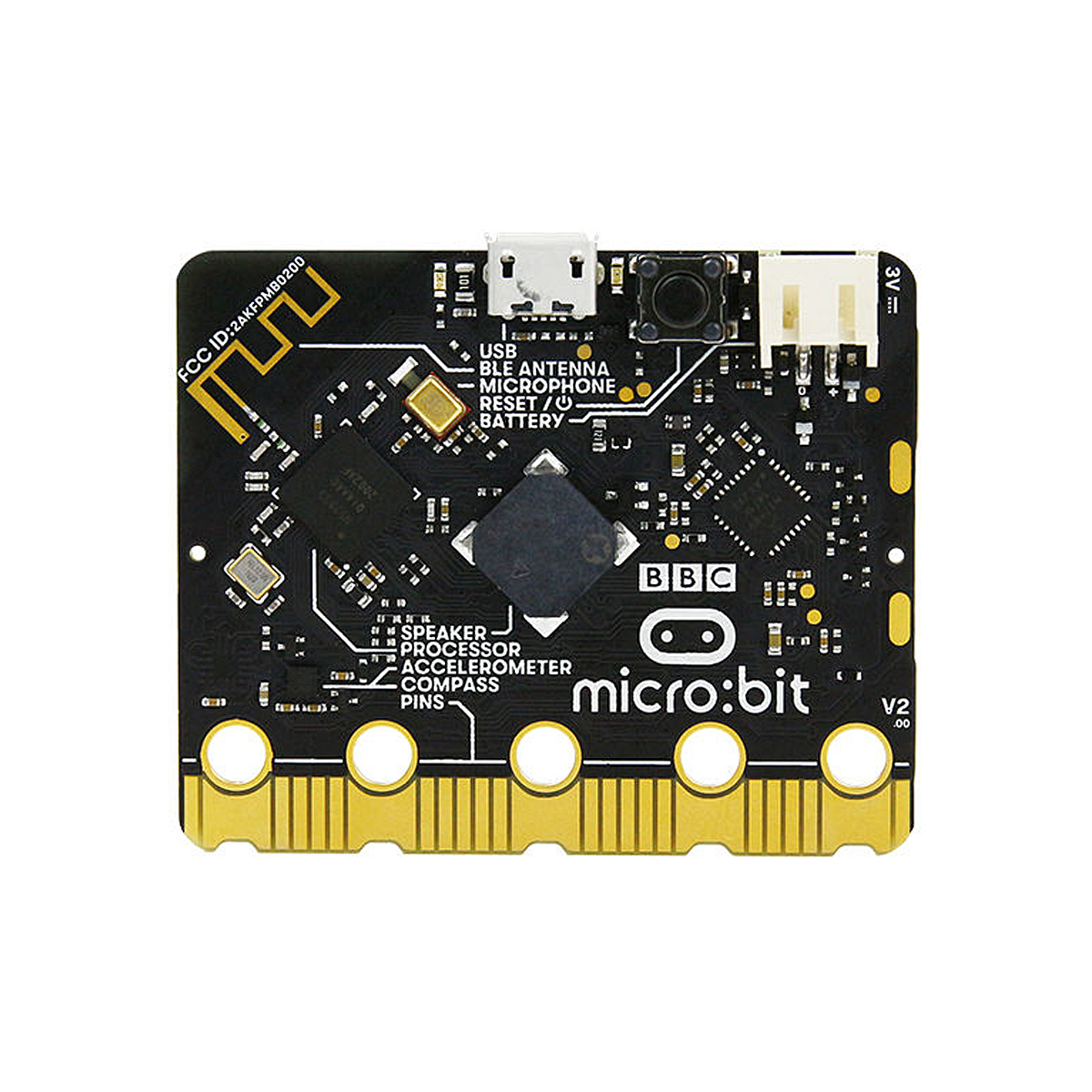

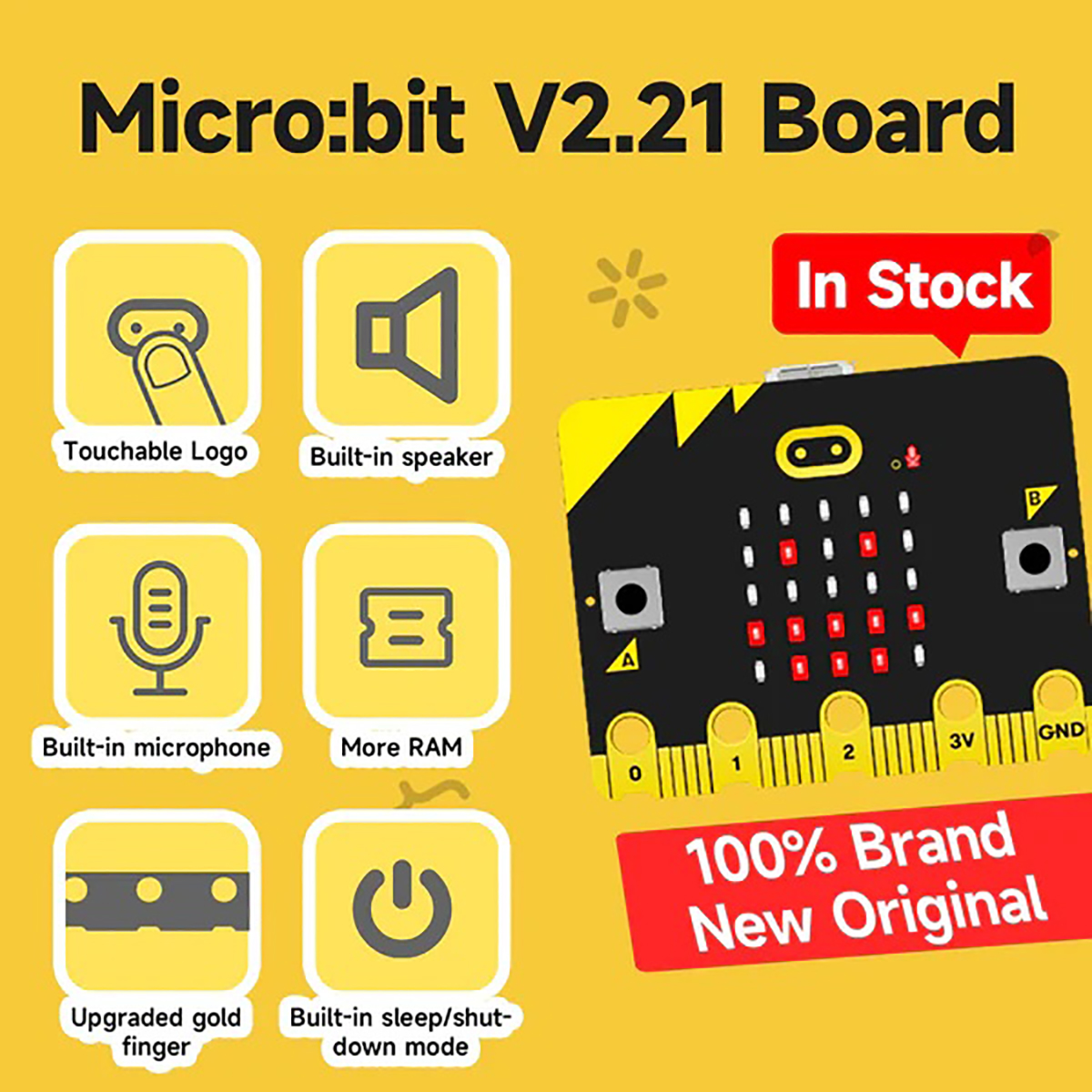

The latest Micro:bit V2 board comes with a touchable Logo and MEMS microphone on the front. A speaker is added on the back, so all kinds of sounds can be played without external equipment. The gold finger at the bottom adds a gear design to facilitate the user to better fix the alligator clip. In addition, the 2nd generation Micro:bit board also support sleep mode. Users can make it enter sleep mode by long pressing the reset button, which can reduce power consumption. The most important feature is that the CPU performance of the Micro:bit V2 board is much better than the V1.5 version, coupled with more RAM. So Micro:bit V2 allow users to expand more functions and create more creative works.
Feature

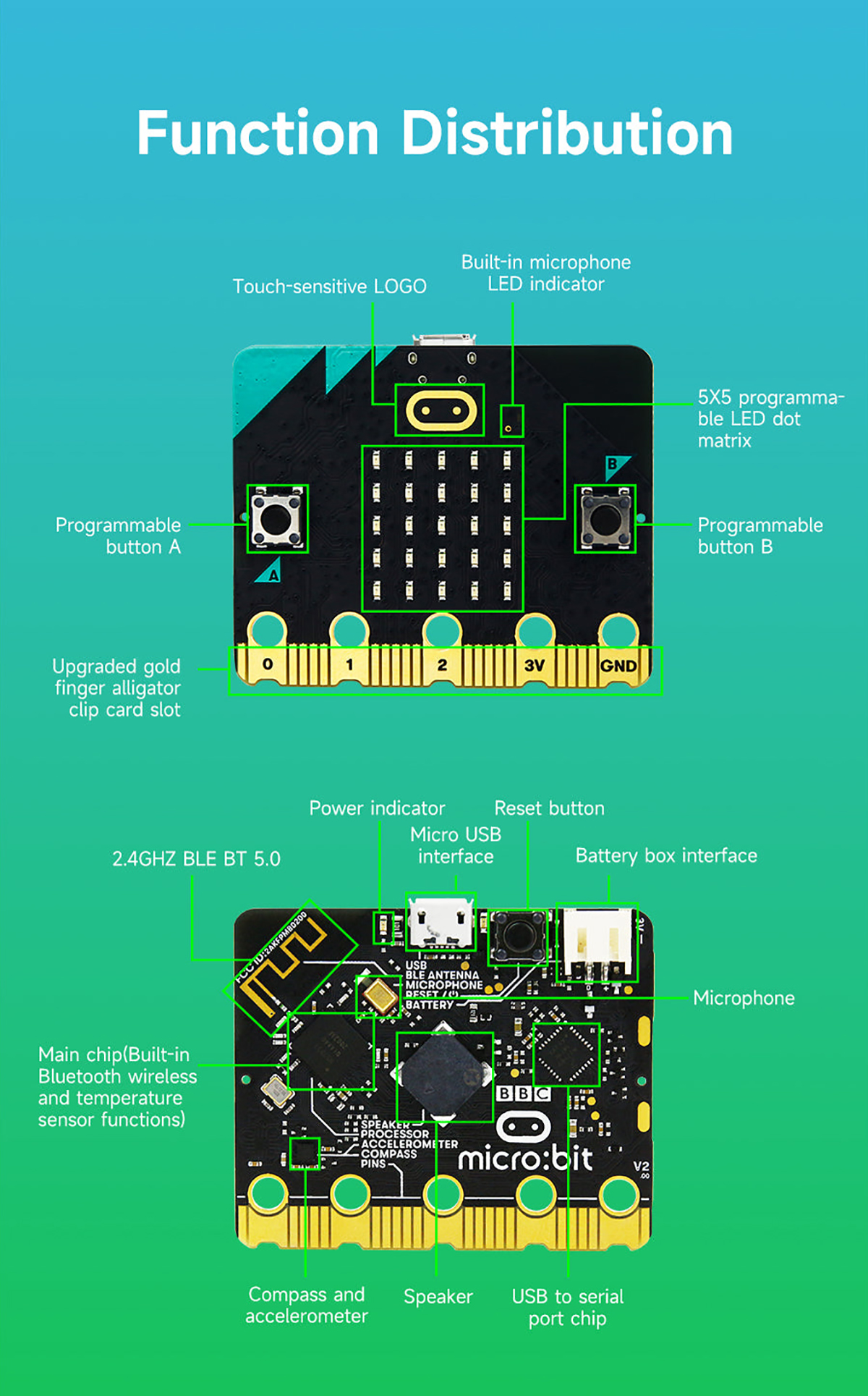

A variety of on-board modules
Expandable for additional sensors
Graphical programming and Python programming
Easy and smooth program uploading
Bluetooth wireless programming uploading
Bluetooth Wireless communication

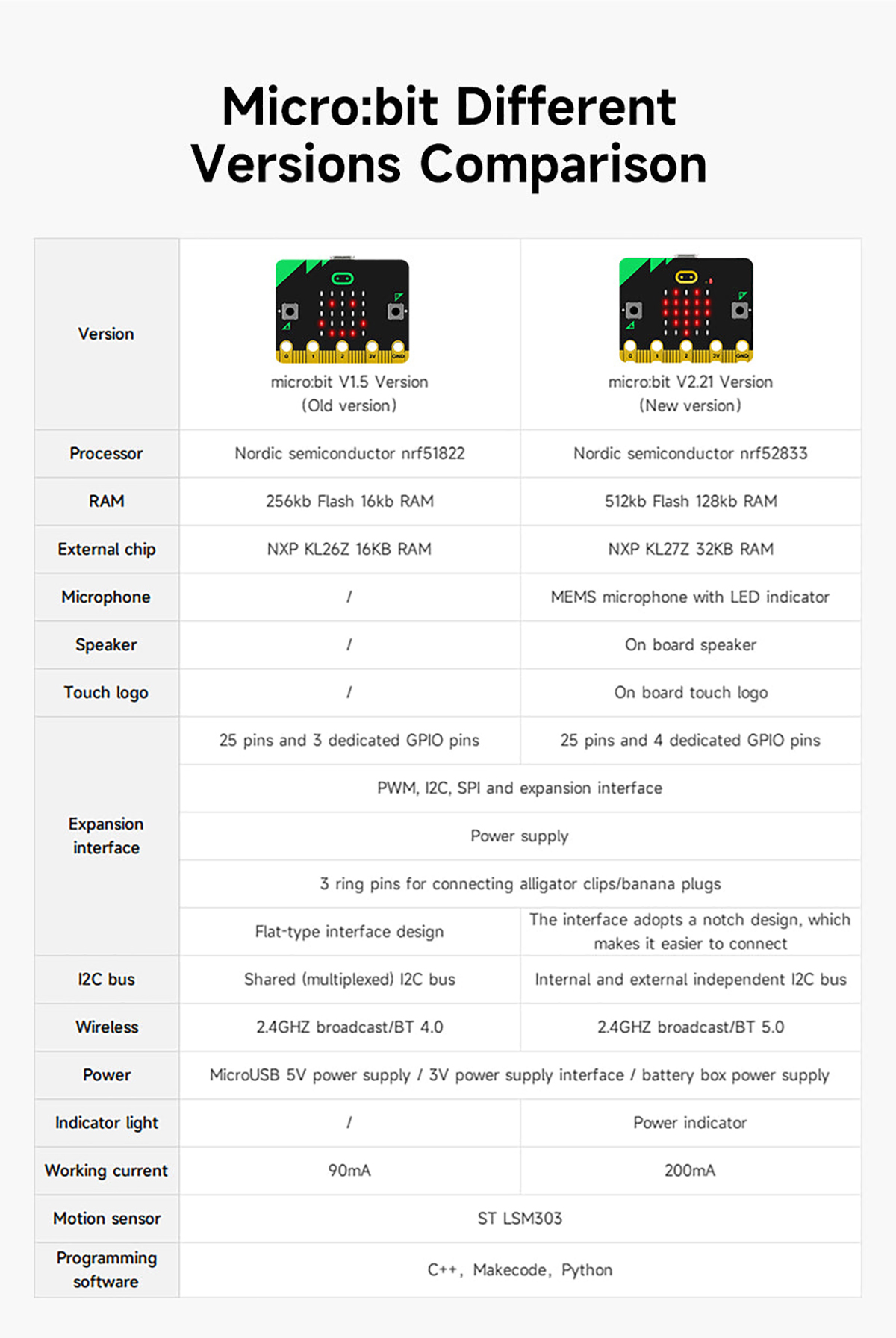

Model: micro:bit V2.21 Board
Processor: Nordic semiconductor nrf52833
RAM: 512kb Flash 128kb RAM
External chip: NXP KL27Z 32KB RAM
Microphone: MEMS microphone with LED indicator
Speaker: On board speaker
Touch logo: On board touch logo

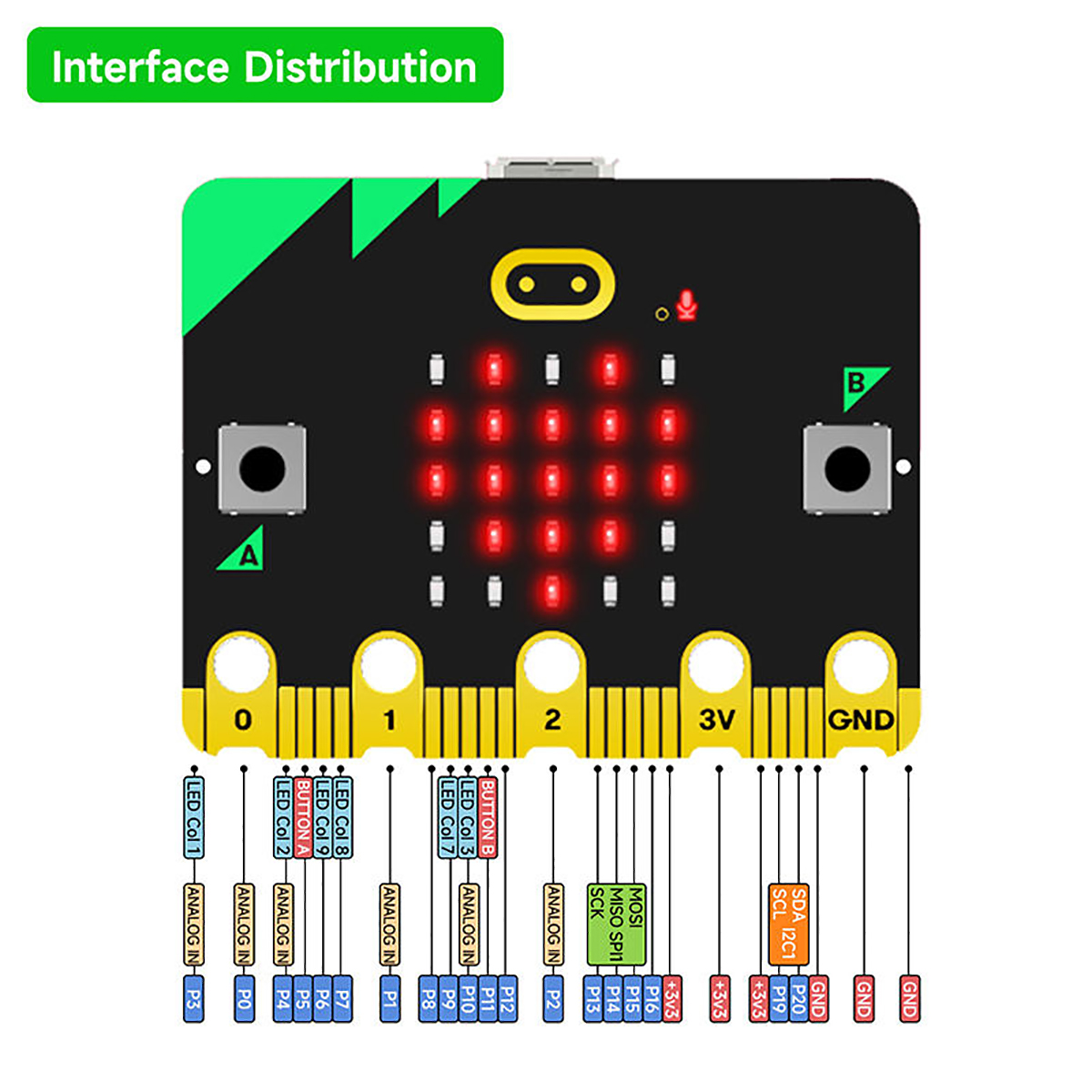

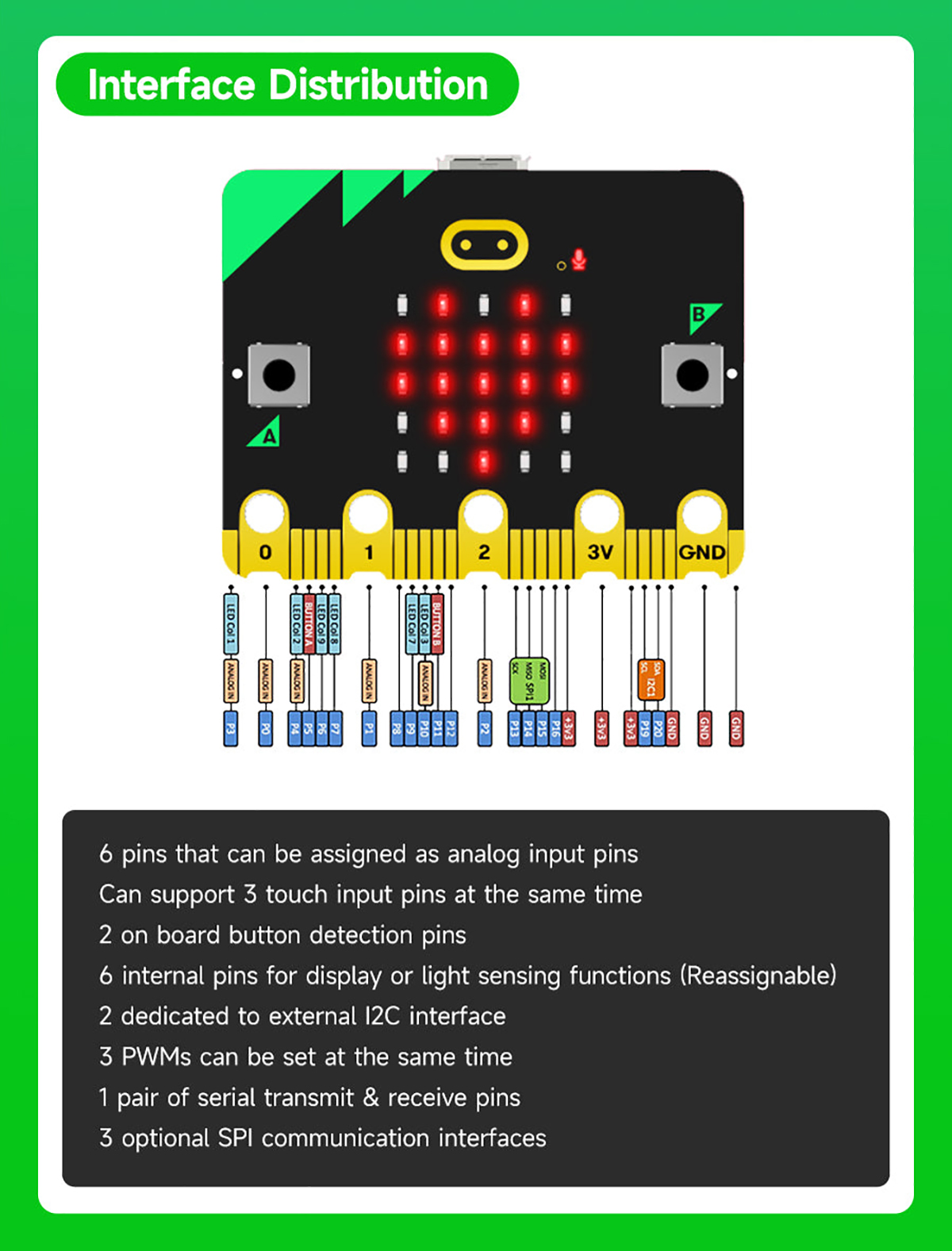

Expansion interface: 25 pins and 4 dedicated GPIO pins; PWM, I2C, SPI and expansion interface; Power supply; 3 ring pins for connecting alligator clips/banana plugs; The interface adopts a notch design, which makes it easier to connect
I2C bus: Internal and external independent I2C bus
Wireless: 2.4GHZ broadcast/BT 5.0
Power: MicroUSB 5V power supply / 3V power supply interface / battery box power supply
Indicator light: Power indicator
Working current: 200mA
Motion sensor: ST LSM303

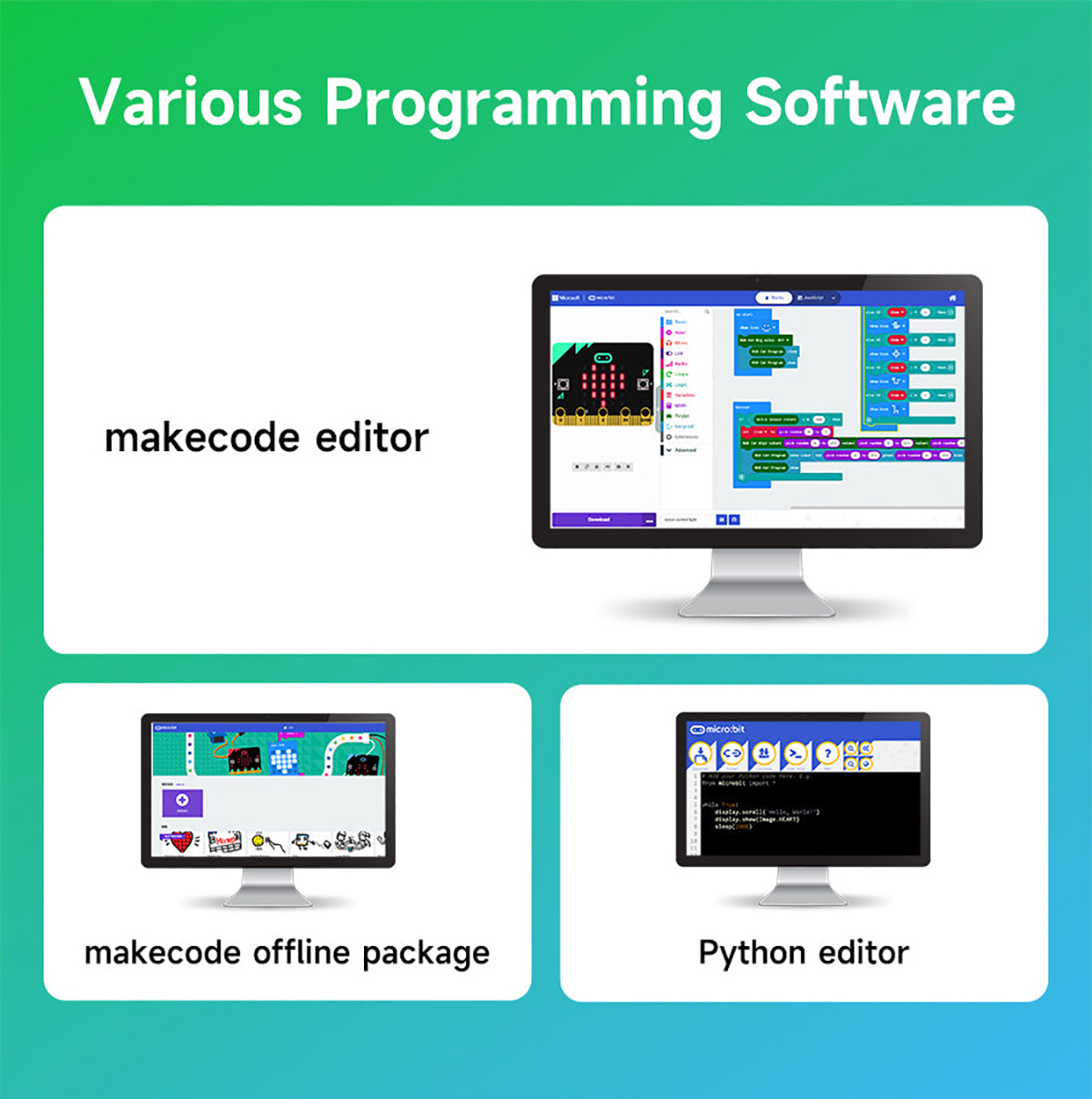

Programming software: C++, Makecode, Python

micro:bit V2.21 Board x1
