Yahboom IMX219 8MP HD AI Camera 77° 120° 160° View Angle CSI Interface for Jetson NANO Board

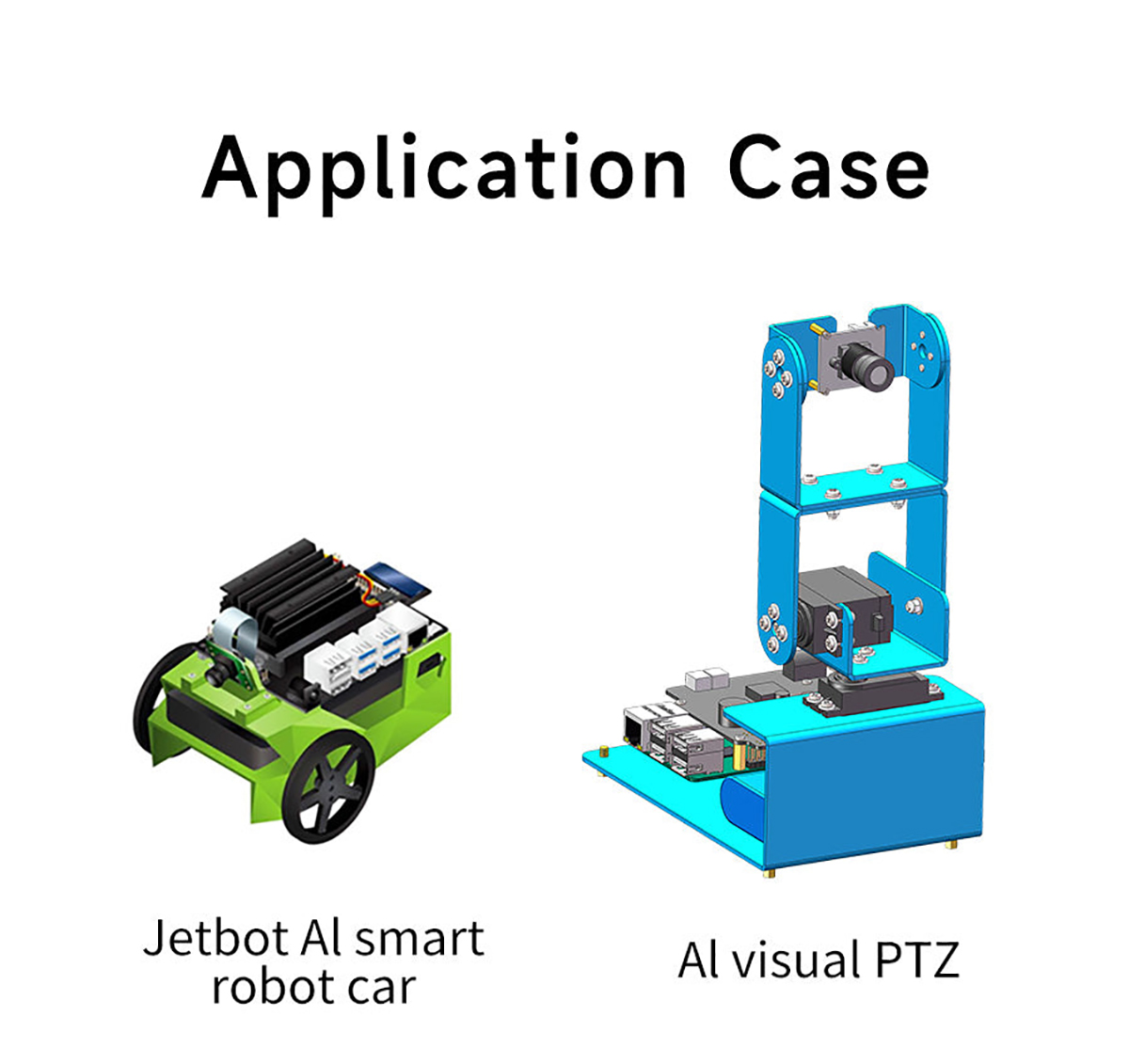

This camera is suitable for Jetson Nano/Xavier NX/TX2 NX/Orin NX SUPER/Orin NANO SUPER. It adopts IMX219 chip and CSI interface. The pixel is 800W, resolution is 1080P, and the field of view angle is 77°, 120° and 160°. It can be used to neural network, AI vision, real-time image recognition, AI smart robot cars and other fields. We will provide a transparent acrylic bracket for the camera, which can be mounted on the acrylic case.
Feature
Camera for the Jetson Nano/Xavier NX/TX2 NX/Orin NANO SUPER/Orin NX SUPER board.

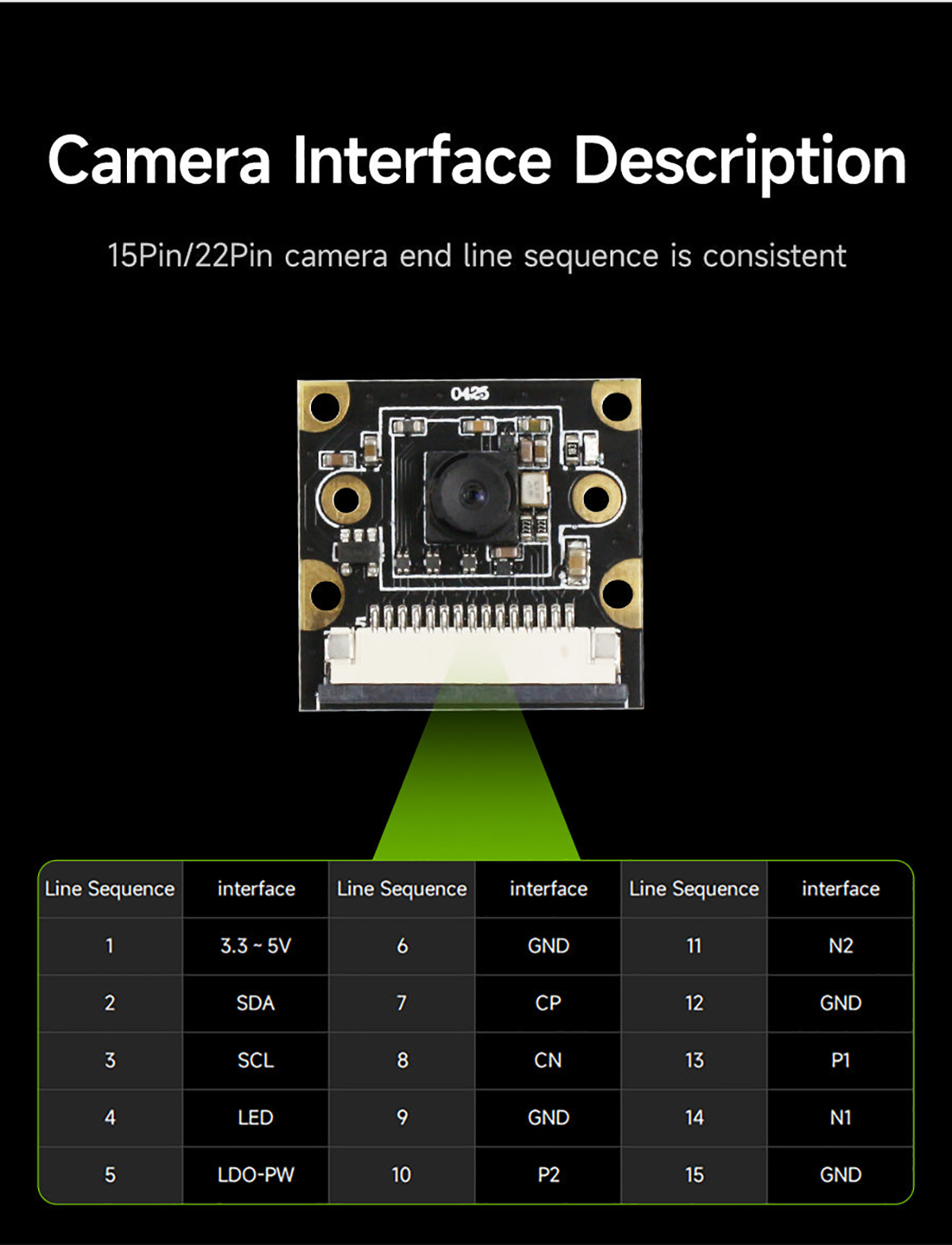

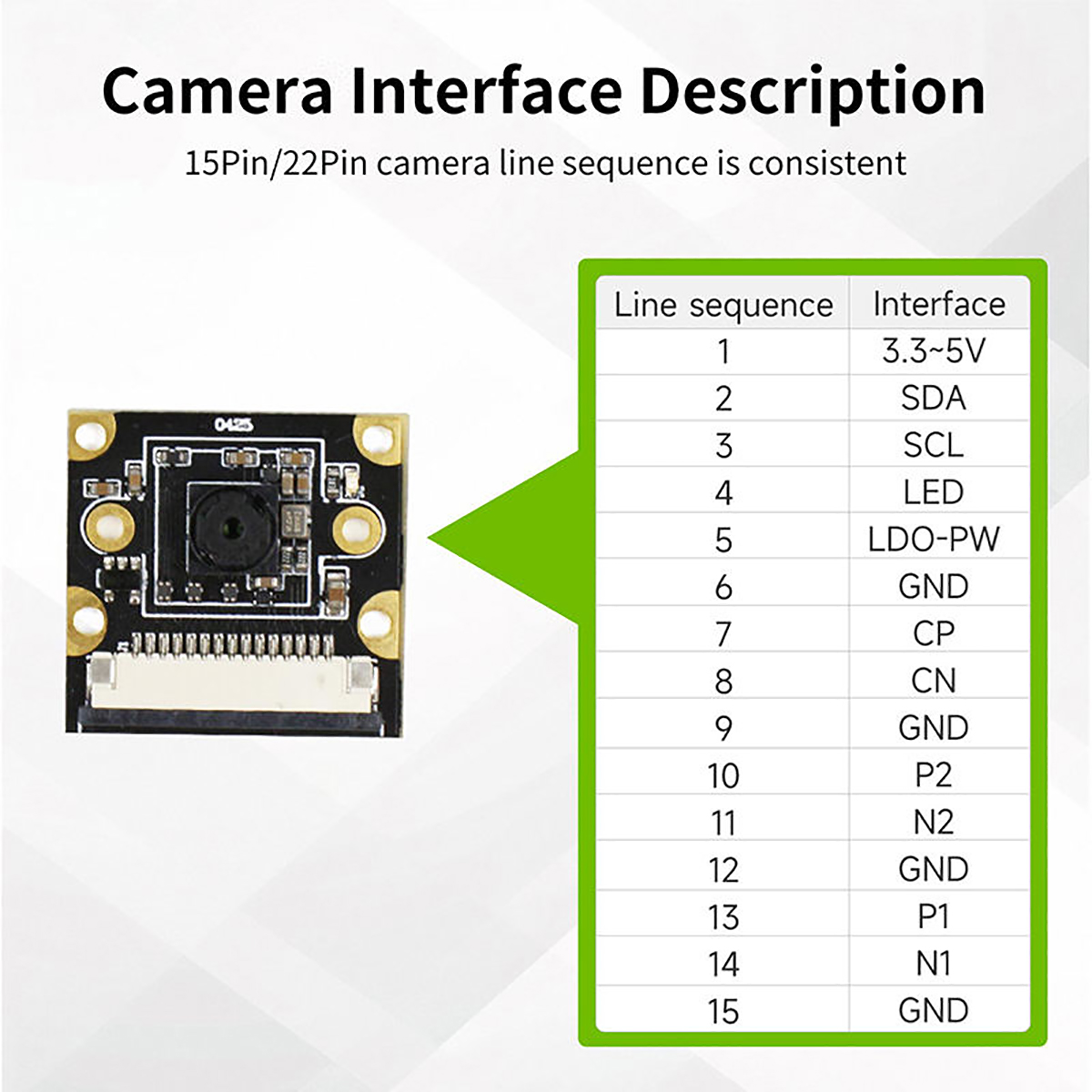

IMX219 chip, CSI interface.
8MP, 1080P resolution.
77°, 120 °, 160° view angle.
Wide range of applications.

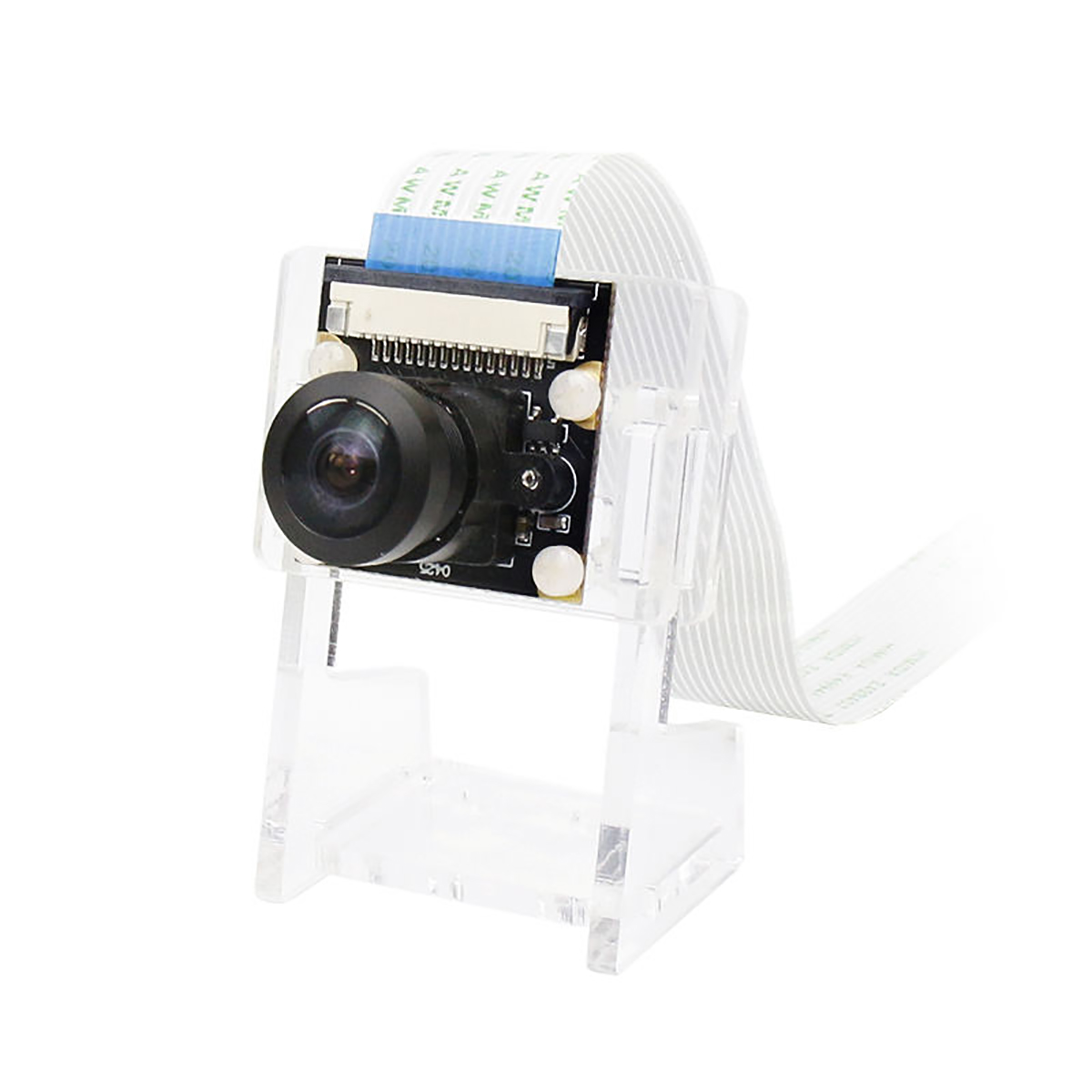

A reliable and beautiful acrylic bracket will be provided.

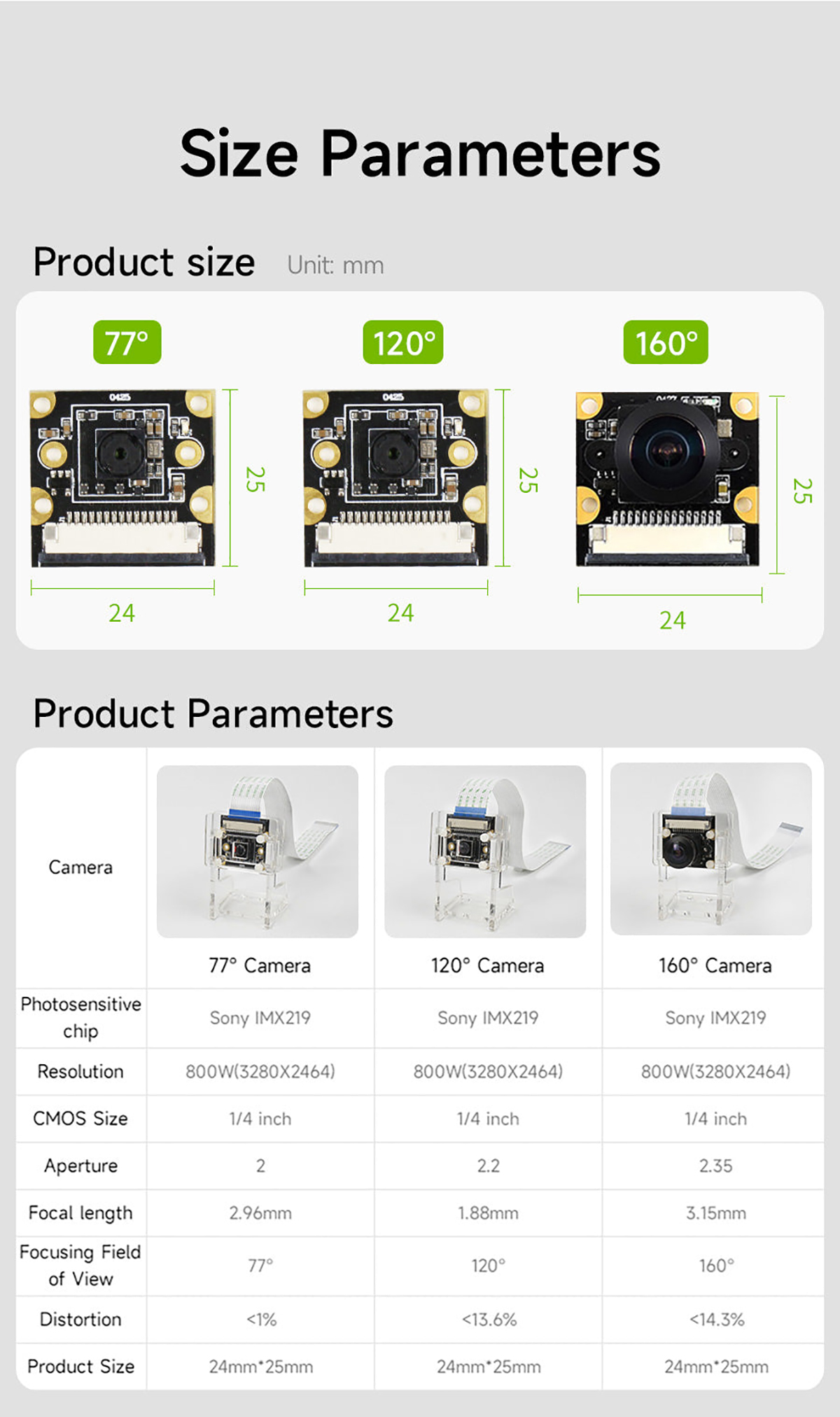

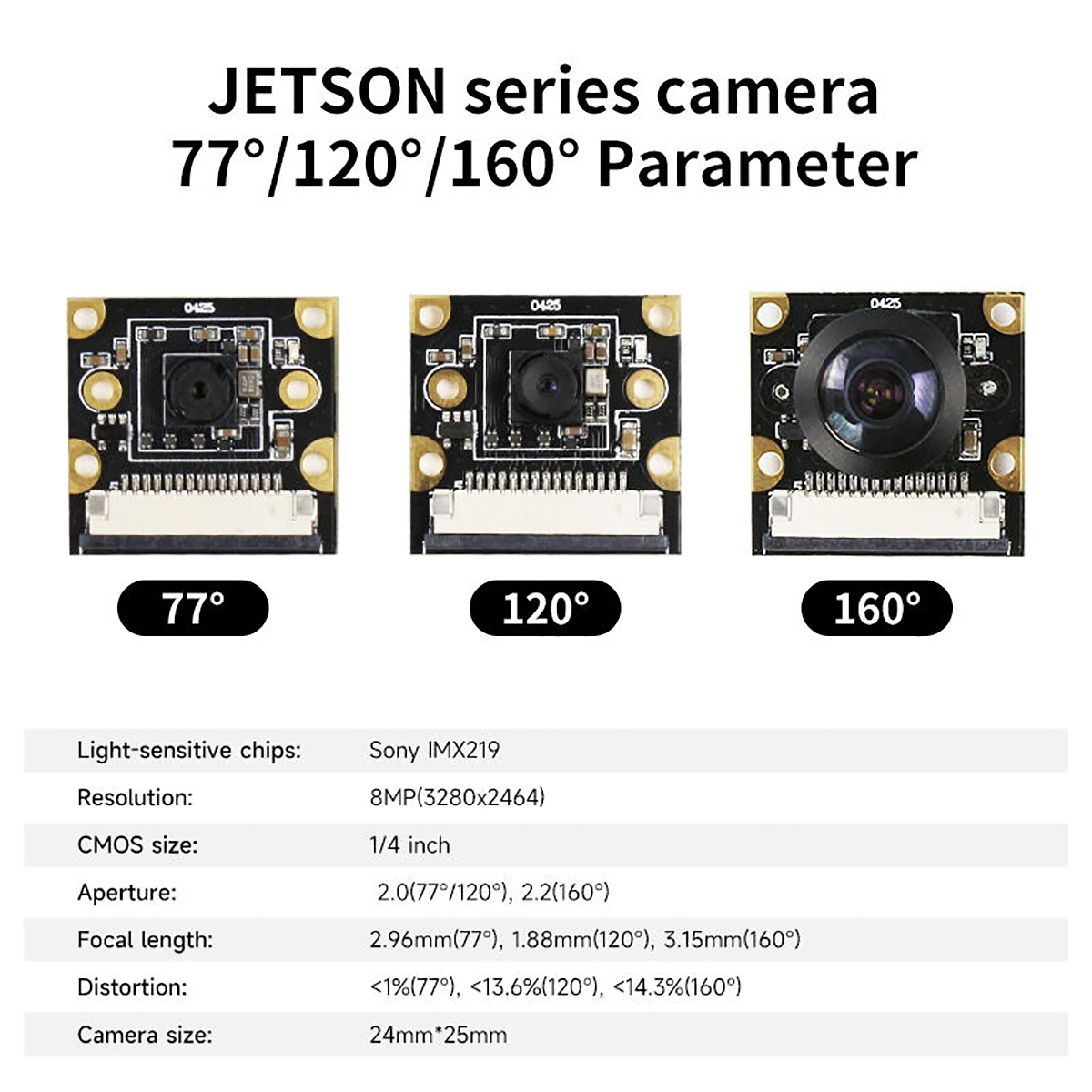

Model: 77° Camera
Photosensitive chip: IMX219
Resolution: 800W(3280×2464)
CMOS Size: 1/4 inch
Aperture: 2
Focal length: 2.96mm
Focusing Field of View: 77°
Distortion: <1%
Product Size: 24mm*25mm
Model: 120° Camera
Photosensitive chip: IMX219
Resolution: 800W(3280×2464)
CMOS Size: 1/4 inch
Aperture: 2.2
Focal length: 1.88mm
Focusing Field of View: 120°
Distortion: <13.6%
Product Size: 24mm*25mm
Model: 160° Camera
Photosensitive chip: IMX219
Resolution: 800W(3280×2464)
CMOS Size: 1/4 inch
Aperture: 2.35
Focal length: 3.15mm
Focusing Field of View: 160°
Distortion: <14.3%
Product Size: 24mm*25mm

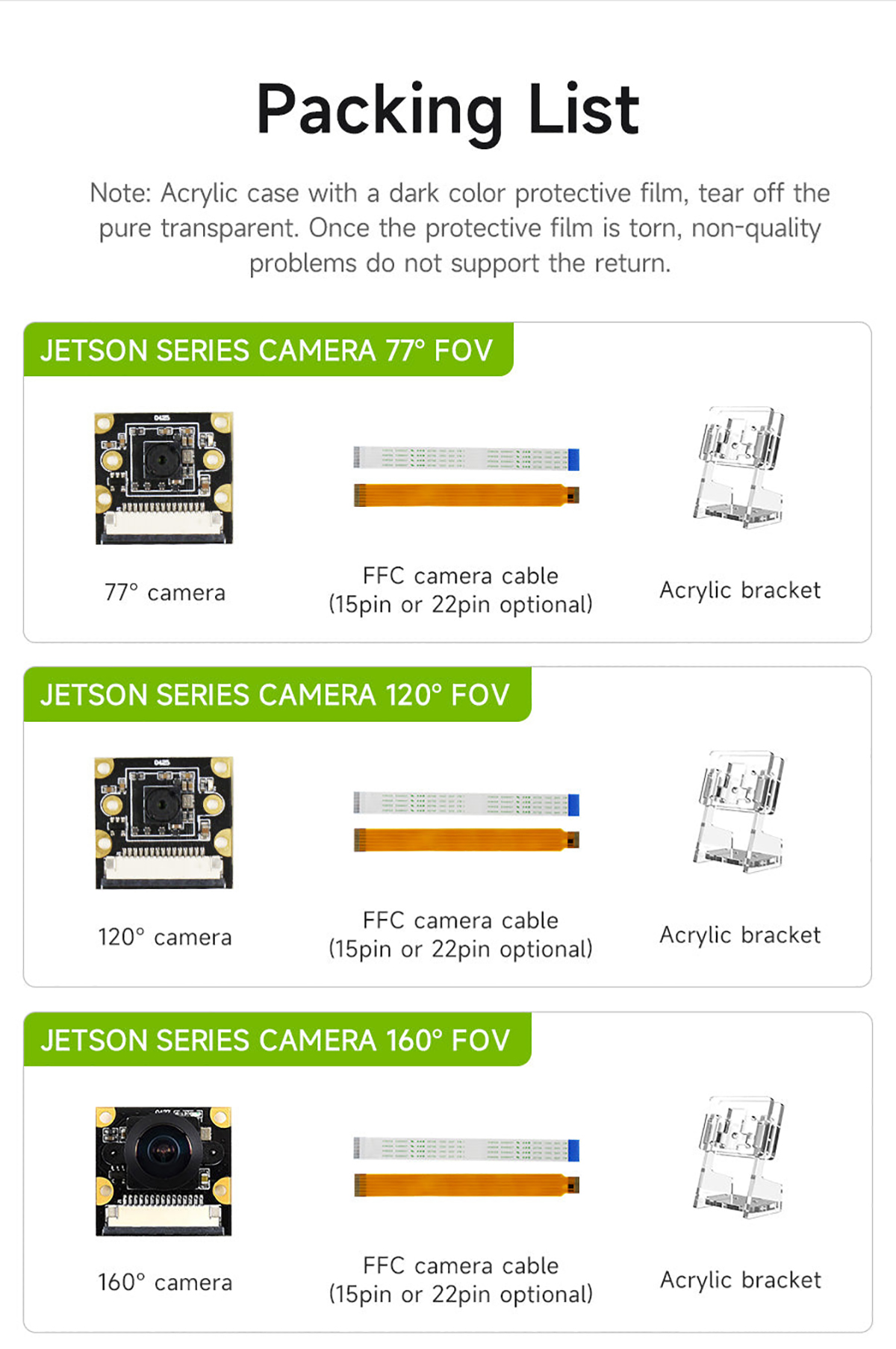

Camera x1

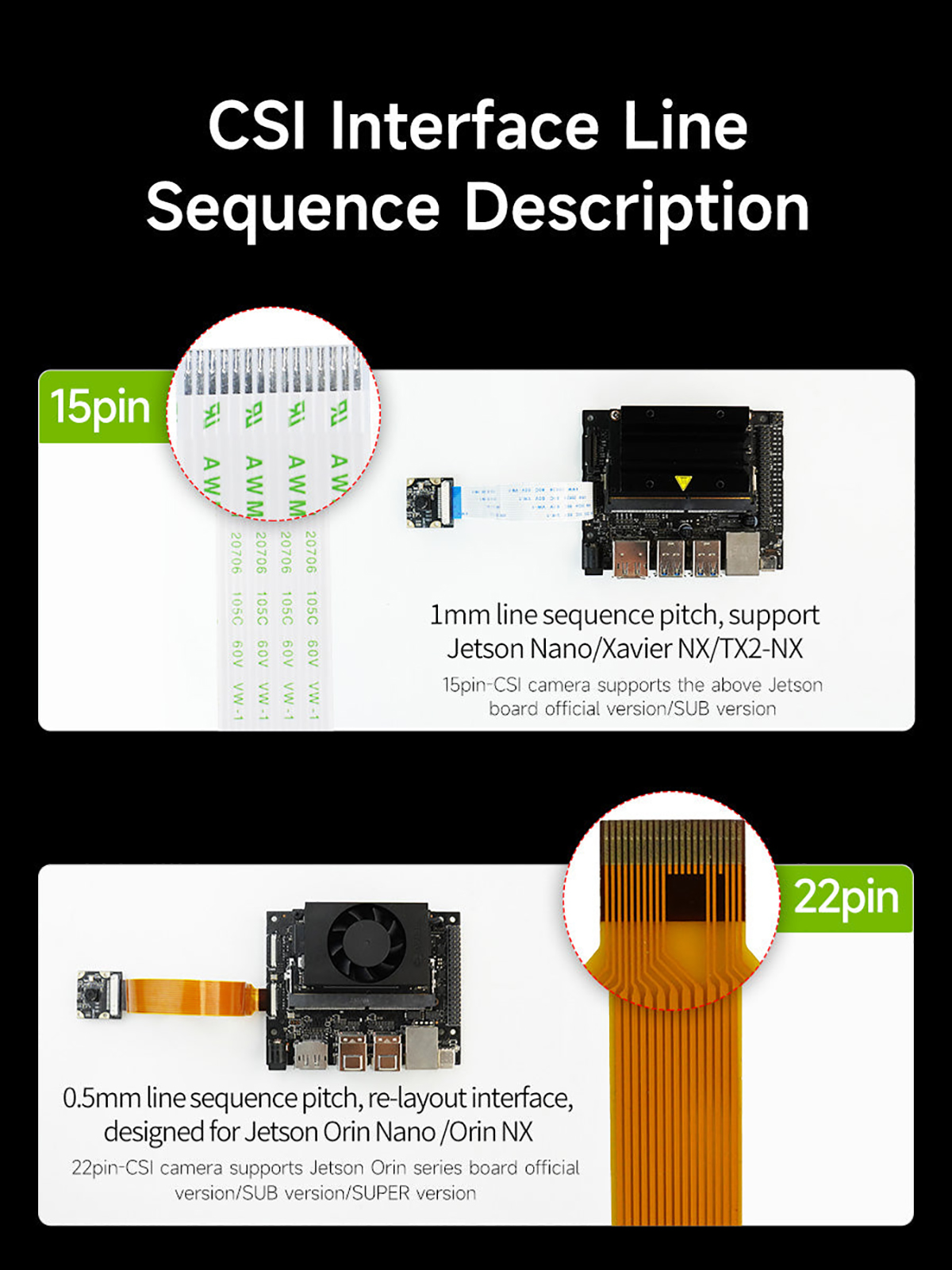

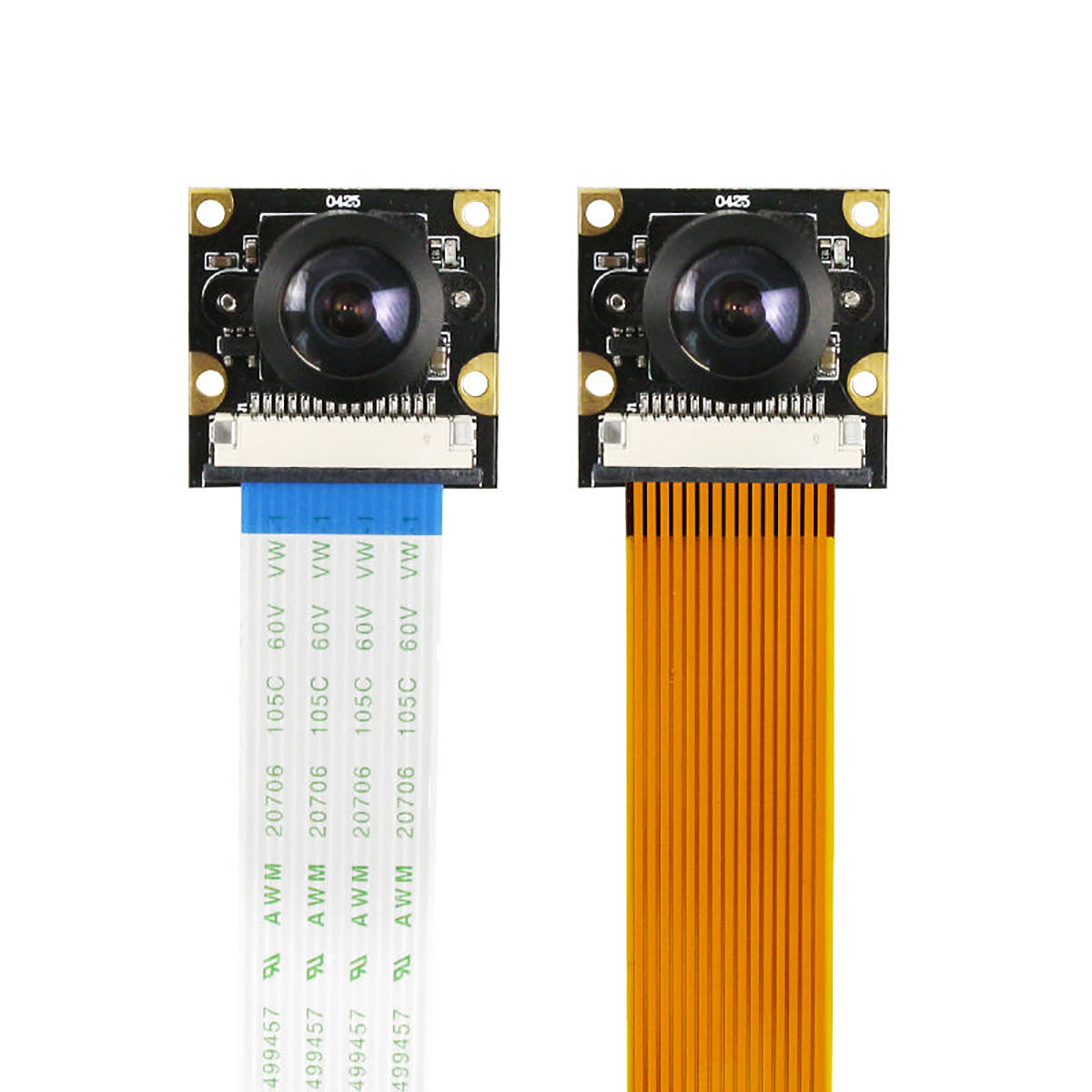

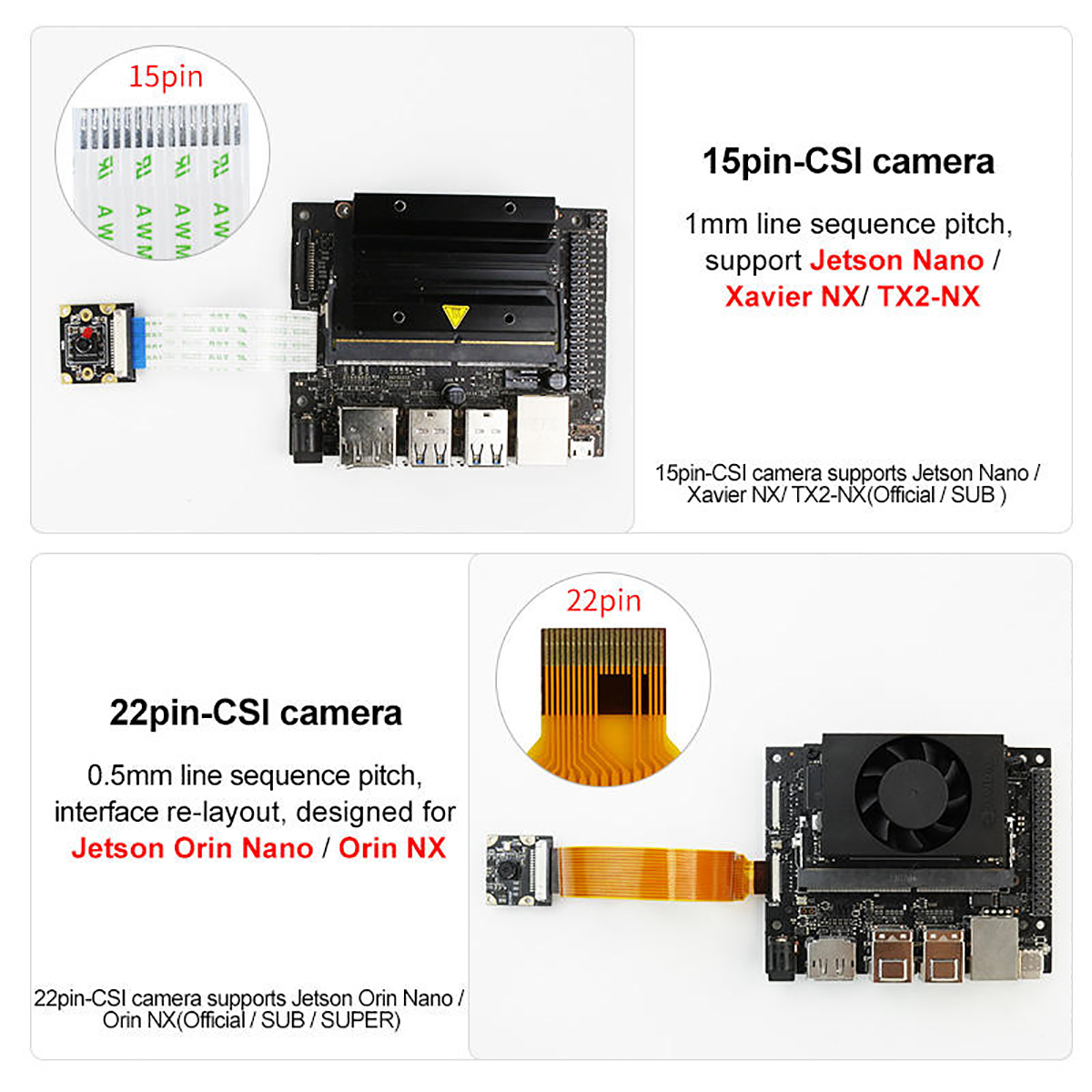

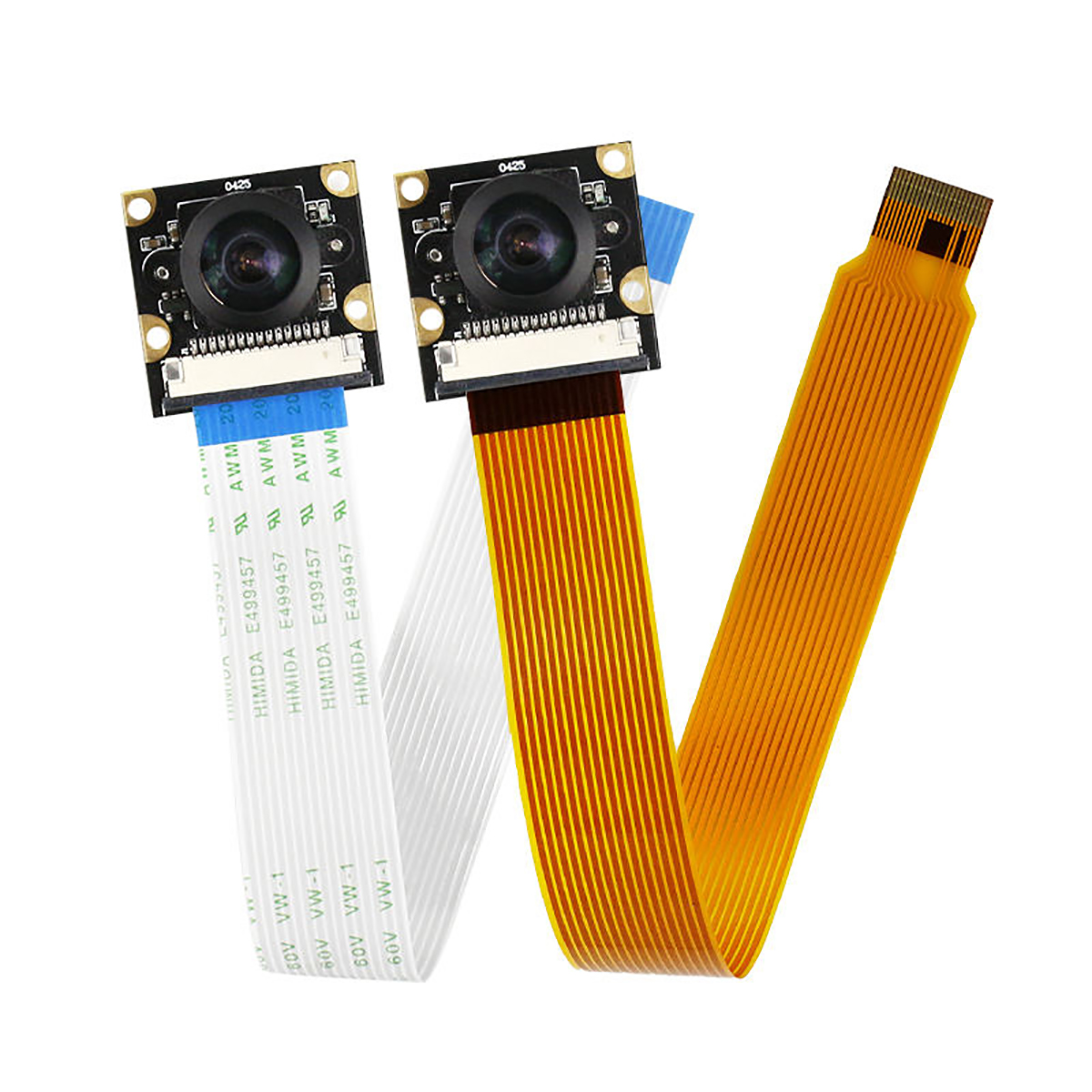

FFC camera cable (15pin or 22pin optional) x1
Acrylic bracket x1
