– 135A continuous / 190 peak
– All signals isolated by optocouplers for best noise immunity
– integrated antispark
– The specified current is the maximum continuous full power current
– 4 to 12s LiPo, incl under voltage protection by power reduction
– Current limiting

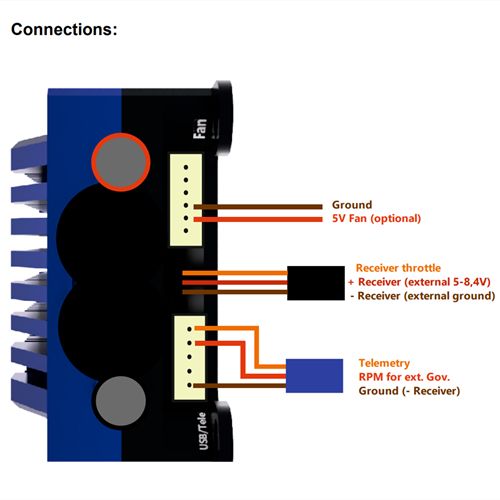

– pluggable receiver- and telemetry cables with JST-socket
– Disconnectable under voltage detection
– Electronic speed control (Governor- mode)
– Soft start
– Active free-wheel, allowing unlimited part load operation.
– Automatic or 6 step adjustable timing
– Frequency: Automatic.
– Adjustable EMK brake
– F3A(Acro brake (brake force control infinitely adjustable)
– Speed limit: 240.000 rpm (2- Poles)
– Temperature and overload warning
– Anti- flash: decreases the closing spark.
– Basic -Programming with mode programming
– Fine adjustment and selection of telemetry log with the PC Setup
– Suitable USB-adapter optionally available
– Dimensions in mm: ca. 82 x 43,5 x 26
– Weight without / with wires: ca. 113g / 155g
– Cable diameter battery / motor: 6² / 4²
