YJUAV CAN Airspeed Sensor MS4525 DroneCAN protocol High Precision for Long Range APM PX4 Fixed Wing Drone
YJUAV CAN Airspeed Sensor MS4525 DroneCAN protocol High Precision for Long Range APM PX4 Fixed Wing Drone

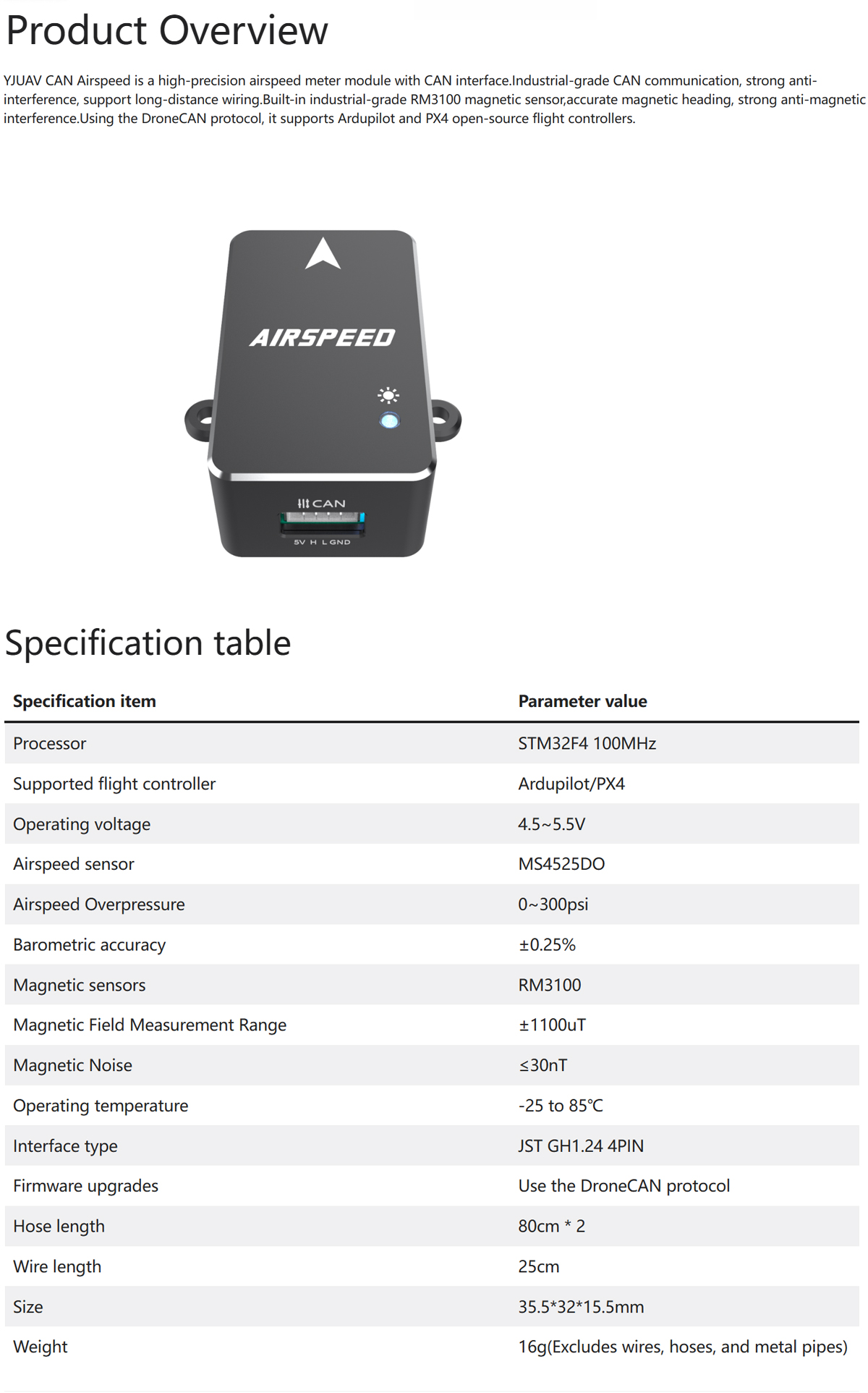

YJUAV CAN Airspeed is a high-precision airspeed meter module with CAN interface.Industrial-grade CAN communication, strong anti-interference, support long-distance wiring.Built-in industrial-grade RM3100 magnetic sensor,accurate magnetic heading, strong anti-magnetic interference.Using the DroneCAN protocol, it supports Ardupilot and PX4 open-source flight controllers.
Model: CAN Airspeed
Processor: STM32F4 100MHz
Supported flight controller: Ardupilot/PX4
Operating voltage: 4.5~5.5V
Airspeed sensor: MS4525DO
Airspeed Overpressure: 0~300psi
Barometric accuracy: ±0.25%
Magnetic sensors: RM3100
Magnetic Field Measurement Range: ±1100uT
Magnetic Noise: ≤30nT
Operating temperature: -25 to 85℃

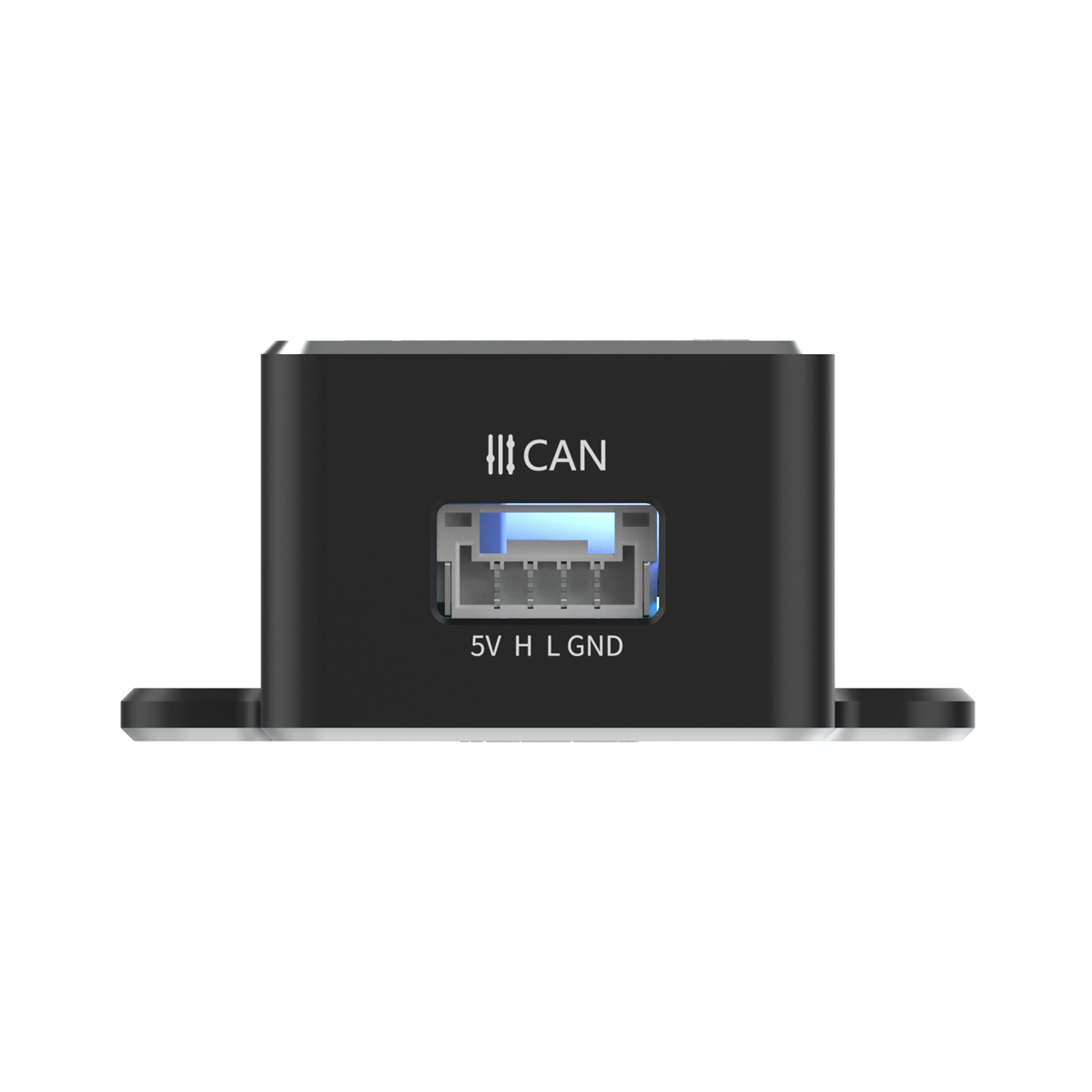

Interface type: JST GH1.24 4PIN
Firmware upgrades: Use the DroneCAN protocol
Hose length: 80cm * 2
Wire length: 25cm

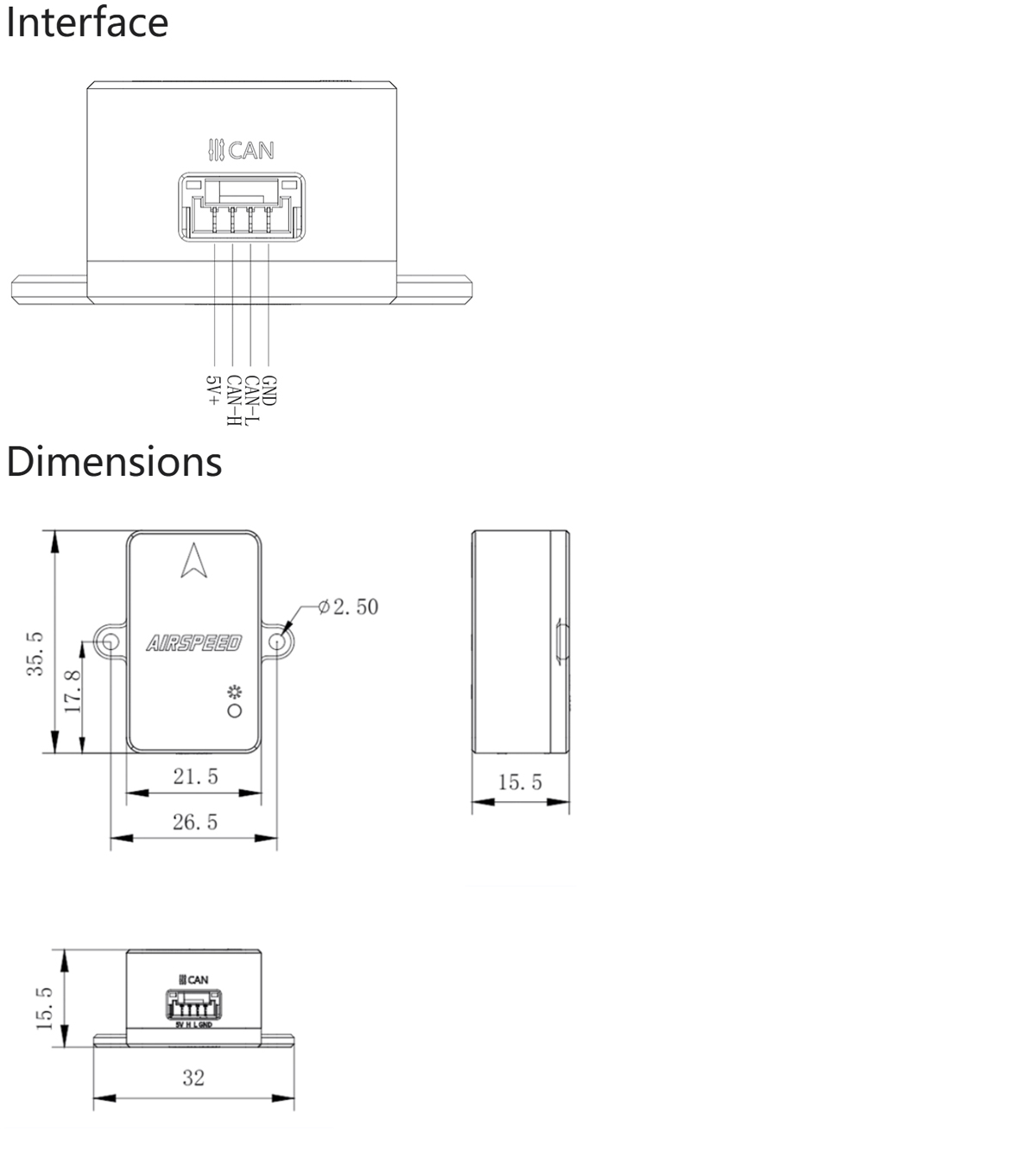

Size: 35.5*32*15.5mm
Weight: 16g(Excludes wires, hoses, and metal pipes)

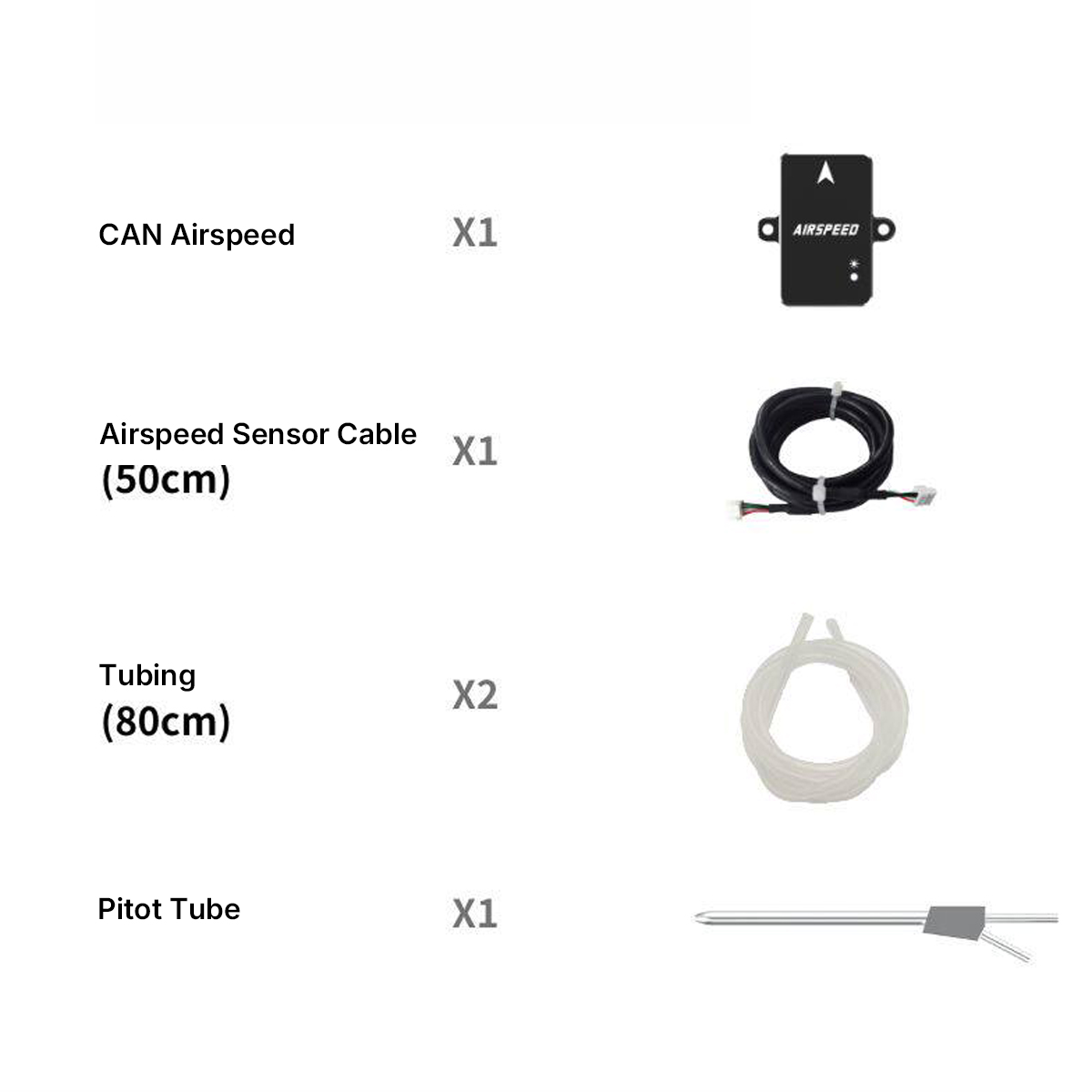

CAN Airspeed x1
Airspeed Sensor Cable 50cm x1
Tubing 80cm x2
Pitot Tube x1
