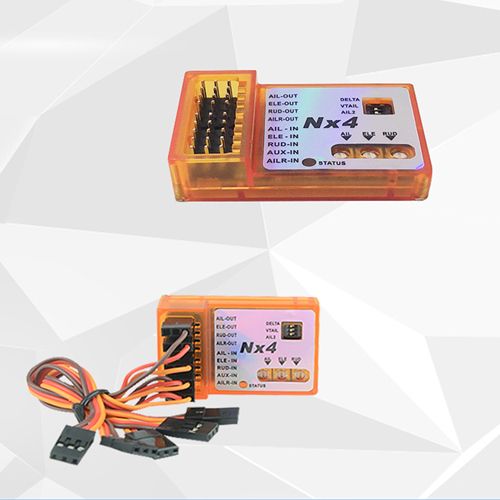

ZMR NX4 PRO Gyroscope Fixed Wing flight Control Board for Balance Single Aileron Fixed-Wing Aircraft Self-Stabilization
ZMR NX4 PRO Gyroscope Fixed Wing flight Control Board for Balance Single Aileron Fixed-Wing Aircraft Self-Stabilization
With horizontal self-stabilization, manual flight, 3D lock, one-button rescue.
Support ordinary T-tail fixed wing, single aileron, double aileron (requires remote control to set hybrid control), delta wing (flight control built-in hybrid control), V-tail (flight control built-in hybrid control) and other models.
Input voltage: DC 5 – 6V
Working temperature: 0-50 ° C
Dimensions: 45x30x13.5mm
Weight:9.7g
Quick installation tips:

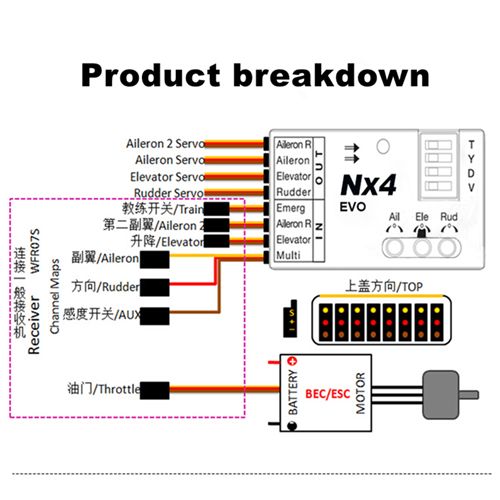

–Please connect the circuit according to the manual, and check whether the remote control is working properly (not need to set the hybrid control)
–Adjust the DIP switch to select the correct model. And check whether the server is normal.
–Adjust the working direction and sensitivity of the gyroscope through the potentiometer switch, and check whether the working direction of the gyroscope is correct. (Please use the small sensitivity for the first flight)
–Set up one-button rescue (refer to the manual, when the one-button rescue is turned on, the lifting button must be tilted upwards and then returned to the level, otherwise it needs to be set separately)

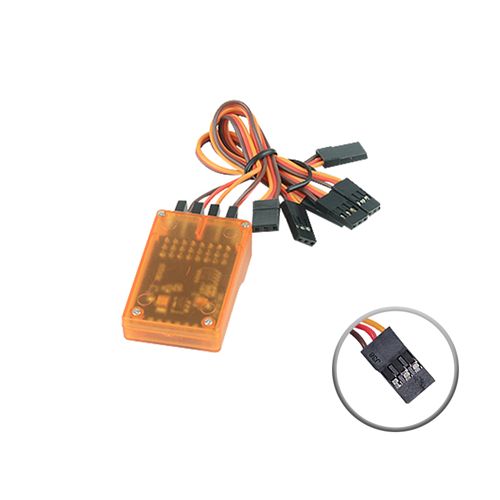

NX4 PRO Flight Control Board x 1
