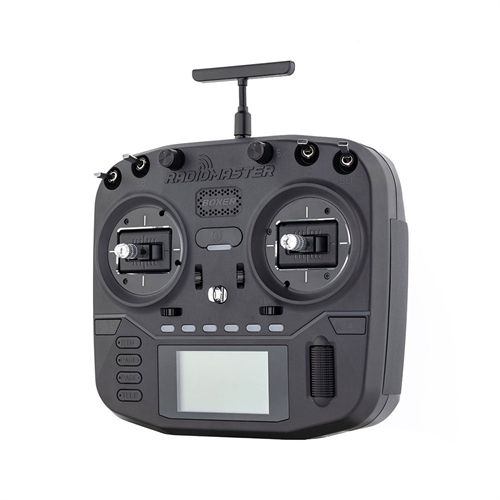

RadioMaster Boxer 2.4G 16ch Hall Gimbals Transmitter Remote Control 4in1 Support EDGETX for RC Drone
| Part No.: | Boxer-4IN1 |
| Manufacturer: | RadioMaster |
Send to a friend
Features
* Available with built-in ExpressLRS or 4-in-1/CC2500 MPM RF modules
* Featuring a powerful STM32VGT6 processor with 1MB RAM
* Preinstalled EdgeTX firmware
* Internal ELRS module capable of 1,000Hz refresh rate
* Adjustable ELRS RF output (30dBm max FCC or 20dBm Max EU LBT)
* 4-in-1 or CC2500 only version capable of up to 20dBm RF output
* QC3.0 fast charging support 2.0A MAX
* Compact design with excellent ergonomics
* New low-profile latching SE switch and momentary SF switch
* Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
* Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals
* Standard JR module compartment
* Internal module cooling fan built in (ELRS version)
* RadioMaster standardized button layout
* Versatile 6-position switch for flight mode access

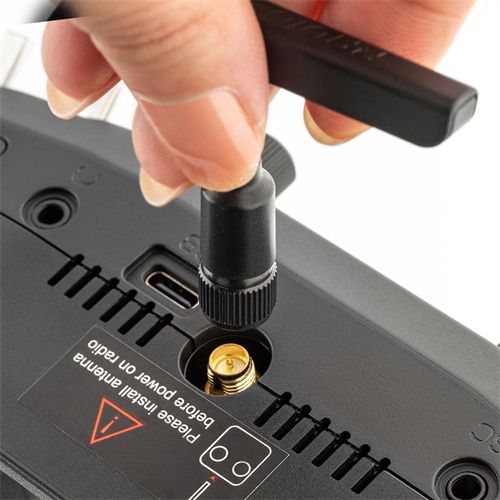

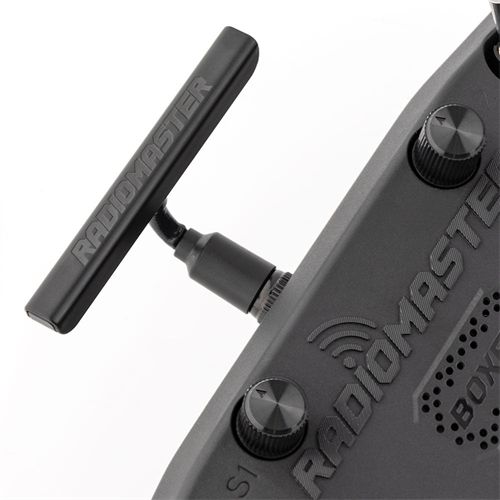

* Adjustable and Removable T-shape Antenna
* Industry first fabric handle for improved portability
* Changeable, ergonomic grips
* Redesigned SD card slot with pre-loaded SD card included
* External module power slots in battery cover
* RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
* Featuring a powerful STM32VGT6 processor with 1MB RAM
* Preinstalled EdgeTX firmware
* Internal ELRS module capable of 1,000Hz refresh rate
* Adjustable ELRS RF output (30dBm max FCC or 20dBm Max EU LBT)
* 4-in-1 or CC2500 only version capable of up to 20dBm RF output
* QC3.0 fast charging support 2.0A MAX
* Compact design with excellent ergonomics
* New low-profile latching SE switch and momentary SF switch
* Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
* Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals
* Standard JR module compartment
* Internal module cooling fan built in (ELRS version)
* RadioMaster standardized button layout
* Versatile 6-position switch for flight mode access
* Adjustable and Removable T-shape Antenna
* Industry first fabric handle for improved portability
* Changeable, ergonomic grips
* Redesigned SD card slot with pre-loaded SD card included
* External module power slots in battery cover
* RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
Product Details
Item: BOXER Radio
Size: 235*178*77mm
Weight: 532.5g
Frequency: 2.400GHz-2.480GHz
Internal RF Options: 4-in-1 multi-protocol
Supported protocols: Module dependent
Transmitting Power CC2500 and 4IN1: Max 20dBm
Transmitting Power ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)
Cooling fan: Built in (ELRS version)
Voltage Range: 6.6-8.4V DC
Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS
Channels: Max 16 channels (Receiver dependent)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
Display: 128*64 Monochrome LCD display
Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Companion PC software
Size: 235*178*77mm
Weight: 532.5g
Frequency: 2.400GHz-2.480GHz
Internal RF Options: 4-in-1 multi-protocol
Supported protocols: Module dependent
Transmitting Power CC2500 and 4IN1: Max 20dBm
Transmitting Power ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)
Cooling fan: Built in (ELRS version)
Voltage Range: 6.6-8.4V DC
Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS
Channels: Max 16 channels (Receiver dependent)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
Display: 128*64 Monochrome LCD display
Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Companion PC software

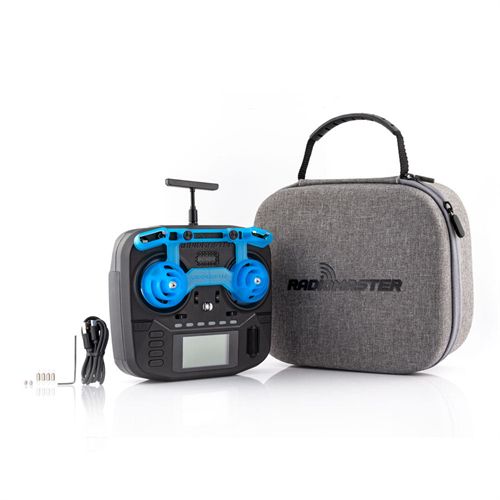

Item Packing
1 * BOXER Radio
1 * Signature Carry Case
1 * T Antenna
1 * USB-C Cable
1 * Gimbal Protector
1 * 1.5mm Allen Key
2 * M4*4 Screws
4 * Low Tension Springs
1 * 18650 Battery Tray
1 * Stickers
1 * Manual
1 * Signature Carry Case
1 * T Antenna
1 * USB-C Cable
1 * Gimbal Protector
1 * 1.5mm Allen Key
2 * M4*4 Screws
4 * Low Tension Springs
1 * 18650 Battery Tray
1 * Stickers
1 * Manual
Detailed Images
