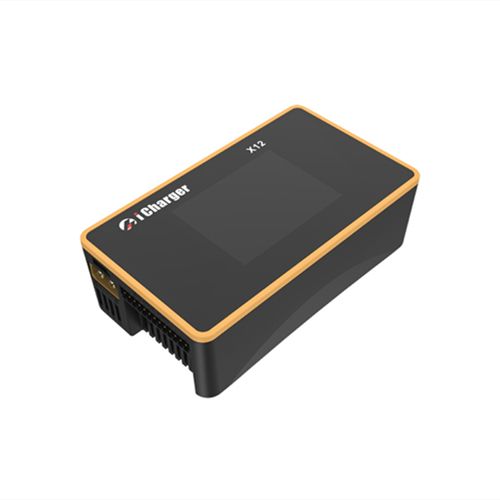

iCharger X12 1100W / 12S / 30A High Power Balance Charger

iCharger X12 1100W / 12S / 30A High Power Balance Charger
Part No.: IC-X12
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

The first iCharger to offer 12S capability, the X12 is a step forward for operations that require high-voltage input.

With a balance current of a full 2A, charges will finish faster than ever. The full color IPS display provides a wealth of information at a glance, using the operating system perfected on the larger Duo iChargers.

The X12 can charge at up to 30A, and it can also discharge at up to 30A! While similar size chargers limit their discharge capabilities, the X12 offers iCharger's trademark support for regenerative discharge, allowing the charger to provide a full 1100W of discharge capability when powered from a suitable battery bank.

Despite its small size and low price, this is still a full featured iCharger, with multi-chemistry support and all the depth of settings you've come to expect, including an improved software interface for recording battery data and upgrading firmware.

Product Details

Charge Power (Max) 1100W
Charge/Discharge Current 0.1-30A
Input Voltage 11-53V DC
Input Current Limit 35A
Internal Discharge Power (Max) 50W
Regenerative Discharge Power (Max) 1100W
External Discharge Power (Max) 1500W
Balance Current 2A
Dimensions 112x64x37mm
Weight 230g

Item Packing

charger  x 1
cables x 1
CD disk for instruction manual & software x 1
