HobbyWing XRotor FPV G2 ESC 4in1 65A BLHeli_32 128K PWM 3-6S LIPO 30X30mm for FPV Freestyle Drones DIY Parts
| Part No.: | XR-65A4IN1 |
| Manufacturer: | Hobbywing |
Send to a friend
Features
High Quality Hardware
128KHz Dynamic PWM
Highly Integrated
Support variety throttle modes
BLHeli-32 Firmware Ready
128KHz Dynamic PWM
Highly Integrated
Support variety throttle modes
BLHeli-32 Firmware Ready
Product Details
* Product Name: XRotor FPV G2 ESC 4in1 65A
* Product Number: 30902064
* Specifications
Cont./Peak Current: 60Ax4/ 80Ax4
Input Voltage: 3-6S Lipo
BEC output: 5V & 0.6A
* Wires & Connectors
Input Wires: Red-12AWG-130mm/ Black-12AWG-130mm
Output Wires: No wires but solder tabs
Input Connectors: XT60(w/ Wires Soldered on)
Output Connectors: No
* Size & Weight
Size: 52x42x6.6mm
Weight: No
* Features
Firmware: Hobbywing_XRotor_BLHeli_32_AT421 Firmware
ESC Programming: BLHeliSuite32
Stick Programming: Supported
DEO: Supported
Throttle Range Calibration: Supported
Oneshot125 Mode: Supported
Oneshot42 Mode: Supported
MultiShot Mode: Supported
DShot150/300/600/1200: Supported
Timing: Supported
Motor Rotation: Supported
* Applications: 130-300mm FPVs
* Product Number: 30902064
* Specifications
Cont./Peak Current: 60Ax4/ 80Ax4
Input Voltage: 3-6S Lipo
BEC output: 5V & 0.6A
* Wires & Connectors
Input Wires: Red-12AWG-130mm/ Black-12AWG-130mm
Output Wires: No wires but solder tabs
Input Connectors: XT60(w/ Wires Soldered on)
Output Connectors: No
* Size & Weight
Size: 52x42x6.6mm
Weight: No
* Features
Firmware: Hobbywing_XRotor_BLHeli_32_AT421 Firmware
ESC Programming: BLHeliSuite32
Stick Programming: Supported
DEO: Supported
Throttle Range Calibration: Supported
Oneshot125 Mode: Supported
Oneshot42 Mode: Supported
MultiShot Mode: Supported
DShot150/300/600/1200: Supported
Timing: Supported
Motor Rotation: Supported
* Applications: 130-300mm FPVs
Item Packing
XRotor FPV G2 ESC 4in1 65A x 1

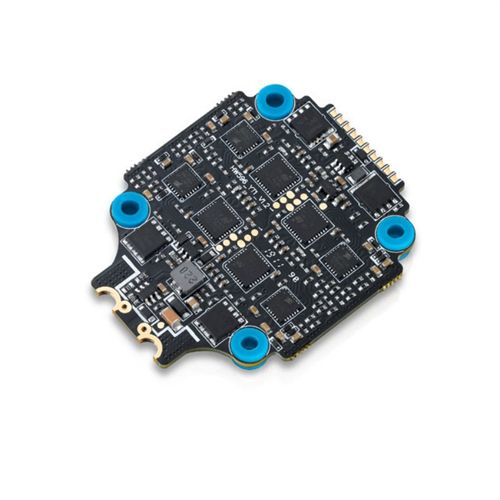

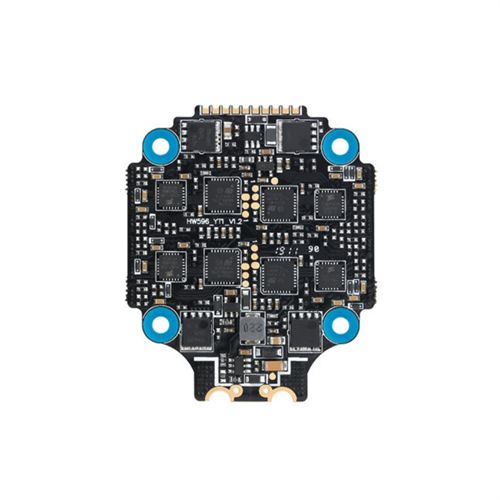

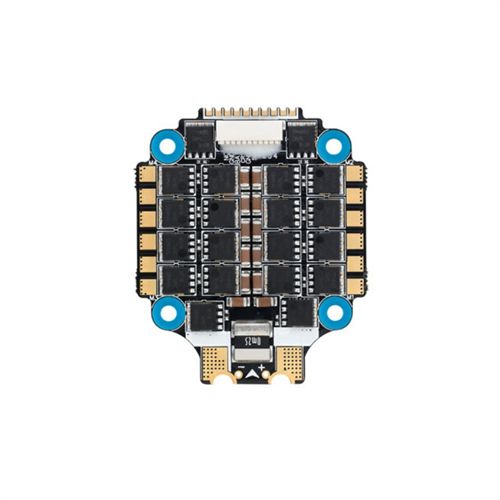

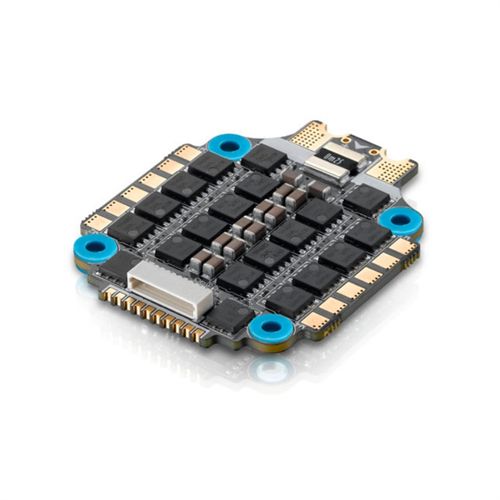

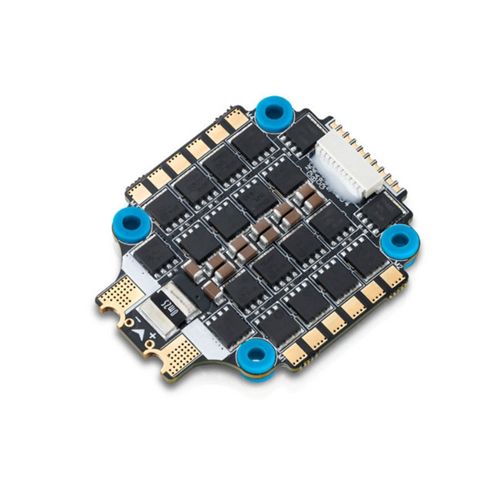

Detailed Images
