Happymodel X12 ELRS Pro V1.1 5In1 AIO Flight Controller
| Part No.: | X12-ELRS-Pro |
| Manufacturer: | happymodel |
Send to a friend
Features
X12 ELRS Pro v1.1 AIO 5-IN-1 flight controller with built-in 12A electronic tuning and OPENVTX Supports 1-2S lithium batteries.The new X12 ELRS Pro flight controller controls MSP image transmission and onboard serial ELRS receiver through ESP32, and also has an additional serial port available for use. The onboard OPENVTX (up to 400MW), 12A brushless Blheli S and Betaflight OSD receiver can update programs through WiFi. Very suitable for brushless Tinywhook and toothpick machines.
Product Details
Brand Name: Happymodel
Model: X12 ELRS Pro
Item Name: X12 ELRS Pro AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX
Betaflight firmware target:
betaflight_4.4.0_STM32F411
VTX antenna: U.FL

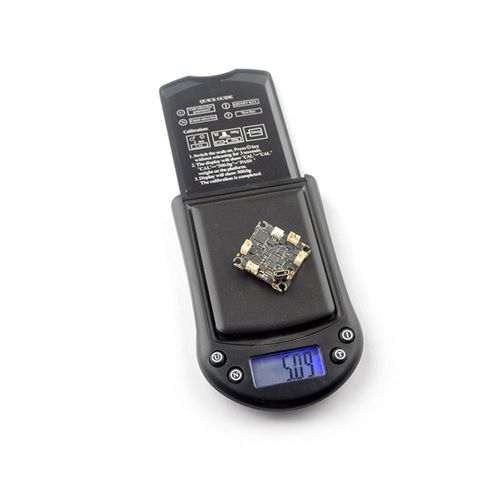

Weight: 5.1g
Size: 30x30x8mm
Flight controller
X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
Sensor: ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
Built-in UART ExpressLRS v3.0.0
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Bluejay v0.19.2
Default protocol: DSHOT300
Recommend ESC Startup power value to min1100/max1200
Onboard UART ExpressLRS 2.4GHz Receiver
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V3.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: Serial_based CRSF
Compatible with ExpressLRS V3.x.x TX Module
Could flash single ELRS receiver firmware by Wifi
ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx
Onboard 5.8g OPENVTX
Firmware version: OPENVTX
MSP VTX
PIT Mode support
Channels:40ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Antenna connector: U.FL

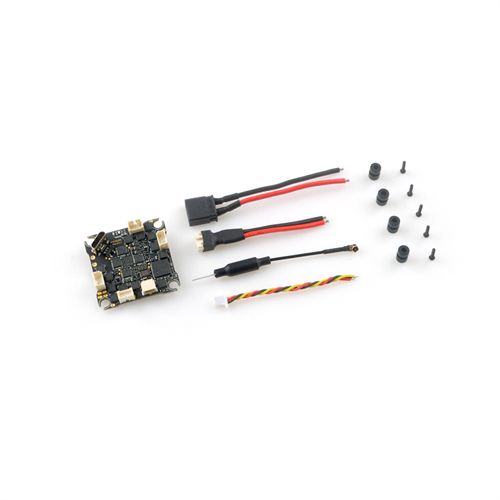

Item Packing
1×Happymodel X12 ELRS Pro V1.1 5In1 AIO Flight Controller

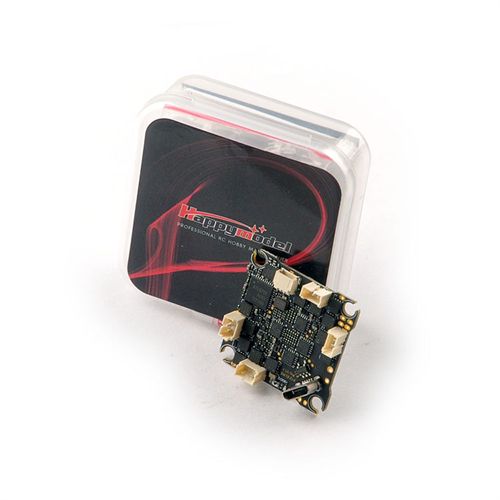

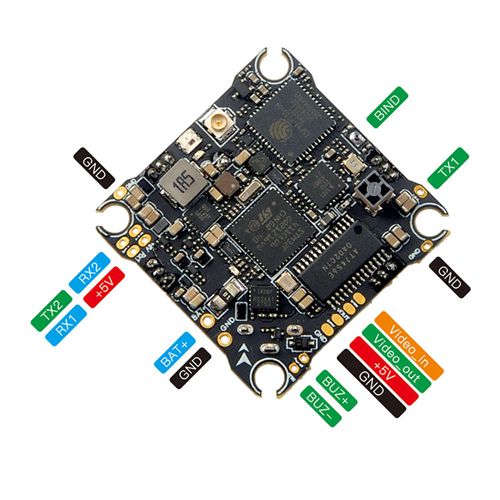

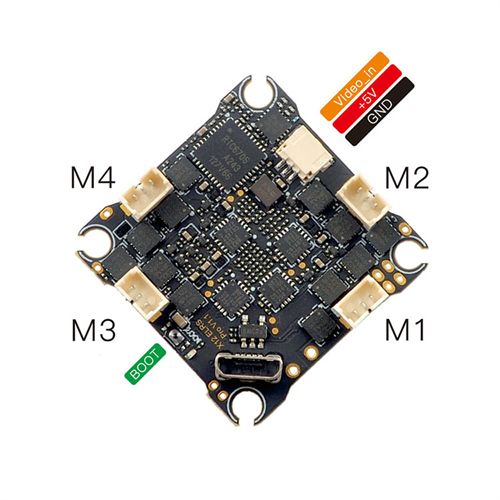

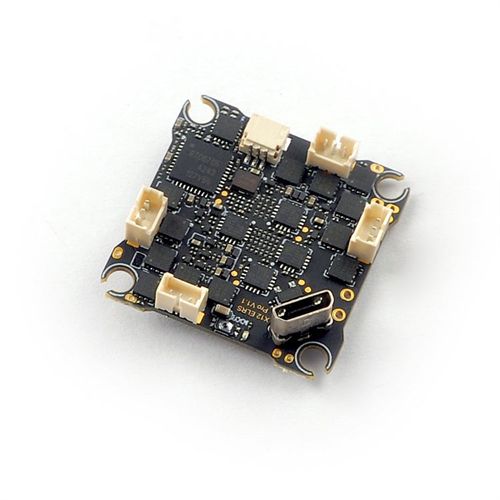

Detailed Images
