iFlight Albatross V2 5.8Ghz 2.65dbi RHCP 150mm FPV Antenna
| Part No.: | IF-V2-SMA-RHCP |
| Manufacturer: | IFlight |
Send to a friend
Features
*High-quality SMA 5.8G antenna with a length of 150mm.
*Compatible with iFlight Albatross V2 drone for seamless integration.
*RHCP design ensures excellent signal transmission and reception.
*Durable and lightweight construction for long-lasting performance.
*Enhances the range and stability of your drone's video transmission.
Product Details
Frequency：5.3GHz-6GHz
MAX Gain：2.65dbi（5695MH）
MIN Gain：2.06dbi（5362MHz)
AVGGain：2.4dbi
MAX VSWR：1.76（5917MHz)
MIN VSWR：1.46（5621MHz)
AVGVSWR：1.75
MAX radiation efficiency：86%（5436MHz)
MIN adiation efficiency：76%（5917MHz)
AVGadiation efficiency：83%
Polarization：RHCP
Cross polarization suppression：-25dB
Axial Ratio：≤ 3
Cable：RG141
Weight：11.5g

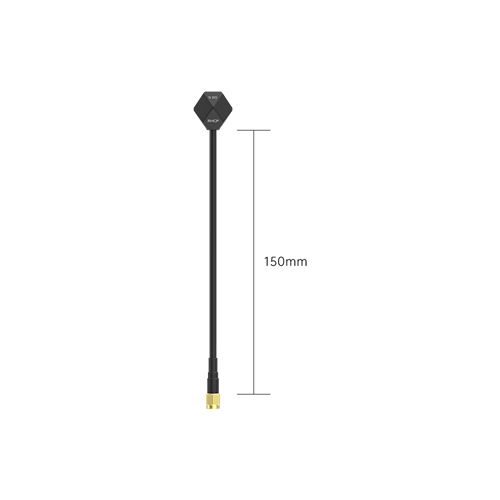

Size：Cable Length: 150mm/Total Length: 175mm
Connector：SMA
Item Packing
1×150mm RHCP Antenna
