RunCam Phoenix 2 SP 1500TVL Freestyle Camera DC 5-36V Screen Ratio 4:3/16:9 7.5g for RC FPV Racing Drones Quadcopter
| Part No.: | Phoenix2-SP |
| Manufacturer: | Runcam |
Send to a friend
Features
RunCam Phoenix 2 SP 1500TVL Freestyle Camera DC 5-36V Screen Ratio 4:3/16:9 7.5g for RC FPV Racing Drones Quadcopter
Product Details
Image Sensor：1/2.8" Starlight COMS Sensor
Horizontal Resolution：1500TVL
Lens：FOV D:155° H:122° V:92°；FOV D:138° H:122° V:68°
Screen Format：4:3；16:9
Mirror/Flip：Available
Signal System：NTSC/PAL
Shutter：Rolling Shutter
Sensitivity：15000mV/Lux•sec
WDR：Global WDR
Day/Night：Color/BW
Menu Control：Cable Control
Power：DC 5-36V
Current：120mA@5V；220mA@12V
Housing Material：ABS
Net Weight：7.5g
Dimensions：19mm*19mm*21mm
Horizontal Resolution：1500TVL
Lens：FOV D:155° H:122° V:92°；FOV D:138° H:122° V:68°
Screen Format：4:3；16:9
Mirror/Flip：Available
Signal System：NTSC/PAL
Shutter：Rolling Shutter
Sensitivity：15000mV/Lux•sec
WDR：Global WDR
Day/Night：Color/BW
Menu Control：Cable Control
Power：DC 5-36V
Current：120mA@5V；220mA@12V
Housing Material：ABS
Net Weight：7.5g
Dimensions：19mm*19mm*21mm

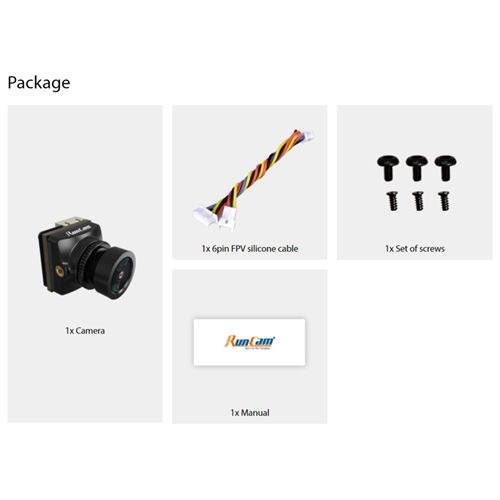

Item Packing
1x Camera
1x 6pin FPV silicone cable
1x Set of screws
1x Manual
1x 6pin FPV silicone cable
1x Set of screws
1x Manual
Detailed Images
