Matek Tail Light WS2812B & Loud Buzzer Dual Modes

Matek Tail Light WS2812B & Loud Buzzer Dual Modes
Part No.: XP079
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

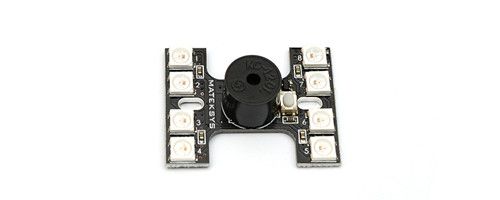

Here comes the H-Type tail light with 8*WS2812B LEDs & Loud Buzzer. It provides dual control modes, can be controlled by Flight Controller fireware (Cleanflight, Betaflight, etc.) or Transmiter.

Product Details

Dual modes: FC control & TX control
TX mode: LED 7 colors (White, Red, Green, Blue, Yellow, Magenta, Cyan)
              LED 4 status (Constant light, Slow flash, Fast flash, Voilent flash)
              Buzzer: Lost Plane Finder
FC mode: supports Naze32 & SPRacingF3 with CleanFlight or Betaflight firmware
Input voltage range: 4.5~5.2V DC
Power of TX mode (5V IN ): 1W/0.2A~2W/0.4A

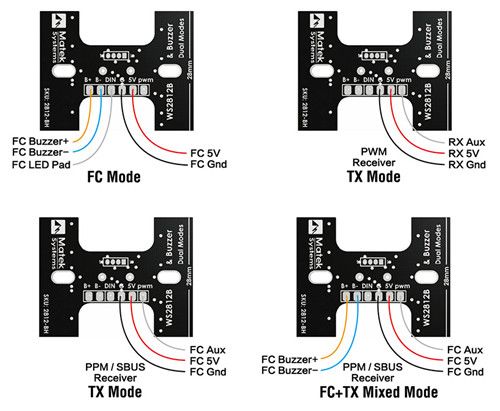

Size & mounting: Please check the layout
Weight: 5 grams

1. Connect Tail Light to 5V power source, such as BEC 5V.
2. Press the button, scroll through the LED status(Constant light, Slow flash, Fast flash, Voilent flash).
3. Hold the button 2s to enter the setting of LED colors & mode(Be Be Be), then press the button to set it.
 within LED colors of TX mode (White, Red, Green, Blue, Yellow, Magenta, Cyan) & FC mode (all LED OFF).
4. The LED color(TX mode) or FC mode will be saved if no action within 10 seconds(Be).
5. If the LED is messy when setting FC mode to TX mode, pls move the DIN & re-energize it.

Item Packing

Matek Tail Light WS2812B & Loud Buzzer Dual Modes X 1

Detailed Images
