X-uav Mini Talon EPO 1300mm Wingspan V-tail FPV Plane Aircraft Kit
| Part No.: | X-UAV-MINI |
| Manufacturer: | Feixiang |
Send to a friend
Features
The Mini Talon V-tail plane is the smaller version of the popular Talon Kit. The kit comes un-assembled with EPO and laser cut plywood parts.Runs 4S 14.8V 10,000mAh LIPO battery, flight times are long, and wing loading still low thanks to the generous wing area of the Talon. A generous fuselage compartment with large top hatch allows you to access your equipment and flight battery in any configuration you choose. It is a great plane for anything you want to throw at it.you can use these for site surveying, aerial mapping and FPV fun.
- The Mini Talon FPV V-tail Drone is the new little brother of the popular Talon FPV plane.
- Its smaller size is great for packing with you on your favorite FPV safari.
- Runs on 4S 14.8V 10,000mAh LiPoly battery, long flight times.
- Low wing loading.
- Generous fuselage compartment with large top hatch allows you to access your FPV equipment and flight battery in any configuration you choose. It is an open canvas for your FPV needs.
- Kit - All assembly and equipment installation required
- Moulded EPO airframe
- Laser cut plywood motor mount and wing saddle frame
- Mono-wheel landing gear protects bottom of fuselage
- Large fuselage compartment accommodates many battery and equipment configurations.
- Two Piece plug in wings with carbon wing tube
Product Details
Brand:X-uav
Item:Mini Talon Kit
Wingspan: 1300mm
Length: 830mm
Flying Weight: 1000g-2000g
Note:Electronics Kit Supplied
Recommend Parts (Not Included):
6 CH FlySky Transmitter and Receiver Click Here
4S 5000mAh LiPoly Battery
4 x TowerPro 9g Servos Click Here
3536(2814) 1000KV Brushless Motor
40A Brushless Speed Control Click Here
9x4.5 propeller Click Here
Recommend FPV System (Not Included):
APM Flight Controller Set 2.8 Click Here
Eachine 700TVL 1/3 Cmos 110 Degree Lens Camera Click Here
Skyzone FPV 5.8G 32CH 7 Inch Monitor DVR Click Here
Eachine TS832 FPV 5.8G 32CH 600mW Wireless AV Transmitter Click Here
Eachine FPV 5.8G 32CH Wireless AV Receiver RC832 Click Here
5.8G Gain Petals Clover Mushrooms Click Here
Note:
Kit only, does not include motor/ESC/Servos.
The LY-T08-11 Carbon Rod Fastener is installed on the wing,the LY-T08-12 Wire Line is not included.

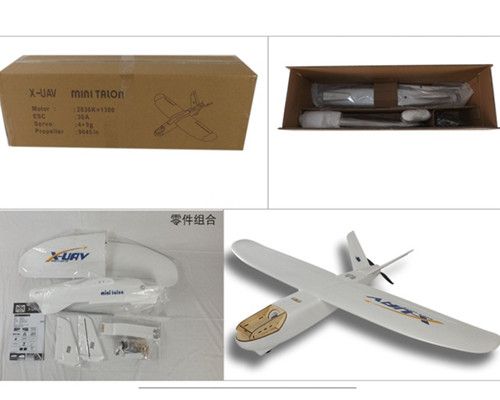

Item Packing

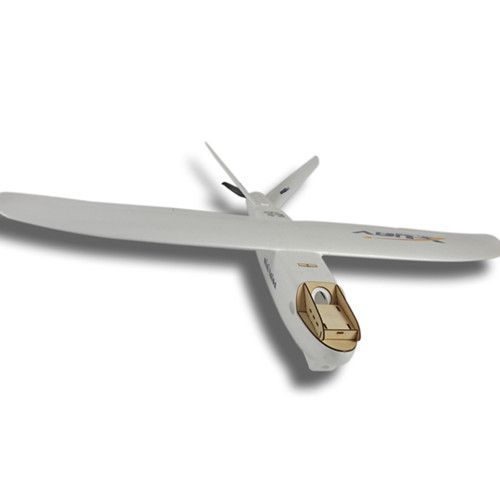

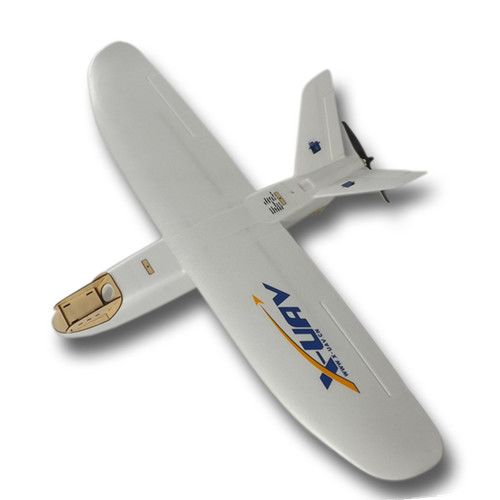

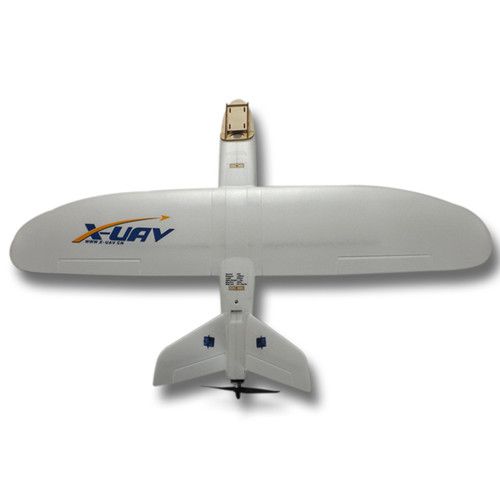

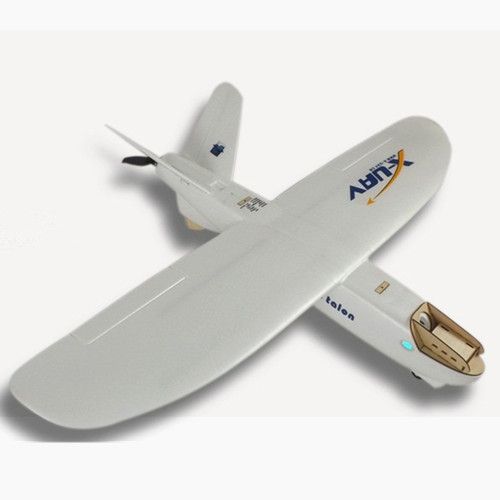

Detailed Images
