HOBBYWING EZRUN RC Model Black 4268SL 2600KV R/C Brushless Motor
| Part No.: | 4268SL-2600 |
| Manufacturer: | Hobbywing |
Send to a friend
Features
Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.

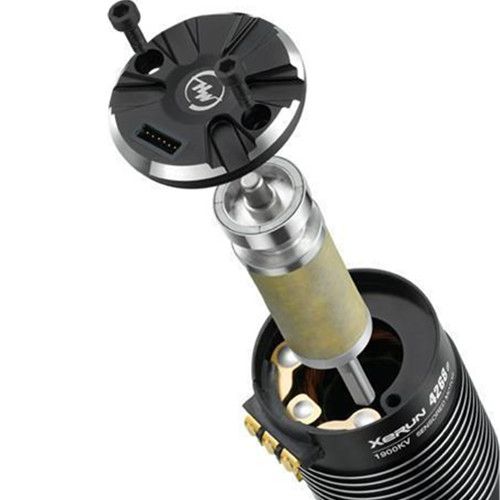

Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX8 ESC.
Product Details
Pole: 4
KV(No-load): 2600
R. (Ω): 0.0052
Current No-load（A）: 4.2
Max. Output Power（W）: 3000
C.at the point of M.O.P *(A): 120
Motor D.&L（mm）: Φ=42, L=68
Shaft D.&L of the projecting part（mm）: Φ=5, L=18.5
LiPo(S): 2-6
Weight: 343g (12.098oz)
Applicable: 1/8th Buggies/Touring Cars/SCTs
Installation Tips
How to Mount the Motor into a RC vehicle. M3/M4 mounting screws (4*M3 & 4*M4) are needed here, as the mounting holes are 8mm in depth, so we don't recommend using the M3/M4 screws with the length exceeds 10mm to mount the motor into your vehicle. (Note: please choose the right mounting screws as per your chassis.) Please choose the right mounting screws as per your chassis.
How to Connect the Motor to an ESC. There is no polarity on the A/B/C three ESC-to-motor wires, so do not worry about how you connect them initially. You may find it necessary to swap two wires if the motor runs in reverse.
Recheck the Installation & Connections. Recheck the installation and all the connections before turning on the power.

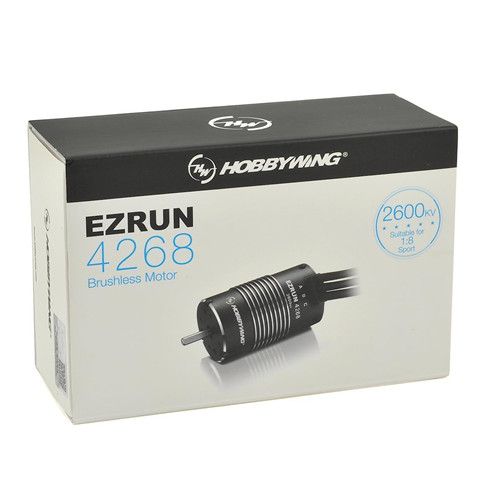

Item Packing

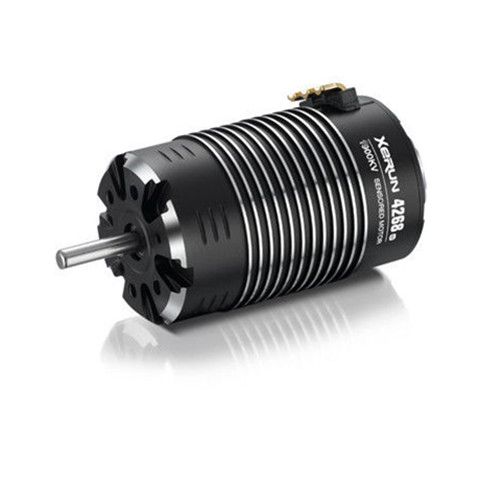

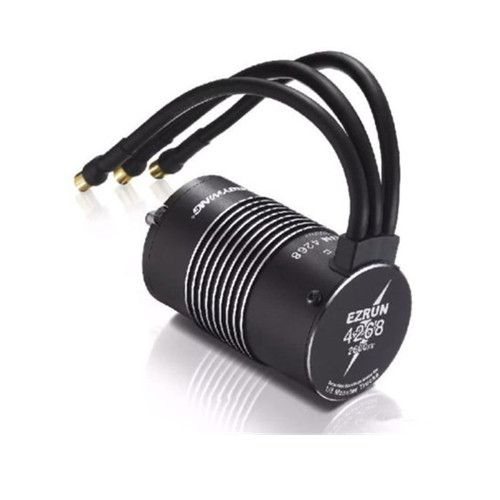

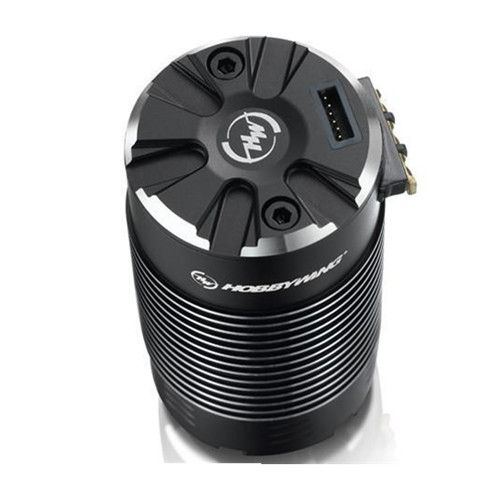

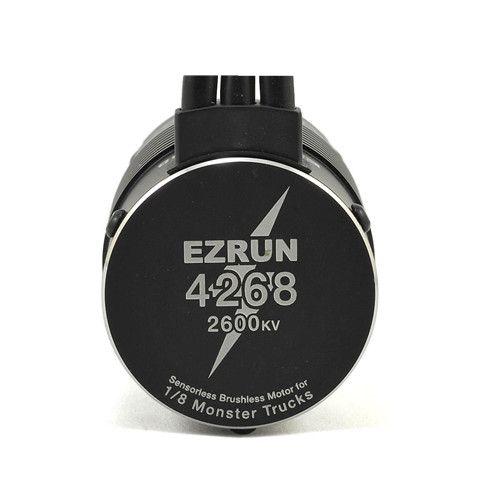

Detailed Images
