IFlight Protek35 Analog BNF R-XSR Beast AIO F7 45A 5.8G Micro Force XING 2203.5 3600KV 4S 3.5inch Cinewhoop Ducted Drone

IFlight Protek35 Analog BNF R-XSR Beast AIO F7 45A 5.8G Micro Force XING 2203.5 3600KV 4S 3.5inch Cinewhoop Ducted Drone
Part No.: ProTek35-XSR
Manufacturer: IFlight

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

- No Props or frame in view!
- High performance True-AIO Board Beast Whoop F7 AIO 45A to save weight and space
- T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
- Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
- Low Resonance frame construction (Less Jello, more Cinematic footage)
- Butter smooth 2203.5 3600KV (4S)
- Pre-tuned with smooth freestyle setting

Product Details

ProTek35 BNF Specs:
- Board Beast Whoop F7 AIO 45A
- Motor: XING 2203.5 3600KV (4S)

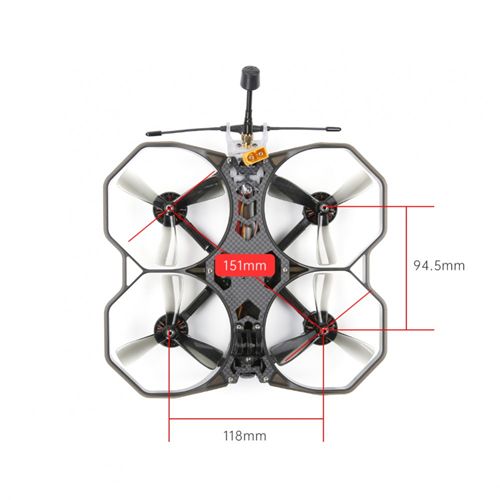

- Wheelbase: 151mm
- Body Size: 118*94.5mmmm
- Bottom plate thickness: 3.5mm
- Top plate thickness: 2mm
- Top and bottom plate spacing: 20mm (aluminum standoff height)
- Propeller size: 3.5 inch
- FC pattern: 25.5*25.5mm / 20*20mmmm
- FPV cam spacing: 20mm
- Weight: 305g (without battery)

FC // Beast F7 AIO
Specification:
- MCU: BGA-STM32F745
- Gyro: MPU6000
- Blackbox: 8Mb Onboard Flash
- BEC output: 5V 2.5A
- Barometer: BMP280
- Connector: Micro-USB
- OSD: AT7456E
- FC Firmware:IFLIGHT_F745_AIO
- Mounting pattern: 25.5*25.5mm φ3mm
- Dimensions: 32.5*32.5mm
- Weight: 8.5g

ESC // 45A 2-6S
Specification:
- Uarts: 5
- Current Sensor: Yes
- Input: 2-6S LIPO
- Current scale: 200
- Constant: 45A / Burst: 50A
- BLHeli: BLHeli-S
- Telemetry: no
- ESC Firmware: BlheliS G-H-30
- Mounting pattern: 25.5*25.5mm/Φ3mm
- Dimensions: 32.5*32.5mm

VTX// 5.8GHz SucceX Micro 300mW VTX
-Power: PIT/25/100/200mW/300mW
-Antenna interface: IPEX (UFL)
-VTX protocol : IRC Tramp
-Size: 13.5x14.5mm
-Weight: 1.4g

Size Extender (stackable adapter):
Mini VTX size: 20x20mm, 2mm hole, total weight (incl. VTX): 3.4g
Whoop VTX size: 16mm/25mm, 2mm hole, total weight (incl. VTX): 2.9g

Item Packing

iFlight Protek35 Drone Set x 1
Propeller x 4
Battery Tie x 1
Screw Set x 1
EVA Cotton Strip x 1

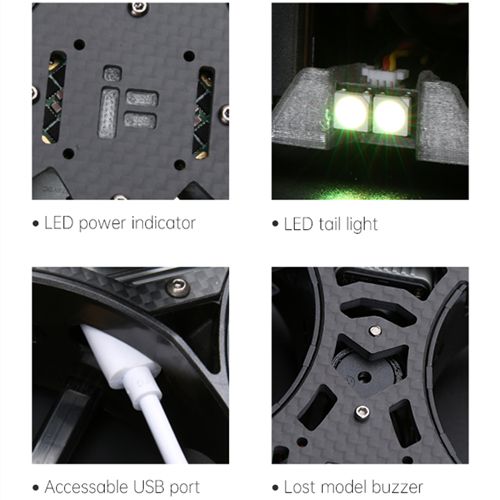

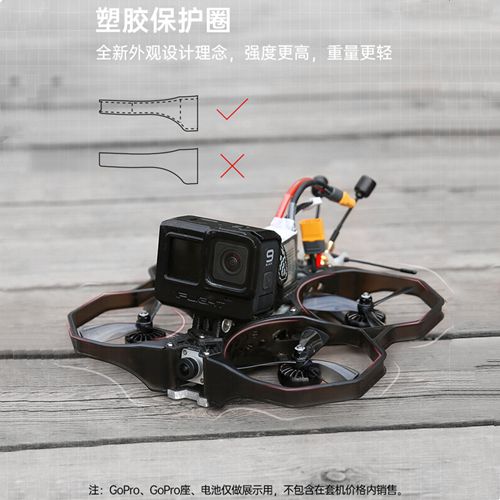

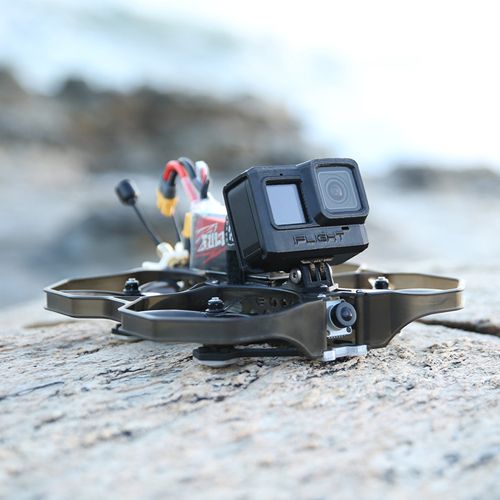

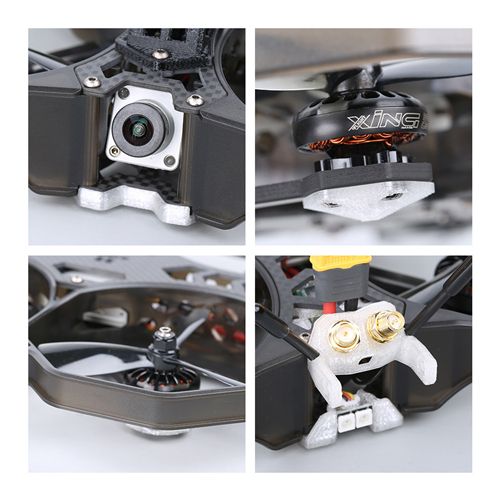

Detailed Images
