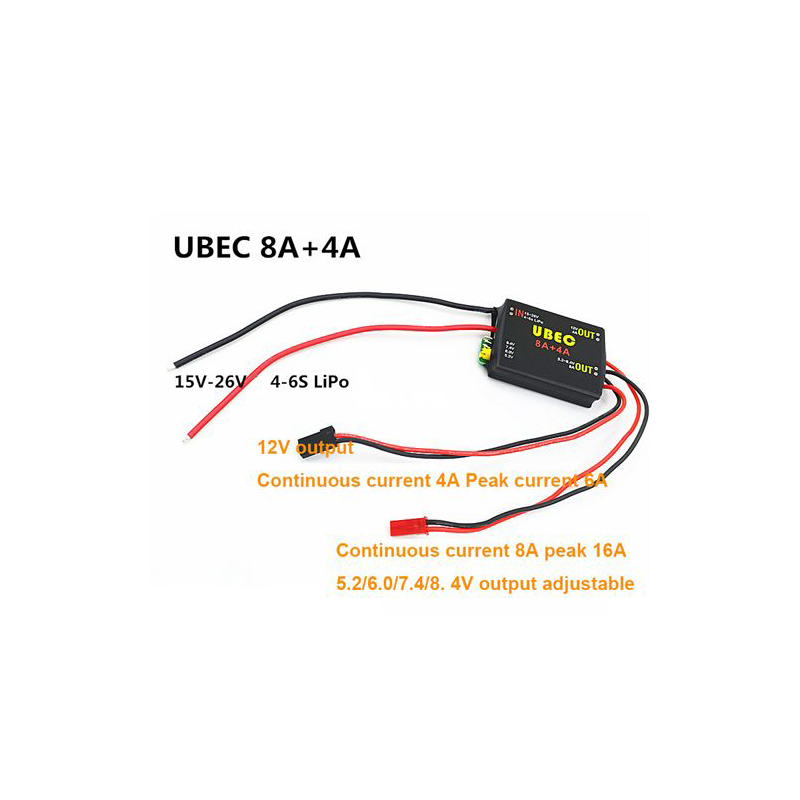

4S-6S 15-26V UBEC-8A BEC DUAL UBEC 8A+4A 5.2V/6.0V/7.4V/8.4V Servo Separate Power Supply RC Car Fix-Wing Airplane Robot Arm
4S-6S 15-26V UBEC-8A BEC DUAL UBEC 8A+4A 5.2V/6.0V/7.4V/8.4V Servo Separate Power Supply RC Car Fix-Wing Airplane Robot Arm
1. Using high-efficiency DC-DC voltage regulator chip, the conversion efficiency exceeds 90%.
2. One output voltage can be selected in four gears (5.2/6.0/7.4/8.4V), which can meet the role of aircraft model equipment of various voltage specifications
3. One output fixed 12V voltage, which can be used by cameras, video transmitters and PTZs and other equipment
4. With input reverse connection protection, overcurrent protection, output short circuit protection, overheating protection and other functions, safe and reliable
5. Has a working status indicator, which lights up when the UBEC is working normally
Input Volts: 15-26V (2-6s LiPo)
Output Volts(port-1):5.2/6.0/7.4/8.4v)
Output Volts(port-2): 12v
Volts Control :Jumper Pin
Output Volts(port 1):Max 8amp/Peak 16amp
Output Volts(port 2):Max 4amp/Peak 6amp
Size without wire:51*36*8
Net Weight: 46g
4S-6S 15-26V UBEC-8A UBEC 8A+4A x 1
