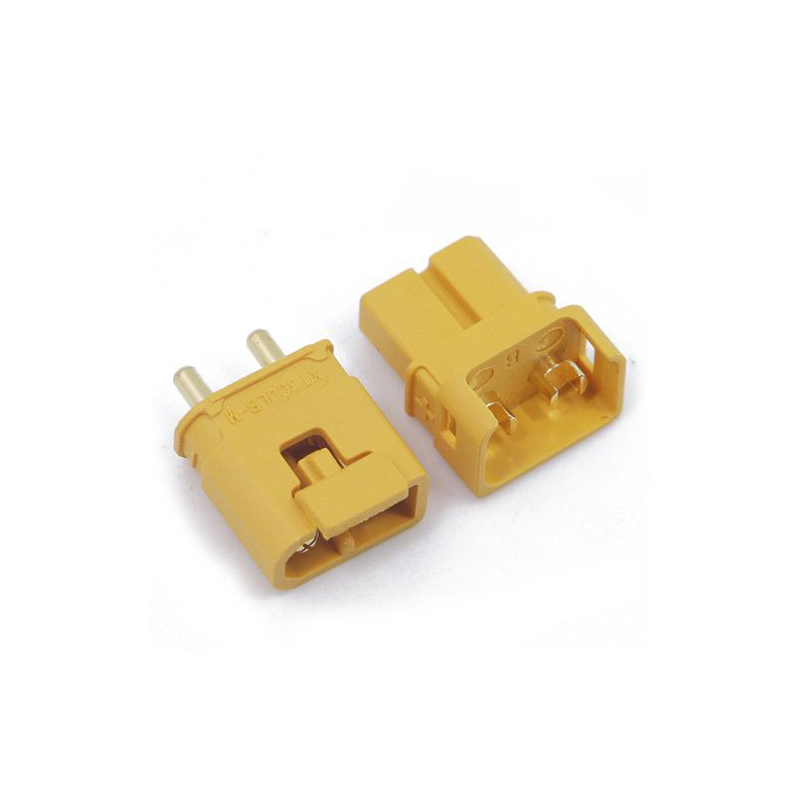

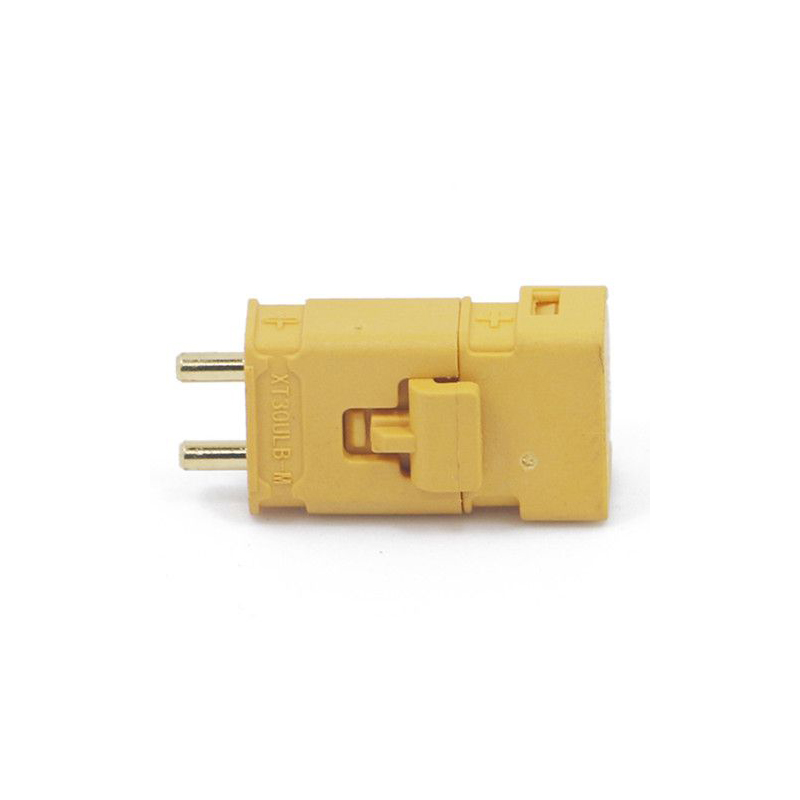

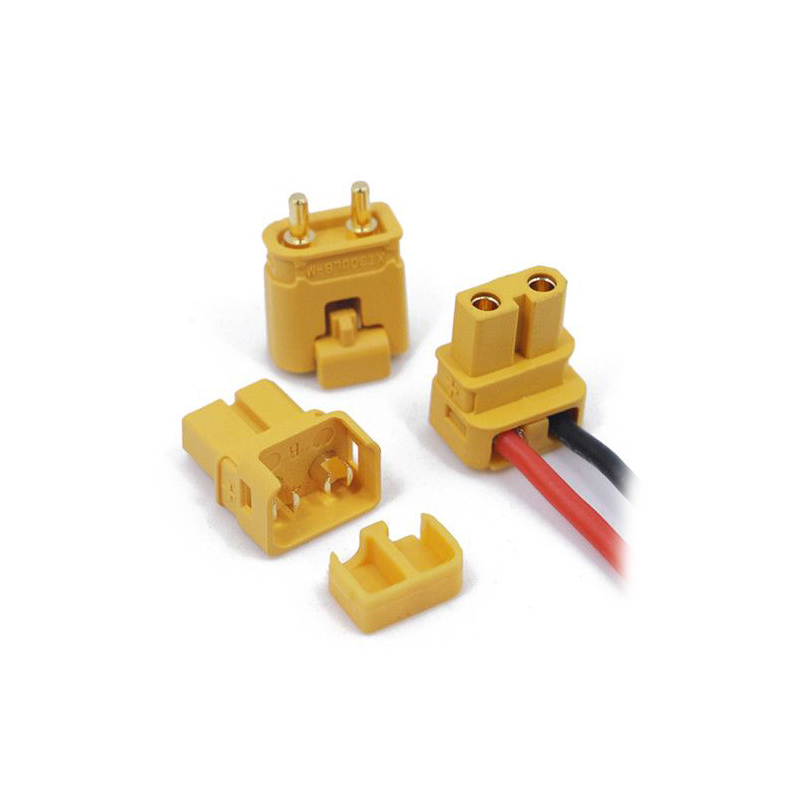

Amass XT30ULW/XT30ULB Anti-falling 2mm Gold Plated Connector for Racing drone Multicopter
1.Female head and tail with protective sleeve, heat-free shrink tube.
2.Male and female with clip design, due to the compact structure, increase the lock design to prevent the plug loose.
3.The male end shall be the female end welding line of the circuit board (90 degree welding).
4.Female head welding line (90)30 series 90 degree welding,To meet the special use space requirements of uav.
Item number: XT30ULW-F/XT30ULB-M
Metal Material: Brass Gold Plated
Plastic material: PA66 DF25 V0
FR level: UL94 V0
Recommend use: controller/charger
Certification: CE/UL
CR: 0.65m Ohm
Rated voltage: DC 500W
Rated current: 15A
Instantaneous Current: 30A
Use times: 1000 TIMES
Cable specification: PCB
Temperature: -40 to 120
Amass XT30ULW Female Plug x 1
Amass XT30ULB Male Plug x 1
