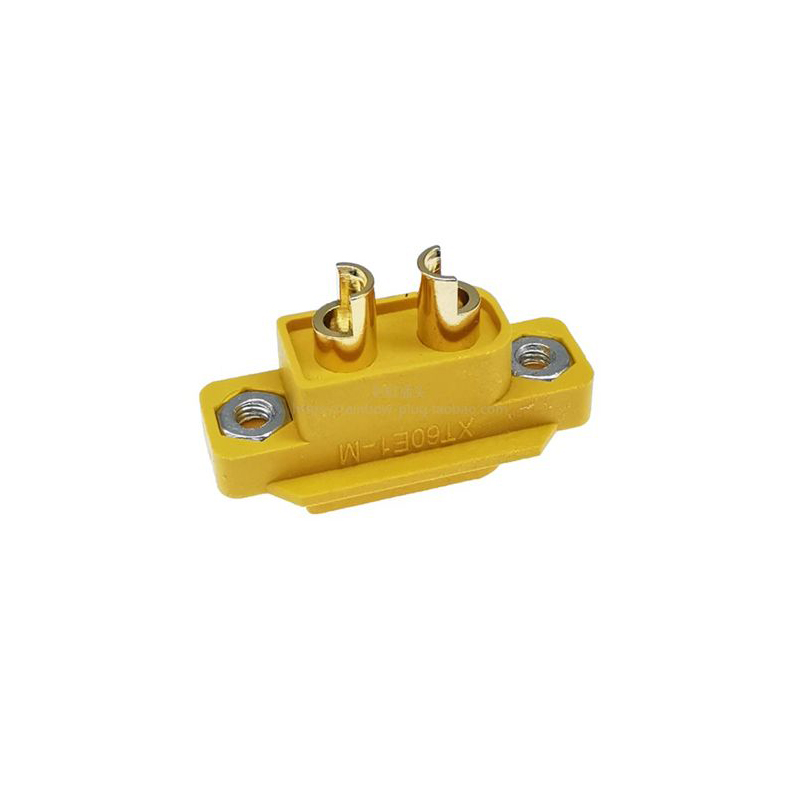

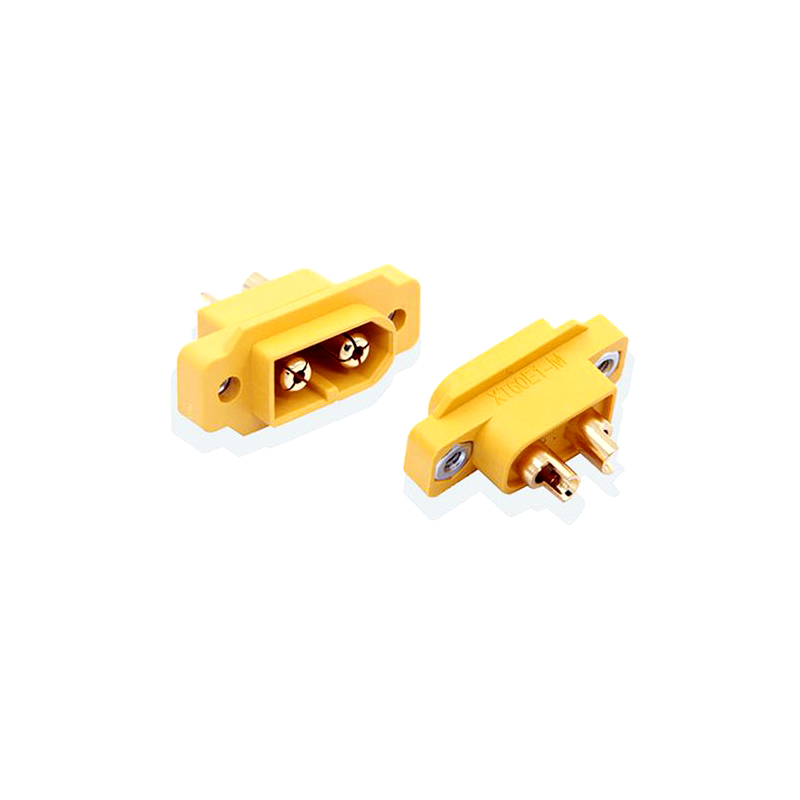

AMASS XT60E1-M Mountable XT60 Male Plug Connector for RC Drone FPV Racing Fixed Board DIY Spare Part
AMASS XT60E1-M Mountable XT60 Male Plug Connector for RC Drone FPV Racing Fixed Board DIY Spare Part
AMASS XT60E1-M Mountable XT60 Male Plug Connector for RC Drone FPV Racing Fixed Board DIY Spare Part
Product model: XT60E1-M
Product color: yellow
Metal material: gold-plated
Instantaneous current: 40A 16#
Recommended wire gauge: 12#/14#/16#
Rated current: 20A 16#
Insulation material: PA66
Contact resistance: 0.60mΩ
Working temperature: -20 ℃ to 120 ℃
Withstand voltage: DC 500V
Recommended use times: 100 TIMES
Flame retardant rating: UL94-V0
XT60E1-M Male Plug
