Corona 15kg / 0.16sec / 63.6g Metal Gear Large Torque High Voltage Waterproofing Digital Servo
Corona 15kg / 0.16sec / 63.6g Metal Gear Large Torque High Voltage Waterproofing Digital Servo

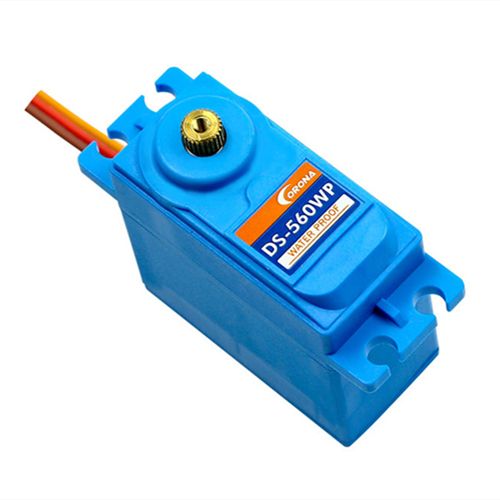

Corona 15kg / 0.16sec / 63.6g Metal Gear Large Torque High Voltage Waterproofing Digital Servo DS-560WP
Item No: DS560WP
Dimension： 41.8*20*40.8mm(1.65″*0.82″*1.61″)
Weight：63.6g
Operating Voltage：6V/7.4V
Operating Current：300mA / 400mA
Operating speed ：0.18sec.60º / 0.16sec.60º
Stall torque： 13kg.cm/15kg.cm
Dead band： ≤3uSec
Operating range： 40º/one side pulse traveling
Potentiometer：High Precision
Ball bearing：MR106/MR126
Gear: Metal
Wire length: 300mm
Operating Temperature Range：-20℃ to +60℃
DS560WP servo with servo horns x1
