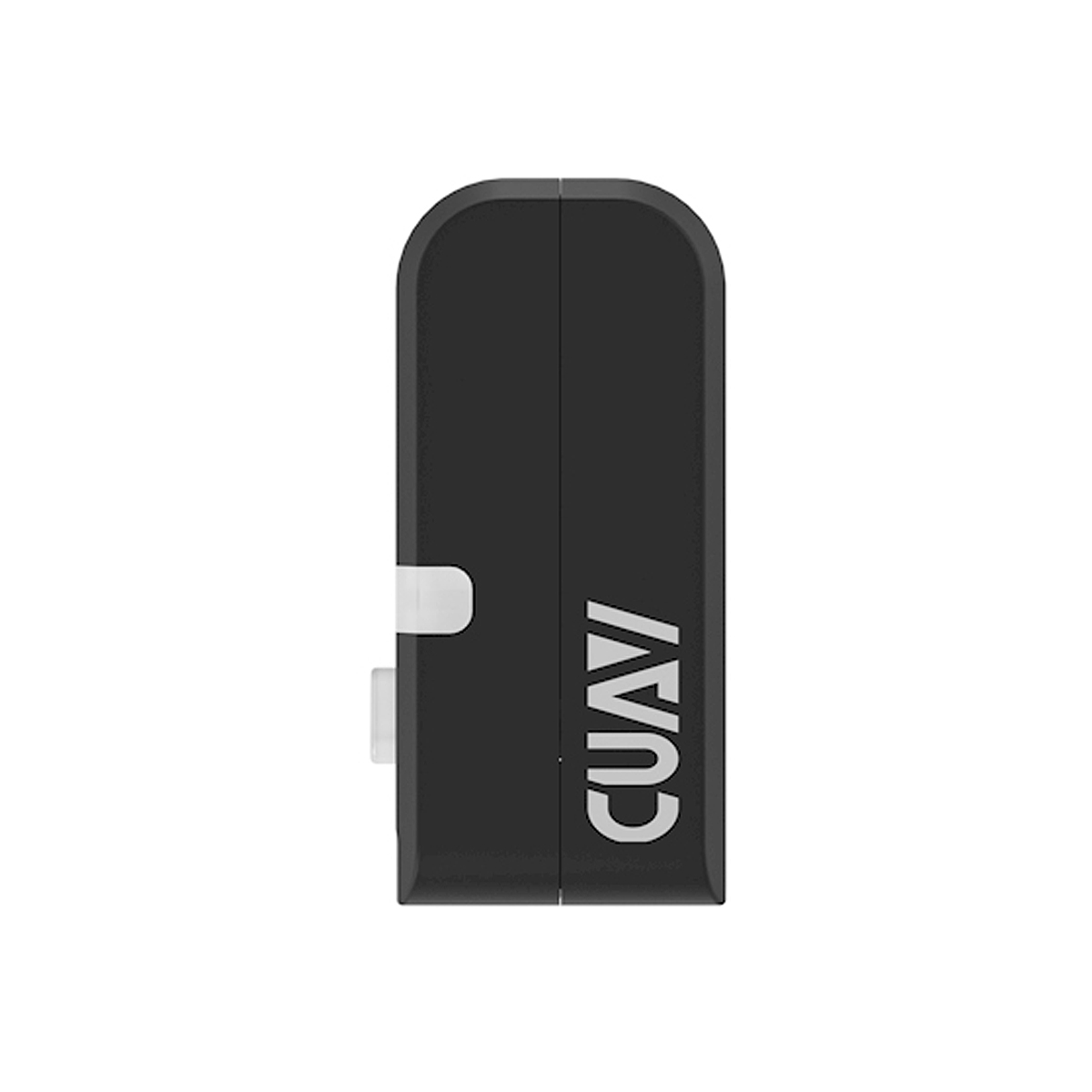

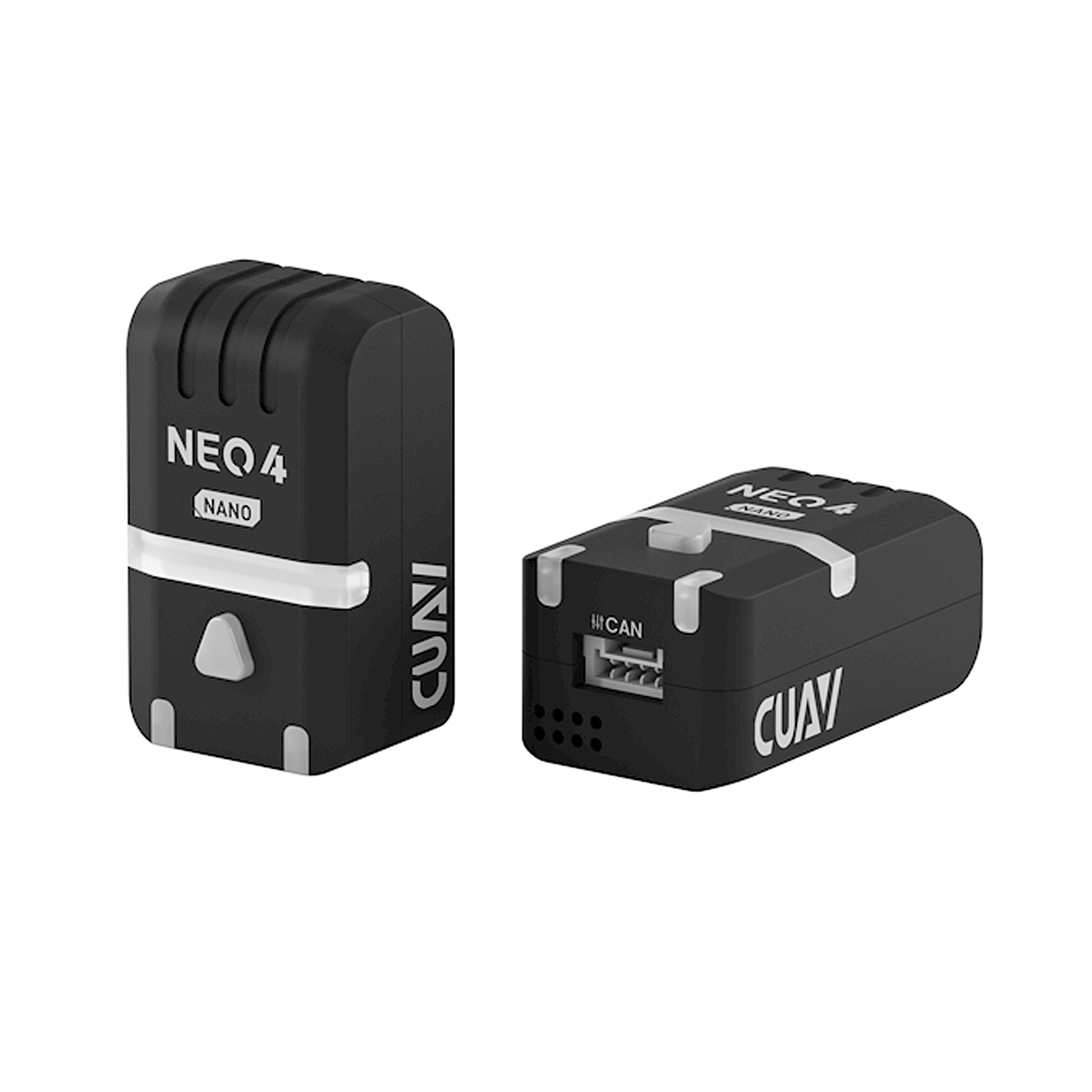

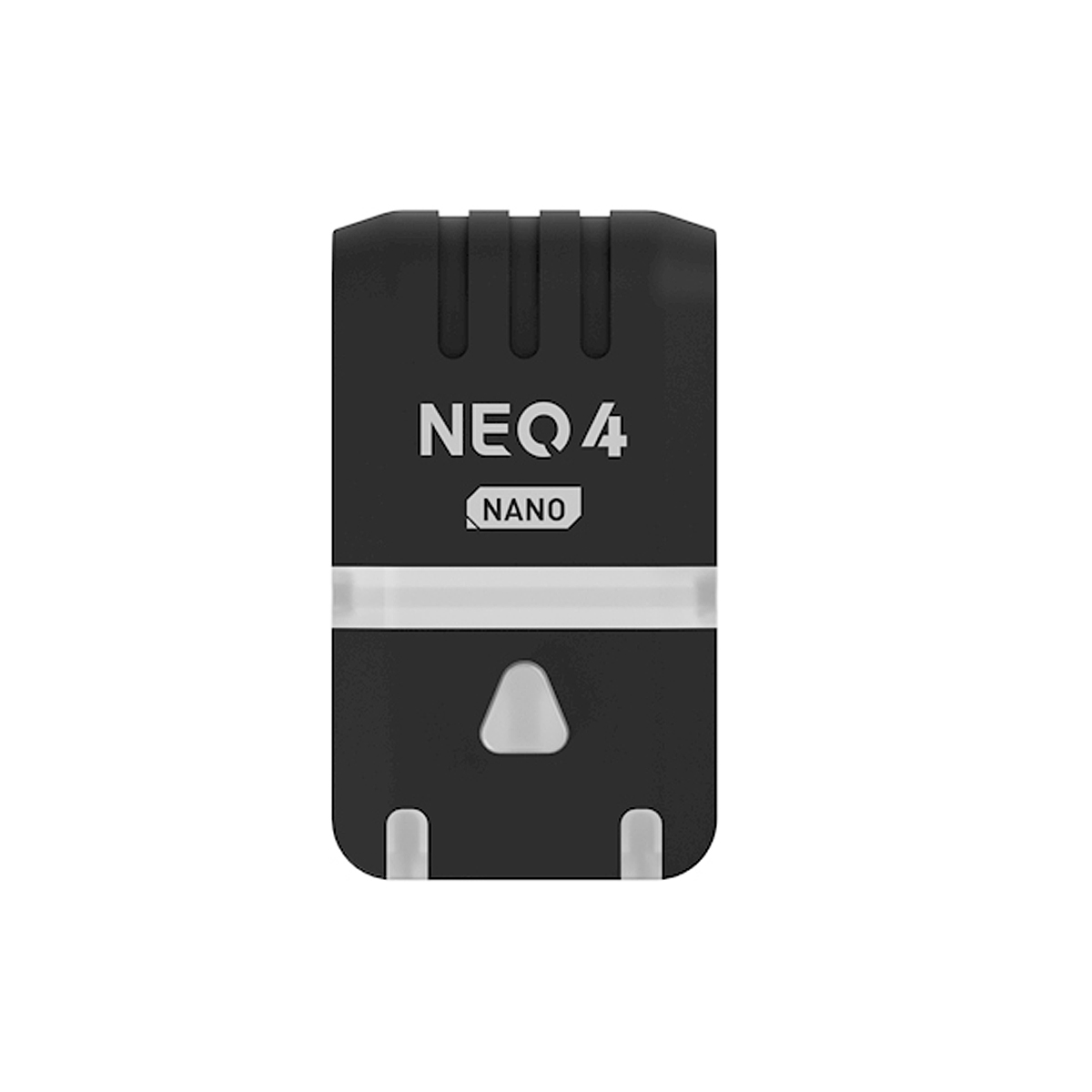

CUAV NEO4 NANO Mini High Precision GNSS Navigation Module Lightweight for RC Drone Micro UAV
Compact Size, High Integration.

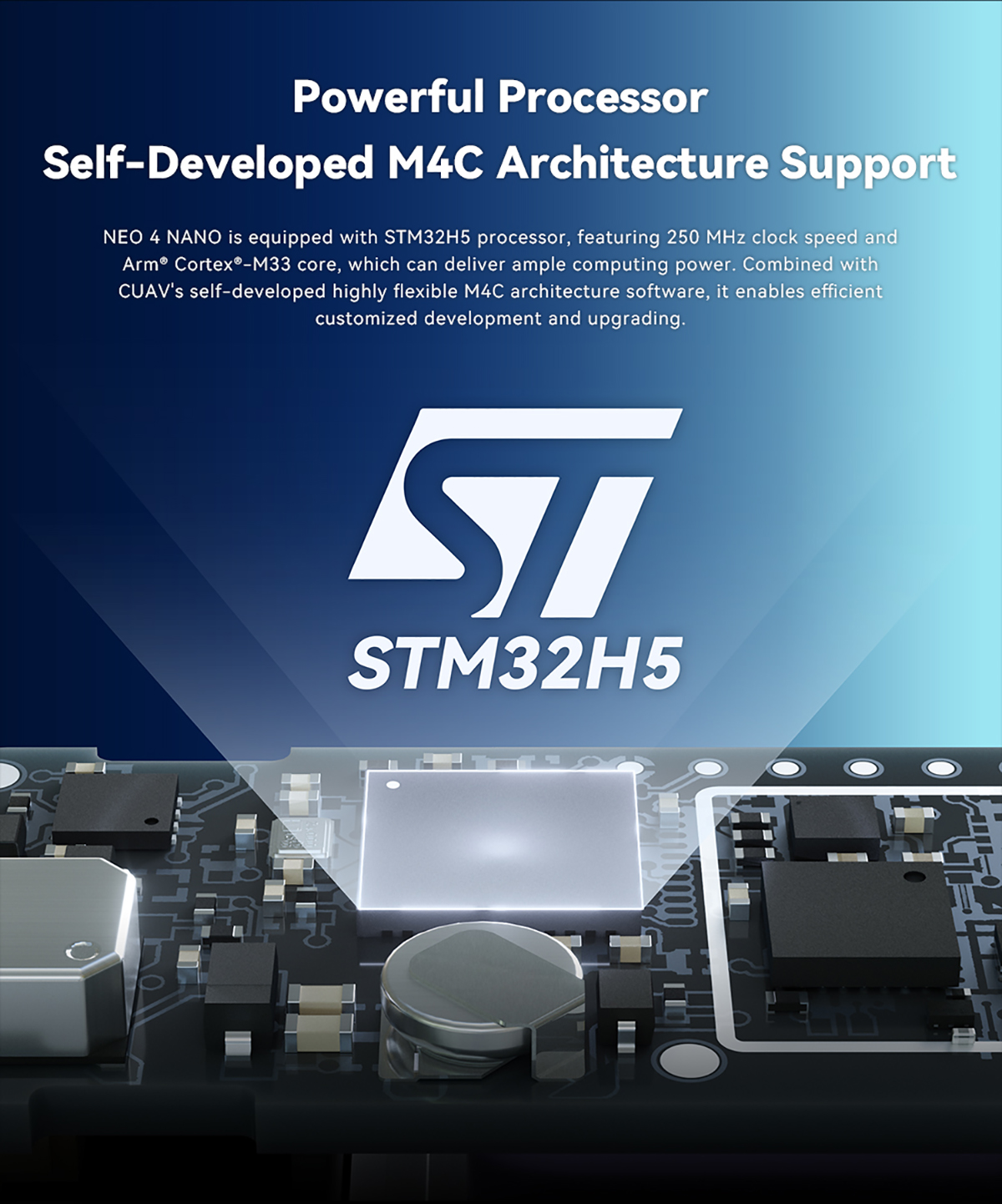

High-Performance STM32H5 Processor.
Runs on M4C Architecture Software.

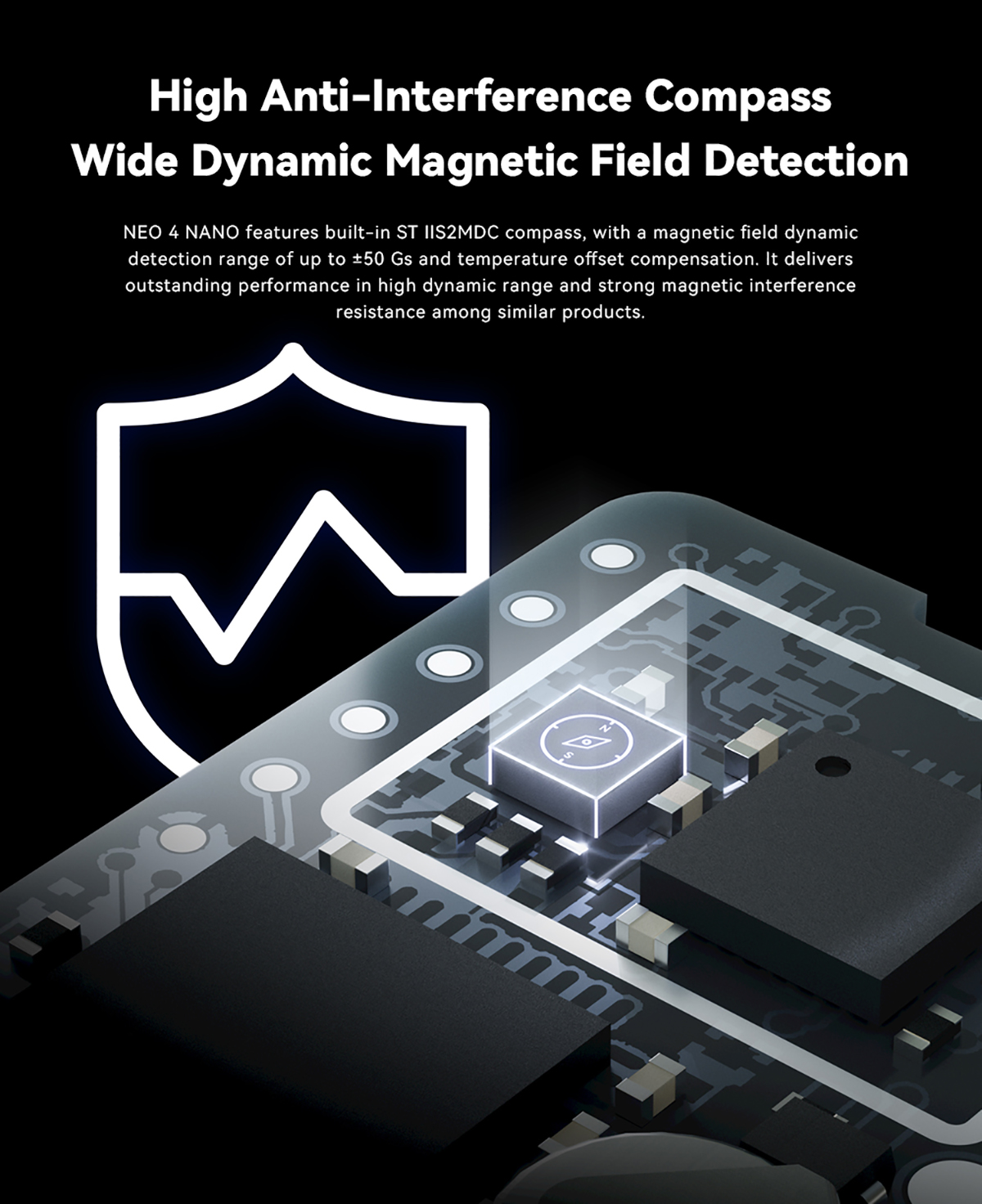

Built-in ST IIS2MDC Electronic Compass.

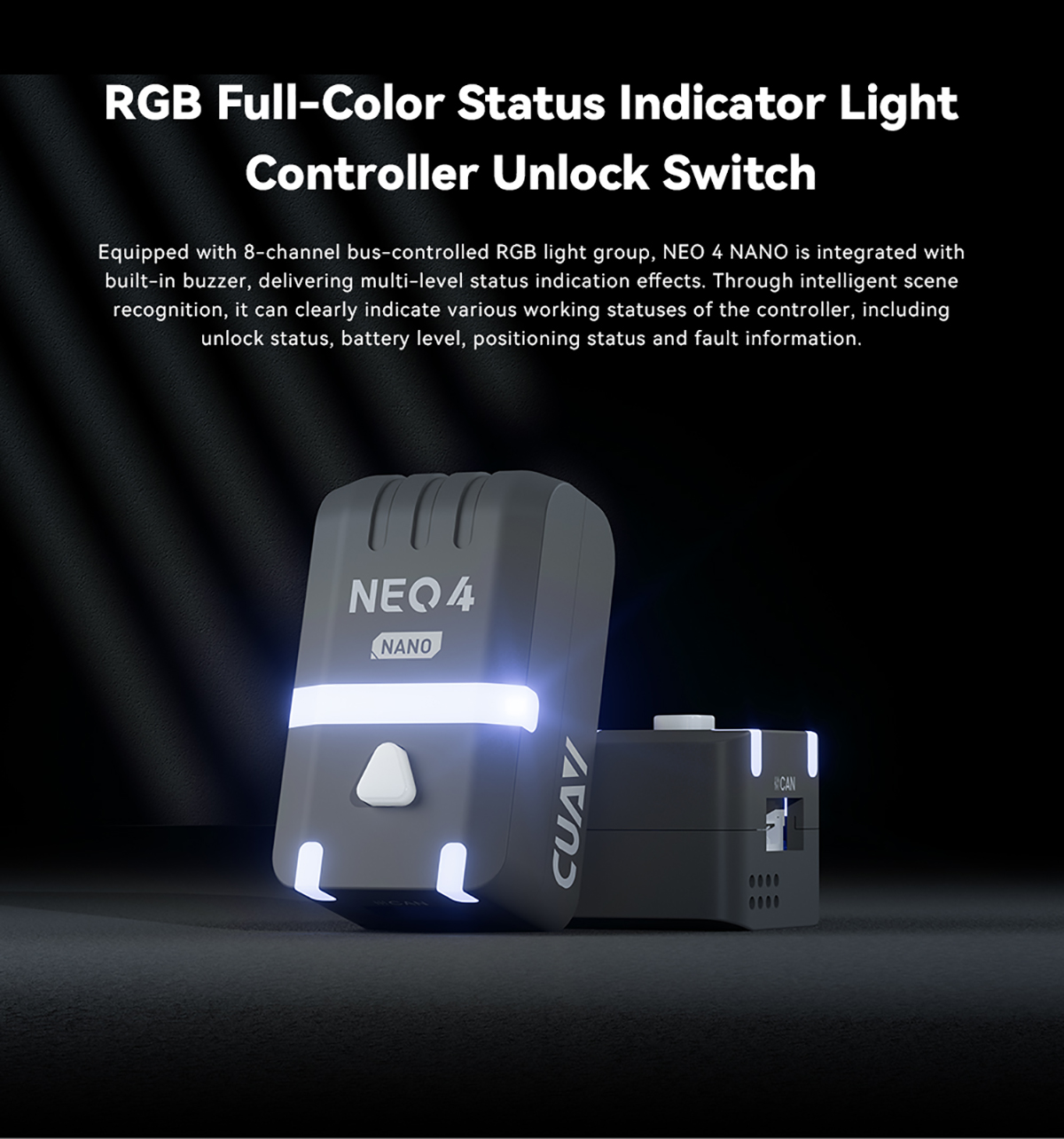

RGB Full-Color Status Indicator Light.

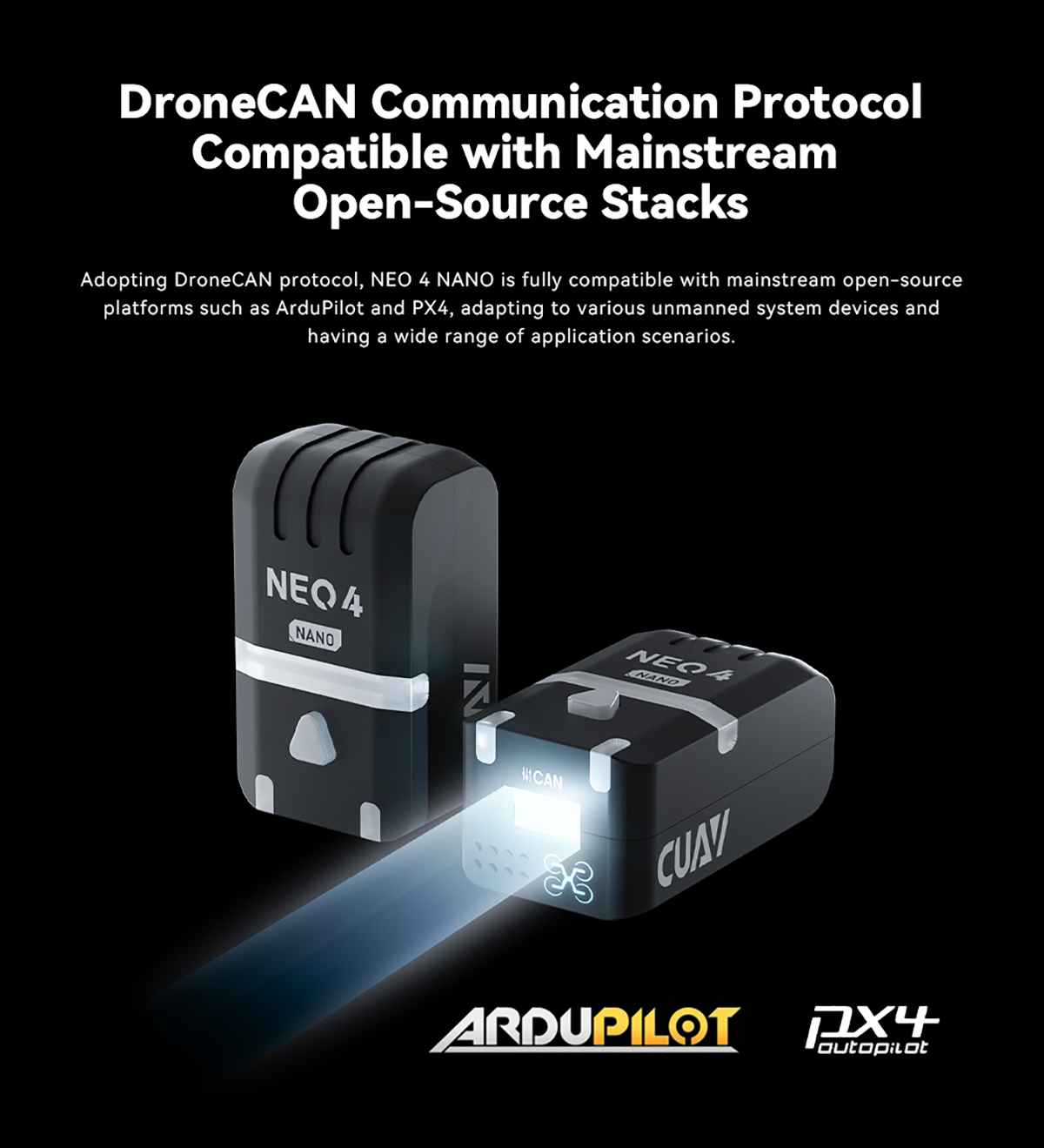

CAN Bus Communication, Compatible with ArduPilot and PX4.

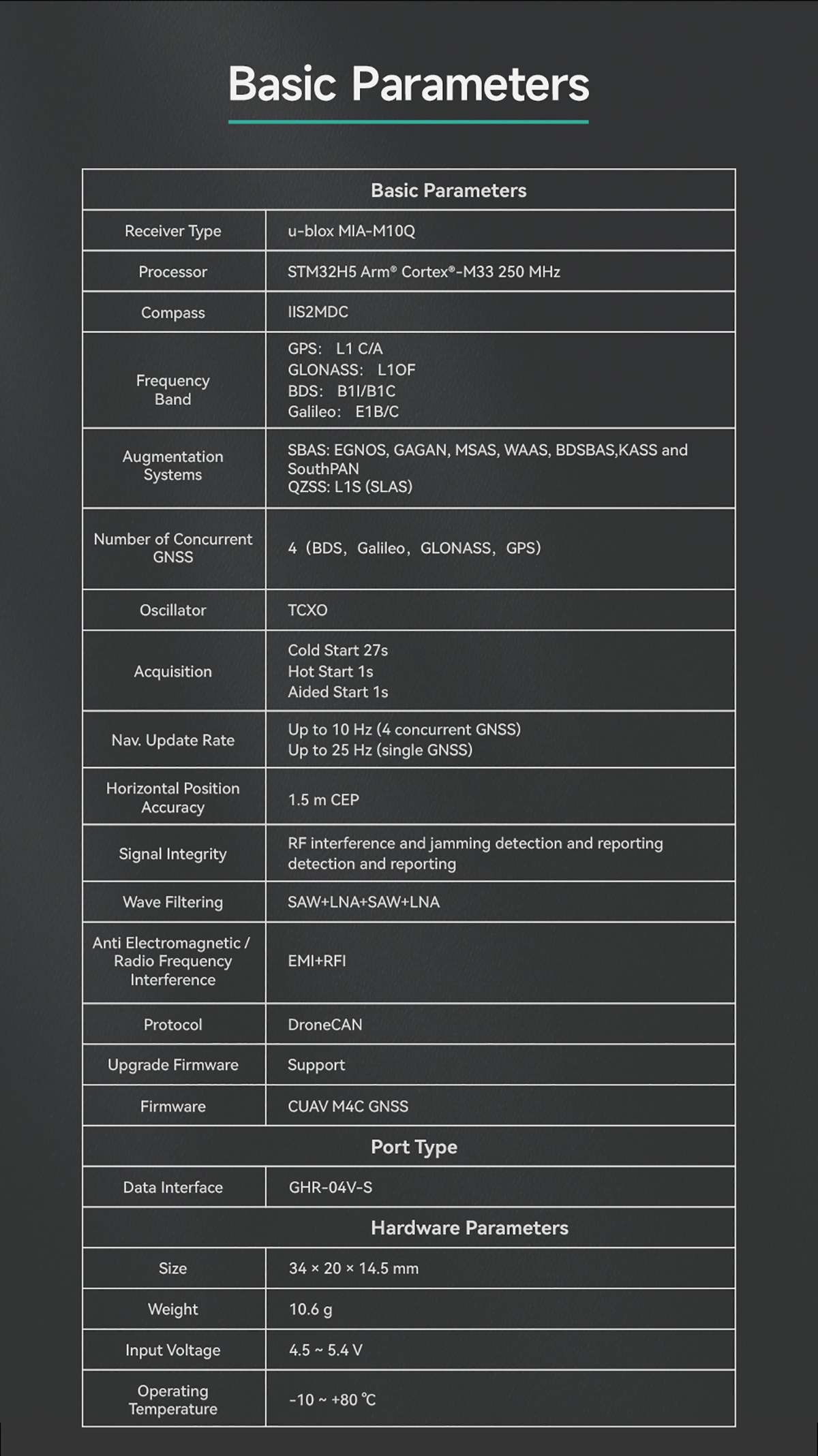

Model: NEO 4 NANO
Processor: STM32H5 Arm® Cortex®-M33 250 MHz
Compass: IIS2MDC
Frequency Band: GPS: L1 C/A; GLONASS: L10F; BDS: B1V/B1C; Galileo: E1B/C
Augmentation Systems: SBAS (EGNOS, GAGAN, etc.); QZSS: L1S (SLAS)
Number of Concurrent GNSS: 4 (BDS, Galileo, GLONASS, GPS)
Oscillator: TCXO
Acquisition: Cold Start 27s; Hot Start 1s; Aided Start 1s
Nav. Update Rate: Up to 10 Hz (4 concurrent GNSS); Up to 25 Hz (single GNSS)
Horizontal Position Accuracy: 1.5m CEP
Signal Integrity: RF interference and jamming detection and reporting
Wave Filtering: SAW+LNA+SAW+LNA
Anti Electromagnetic / Radio Frequency Interference: EMI+RFI
Protocol: DroneCAN
Upgrade Firmware: Support
Firmware: CUAV M4C GNSS
Data Interface: GHR-04V-S

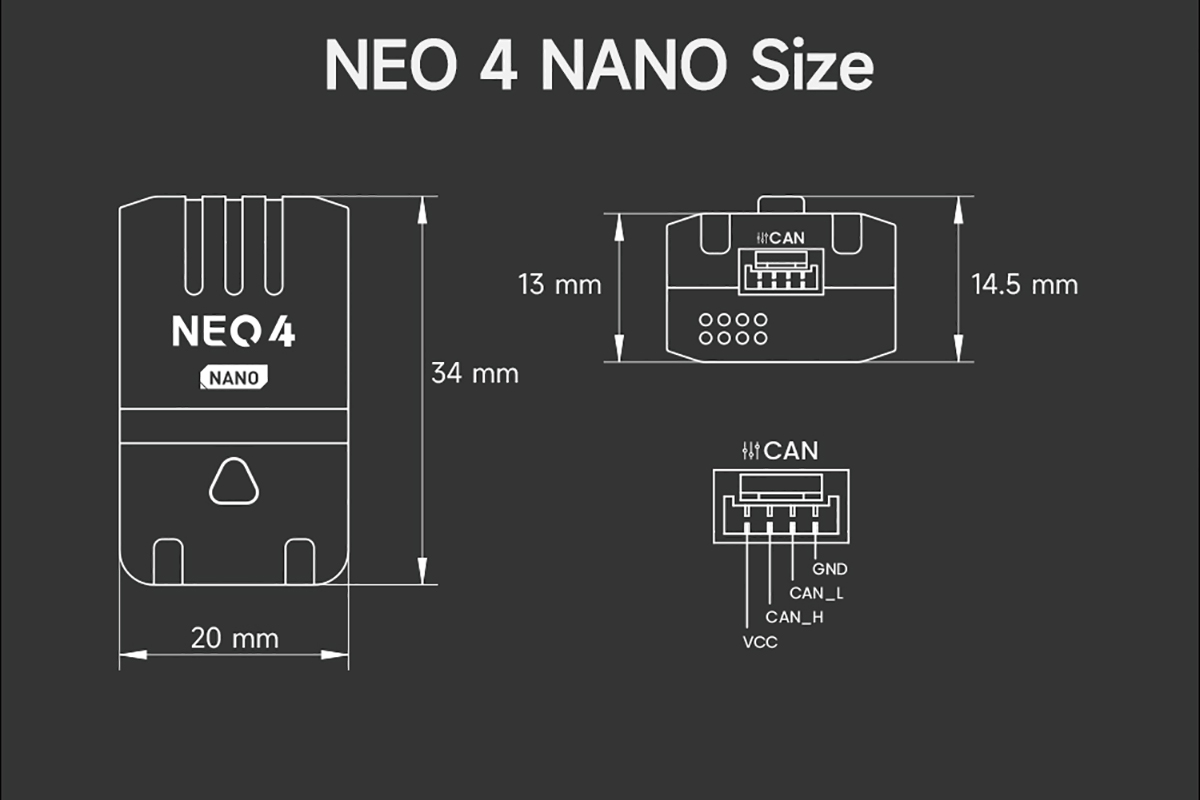

Size: 34×20×14.5mm
Weight: 10.6g
Input Voltage: 4.5 ~ 5.4V
Operating Temperature: -10 ~ +80℃
NEO 4 NANO x1
CAN Data Cable (Line length: 35cm) x1
3M Double-Sided Tape x1
