CUAV Pixhawk V6X Autopilot Flight Controller with NEO 3 GPS GPS for FPV RC Drone Quadcopter
H7 Double-precision floating-point processor
High-performance ARM M3 coprocessor
Low noise Car-grade IMUs
Triple redundant IMUs and dual redundant barometer designs
Car-grade RM3100 magnetic compass
New built-in shock absorption design
Main Specification
Hardware Standard: Pixhawk FMUv6x Standard; DS-010 Pixhawk AutoPilot Bus Standard; DS-012 Pixhawk AutoPilot V6X Standard
Processor: STM32H753IIK6; 32-bit Arm® Cortex®-M7 480MHz MCUs, 2MB Flash,1MB RAM
Coprocessor: STM32F10X
Accelerometer&Gyroscope: ICM42688-P; ICM-20649; BMI088
Compass: RM3100
Barometer: 2×ICP-20100
Interfaces
PWM I/O: 16
Power: 4 2 for UAVCAN，2 for SMBUS （I2C)
GPS: 2 1 GPS port with I2C and safety switch (GPS1) 1 interface with I2C and GPS (GPS2)
TELEM: 3
CAN: 2
PPM RC: 1, Dedicated R/C input for PPM
SBUS/DSM/RSSI: 1 Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
SBUS outs: 1
FMU Debug: 1
IO Debug : 1
Ethernet: 1
SPI EXTERNAL1: 1 (SPI6 interface，for expanding external sensors)
ADIO: 1 AD3.3/ADC6.6
UART4: 1
USB : 2 1 for Type C 1 for GH interface USB
TF Slot: 1
Physical characteristics
Operating voltage: 4.75~5.45V
Servo input voltage: 0~9.9V
Operating temperature: -20~85
Size: 45×90×29.2mm
Weight: 99g Core：43g Baseboard:56g

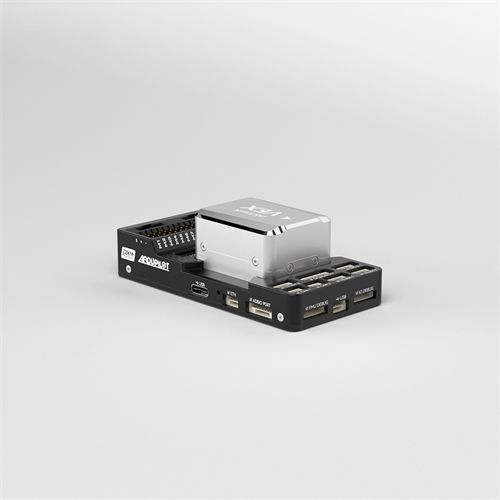

Pixhawk V6X Autopilot Flight Controller x1

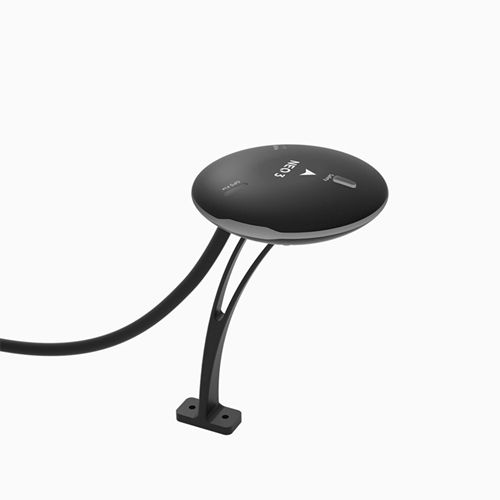

NEO 3 GPS x1
