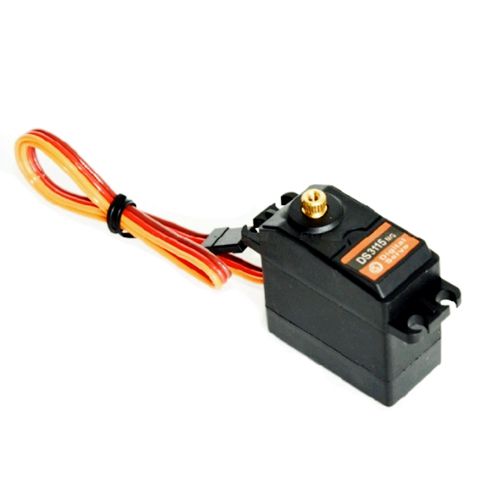

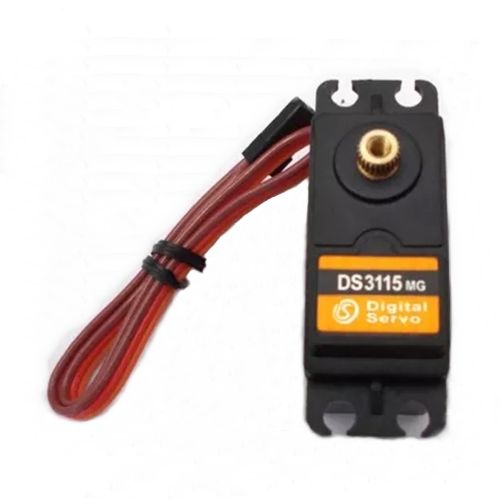

DS3115MG 270°Metal Gear High Torque 15KG Digital Servo For RC Car Mechanical Arm Robot RC Model Parts

SKU DS3115MG Category Tags , Brand:

DS3115MG 270°Metal Gear High Torque 15KG Digital Servo For RC Car Mechanical Arm Robot RC Model Parts

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

Fast Heat Dissipation, High Torque, Strong Compatibility And Sensitive Response
High Performance Programmable Digital Standard Steering Gear Can Be Widely Used In Robots, Mechanical Arms,  Remote Control Toys.

Maximum PW: 500-2500μs
Dead Zone: 3μs
Working Voltage: DC 4.8-7.2V
Operating Speed: (4.8V) 0.16 sec/60°
Operating Speed: (6.8V) 0.14 sec/60°
Operating Speed: (7.2V) 0.13 sec/60°
Stall Torque: (4.8V) 13.5 kg.cm
Stall Torque: (6.8V) 15 kg.cm
Stall Torque: (7.2V) 17 kg.cm

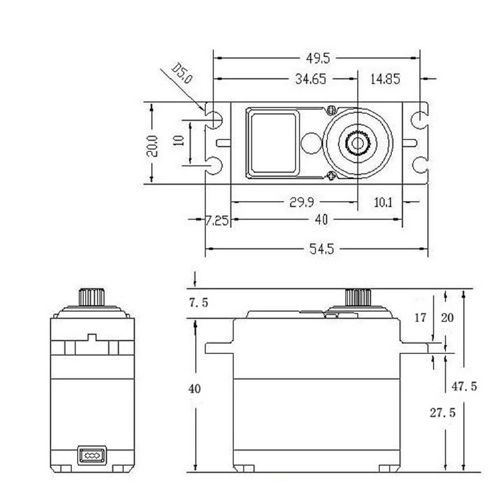

Dimensions: 40X20X40.5mm
Motor Type: DC Motor
Gear Type: Metal Gear
Line Length: 30cm
Weight: 65g
Gear: 25T

DS3115MG 270° 15KG Digital Servo x1

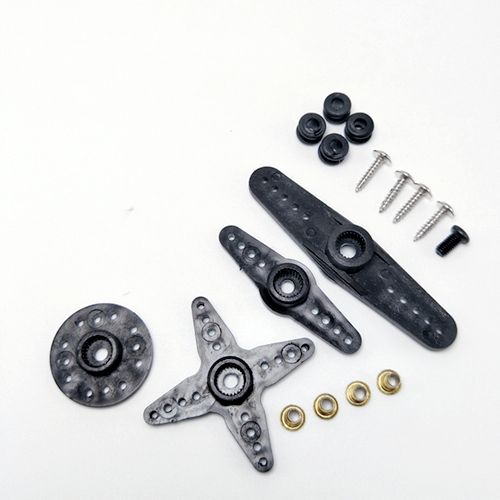

Accessory Package x1
