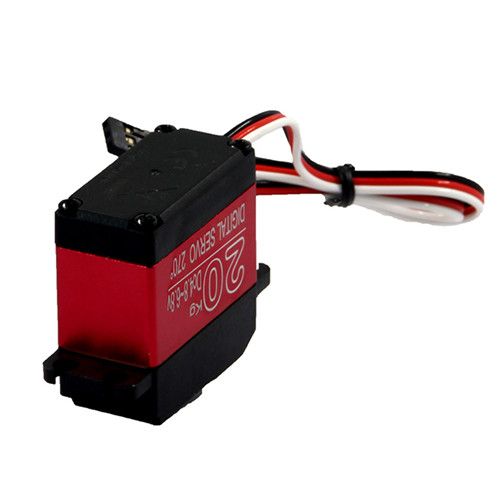

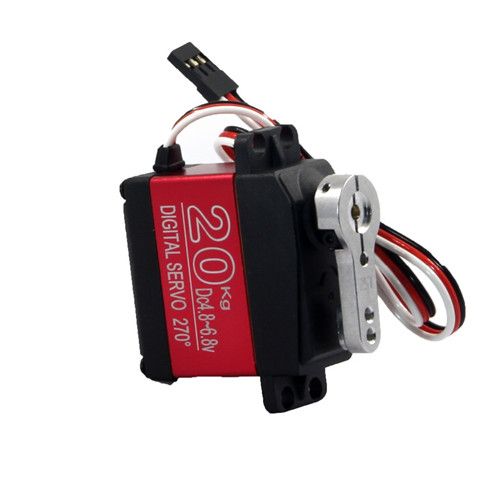

DS3218MG 270° 20KG High voltage 5V-6.8V Large Torque Digital Servo metal shell Waterproof servo
DS3218MG 270° 20KG High voltage 5V-6.8V Large Torque Digital Servo metal shell Waterproof servo
High performance programmable digital standard servo, can be common use in robots, mechanical arms, climbing cars and remote control toys.
The main features are fast heat dissipation,big torque high compatibility ,sensitive and responsive ect.
Good choice for university professors and students who are interested in developing software for robot parts.HV
– High-precision metal gears with hard anodizing
– CNC aluminium middle Shell,
– water proof rubber seals screws
Brand: DSSERVO
Item: DS3218MG
Stall Torque (5V): 19 kg/cm (263.8oz/in)
Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
Dead band: 3μs
Speed : 0.16 sec/60°(5V) / 0.14 sec/60°(6.8V)
Operating Voltage: 4.8 ~ 6.8 DC Volts
Weight: 60 g (2.12 oz)
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working frequence: 1520μs / 333hz
CE Certification: Yes

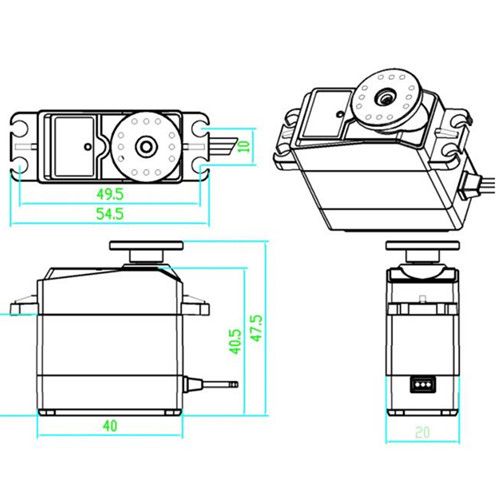

Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
DS3218MG Digital Servo x1
25T Servo Arm x1
