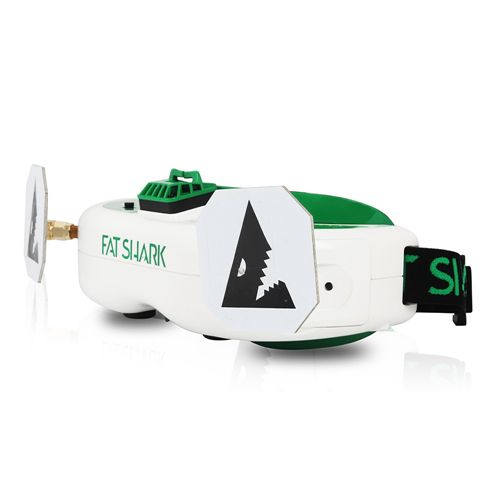

FatShark Attitude V6 FPV Goggles 1280×960 OLED Display 39 Degree Field Video Headset








FatShark Attitude V6 FPV Goggles 1280×960 OLED Display 39 Degree Field Video Headset
The new Fat Shark Attitude V6 focuses on high definition with 1280 x 960 LCOS panels and adjustable diopters. In addition to the 39-degree field of view, the Attitude V6 has a selectable image ratio, an expanded display control menu, and a configurable power button. The Attitude V6 ships with analog diversity receivers and is fully compatible with the Shark Byte HD module future-proofing your FPV experience!
Optics:
– FOV (field of view): 39 degrees diagonal
– IPD (interpupillary distance): 54 to 74 mm (adjustable)
– Focus: +2 to -6 diopters (adjustable)
Display:
– Two citizen 0.4” LCOS displays
– Resolution 1280 X 960
– NTCS/PAL auto selecting
– AV Mode 4:3
– AV Mode 16:9
– HDMI Mode 16:9
Audio:Stereo

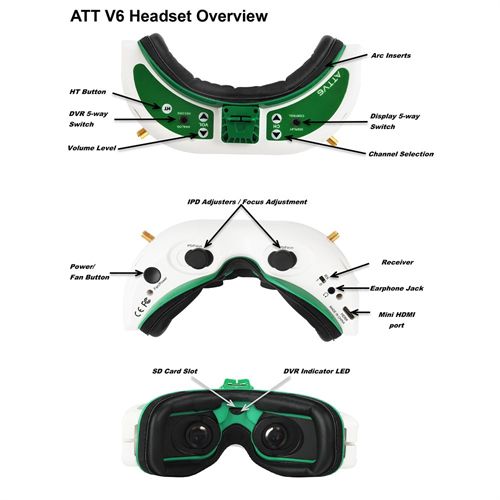

User Controls:
– Channel Selection
– Volume Control
– Mode Selection
– Display Control (Brightness and Contrast)
– DVR Control
– Power Button / Fan Control
Electrical:
– Power Supply: 7 – 13V input voltage (2S – 3S Supply)
– Power Consumption: 320mA @ 7.5V input power (no RX module)
– 770mA @ 7.5V input power (Rapid Fire)
Analog DVR:
– MicroSD support to 32 GB
– Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
– File playback (native recording, no codec support)
– Upgradeable via SD card
Battery: 7.4V, 1.8A 18650 Battery Case
Interface:
– 3.5mm AV in/out port
– Power input port
– 3.5mm 3p earphone port
– MicroSD
– RF Module Bay
– HT connector 3 pin internal connection
– Power Button
Mechanical:
– Ergonomic molded headset w/ adjustable headband
– Dimensions: 169.2 x 80 x 45.5 mm
– Weight: 199g

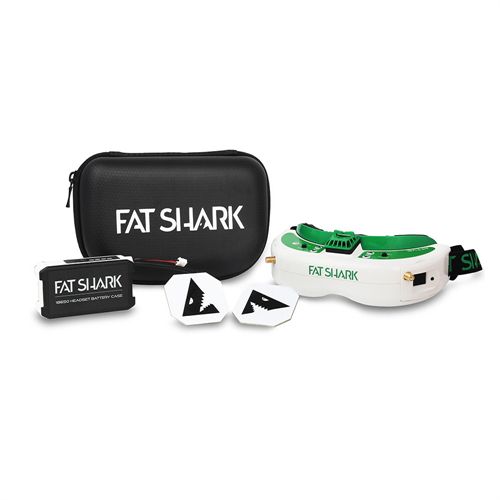

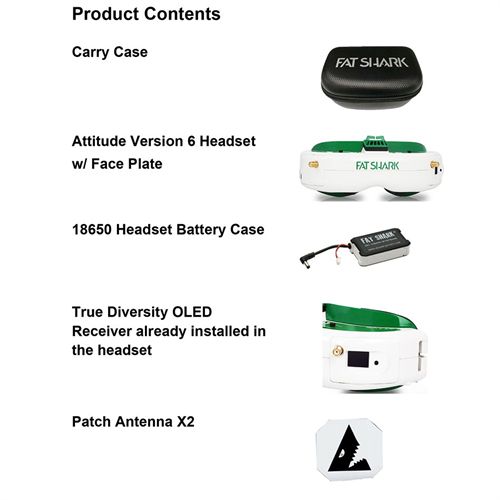

Carry Case x1
Attitude Version 6 Headset w/Face Plate x1
18650 Headset Battery Case x1
True Diversity OLED Receiver already installed inthe headset x1
Patch Antenna x2
