Model：FT-450B-C001
Product Name: 24V 450KG 180 Degree Servo
Storage Temperature Range：-40℃～80℃
运行温度 Operating Temperature Range：-40℃～60℃

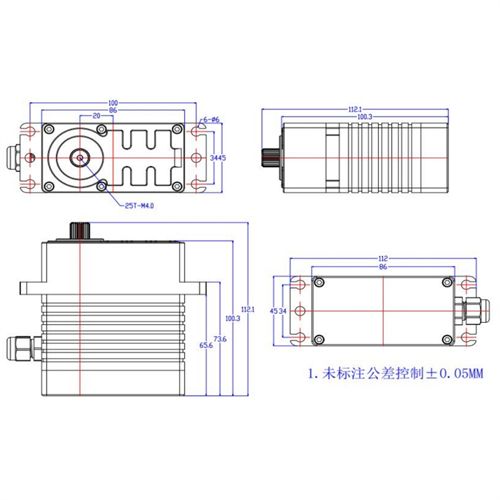

Size：A：86mm B：45mm C: 100.3mm
Weight：850g±5g
Gear type：Steel
Limit angle：NO limit
Bearing：Ball bearings
Horn gear spline：25T(11.8mm)
Gear Ratio：1/252
Case：Aluminum
Connector wire：43±1CM
Motor：Brushless Motor
Operating Voltage Range：16-28V
Idle current (atstopped)：35mA@24V
No load speed：0.285sec/60°(35RPM)@24V
Runnig current(at no load)：360mA@24V
Peak stall torque：450kg.cm@ 24V
Rated torque：150kg.cm@24V
Stall current：10.8A@24V
Command si gnal：Pulse width modulation
Control System Type：Digital comparator
Pulse width range：500~2500 μ sec
Stop position：1500 μ sec
Running degree：180±5°(at 500→2500μsec)
Dead band width：≤4 μ sec
Rotating direction：Clockwise(at 1500→2000μsec)
