Model：FT-9200-C001
Product Name: 12V 200KG 180 Degree  Servo
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

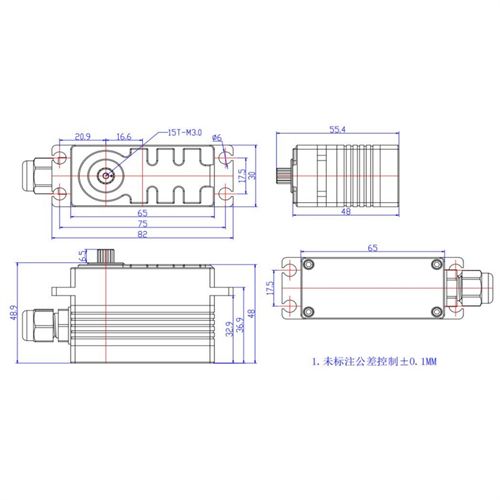

Size: A：65mm B：30mm C: 48mm
Weight: 250g± 5g
Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 15T/7.6mm
Gear Ratio: 1/399
Case: Alumi num
Connector wire: 47±2CM
Motor: Brushless Motor
Operating Voltage Range: 9-12.6V
Idle current (atstopped): 40MA@12V
No load speed: 0.25sec/60°(40RPM)@12V
Runnig current(at no load) : 320mA@12V
Peak stall torque: 200kg.cm@ 12V
Rated torque: 66.6kg.cm@12V
Stall current: 10.2A@12V
Command si gnal: Pulse width modulation
Control System Type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180±5°(at 500→2500μsec)
Dead band width: ≤4 μ sec
Rotating direction: Counterclockwi se (at 500→2500 μ sec)
Electronic Protection：Stall 8sec
