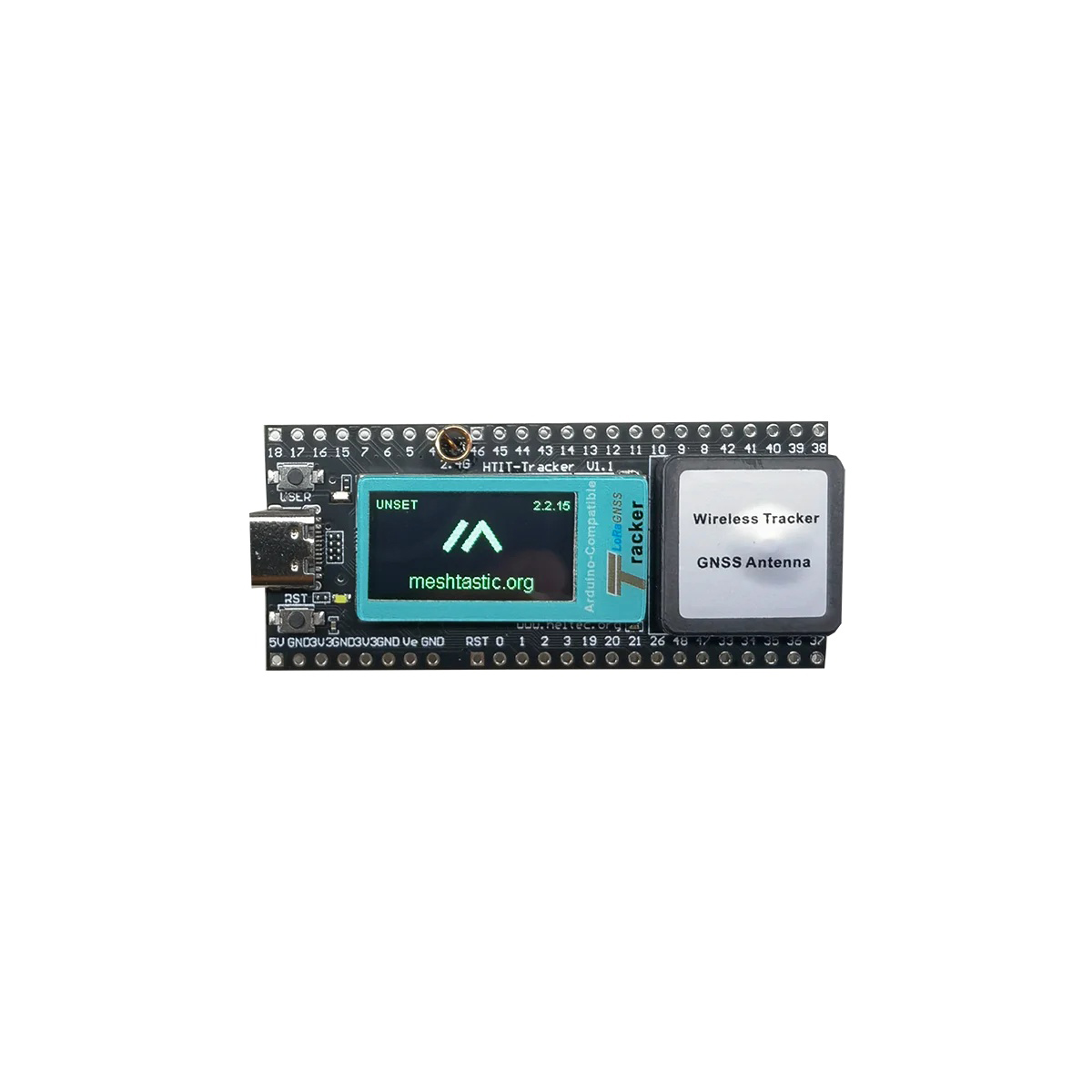

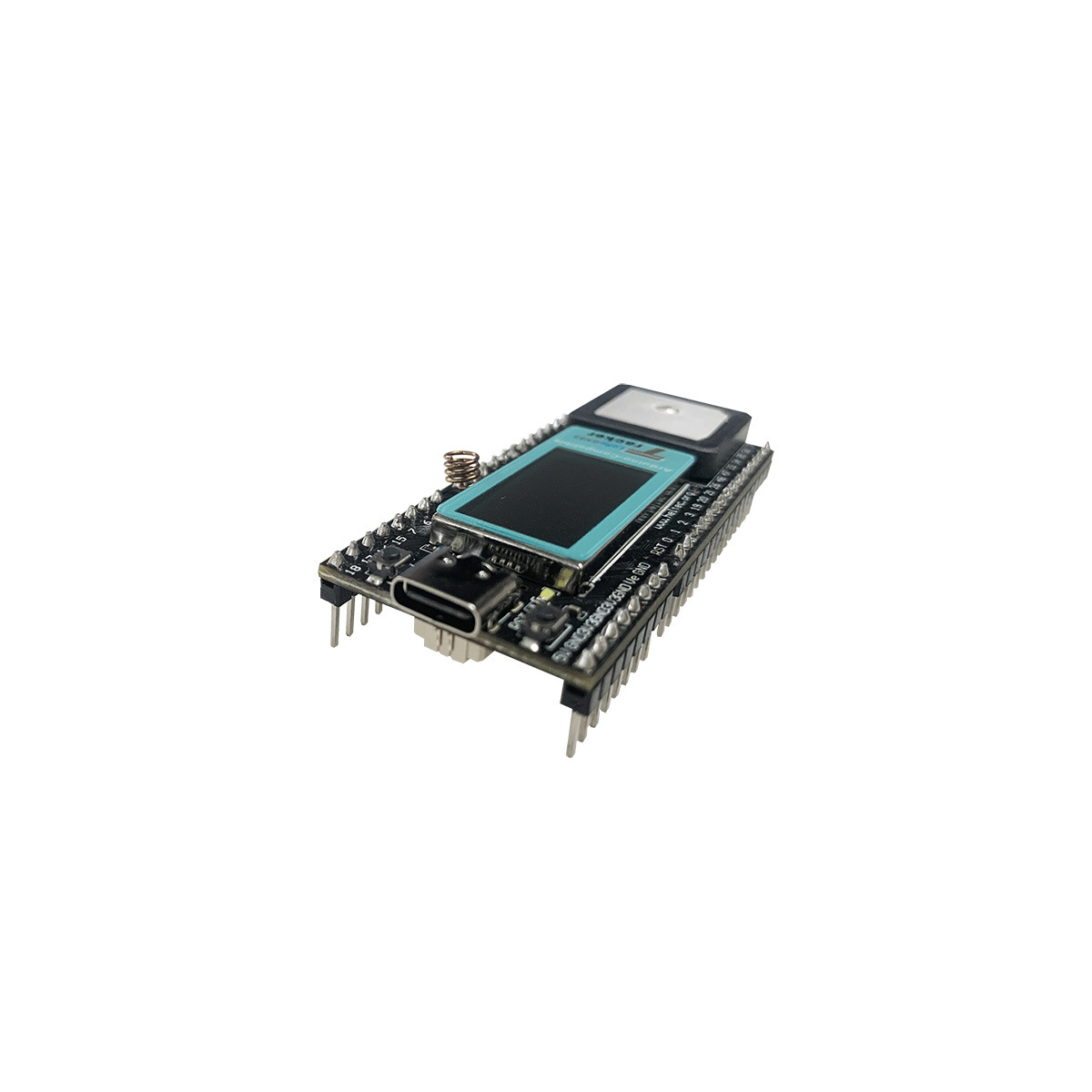

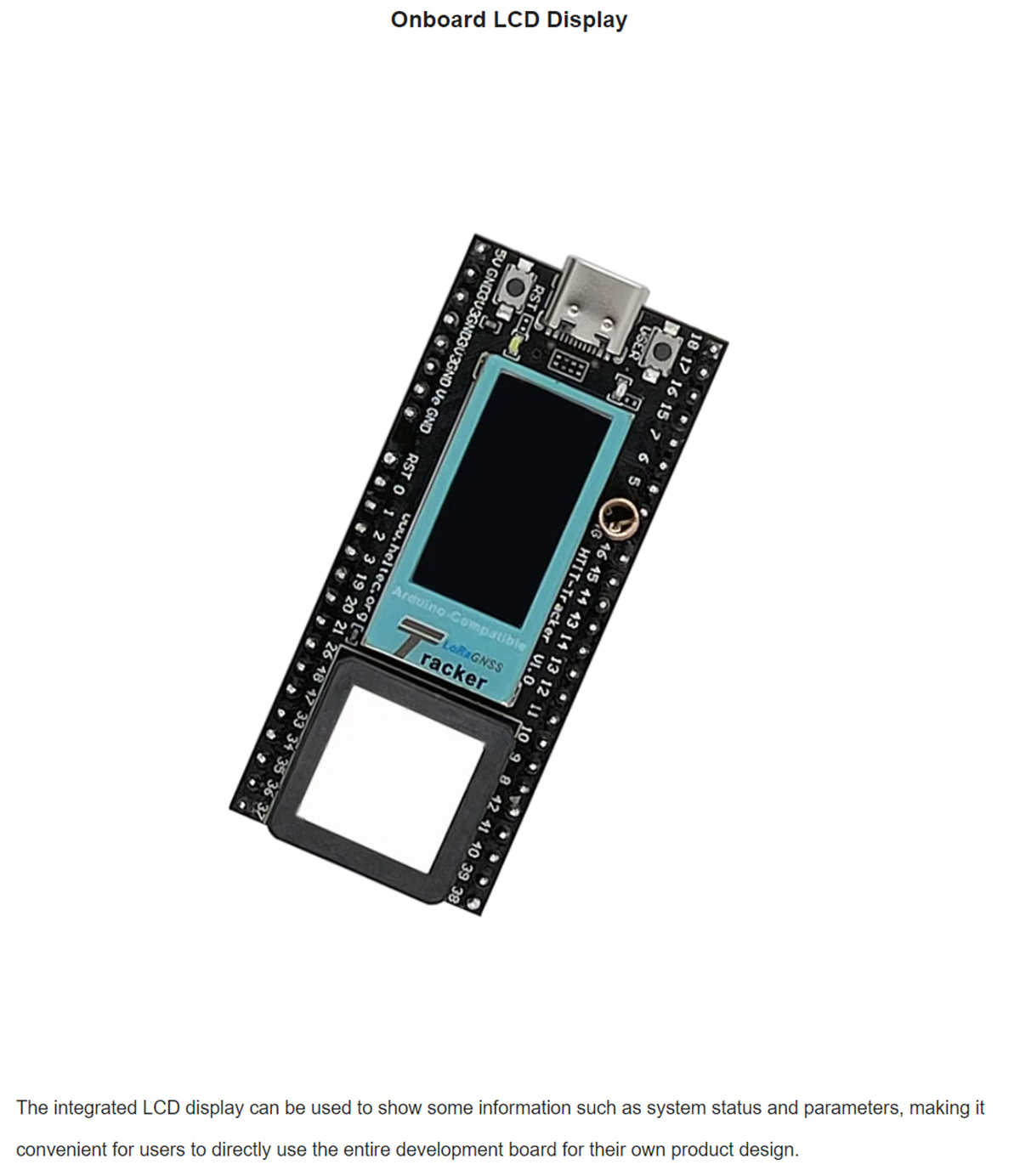

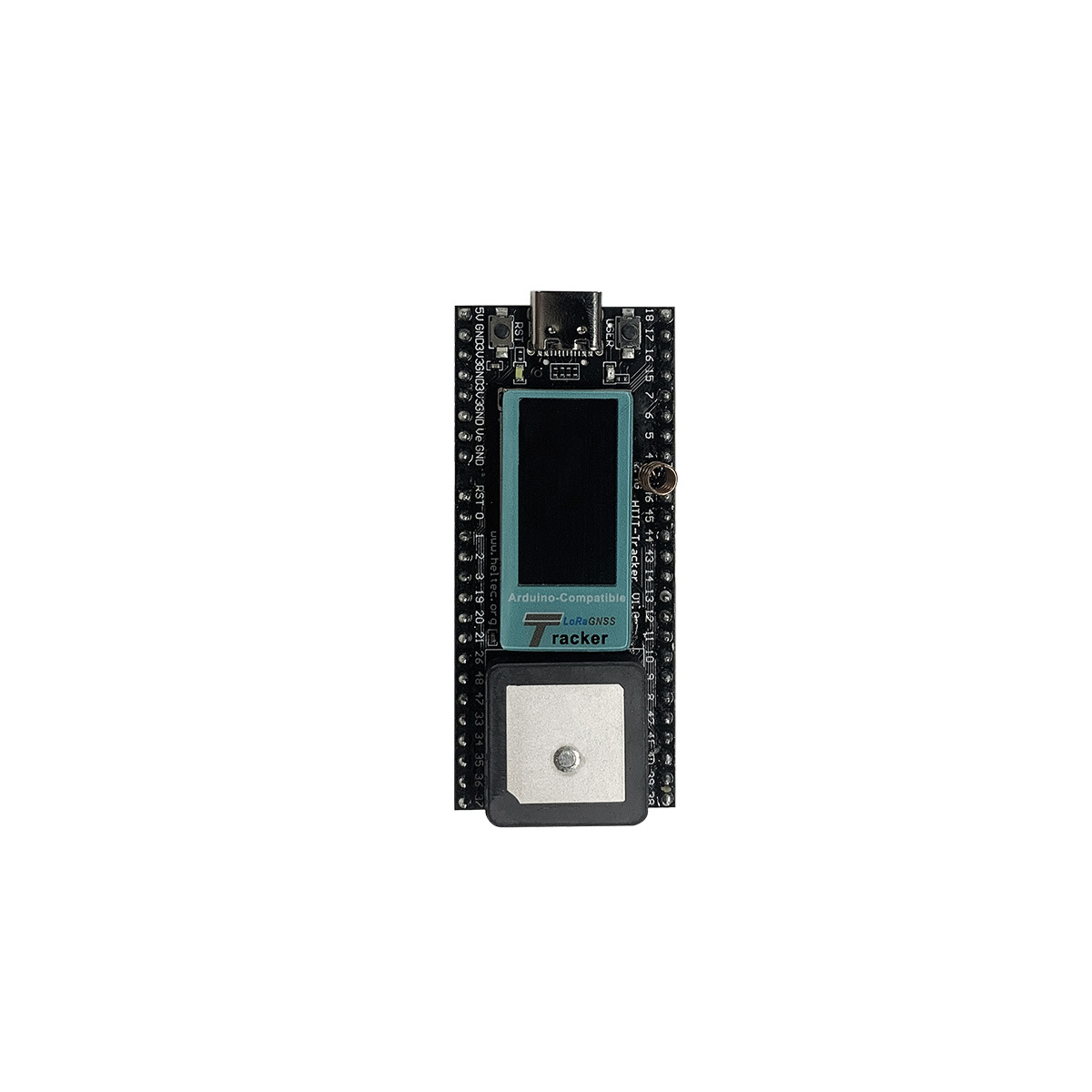

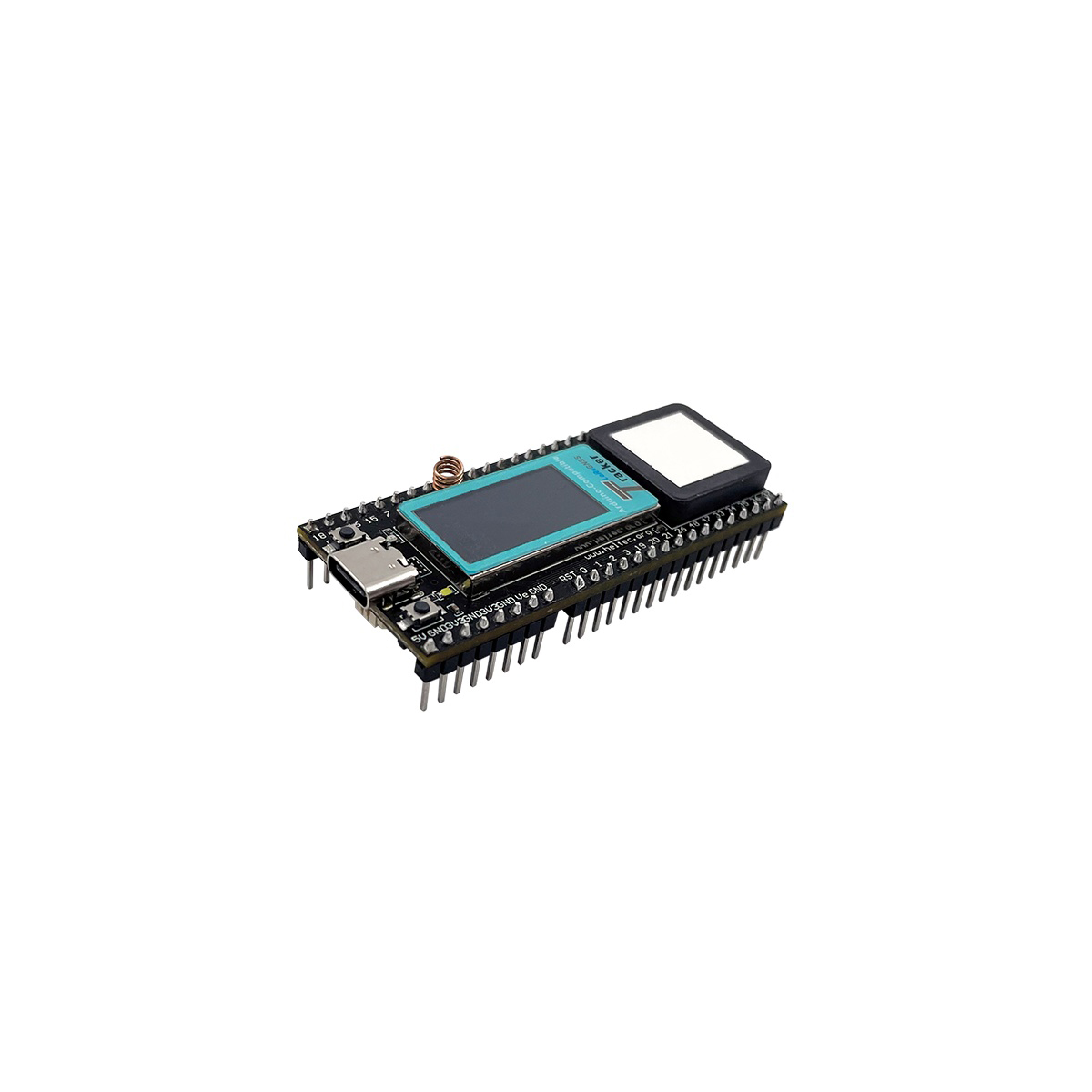

Heltec Wireless Tracker ESP32-S3 SX1262 Development Board for Arduino Meshtastic IoT LoRa WAN
Heltec Wireless Tracker ESP32-S3 SX1262 Development Board for Arduino Meshtastic IoT LoRa WAN

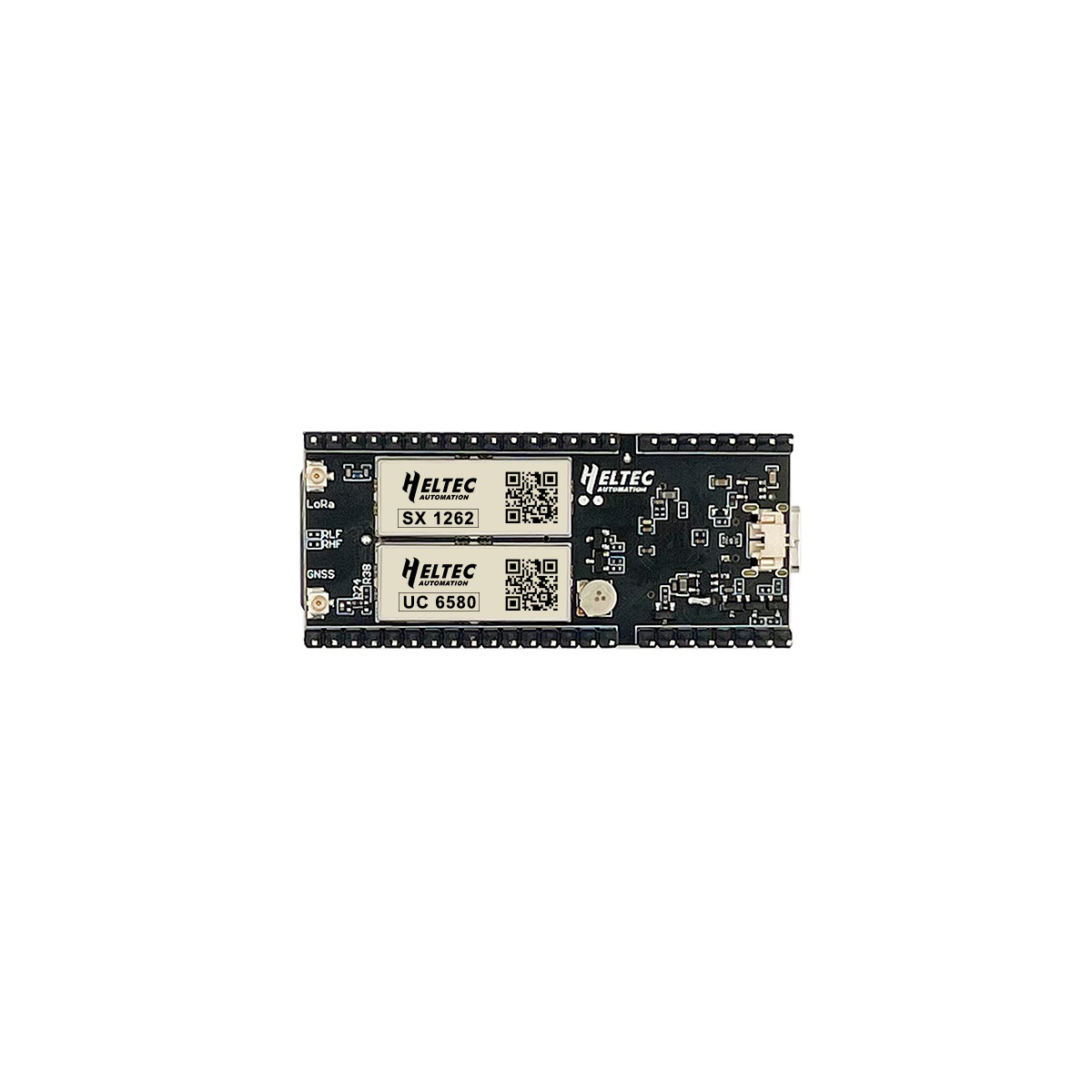

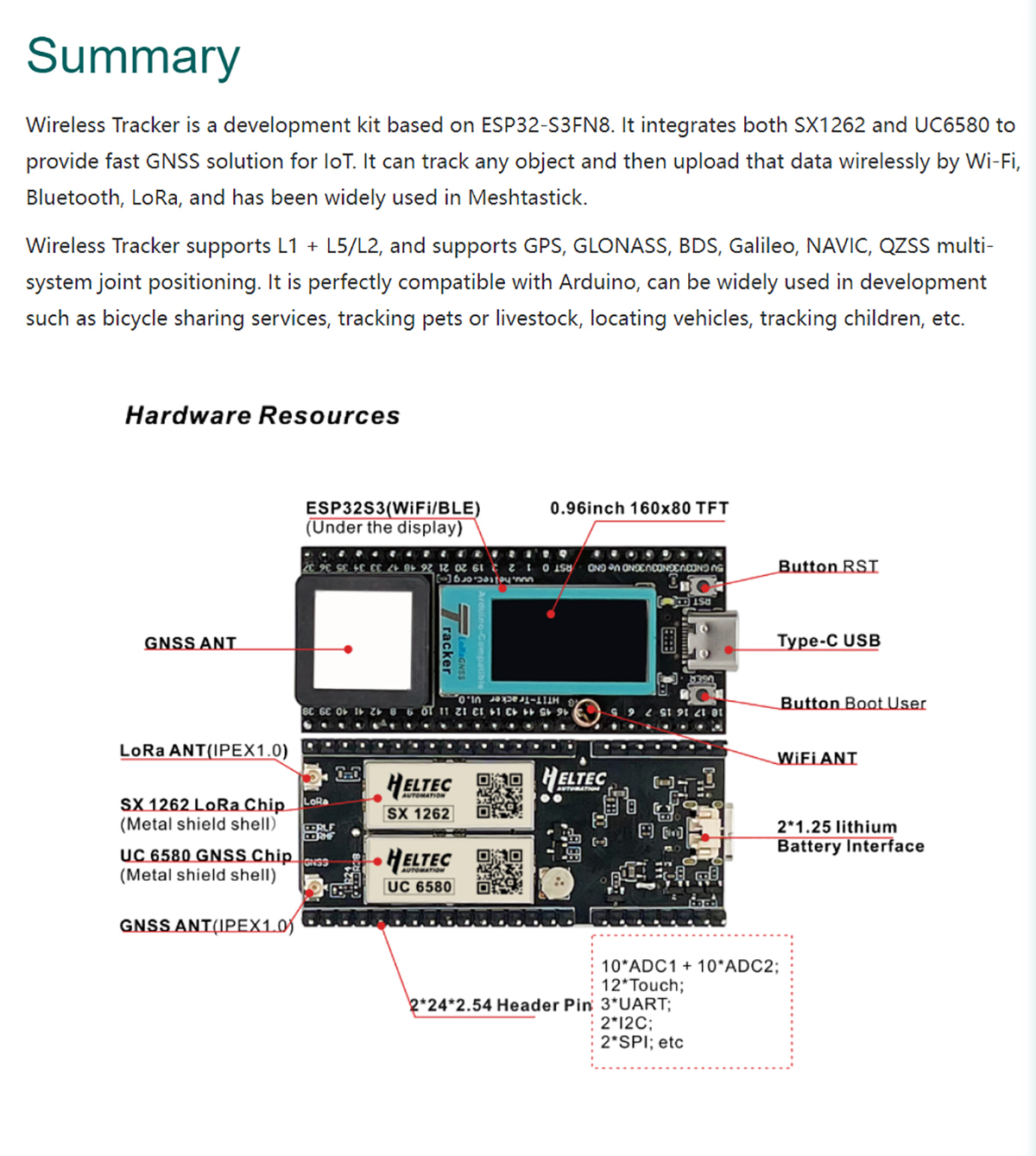

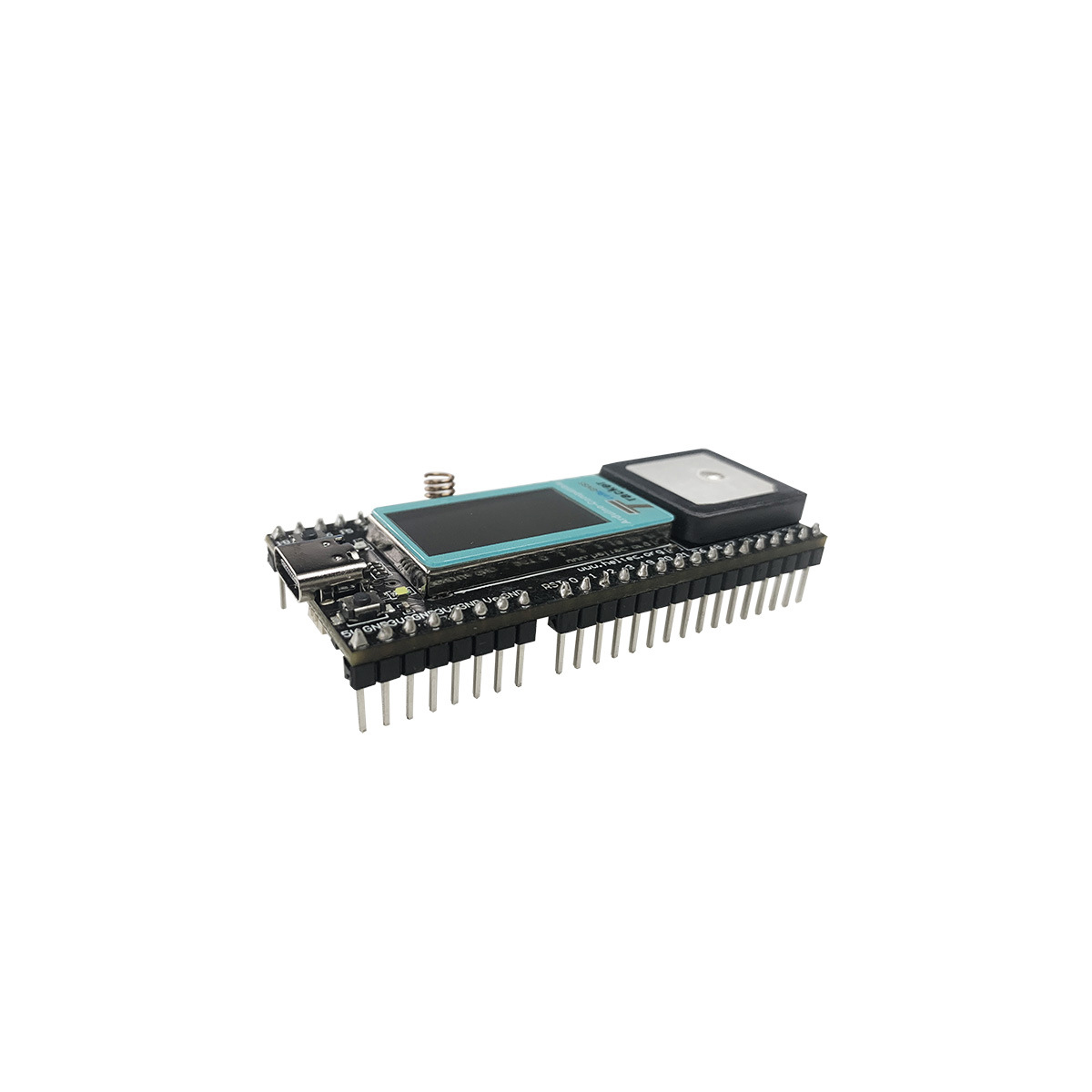

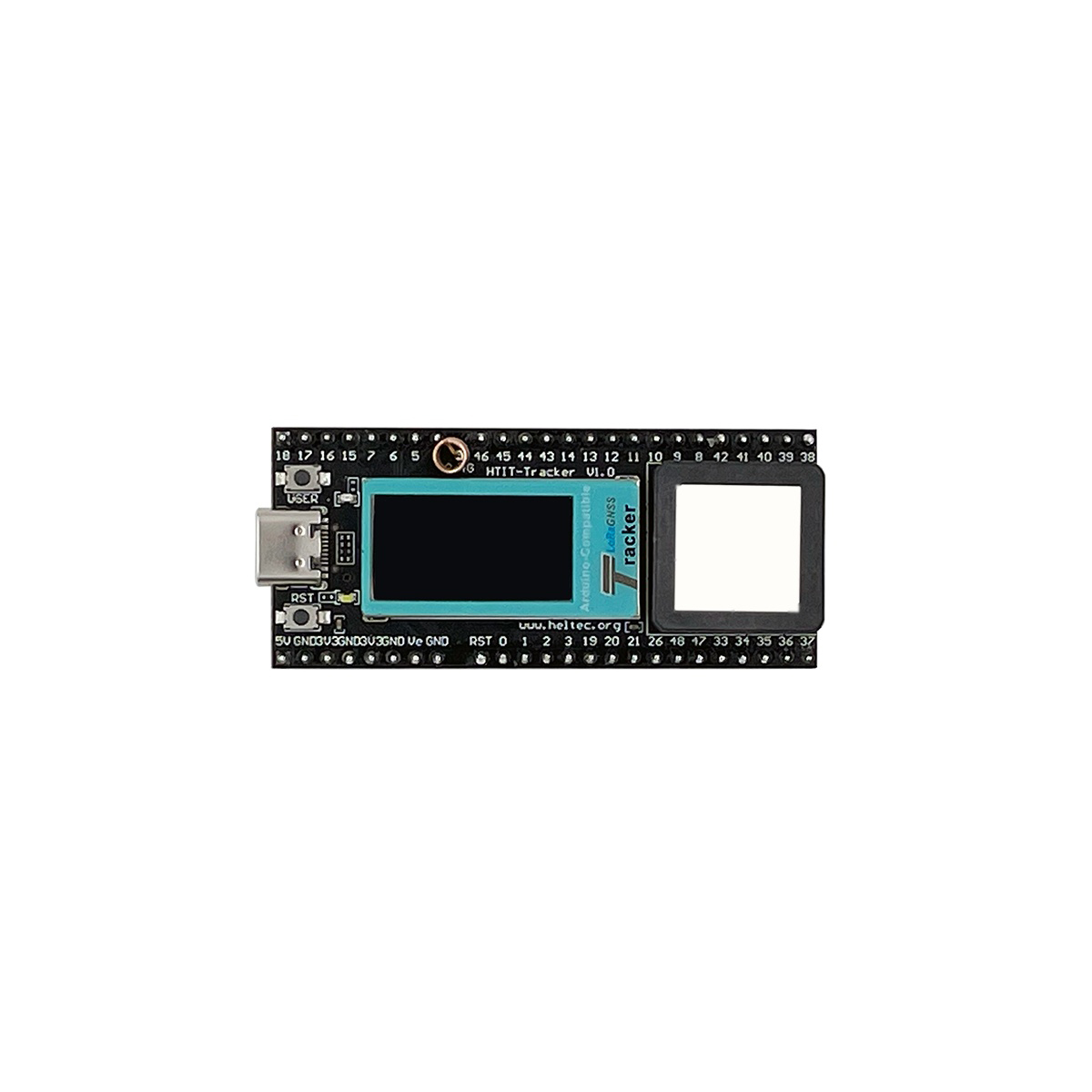

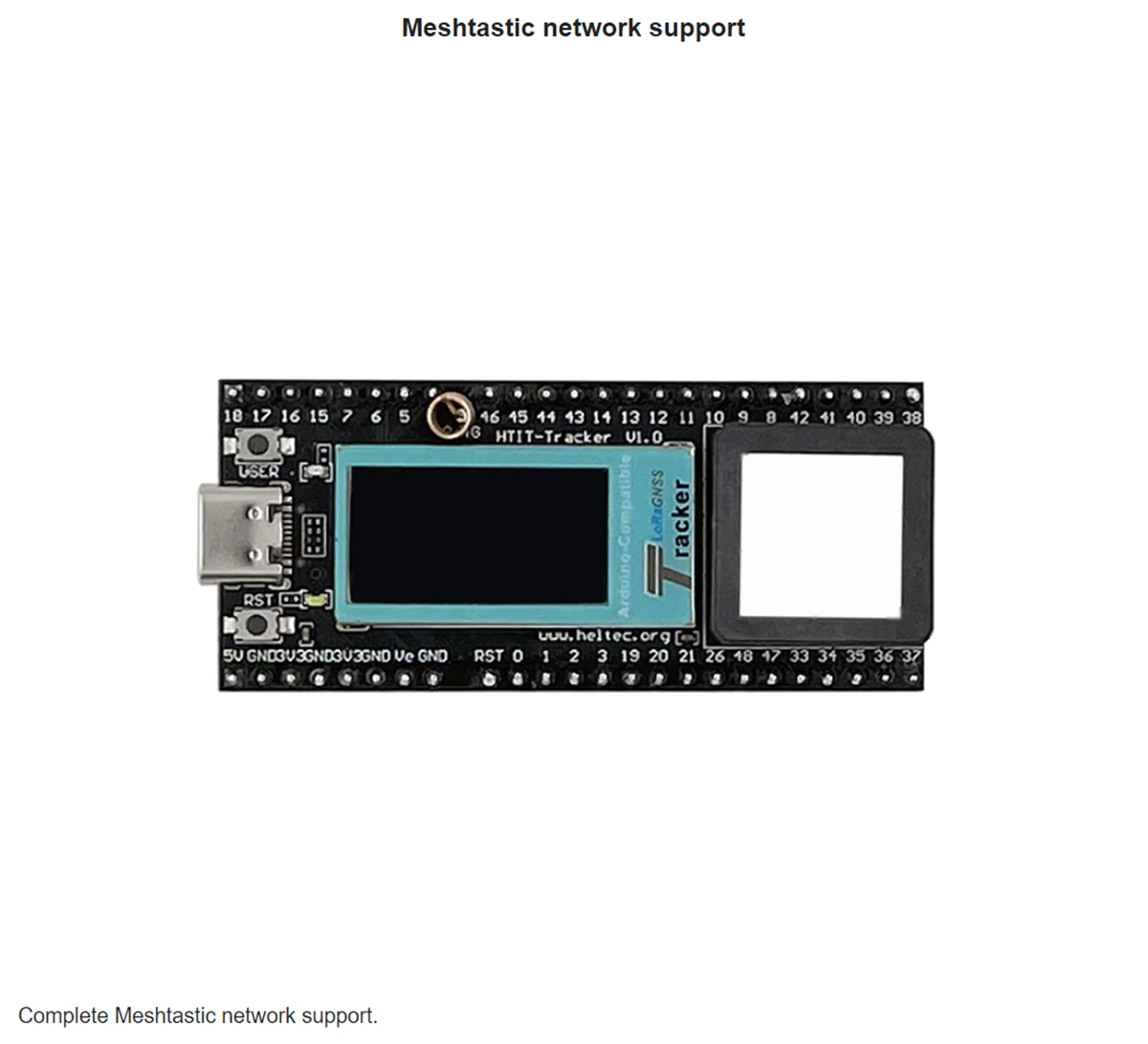

Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, LoRa, and has been widely used in Meshtastick.

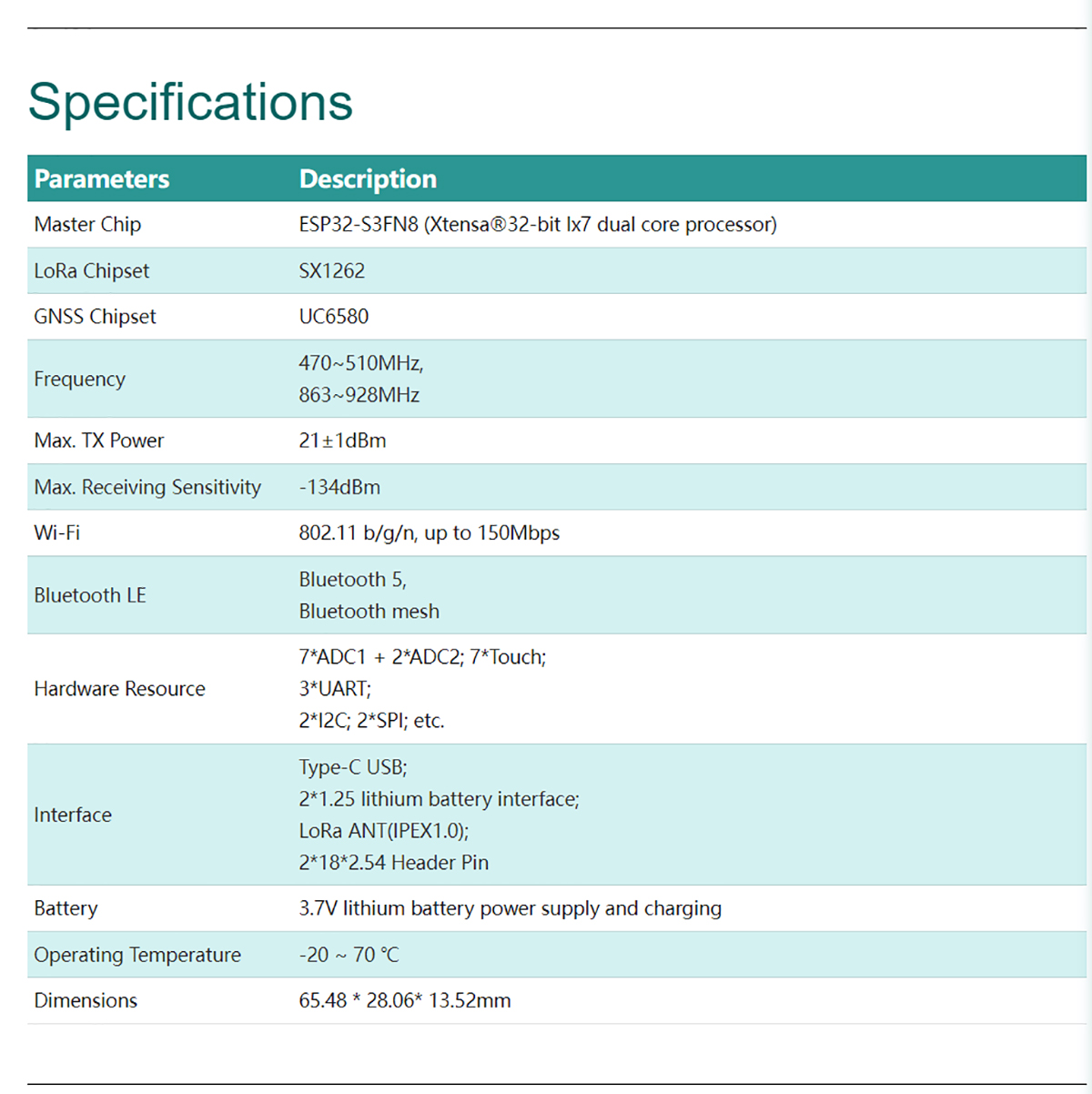

Model: Wireless Tracker
Master Chip: ESP32-S3FN8 (Xtensa® 32-bit lx7 Dual Core Processor)
LoRa Chipset: SX1262

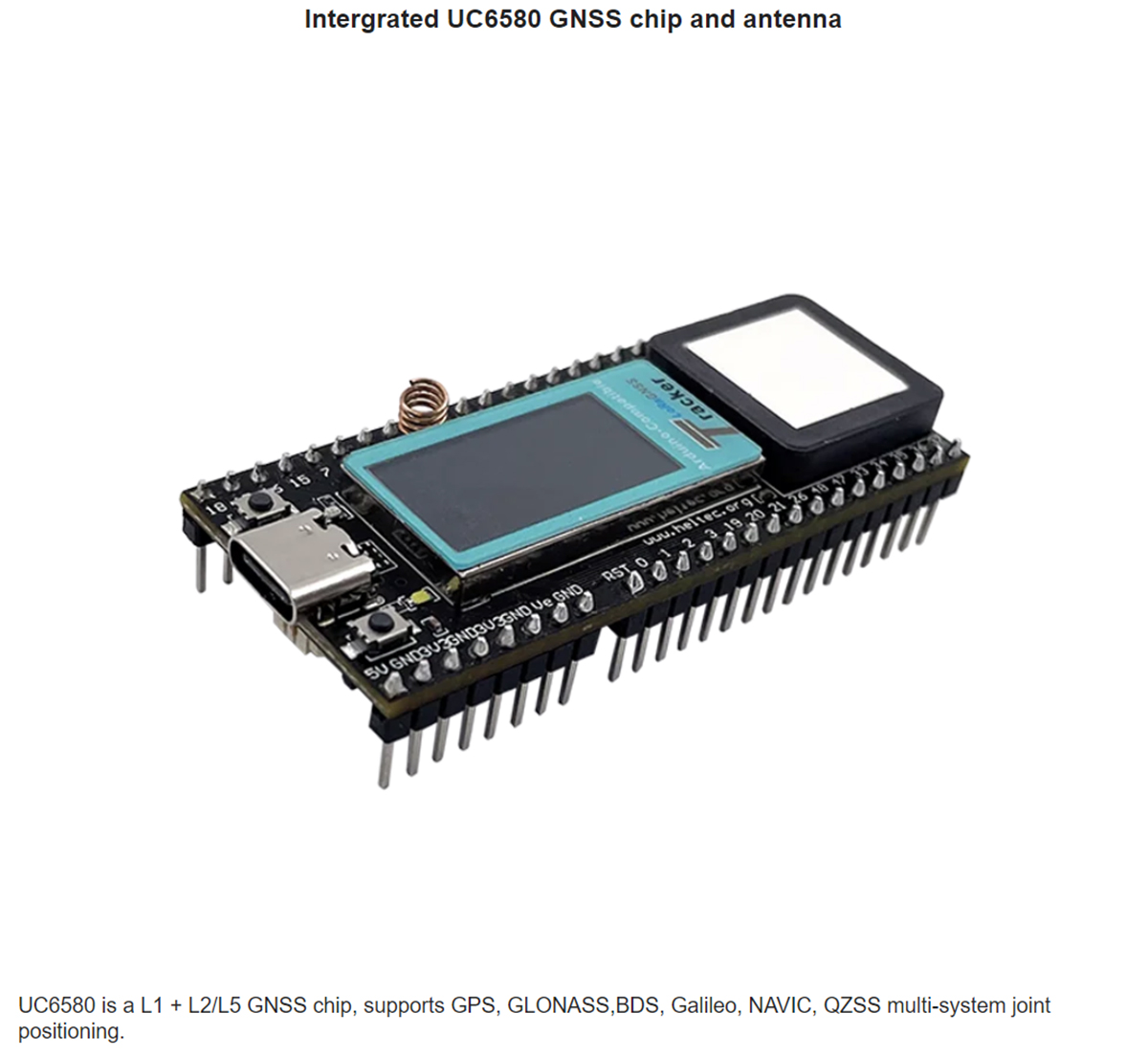

GNSS Chipset: UC6580
Frequency: 470~510MHz,863~928MHz
Max. TX Power: 21±1dBm
Max. Receiving Sensitivity: -134dBm
Wi-Fi: 802.11 b/g/n, up to 150Mbps

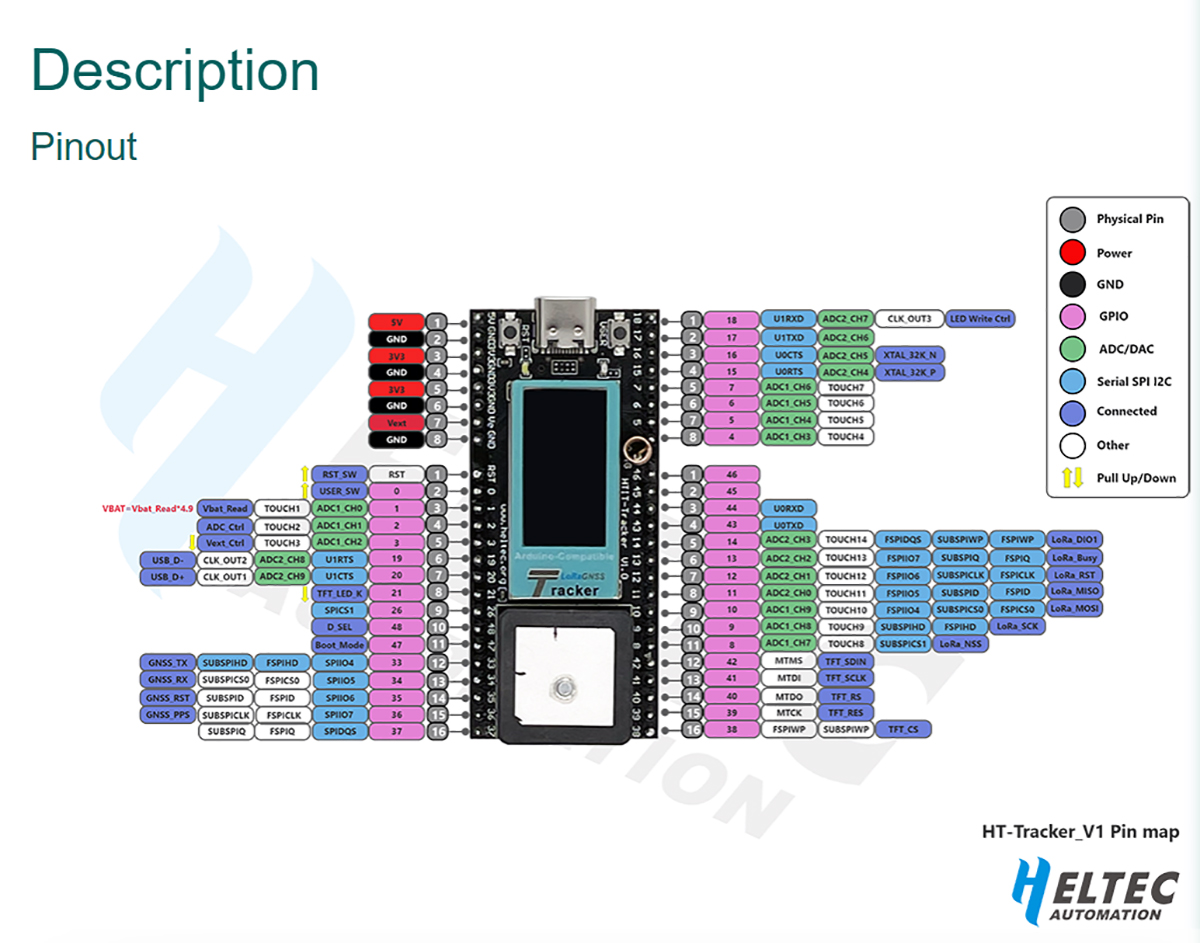

Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch;3*UART;2*I2C;2*SPI; etc.

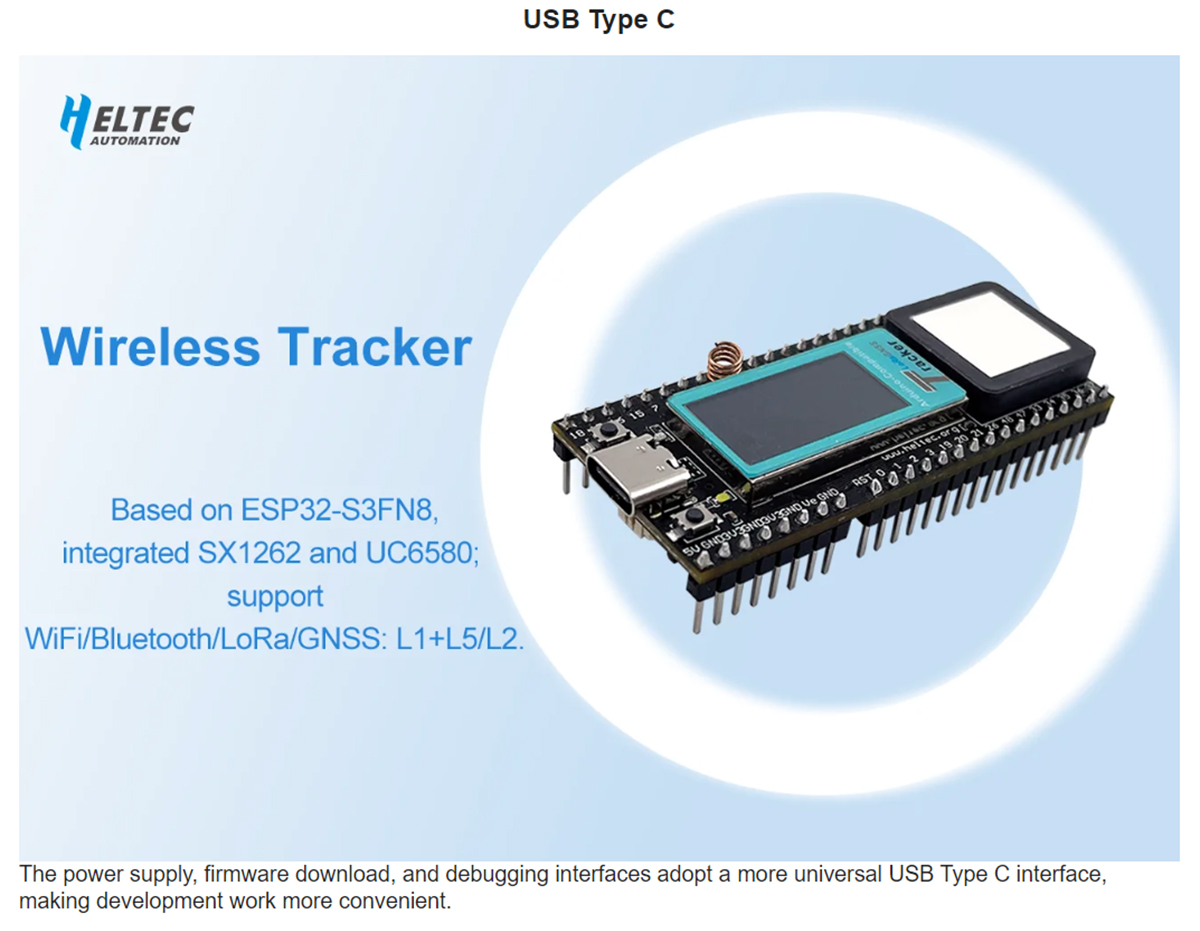

Interface: Type-C USB;2*1.25 lithium battery interface;LoRa ANT(IPEX1.0);2*18*2.54 Header Pin
Battery: 3.7V Lithium Battery Power Supply and Charging
Operating Temperature: -20 ~ 70 ℃
Dimensions: 65.48*28.06*13.52mm
Wireless Tracker x1
