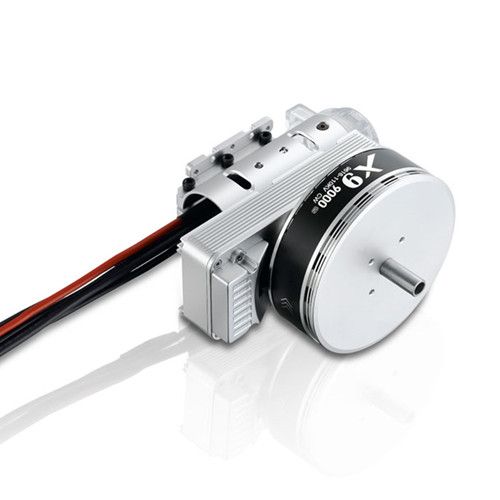

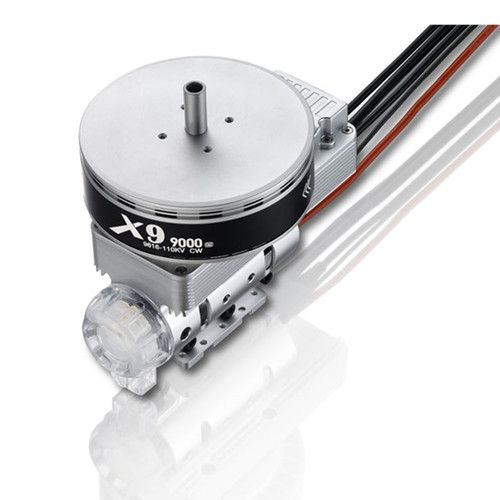

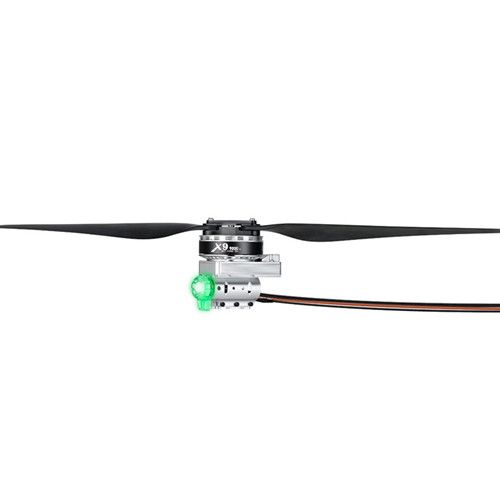

Hobbwing XRotor X9 Power System Combo ESC & Motor with Propeller for Agricultural Drones
Maximum pulling force: 21.5KG/axis
Recommended battery: 12S lipo
Recommended takeoff weight (single axis): 7.0-9.5KG
Weight (including propeller) 1450g
Dimensions: 151.2×133.3mm

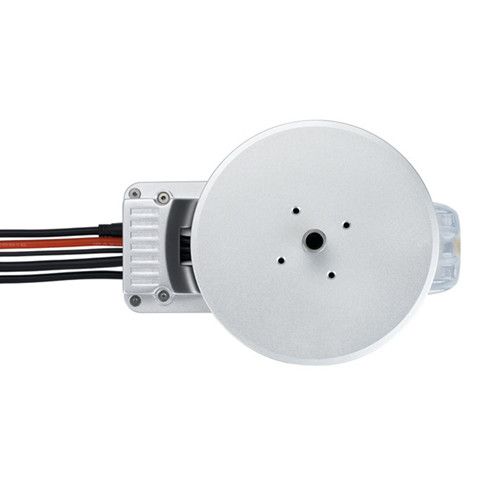

Motor
Stator size: 96x16mm
KV value: 105rpm/V
Internal resistance: 0.031OmegaBE
Maximum current: 100A
Motor outer diameter: Phi103.5mm
Paddle clamp installation size: Phi25mm-4xM3; Phi31mm-4xM3
Bearing: imported ball bearing (waterproof)
Applicable carbon tube outer diameter: 40mm
ESC
Model: X-rotor/120A-FOC
Battery: 6-12S lipo
PWM input signal level: 3.3V/5V
Working pulse width: 1100mus-1940mus (curing, calibration is not supported)
Maximum allowable voltage: 52.2V
Maximum allowable current (continuous): 120A
Maximum allowable peak current (3 seconds): 150A
BEC: none

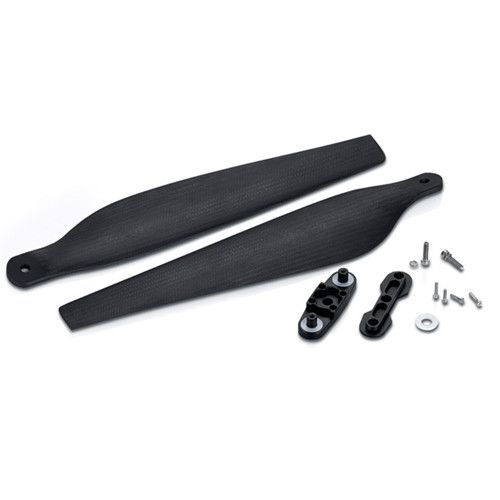

propeller
Diameter / pitch: 33.8×11 inch
Hobbwing XRotor X9 Power System Combo x1
