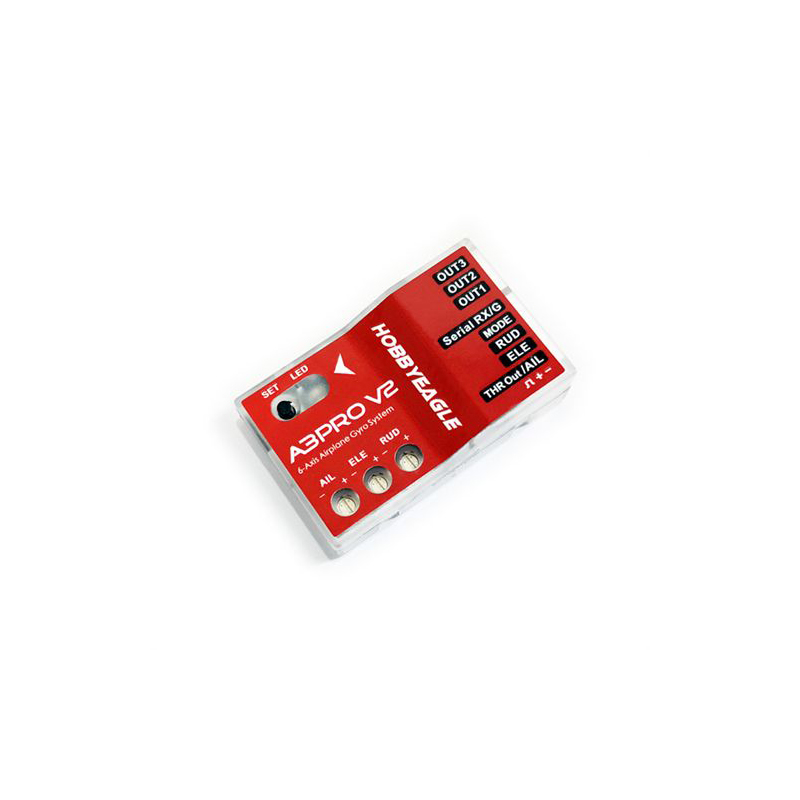

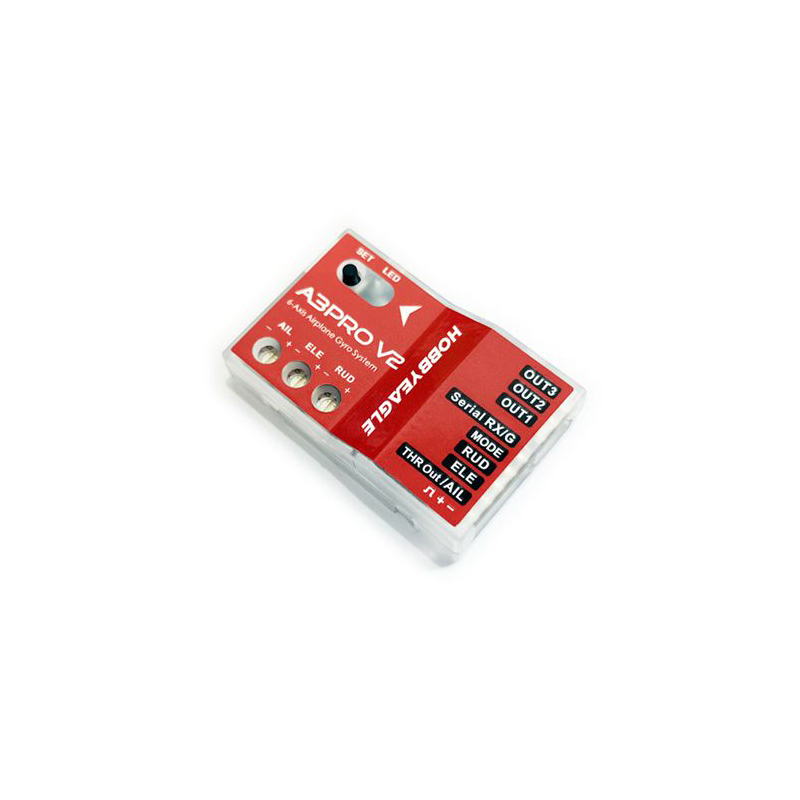

HobbyEagle A3 Pro V2 Flight Controller 6-axis Sensor Accelerometer Gyroscope For RC Airplanes Fixed-wing
HobbyEagle A3 Pro V2 Flight Controller 6-axis Sensor Accelerometer Gyroscope For RC Airplanes Fixed-wing
The new A3 Pro V2 is a high-performance and functional 6-axis gyro and stabilizer designed for R/C airplanes. With the advantage of multi-protocol serial receivers support, it allows you to simplify the connetcion of the receiver.
◆ Compatible with most standard PWM receivers, PPM and multi-protocol digital serial receivers.
◆ 32-bit MCU, high-precision 6-axis MEMS sensor, improved hardware platform and new firmware solution provide more reliable performance.
◆ 6 flight modes, including GYRO OFF mode, NORMAL mode, LOCK mode, ANGLE mode, LEVEL mode and HOVER mode.
◆ 3 wing types: standard fixed-wing, delta-wing(flying-wing), v-tail.
◆ Separated basic gain adjustment for Aileron, Elevator and Rudder.
◆ Remote master gain supported.
◆ Firmware upgradable (an optional data cable is required).
Serial Receiver Protocols Supported:
◆ PPM Receiver
◆ Futaba S.Bus (compatible with FrSky SBUS, RadioLink SBUS and WFLY WBUS)
◆ Spektrum DSM/DSMX 1024 Satellite Receiver
◆ Spektrum DSM/DSMX 2048 Satellite Receiver
◆ Spektrum SRXL
◆ Multiplex SRXL / JR XBUS Mode B
◆ Graupner SUMD
◆ FlySky iBus
Main Controller : 32-bit MCU
Sensor : High-precision MEMS 6-axis sensor
Gyroscope Scale Range : ±2000 dps
Accelerometer Scale Range : ±4g
PWM Outpu t: 920uS to 2120uS with 1520uS center length, 50Hz to 333Hz
Input Voltage : 4.8V to 8.4V
Operating Temperature : -10 ℃ to 50 ℃
Size : 43x27x14mm
Weight : 10g (excluding wires)

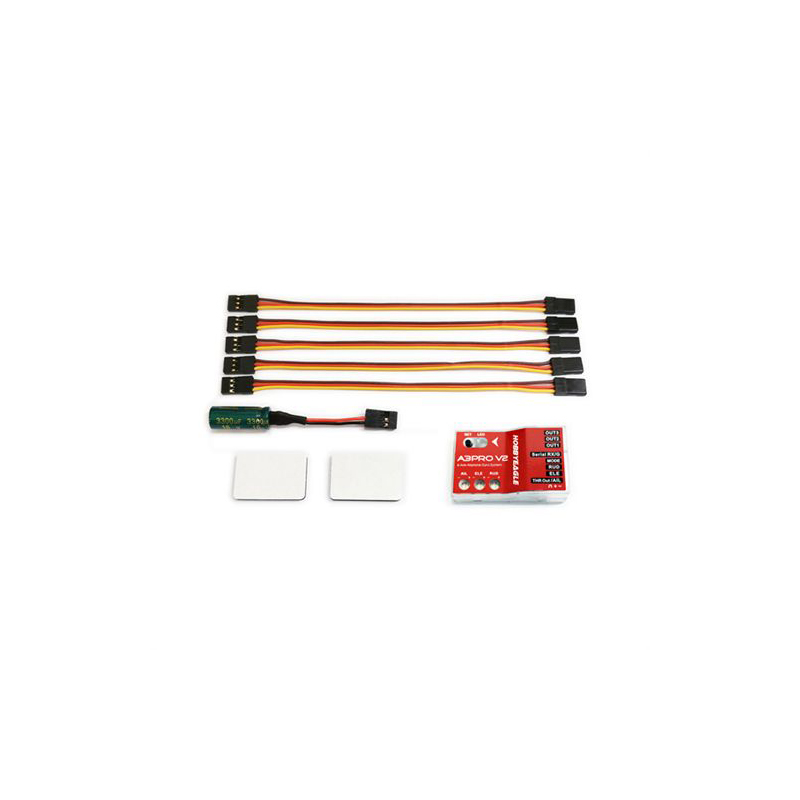

1 x A3 Pro V2 Main Controller
4 x Receiver Cable
1 x Adapter
2 x Double-sided Tapes
