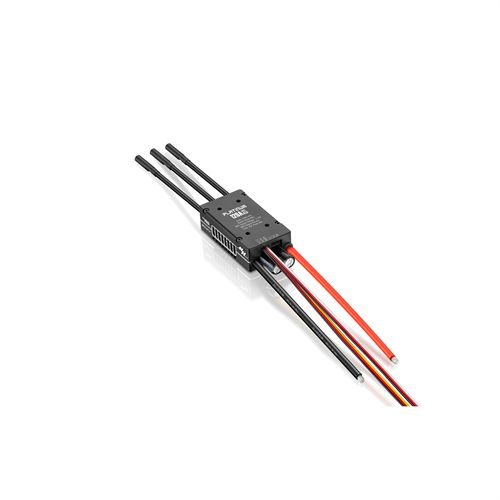

Hobbywing Platinum 120A V5 VBar Telemetry Ready Brushless ESC for RC Drone Aircraft Helicopter

SKU PL-120-V5 Category Tags , Brand:

Hobbywing Platinum 120A V5 VBar Telemetry Ready Brushless ESC for RC Drone Aircraft Helicopter

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

*Advanced fin and duct design channels powerful airflow from the cooling fan, boosting heat dissipation and improving stability.
*High-quality brushless ESC engineered for smooth and efficient performance.
*Double-sided open design enhances heat dissipation, solving the “sandwich” stacking circuit heat issue.
*Capacitor heat dissipation structure with thermal adhesive for additional cooling support to external capacitors.
*Side window design allows airflow through the ESC interior for rapid heat removal from circuit components.

Product Name: Platinum 120A V5
Product Number: 30203402
Type:
Brushed/Brushless: BL
High Voltage/Regular: Regular
Specifications:
Cont./Peak Current: 120A/150A
Input Voltage: 3-8S Lipo
BEC Output: Switch Mode: 5-12V & Cont. 10A，Peak 30A
Wires & Connectors:
lnput Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1
Output Wires: Black-12AWG-100mm*3
Input Connectors: No
Output Connecotors: 4.0mm Gold Connectors (Female)
ESC Programing via:
Transmitter: Not Supported
LED Program Card: Not Supported
LED Program Box: Not Supported
LCD Program Box: Supported
OTA Programmer: Supported
Program Port: Separate Program Port
Firmware:
Firmware Upgrade: Supported
Telemetry Function:
Mikado VBar: Futabas S.Bus2；etc.
Size: 83.2*37.1*22.5mm(without fan)
Weight: 150.4g(with wires, no fan)
Application scope: 420-520 class electric helicopter (main blade length 420-520mm),or fixed-wing

Hobbywing Platinum 120A V5 VBar Telemetry Ready Brushless ESC x1
