Hobbywing SkyWalker 20A 30A V2 Mini Brushless ESC Programmable Parameters for Fixed Wing Aircraft Model

SKU N/A Category Tag Brand:



Hobbywing SkyWalker 20A 30A V2 Mini Brushless ESC Programmable Parameters for Fixed Wing Aircraft Model

This product is currently out of stock and unavailable.

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

Exceptional Quality
High quality, and reliability makes the SKYWALKER V2 series, the most cost effective option

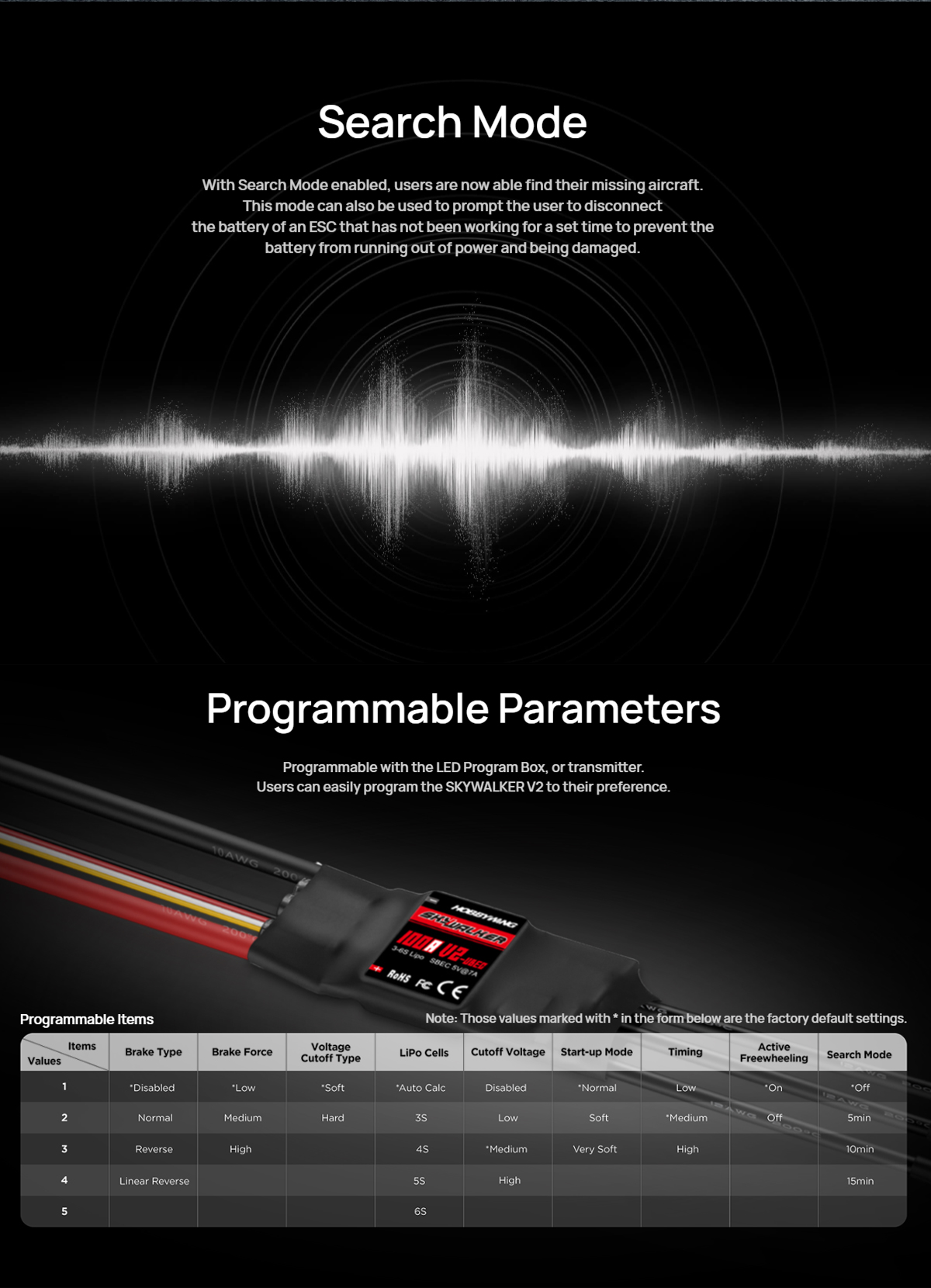

Programmable Parameters
Programmable with the LED Program Box, or transmitter
Users can easily program the SKYWALKER V2 to their preference

Multiple Protections
Multiple protection features include abnormal input voltage,
ESC thermal, throttle signal loss,
and low voltage cutoff effectively
prolongs the life of the ESC

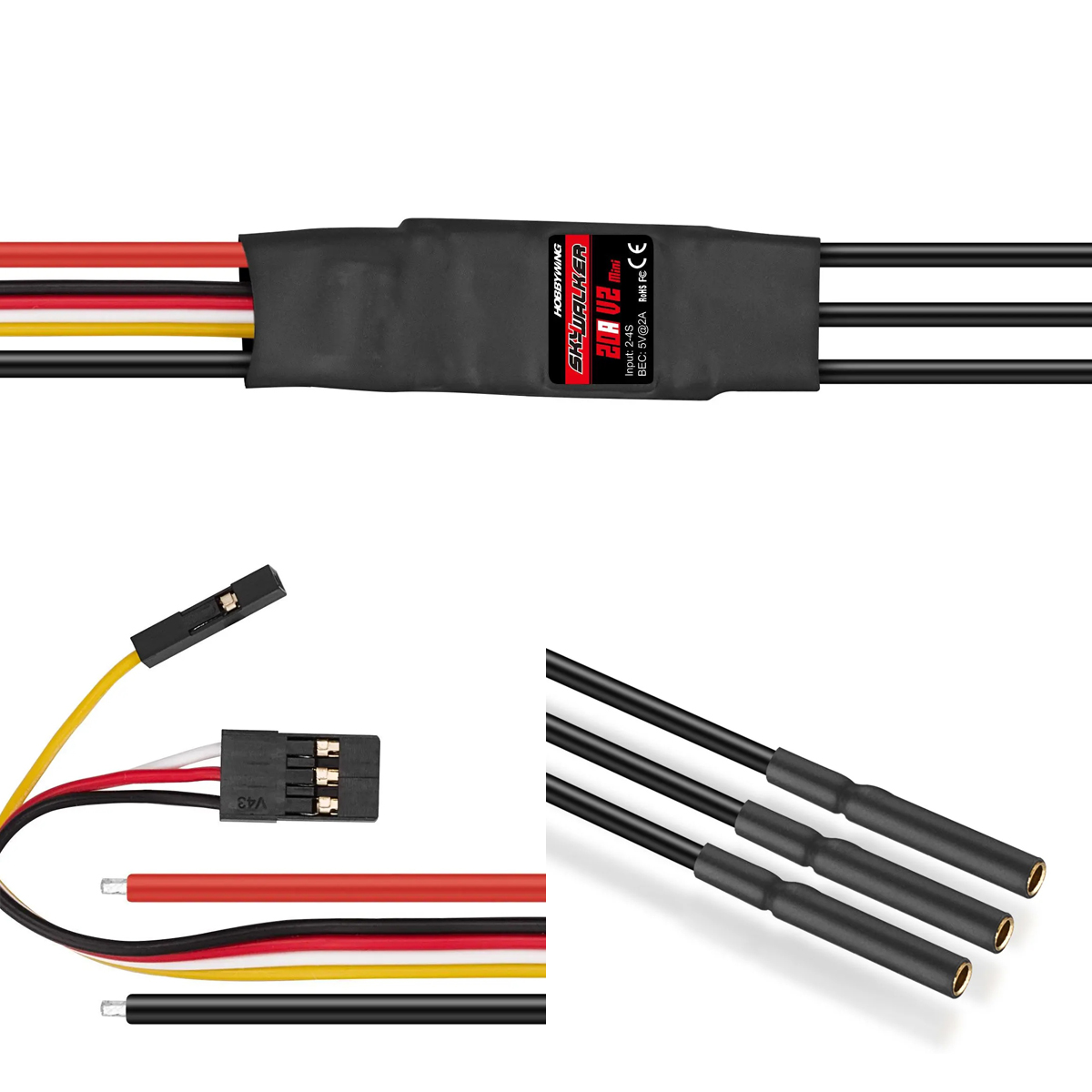

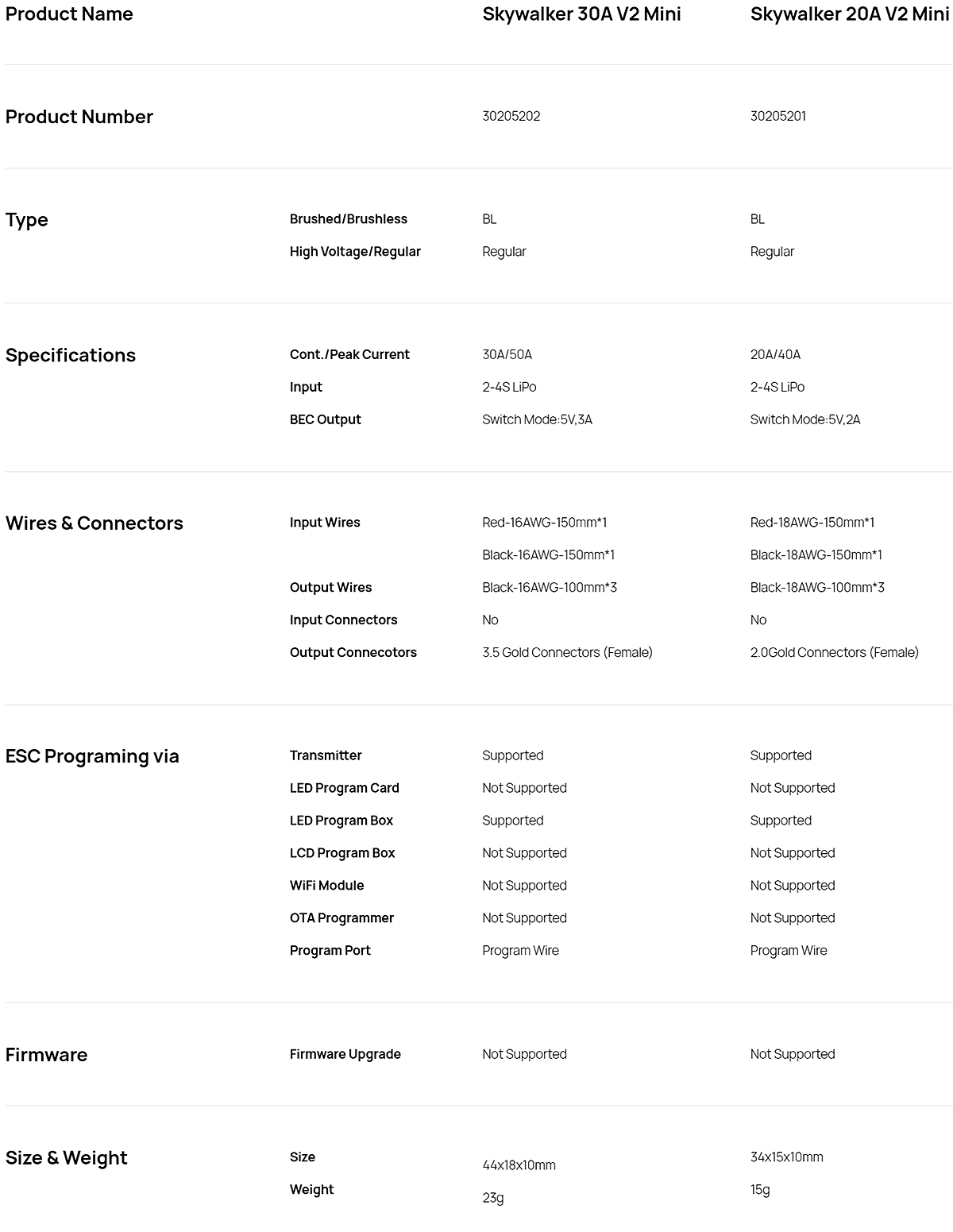

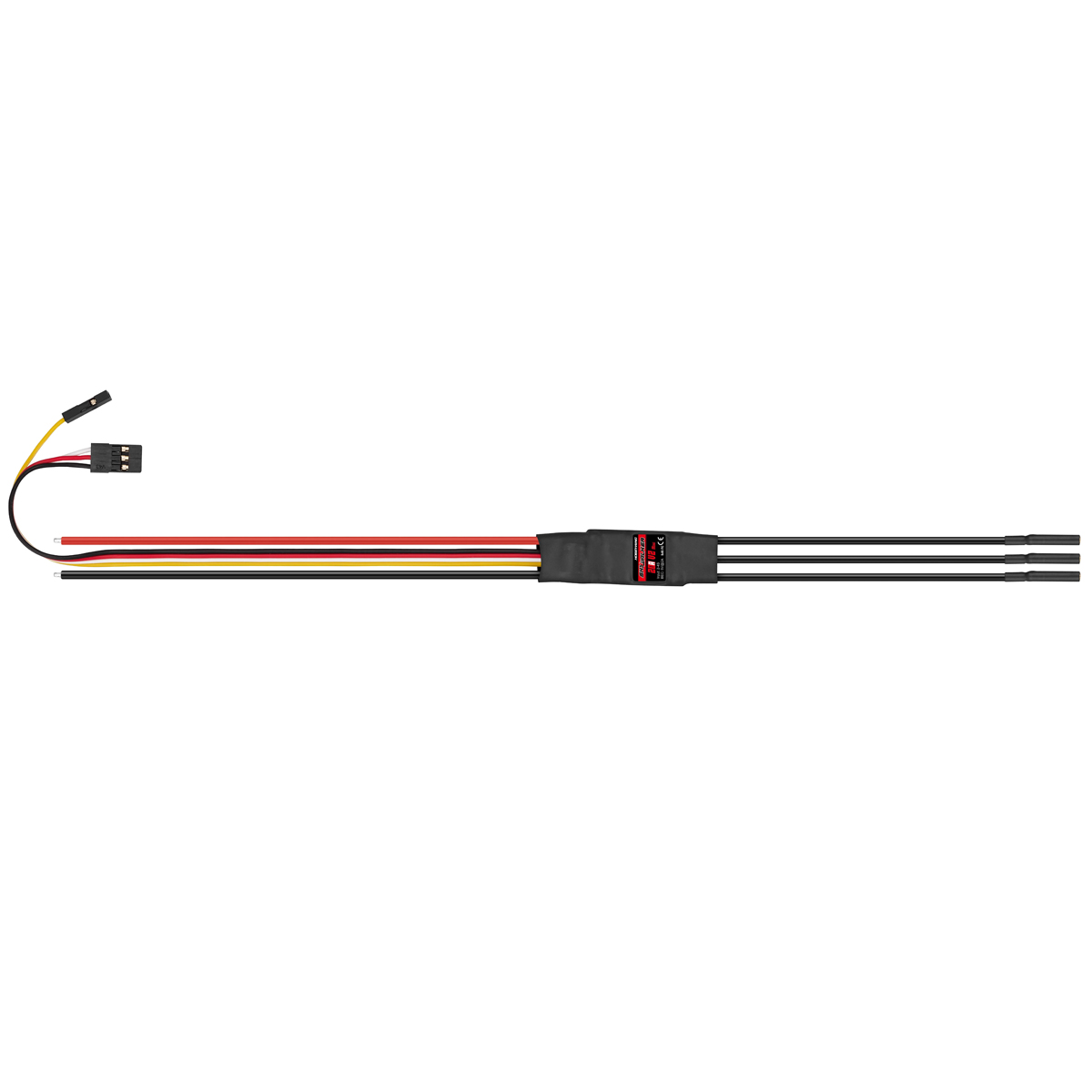

Model: Skywalker 20A V2 Mini
Number: 30205201
Brushed/Brushless: BL
High Voltage/Regular: Regular
Cont./Peak Current: 20A/40A
Input: 2-4S LiPo
BEC Output: Switch Mode: 5V,2A
Input Wires: Red-18AWG-150mm*1;Black-18AWG-150mm*1
Output Wires: Black-18AWG-100mm*3
Input Connectors: No
Output Connectors: 2.0 Gold Connectors (Female)
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
OTA Programmer: Not Supported
Program Port: Program Wire
Firmware Upgrade: Not Supported
Size: 34×15×10mm
Weight: 15g

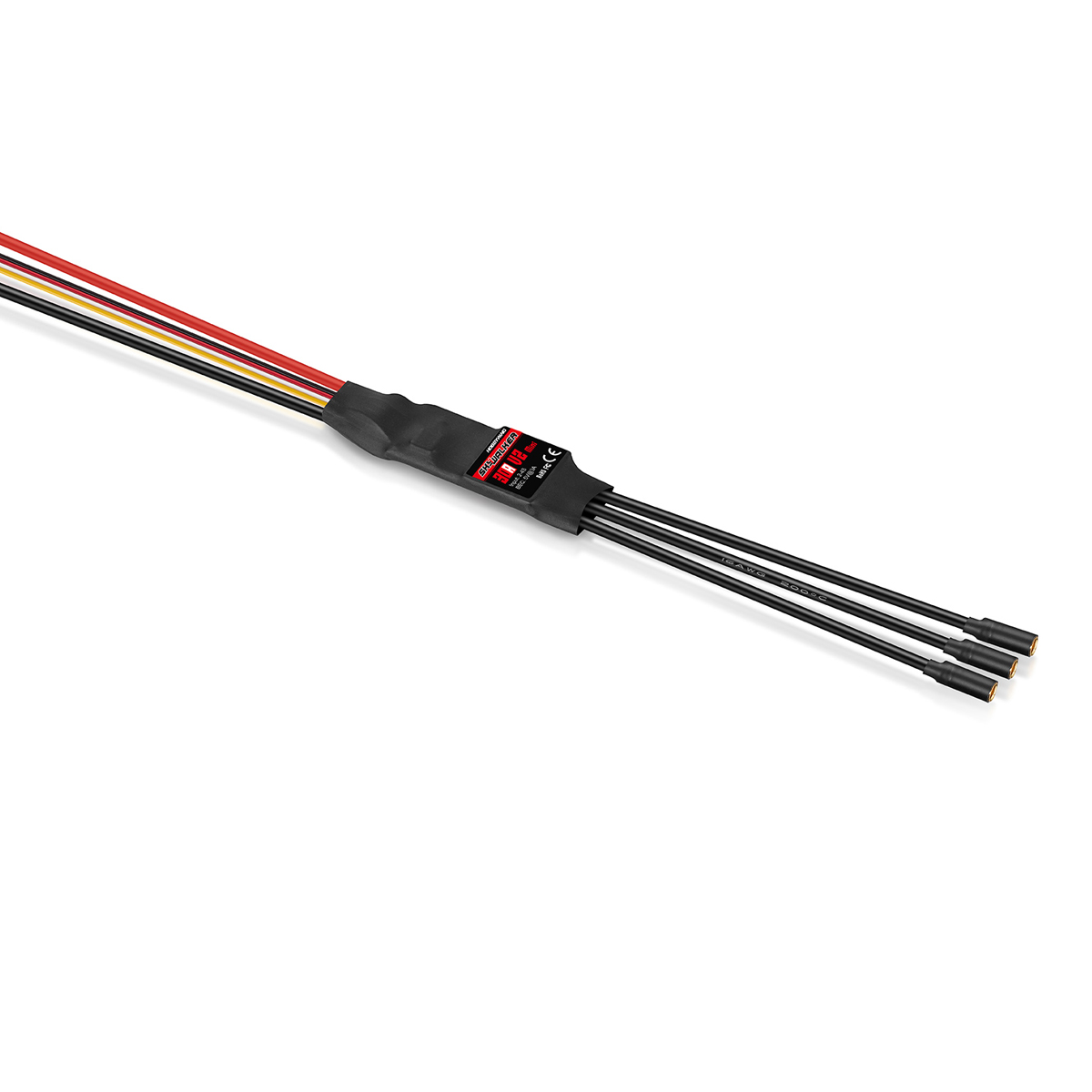

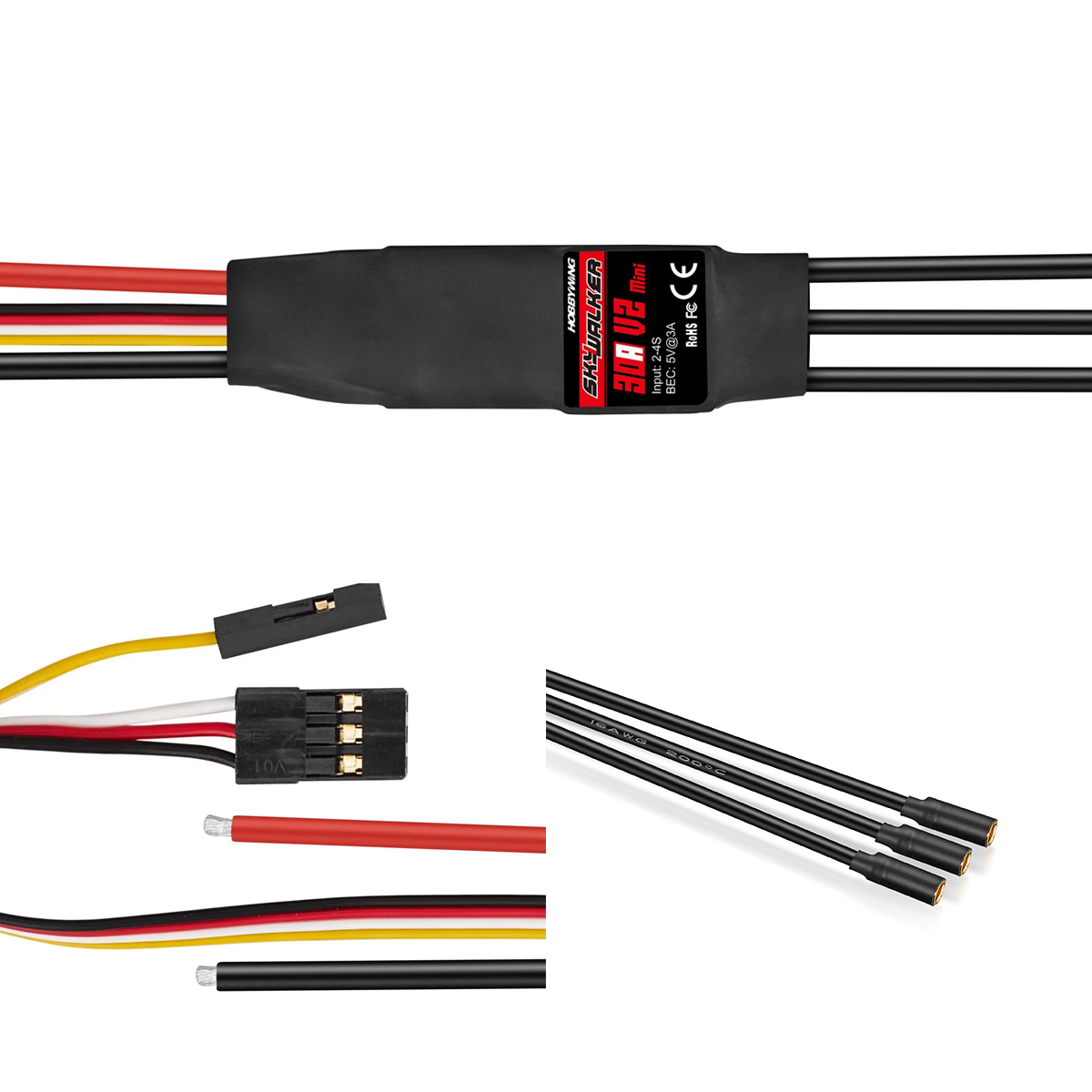

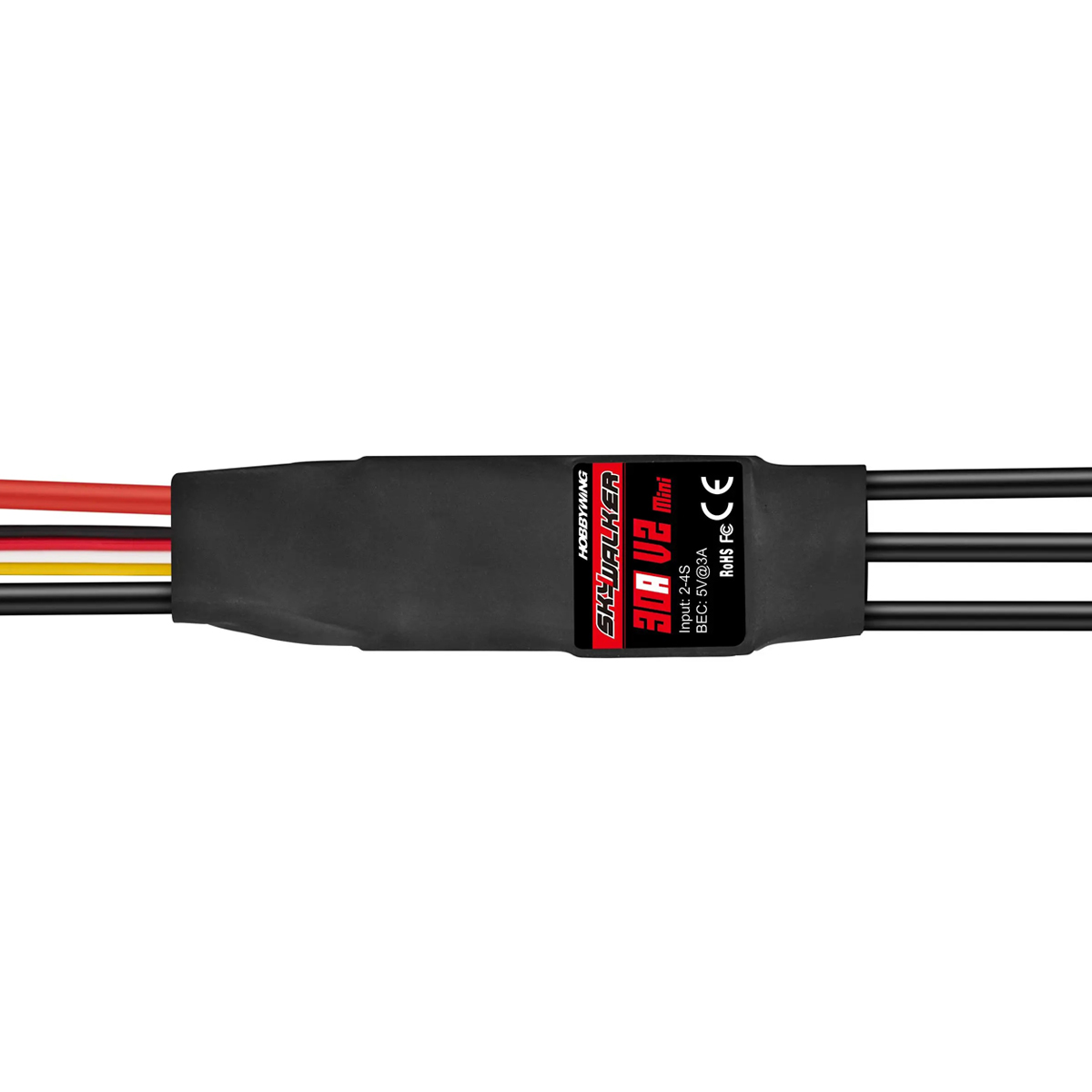

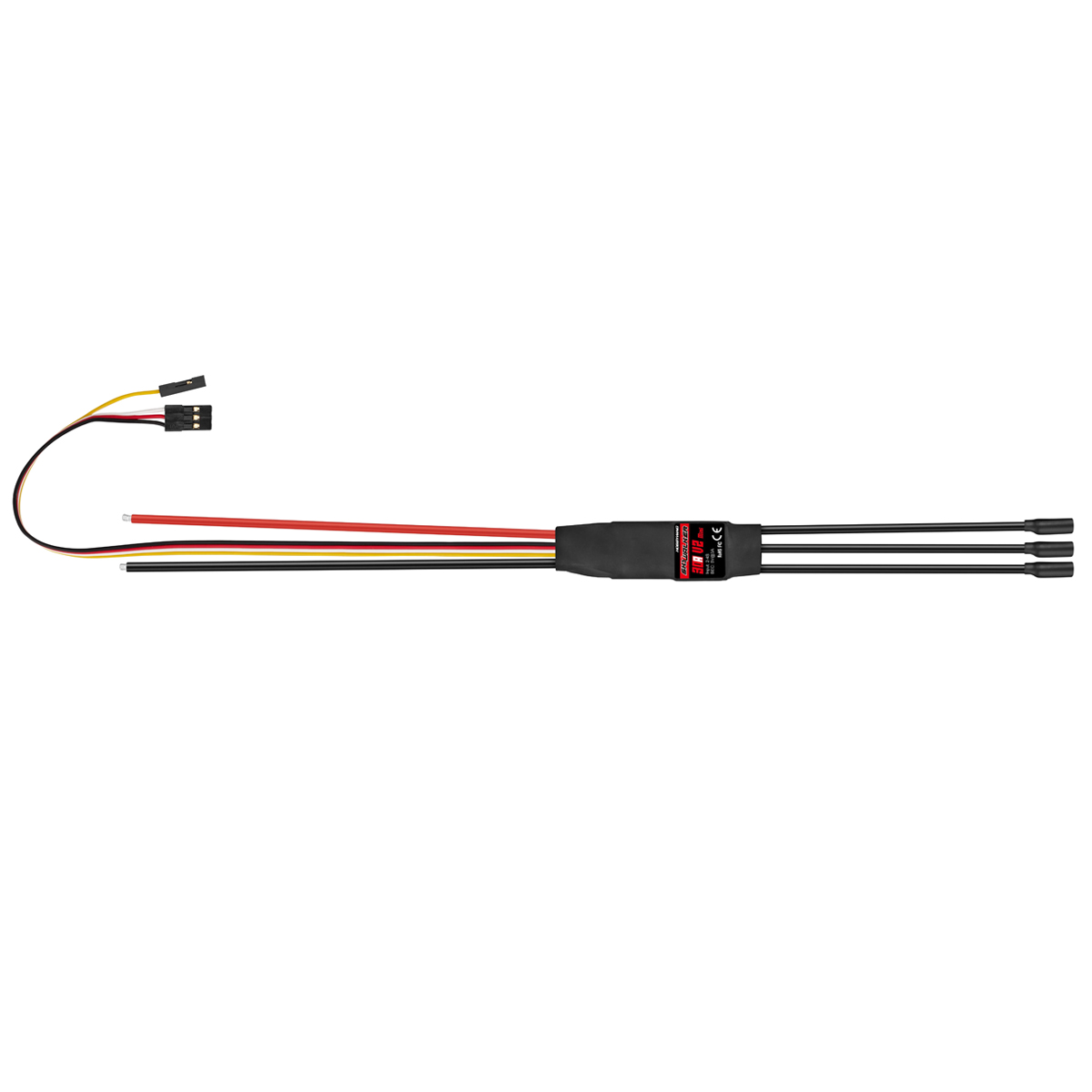

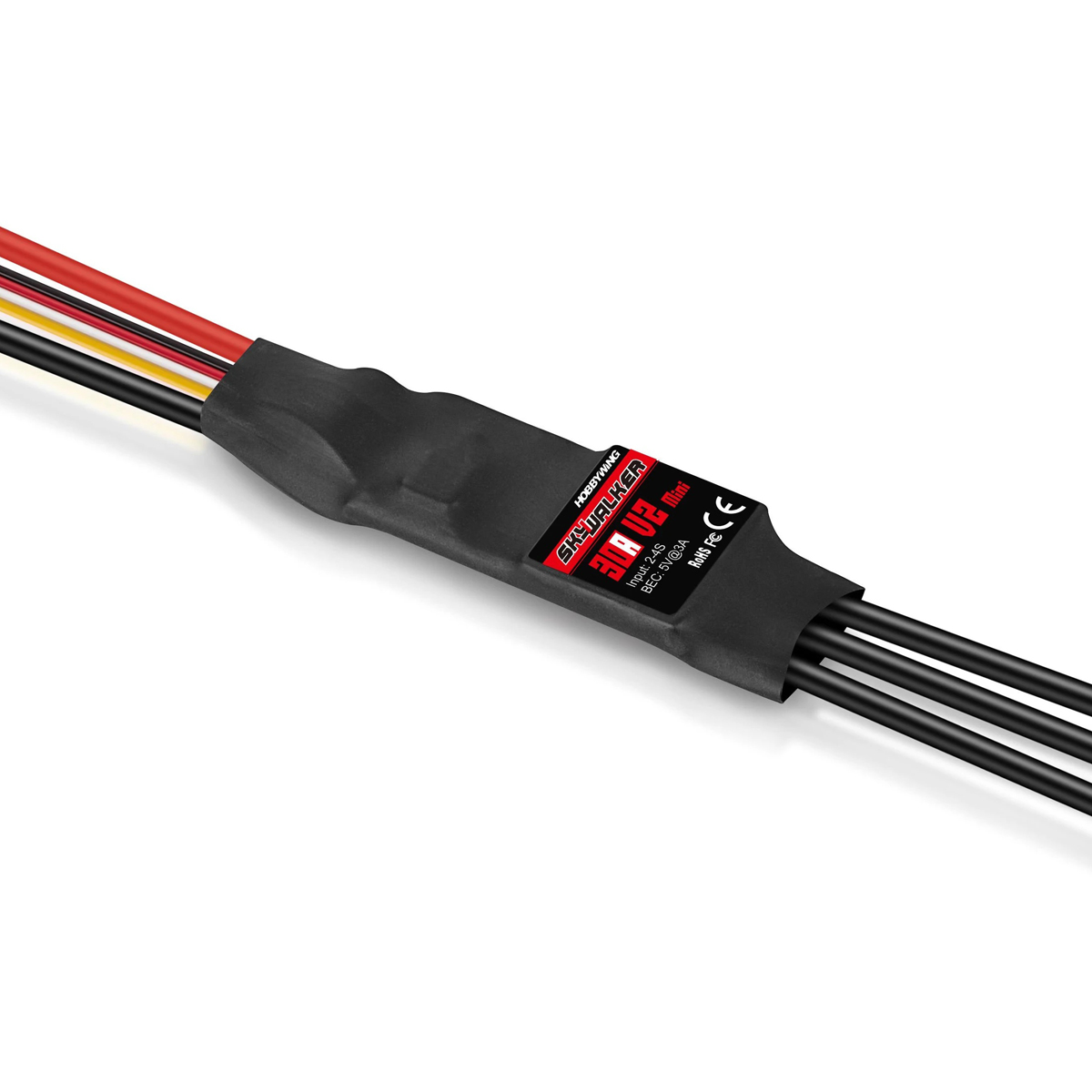

Model: Skywalker 30A V2 Mini
Number: 30205202
Brushed/Brushless: BL
High Voltage/Regular: Regular
Cont./Peak Current: 30A/50A
Input: 2-4S LiPo
BEC Output: Switch Mode: 5V,3A
Input Wires: Red-16AWG-150mm*1;Black-16AWG-150mm*1
Output Wires: Black-16AWG-100mm*3
Input Connectors: No
Output Connectors: 3.5 Gold Connectors (Female)
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
OTA Programmer: Not Supported
Program Port: Program Wire
Firmware Upgrade: Not Supported
Size: 44×18×10mm
Weight: 23g

Skywalker V2 Mini ESC x1
