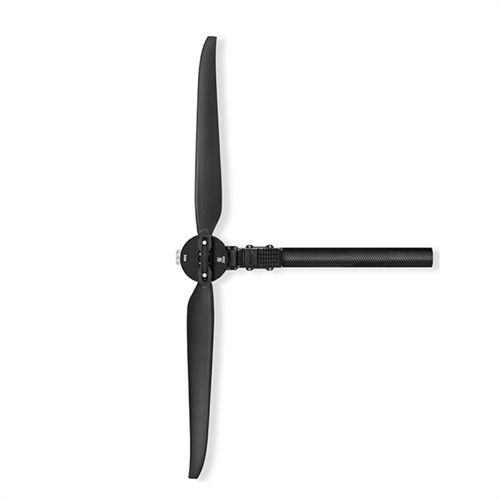

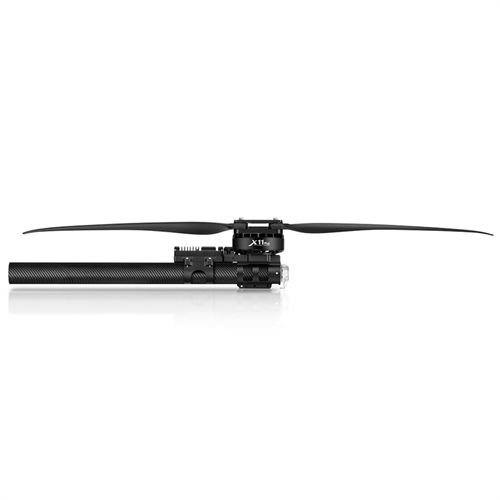

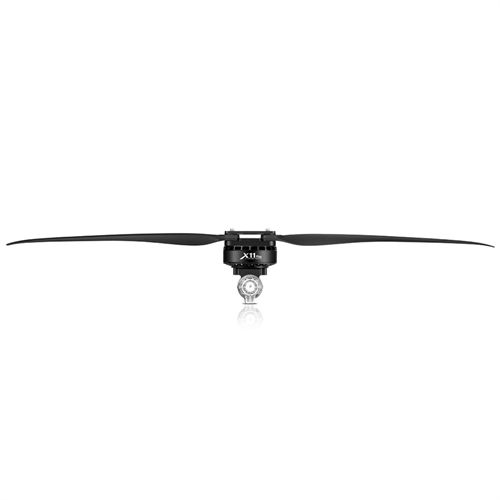

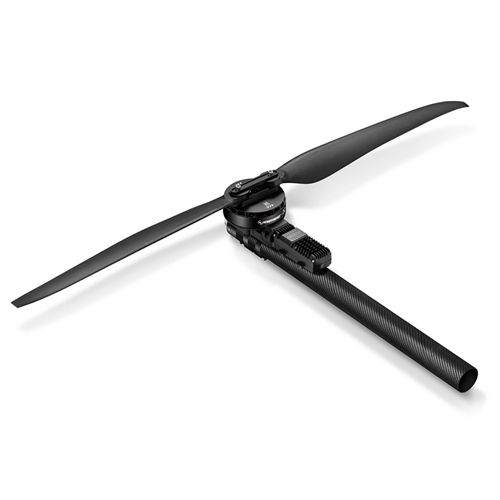

Hobbywing X11 PLUS Power System 4314 propeller 12-14S Motor Maximum Load 36kg for Agricultural Spraying Drone












Hobbywing X11 PLUS Power System 4314 propeller 12-14S Motor Maximum Load 36kg for Agricultural Spraying Drone
Hobbywing X11 PLUS Power System 4314 propeller 12-14S Motor Maximum Load 36kg for Agricultural Spraying Drone
Product Name:XRotor X11-PLUS
Specifications
Max. Thrust:36kg/Axis (44V, Sea Level)
Recommended Takeoff Weight:15-18kg/Axis (44V, Sea Level)
Recommended LiPo Battery:12-14S(LiPo)
Operating Temperature:0~50℃
Combo Weight:2490
Waterproof Rating:IPX6
Motor
Steering: CW/CCW
KV Rating:85rpm/V
Stator Size:111*18mm
powertrain arm tube outer diameter:30mm
Bearing:Bearings imported from Japan
ESC
Recommended LiPo Battery:12-14S(LiPo)
PWM Input Signal Level:3.3V/5V
Throttle Signal Frequency:50-500Hz
Operating Pulse Width:1050-1950us(Fixed or cannot be Programmed)
Max. Input Voltage:61V
Max. Input Current (Short duration):150A(w/ Good Heat Dissipation)
BEC:No
Propeller
Diameter×Pitch:43*14
Hobbywing X11 PLUS Power System x 1
