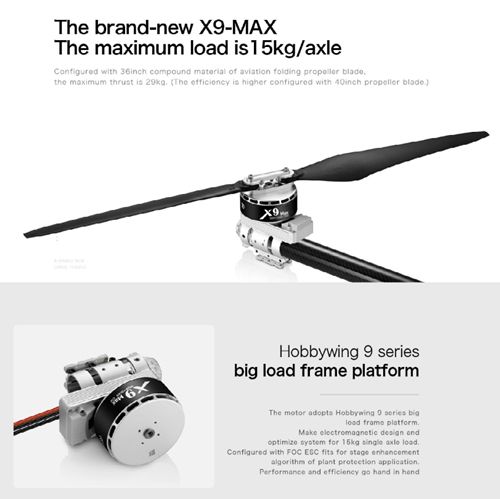

Product Name : X9 MAX
Specifications
-Max. Thrust : 29kg/Axis (53.6V, Sea Level )
-Recommended Takeoff Weight : 12-15kg/Axis (46V, Sea Level )
-Recommended LiPo Battery : 14S（LiPo）
-Operating Temperature : -20~55℃
-Combo Weight : 1970g

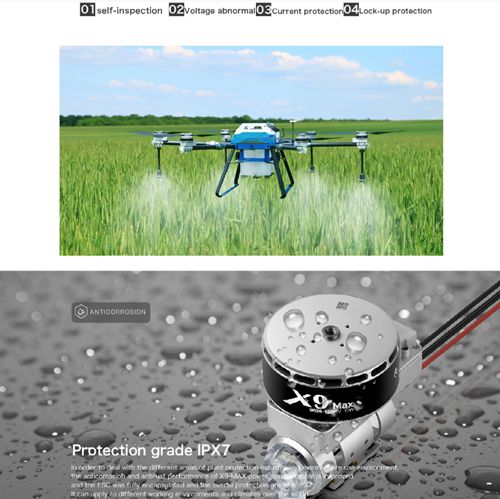

-Waterproof Rating : IPX7

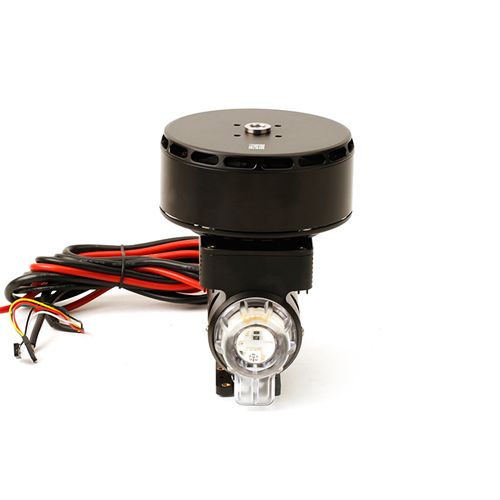

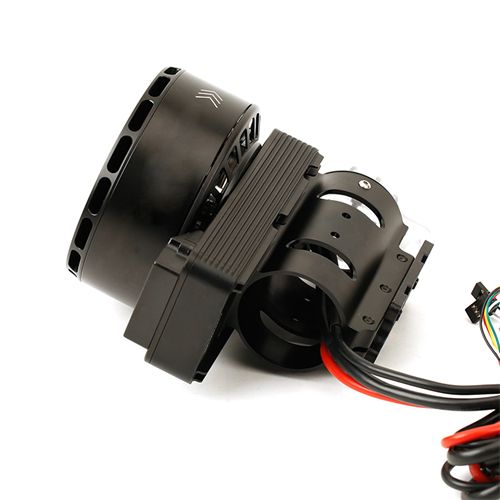

Motor
-KV Rating : 100 rpm/V
-Stator Size : 96×26mm
-Tube Diameter : φ45
-Bearing : Bearings imported from Japan
ESC
-Recommended LiPo Battery : 6-14S LiPo
-PWM Input Signal Level : 3.3V/5V(Compatible )
-Throttle Signal Frequency : 50-500Hz
-Operating Pulse Width : 1050-1950-us(Fixed or cannot be Programmed )
-Max. Input Voltage : 60.9V
-Max. Input Current (Short duration) : 150A(w/ Good Heat Dissipation )
-BEC : No
-Mounting Holes for Nozzle : φ28.4mm-2*M3

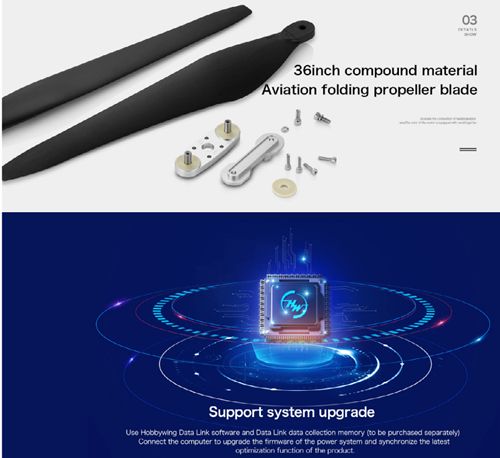

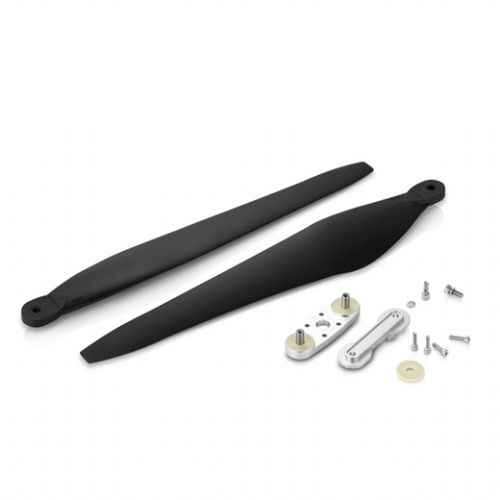

Propeller
-Diameter×Pitch : 36×190 inch
