JIYI P3 RC Flight Controller Multirotor Autopilot Flight Control System for RC Drone Quadcopter
JIYI P3 RC Flight Controller Multirotor Autopilot Flight Control System for RC Drone Quadcopter

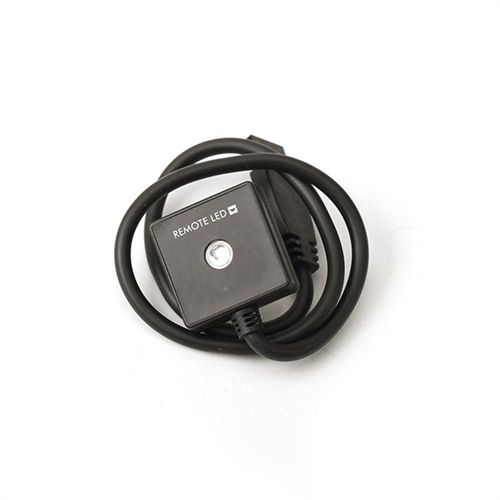

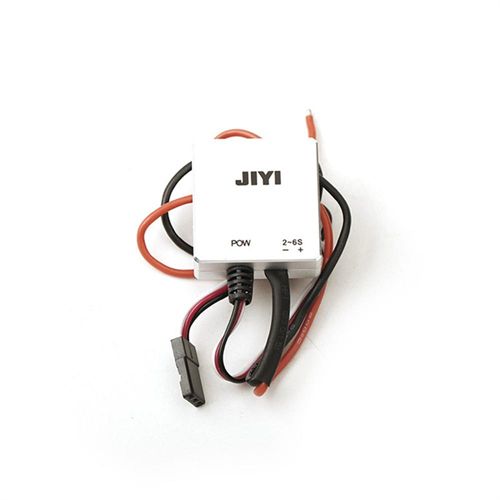

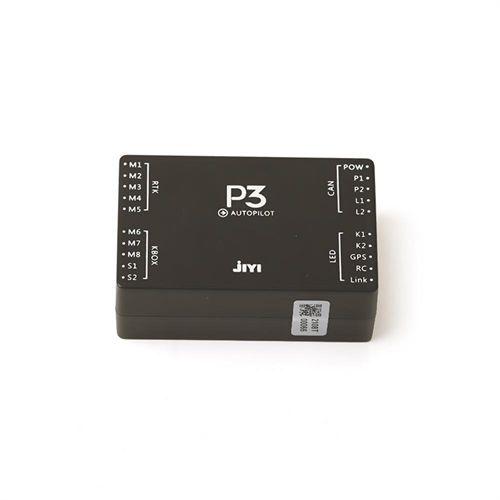

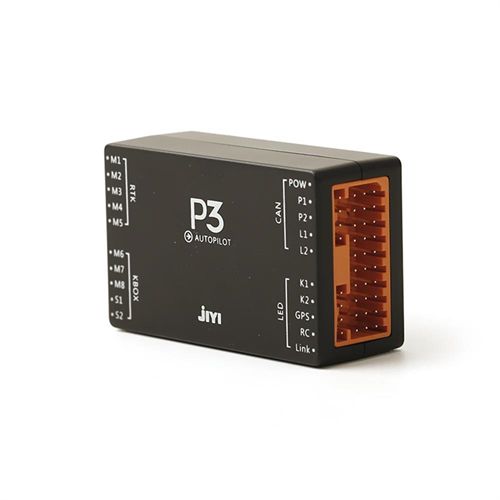

The P3 flight control system is a flight control designed for small multi-rotors such as model airplanes, electrical wiring, education and training. Contains the main control, LED module, power management module (PMU) and a GPS module. It integrates Jiyi’s intelligent algorithms for many years and adds a variety of flight modes, which is stable safe and reliable.
Support models：14, X4 type quadrotor；IY6,Y6.16.V6 six-rotor；V8, 18, X8, IX8 eight rotors
Recommended battery type：4S-12s lithium polymer battery
External receiver type：SBUS receiver
Support JlYI products：K-BOX RTK obstacle avoidance radar
ground-like radar；Integrated remote control, FPV camera
flow meter, liquid level meter
Assistant software system configuration requirements：Windows 7 /8 /10 (32 or 64 bit)
Hover accuracy：Horizontal direction: +1.5m Verticaldirection: +0.5m
Maximum tilt angle：30°
Maximum yaw speed：150°/s
Maximum vertical speed：6m/s
Maximum wind resistance：Continued wind: Level 4 Gust: Level 5
Power consumption：< 5W
Working temperature：-10°C-60°C
Storage temperature：-25°C~60°C
Operating voltage range：FC 4.8V-5.3V，GPS 5V，GPS、Beidou，LED 5V，Battery voltage 4S-12S
Colour：Black
Weight：Total net weight: 114g (excluding accessories)（FC: 55g，GPS: 45g，LED: 14g）
Size：FC:57*36*22mm；GPS:62*14.3mm；LED:24*24*8mm
Whole box weight：484g
Whole box size：256*176*55mm

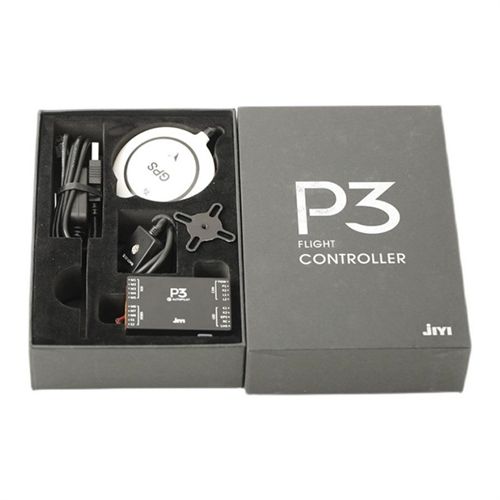

JIYI P3 Flight Controller x 1set
