Dead band: 4μs default
Operating Speed(5.0V):0.14sec/60degrees
Operating Speed(6.0V):0.12sec/60degrees
Operating Speed(7.4V):0.11sec/60degrees
Operating Speed(8.4V):0.10sec/60degrees
Stall torque(7.4V):4.6kg.cm(63.89oz/in)
Maximum working torque(7.4V):2.8kg.cm(38.89oz/in)
Rated working torque(5.0V):0.5kg.cm(6.94oz/in)
Rated working torque(6.0V):0.8kg.cm(11.11oz/in)
Rated working torque(7.4V):1.1kg.cm(15.27oz/in)
Rated working torque(8.4V):1.3kg.cm(18.05oz/in)

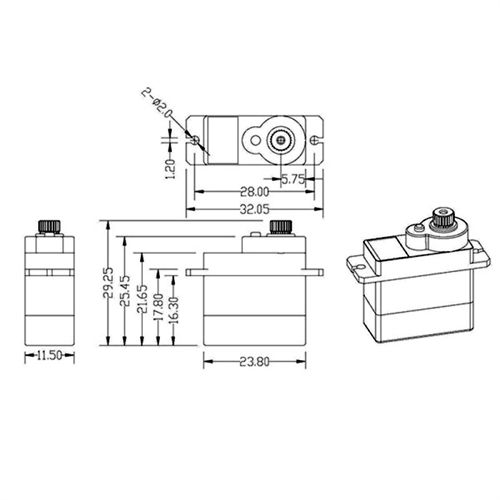

Dimensions:23.8*11.5*21.6mm/0.92X0.45X0.84in
Weight:13g(0.45oz)
Connector Wire Length:JR300mm(11.7in)

When the PWM signal is between 1.0 and 2.0, the working angle is 90°
When the PWM signal is 0.5 to 2.5, the working angle is 180°
