kingmax KM0950MD–17g 3.8kg,digital waterproof mini servo for small sized helicopter fixed wing
kingmax KM0950MD–17g 3.8kg,digital waterproof mini servo for small sized helicopter fixed wing
Item：KM0950MD
Gear：Full metal
Spline：Exclusive
Motor：DC motor
Bearing：1BB
Dead band：2μs default
Waterproof：Yes
Operating Voltage：DC4.8~6.0V
Working frequence：1520μs/330hz
— High-precision metal gears,Programmable digital mini servo
— High quality brushed motor
–Waterproof
–Suitable for small sized helicopter and fixed wing aircraft, 3D airplane, F3A etc.
Operating Speed(5.0V): 0.12sec/60degrees
Operating Speed(6.0V): 0.10sec/60degrees
Stall Torque(5.0V): 3.8kg.cm(52.78oz/in)
Stall Torque(6.0V): 4.5kg.cm(62.51oz/in)
Size:25.3×13.2×25.1mm(0.99×0.51×0.98in)
Weight:17g(0.59oz)
Connector Wire Length:320mm(12.48in)

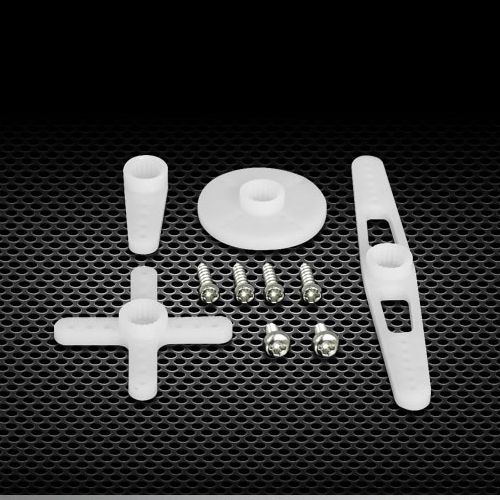

digital waterproof mini servo x1
