Item:KM1203MD
Gear:Full metal
Spline:Exclusive
Motor:Coreless motor
Bearing:2BB
Dead band:2μs default
Waterproof:No
Operating Voltage:DC5.0~8.4V
Working frequence:1520μs/330hz

Operating Speed (5.0V): 0.12sec/60 degrees at no load
Operating Speed (6.0V): 0.10sec/60 degrees at no load
Operating Speed (7.4V): 0.08sec/60 degrees at no load
Operating Speed (8.4V): 0.06sec/60 degrees at no load
Stall Torque (5.0V): 6.0 kg.cm (102.78 oz/in)
Stall Torque (6.0V): 7.4 kg.cm (102.78 oz/in)
Stall Torque (7.4V): 9.5 kg.cm (131.95 oz/in)
Stall Torque (8.4V): 10.5 kg.cm (131.95 oz/in)
Potentiometer Drive: Direct Drive

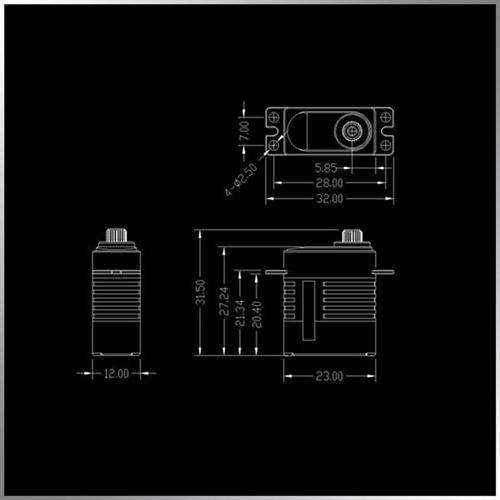

Dimensions: 23X12X27.5 mm /0.91 X0.47X1.07 in
Weight: 20.3 g (0.72oz)
Connector Wire Length: JR220 mm (8.58in)
Packing Detail:
Transparency plastic box size: 83.5mmx63.5mmx37.5mm
weight: 80g
