Item：S180
Gear：Steel gear
Spline：Exclusive
Motor：Brushless motor
Bearing：2BB
Dead band：2μs default
Waterproof：Yes
Operating Voltage：DC7.4~15V
Rated working voltage：DC15V
Working frequence：1520μs/330hz
Working angle：±63°@800us-2200us
Working temperature：-10℃~+50℃
Storage temperature：-20℃~+60℃

Speed(7.4V):0.23sec/60degrees
Speed(8.4V):0.20sec/60degrees
Speed(12V):0.14sec/60degrees
Speed(15V):0.11sec/60degrees
Stall torque(15V):180kg.cm(2500.20oz/in)
Maximum working torque(15V):123kg.cm(1708.47oz/in)
Rated torque(7.4V):35.0kg.cm(486.15oz/in)
Rated torque(8.4V):45.0kg.cm(625.05oz/in)
Rated torque(12V):65.0kg.cm(902.85oz/in)
Rated torque(15V):72.0kg.cm(1000.08oz/in

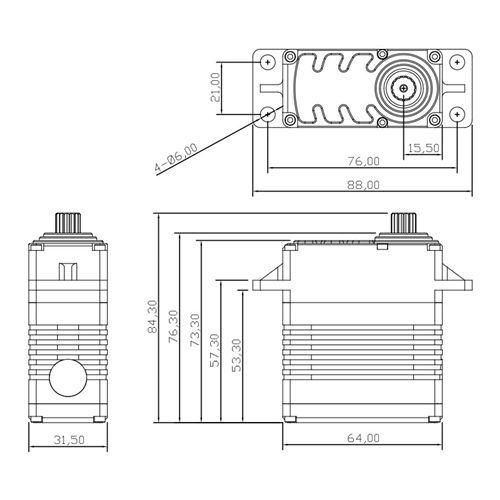

Dimensions(L*W*H):64*31.5*73.3mm/2.49X1.22X2.85in
Weight:370g(13.05oz)

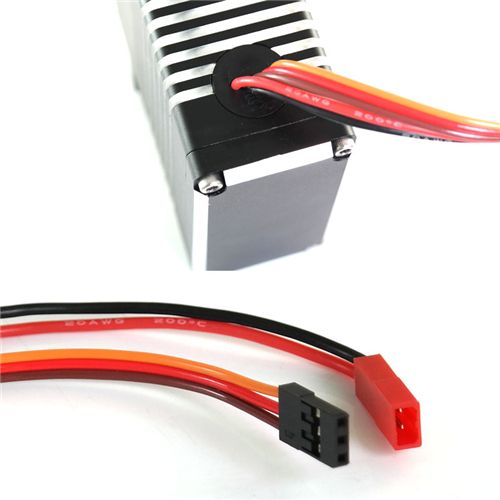

Connector Wire Length:JR265mm(10.33in)

Applicable scenario: aerial / sea / robot / industrial equipmen
