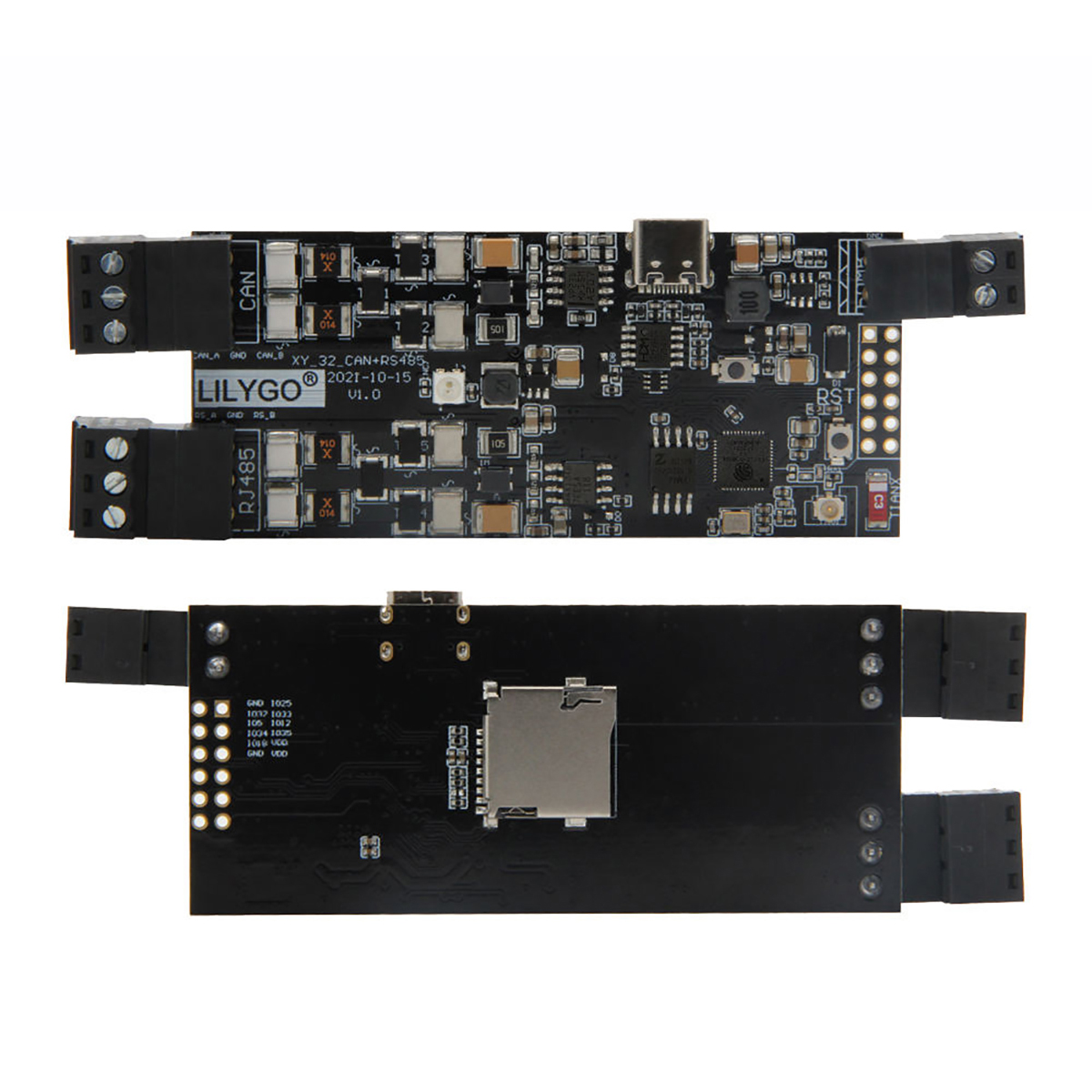

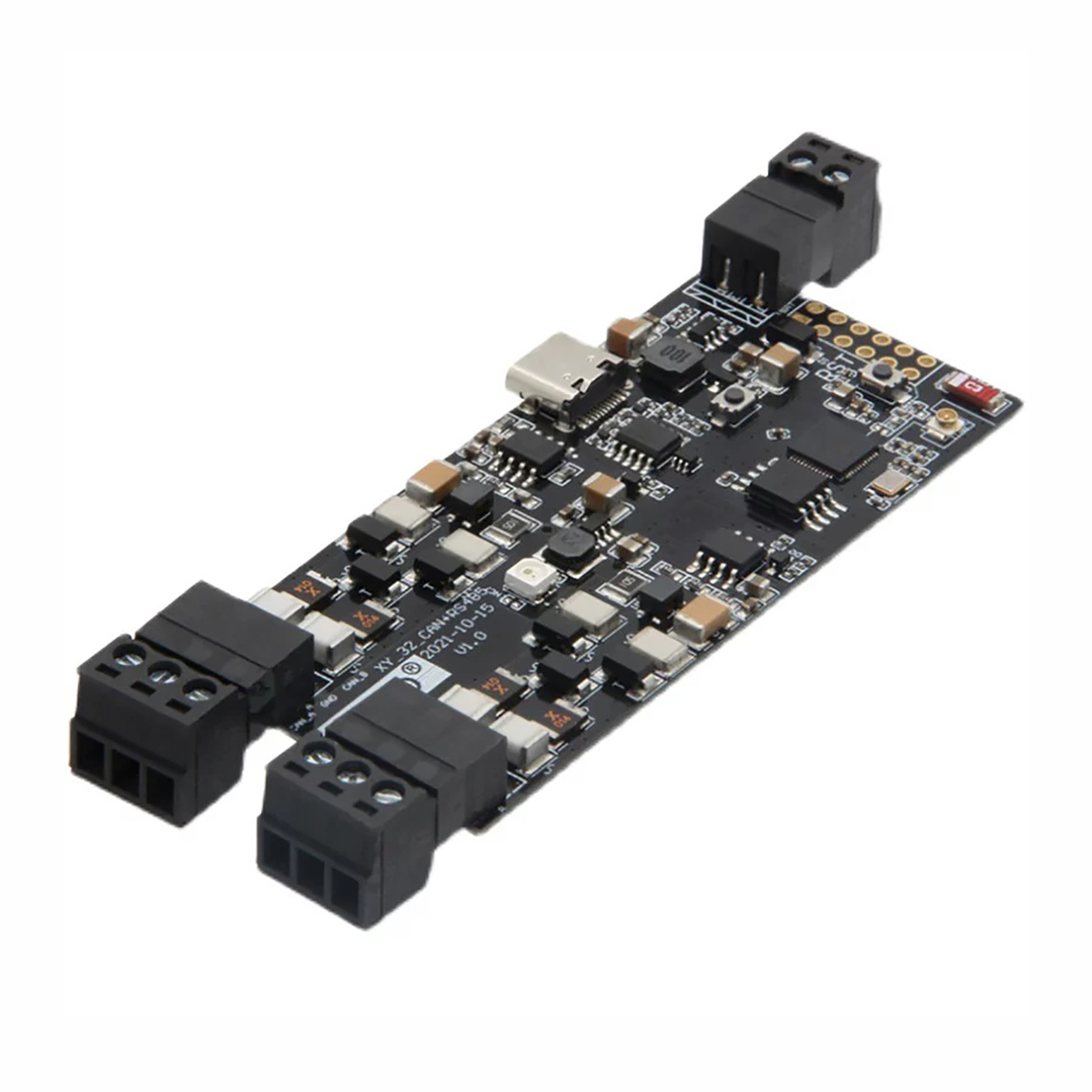

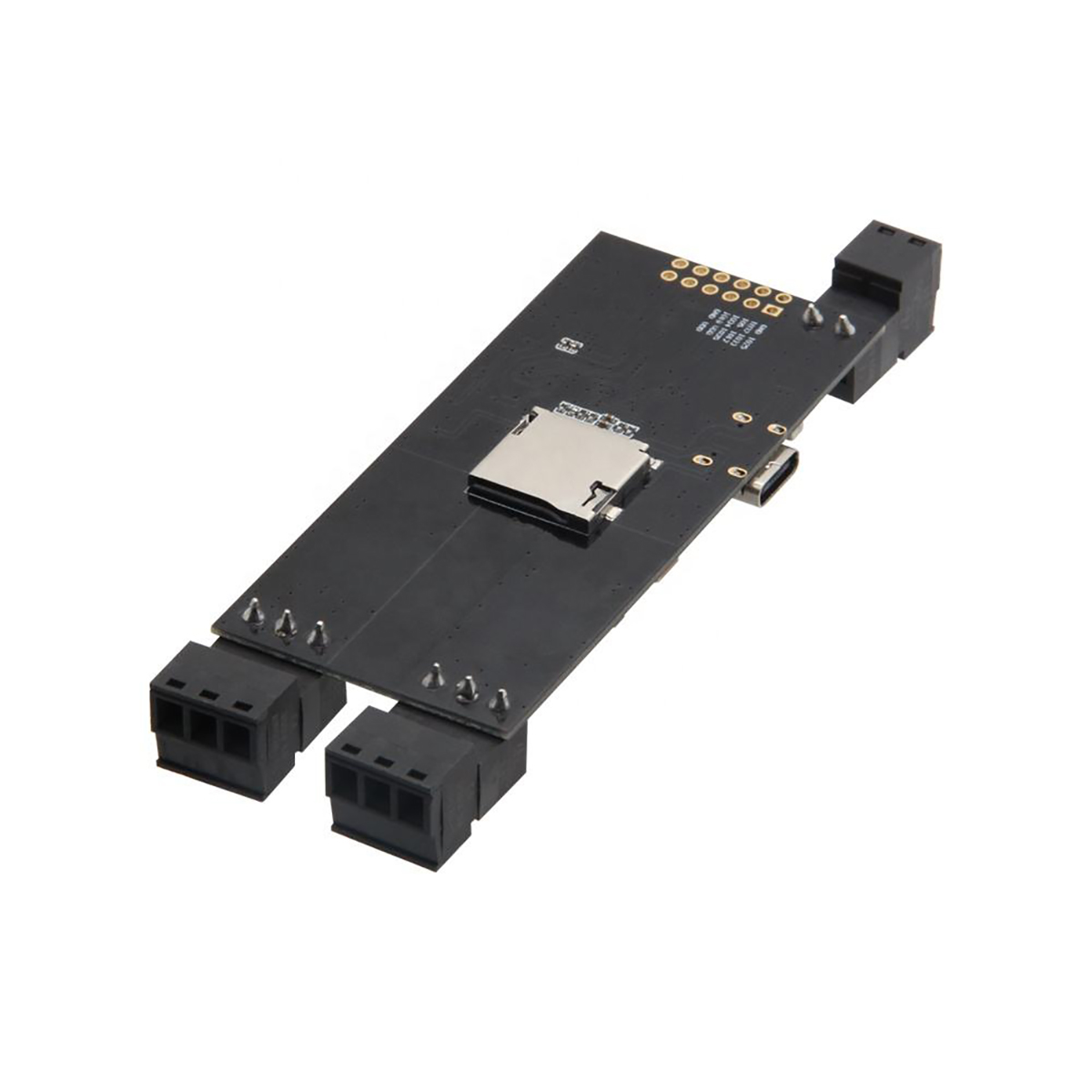

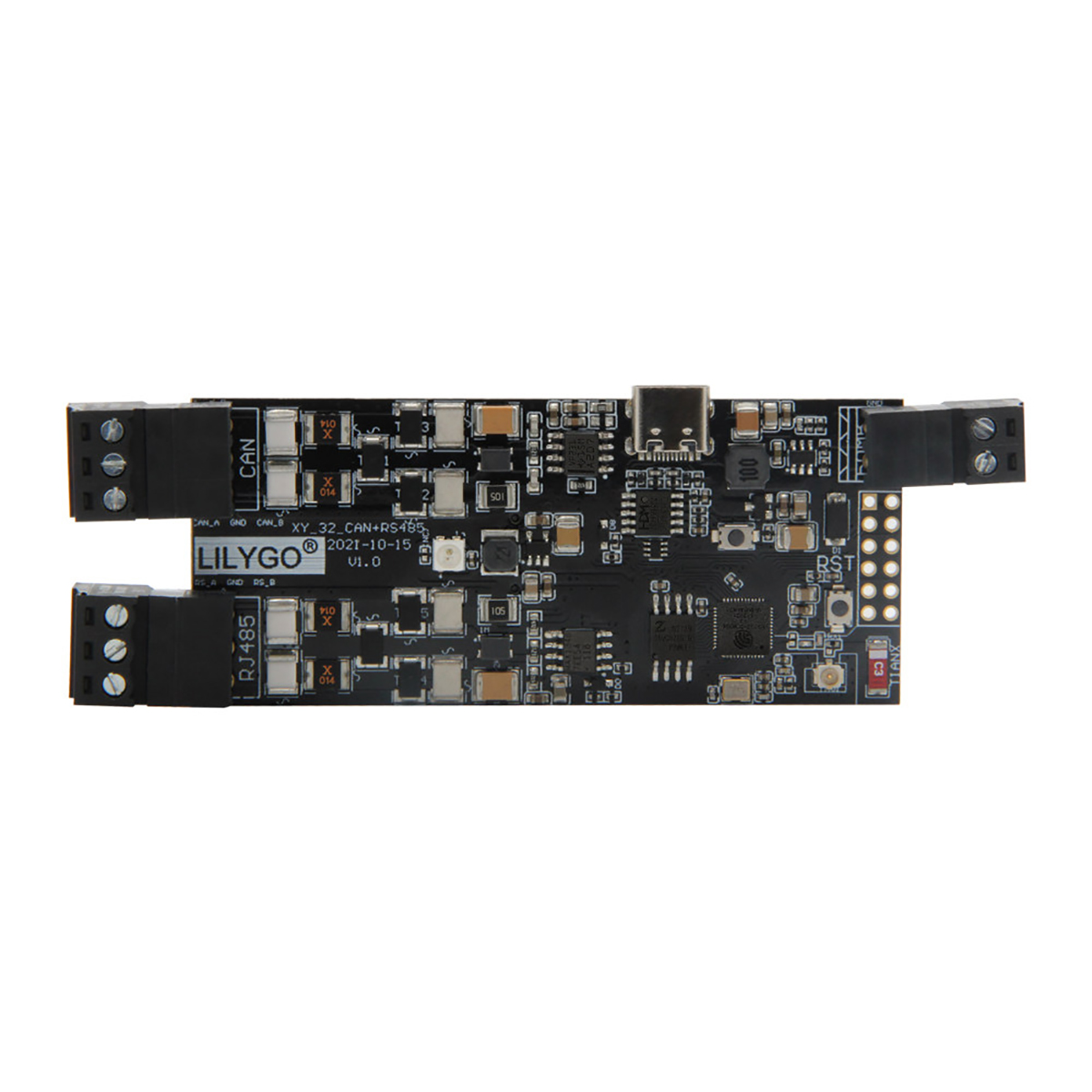

LILYGO TTGO T-CAN485 ESP32 Industrial IoT Gateway CAN RS-485 Interface Onboard TF Card for Industrial Control
LILYGO TTGO T-CAN485 ESP32 Industrial IoT Gateway CAN RS-485 Interface Onboard TF Card for Industrial Control

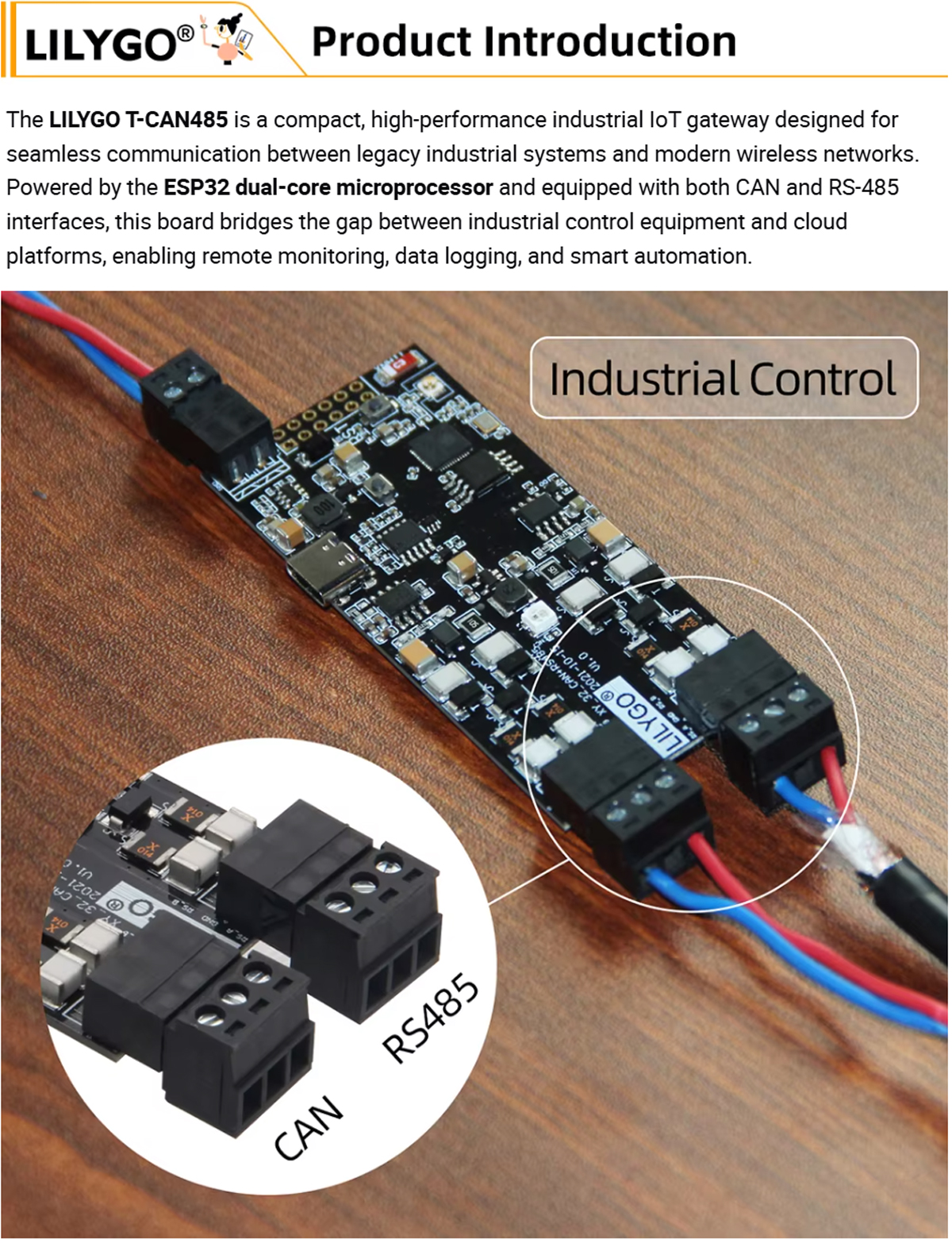

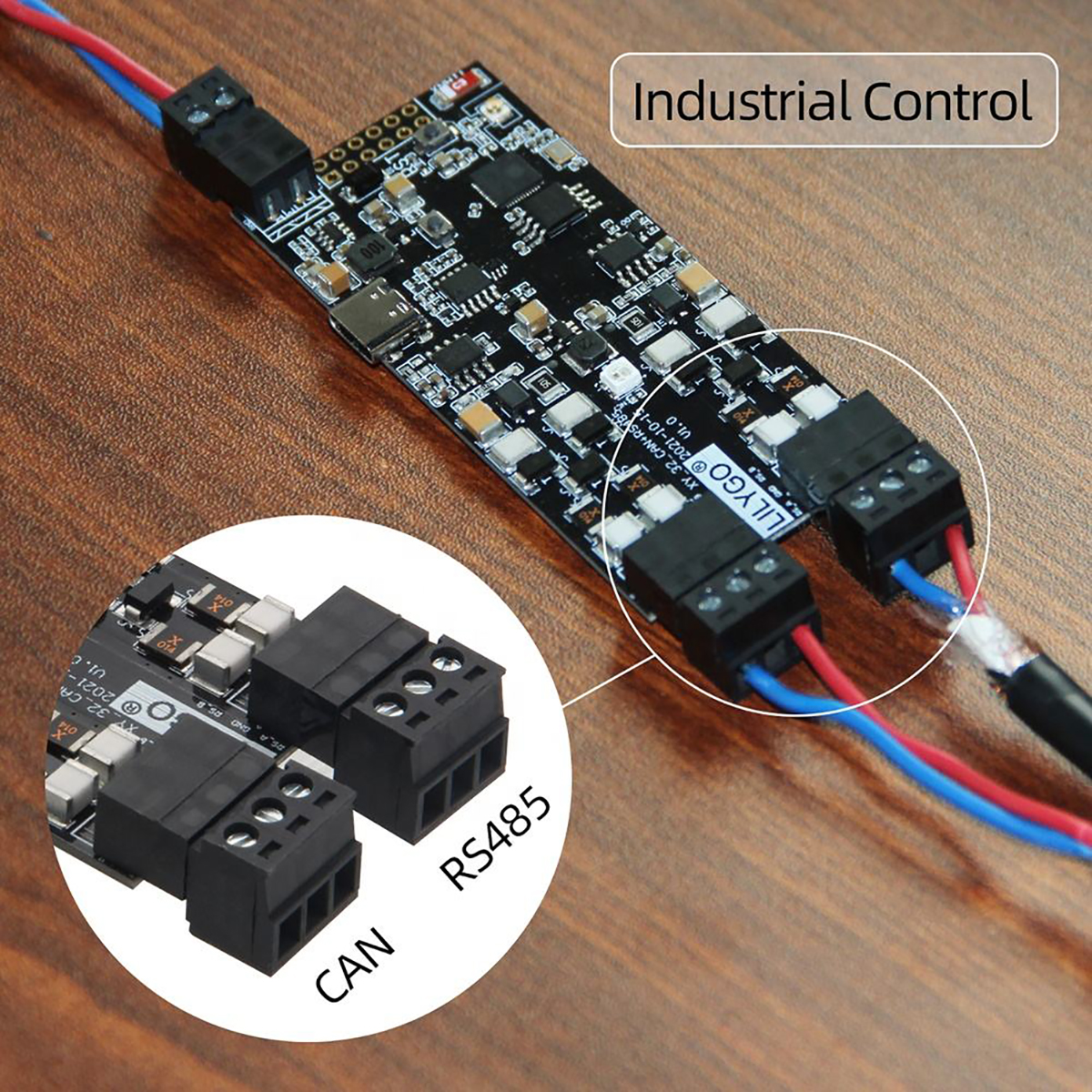

LILYGO T-CAN485 is a compact, high-performance industrial IoT gateway designed for seamless communication between legacy industrial systems and modern wireless networks. Powered by the ESP32 dual-core microprocessor and equipped with both CAN and RS-485 interfaces, this board bridges the gap between industrial control equipment and cloud platforms, enabling remote monitoring, data logging, and smart automation.

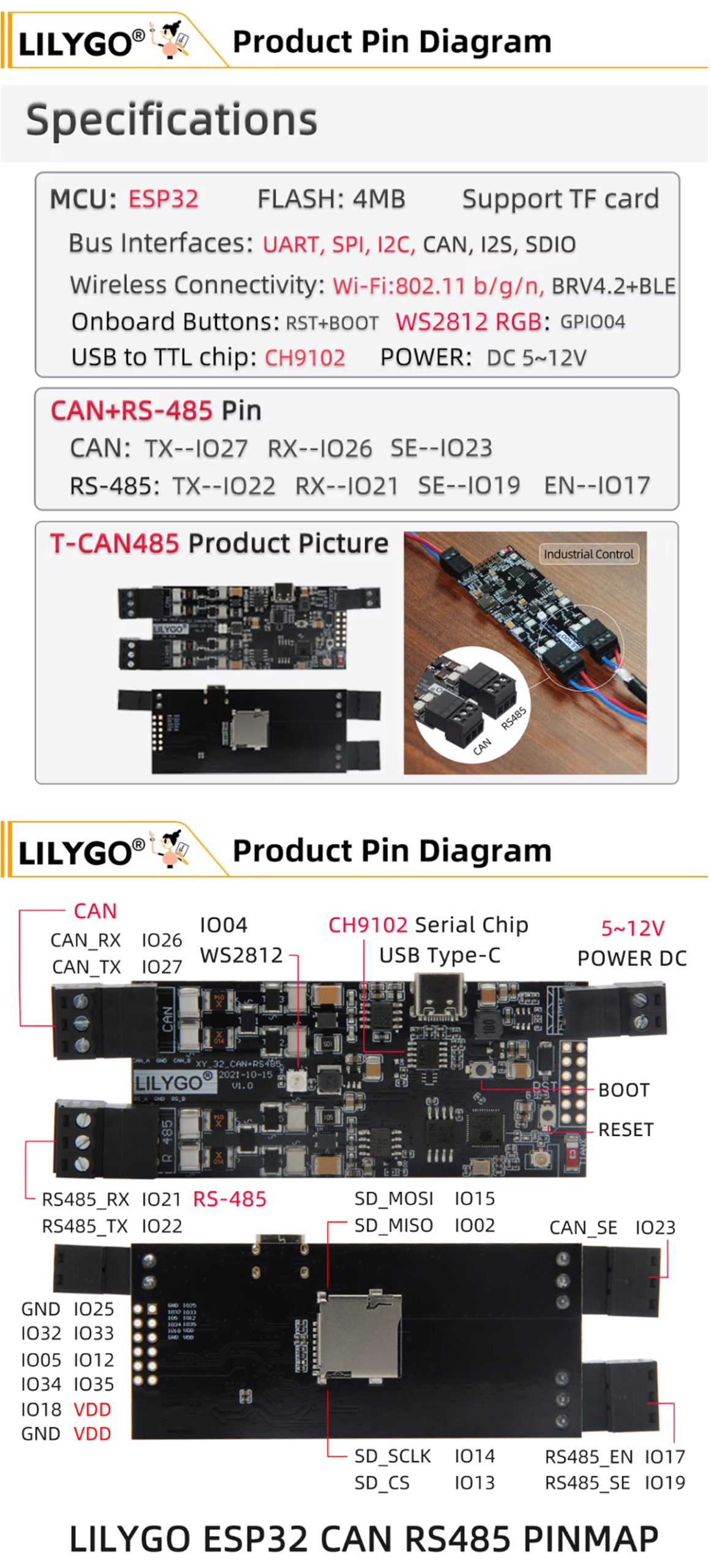

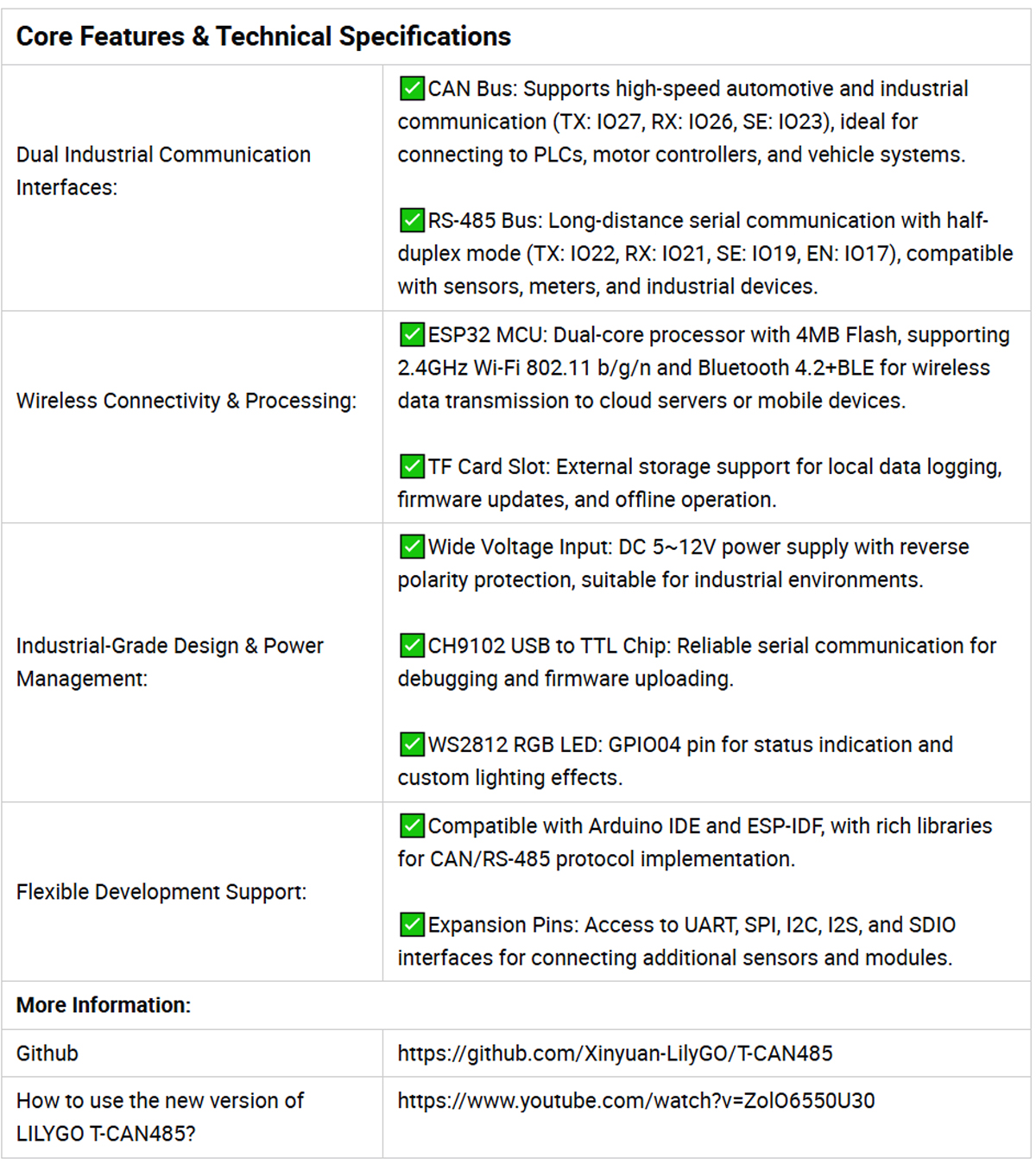

Model: T-CAN485 CH9102 Q331
MCU: ESP32
FLASH: 4MB
Support: TF card
Bus Interfaces: UART, SPI, I2C, CAN, I2S, SDIO
Wireless Connectivity: Wi-Fi: 802.11 b/g/n, BRV4.2+BLE
Onboard Buttons: RST+BOOT
WS2812 RGB: GPIO04
USB to TTL chip: CH9102
POWER: DC 5~12V

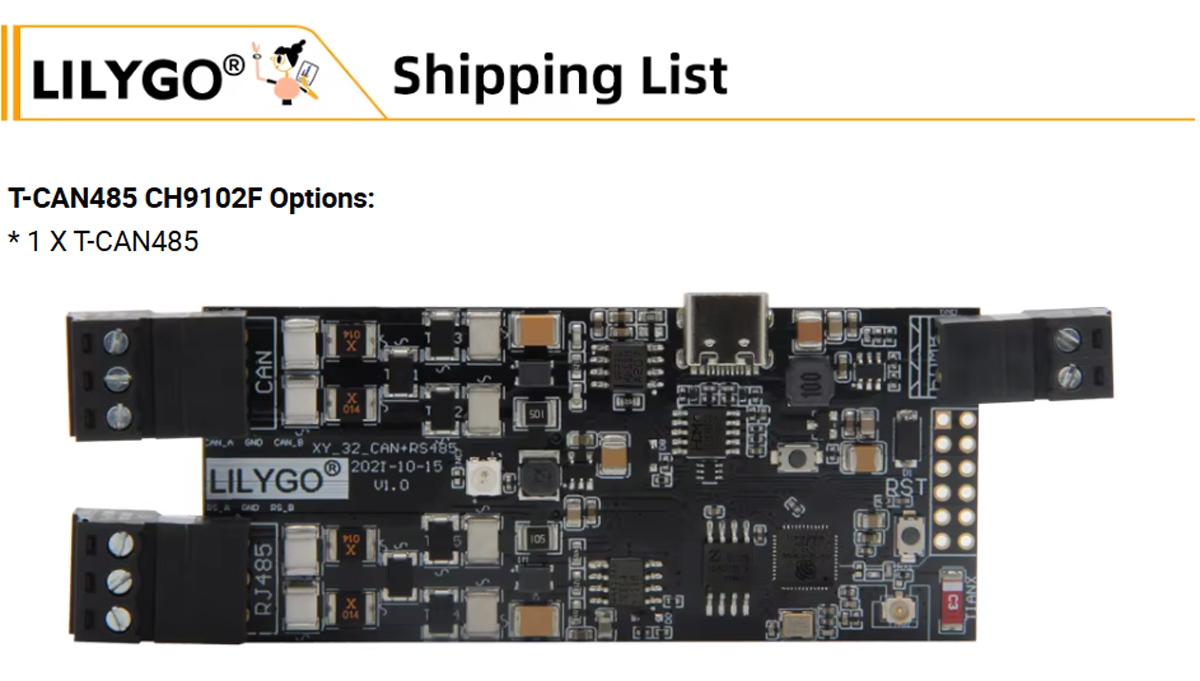

T-CAN485 x1
