Apply Environmental Conditon
–Storage Temperature Range:-30°C～80°C
–Operating Temperature Range:-25°C～70°C
Standard Test Environment
–Temperature Range:-25°C～70°C
–Humidity Range:65%±10%
Mechanical Specification

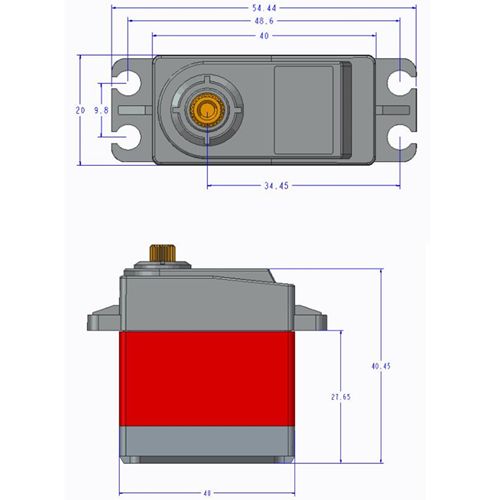

–Size:40.0*20.5*40.5mm
–Weight:56g±5%
–Gear type:5 Metal
–Limit angle:360°
–Bearing:2BB
–Horn gear spline:25T(5.9mm)
–Horn type:Plastic, POM
–Case:Engineering plastics(PBT)+Aluminum alloy

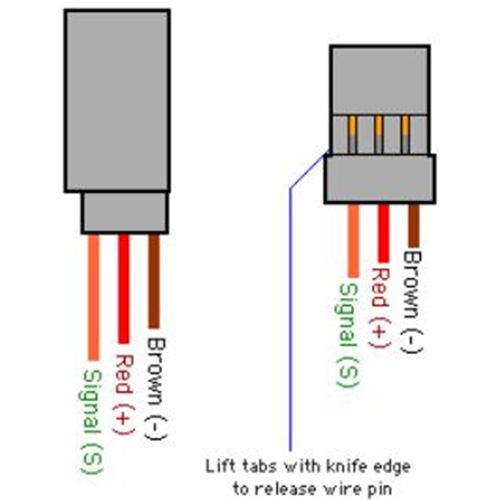

–Connector wire:320mm±5mm
–Moto:Carbon brush motor
–Splash water resistance:No
Electrical Specification
–Operat voltage:4.8V – 7.2V
–Idle current:mA
–No load speed:0.18sec/60° – 0.14sec/60°
–Runnig current:210mA – 260mA
–Peak stall torque:20.5kg.cm – 22.8kg.cm
–Stall current:2100mA±10% – 2700mA±10%
— Working voltage range:4.8-7.2V
Control Specification
–Command signal:Pulse width modification
— Amplifier type:Digital controller
–Pulse width range:500～2500usec
–Neutral position:1500usec
–Running degree:180°±3°(when 500～2500usec)
–Dead band width:5 usec
–Rotating direction:Counterclockwise (when 1000～2000usec)
